Product Overview

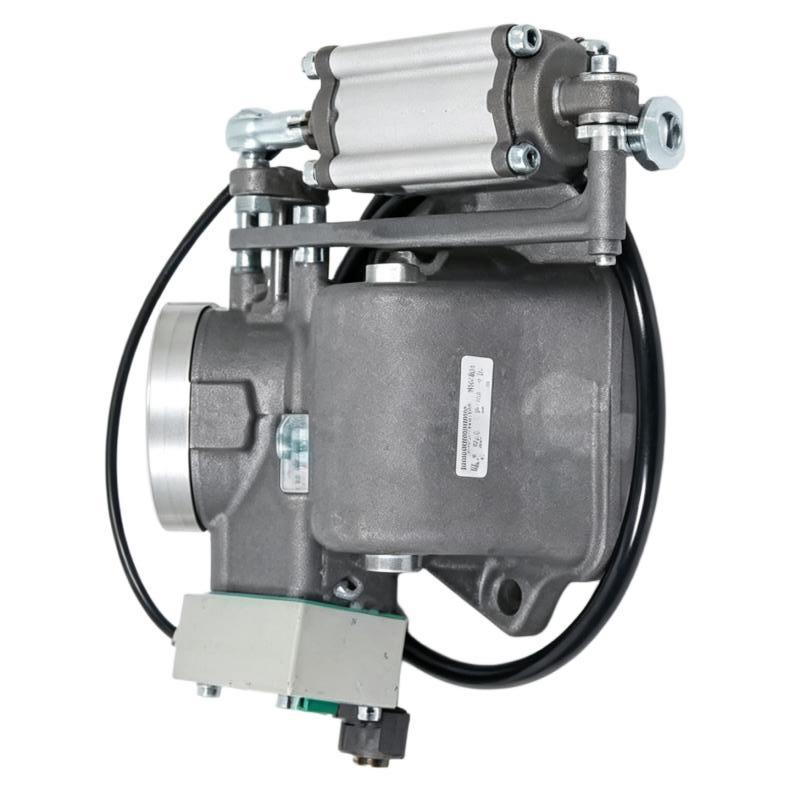

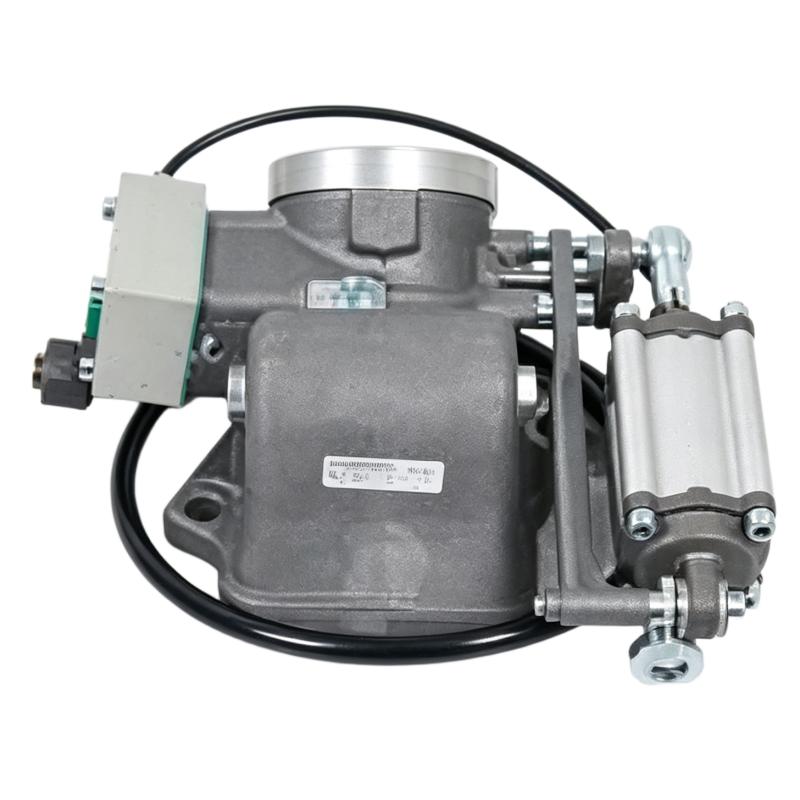

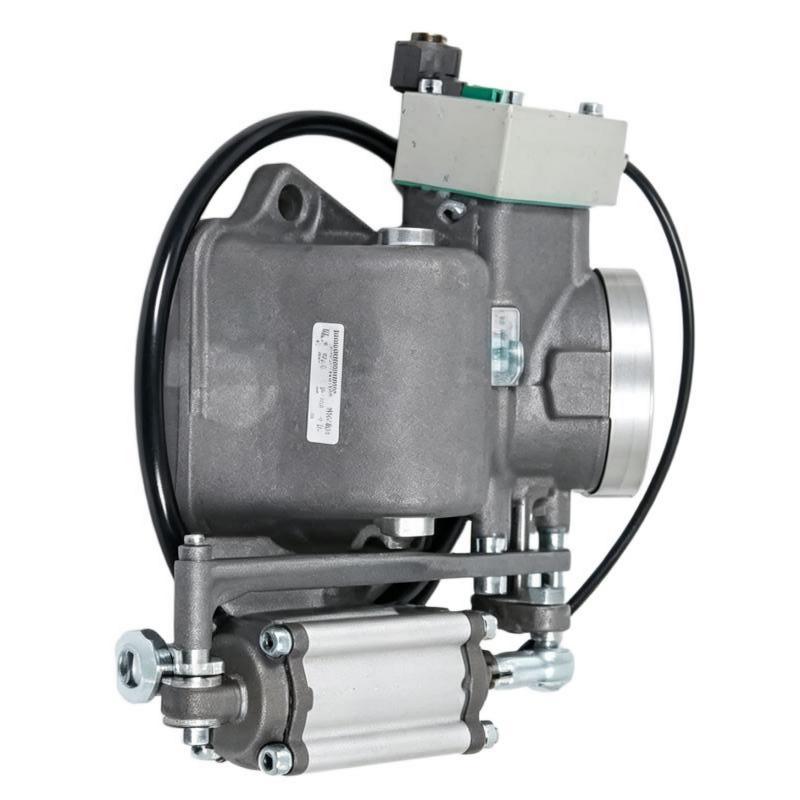

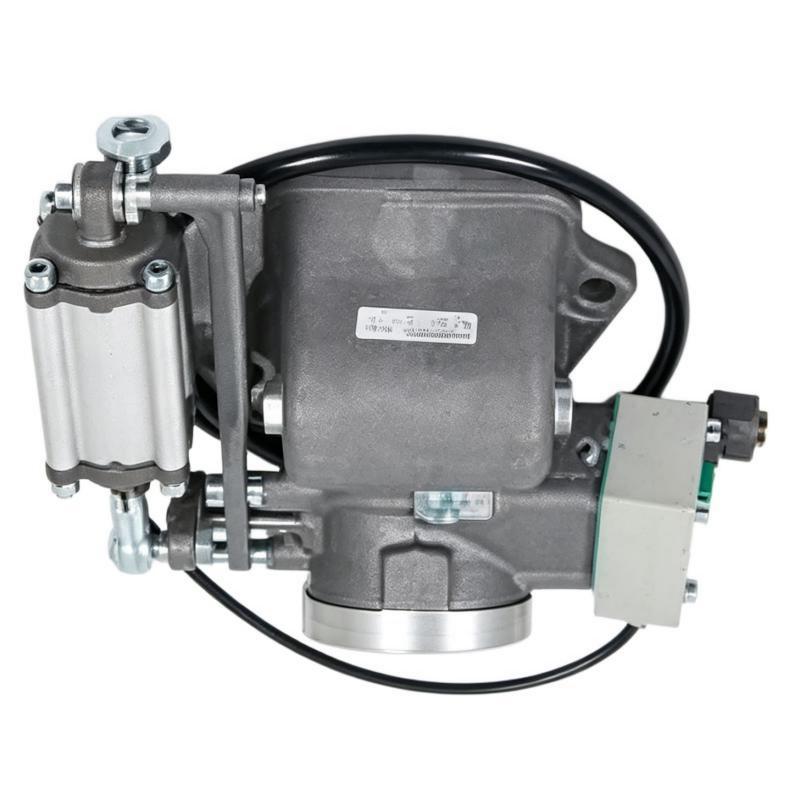

The Ingersoll Rand 47704446001 47538566001 Intake Valve On/Off is an industrial compressor component designed to control the intake air path of compatible Ingersoll Rand compressor equipment. As an intake valve, it plays an important role in regulating whether air is permitted to enter the compressor’s intake system during different operating conditions.
In a compressor, the intake system is closely connected with capacity control, loading and unloading behavior, system pressure management, and overall operating stability. An intake valve therefore needs to operate reliably and respond correctly to the compressor control sequence.
The 47704446001 is associated with reference number 47538566001 and is identified as an Intake Valve On/Off. The supplied physical dimensions are 250 × 180 × 160 mm, with a listed weight of 6.2 kg.
Because compressor configurations can differ by model and generation, the exact installation arrangement, actuation method, pressure characteristics, seals, and control requirements should be verified against the applicable equipment configuration before replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Part Number | 47704446001 |
| Reference Number | 47538566001 |
| Product Type | Intake Valve On/Off |
| Primary Function | Compressor intake air-path control |
| Application | Industrial compressor systems |
| Dimensions | 250 × 180 × 160 mm |
| Weight | 6.2 kg |
| Installation | Compatible Ingersoll Rand compressor equipment |
| Function | Intake air ON/OFF control |
The dimensions and weight above are based on the supplied product information. Exact operating pressure, temperature range, flow capacity, valve-port dimensions, actuation requirements, sealing materials, and control-signal specifications should be confirmed against the relevant compressor documentation.
What Is the Ingersoll Rand 47704446001 47538566001 Intake Valve?
The Ingersoll Rand 47704446001 47538566001 Intake Valve On/Off is a valve assembly associated with the compressor intake system.
Its basic purpose is to control the intake airflow path between the surrounding air supply and the compressor.
A simplified compressor air path can be represented as:
Ambient Air → Intake Filter → Intake Valve → Compressor Air End → Compressed-Air System
The actual arrangement varies according to the compressor design.
When the intake valve is commanded to an appropriate operating position, the compressor can receive intake air. When the valve is commanded to the corresponding closed or unloaded condition, the intake airflow can be restricted or interrupted according to the compressor’s control strategy.
This makes the intake valve an important component of the compressor’s loading and unloading system.
Intake Valve Working Principle
Intake Air Control
The intake valve is positioned in the compressor’s air-intake path.
Its operating state determines whether the compressor intake path is open or closed according to the equipment control sequence.
The basic operating concept is:
Open → Intake Air Available
Closed → Intake Air Restricted or Shut Off
The exact behavior depends on the compressor design and the associated control system.
Compressor Loading and Unloading
Many industrial compressors need to operate at different load conditions rather than continuously producing maximum output.
The intake valve can therefore participate in the loading and unloading process.
During a loaded operating condition, the valve may be commanded to allow the compressor to draw intake air. During an unloaded or stopped condition, the valve may be commanded toward a closed state according to the compressor’s control logic.
Interaction With Compressor Controls
The intake valve does not normally operate as an isolated mechanical component.
Its operation can be associated with:
- Compressor controller
- Solenoid or pilot control system
- Pressure-control system
- Intake piping
- Air filter
- Compressor air end
- Unloading system
- Pressure sensors
- Operating-state logic
The complete control architecture depends on the specific compressor model.
Role in Industrial Compressor Systems
The intake valve contributes to several important compressor functions.
Airflow Management
It controls the availability of intake air to the compressor.
Loading and Unloading
The valve can participate in compressor load-control sequences.
Operating-State Control
The intake valve position can correspond to different compressor operating states.
System Protection
Correct intake-valve operation can help the compressor controller manage operating conditions according to the equipment’s intended sequence.
Compressor Efficiency
Proper intake control helps avoid unnecessary airflow during conditions where full compressor loading is not required.
Industrial Applications
The 47704446001 47538566001 Intake Valve On/Off is intended for compatible Ingersoll Rand industrial compressor equipment.
Potential application environments include:
- Manufacturing plants
- Industrial compressed-air systems
- Factory pneumatic systems
- Automotive production
- Metal processing
- Packaging facilities
- Food and beverage production
- General process industries
- Utility compressed-air systems
- Industrial maintenance workshops
The exact compressor models compatible with this component should be confirmed using the equipment’s complete parts identification and configuration.
Intake Valve and Compressor Airflow
The intake valve forms part of a larger airflow chain.
A simplified system can be represented as:
Ambient Environment
↓
Intake Air Filter
↓
47704446001 / 47538566001 Intake Valve
↓
Compressor Air End
↓
Oil Separation / Cooling System
↓
Compressed-Air Outlet
↓
Plant Air Network
The valve therefore sits at an important point in the compressor’s air path.
If the valve does not move correctly, the compressor may not receive the expected amount of intake air.
Installation and Replacement Guide
Correct installation is important because the intake valve directly affects the compressor’s airflow path.
1. Verify the Part Number
Before installation, confirm:
Ingersoll Rand 47704446001
and the associated reference:
47538566001
The part should be matched to the compressor’s existing configuration rather than selected solely by physical appearance.
2. Shut Down the Compressor
The compressor should be stopped according to the applicable shutdown procedure.
The intake and compressed-air systems may contain stored pressure, so appropriate isolation and depressurization procedures should be followed before maintenance.
3. Isolate the Air System
Before removing the existing valve, confirm that relevant air pressure has been safely isolated.
Never assume that stopping the compressor automatically eliminates stored pressure from every section of the system.
4. Remove the Existing Valve
Disconnect the applicable connections and remove the existing intake valve according to the equipment maintenance procedure.
Record the original installation orientation before removal.
5. Inspect Associated Components
Before installing the replacement, inspect:
- Intake piping
- Valve mounting points
- Sealing surfaces
- Control connections
- Hoses
- Fittings
- Fasteners
- Nearby intake components
Damage or contamination in these areas can affect the operation of a replacement valve.
6. Install the Replacement Valve
Install the 47704446001 47538566001 Intake Valve On/Off in the correct orientation.
Ensure that all mechanical connections are secure and that the valve moves without mechanical interference.
7. Verify Control Connections
Check the applicable control or actuation connections against the compressor’s original configuration.
Do not apply an assumed control signal or pressure to the valve without confirming the requirements of the specific compressor system.
8. Perform a Functional Test
After installation, return the compressor to service according to the approved commissioning procedure.
Verify that the intake valve responds correctly during the relevant operating states.
Commissioning Checklist
After replacing the intake valve, maintenance personnel should verify:
- Correct part number
- Correct valve orientation
- Secure mechanical connections
- Correct sealing
- Proper control connections
- No visible air leakage
- Correct valve response
- Normal compressor startup
- Normal loading behavior
- Normal unloading behavior
- Stable compressor operation
The compressor should be monitored carefully during the first operating cycle following replacement.
Troubleshooting Intake Valve Problems
Compressor Will Not Load
If the compressor starts but does not enter the expected loaded operating state, the intake valve should be considered as one possible area of investigation.
Possible causes may include:
- Valve not opening
- Incorrect control signal
- Mechanical obstruction
- Damaged actuator or control mechanism
- Air-pressure problem in the control circuit
- Wiring or connection issue
- Compressor controller issue
- Incorrect valve installation
The complete loading-control system should be checked rather than replacing the valve immediately.
Compressor Does Not Unload Correctly
If the compressor continues to operate in an unexpected loaded condition, inspect the intake valve and its associated control circuit.
Possible causes include:
- Valve remaining open
- Control signal problem
- Mechanical sticking
- Contaminated valve mechanism
- Damaged sealing components
- Control-system malfunction
Insufficient Intake Airflow
Insufficient airflow can result from:
- Intake valve not fully opening
- Blocked intake filter
- Restricted intake piping
- Valve contamination
- Mechanical interference
- Incorrect installation
The entire intake path should be inspected.
Valve Sticking
A valve that does not move freely can affect compressor operating behavior.
Possible contributing factors include:
- Contamination
- Corrosion
- Mechanical wear
- Damaged sealing components
- Misalignment
- Long periods of inactivity
- Abnormal operating conditions
Air Leakage
Unexpected air leakage around the valve may indicate:
- Damaged seals
- Incorrect installation
- Loose connections
- Damaged valve body or fittings
- Incorrect seating
Leakage should be investigated promptly because it can affect compressor performance and system efficiency.
Preventive Maintenance
Regular inspection of the intake valve can help identify problems before they cause compressor downtime.
Inspect the Valve
Check for visible contamination, mechanical damage, corrosion, or abnormal wear.
Check the Intake Path
The valve should be inspected together with the intake filter and associated piping.
Check Control Connections
Where applicable, inspect control lines, fittings, electrical connections, and associated components.
Monitor Compressor Behavior
Changes in loading, unloading, startup, or airflow behavior can provide early indications of intake-control problems.
Inspect Sealing Surfaces
Leaks around the intake valve can indicate deteriorated seals or installation problems.
Maintain Clean Intake Air
A heavily contaminated intake environment can increase the amount of particulate material entering the intake system and potentially affect valve operation.
Replacement Considerations
When sourcing the Ingersoll Rand 47704446001 47538566001 Intake Valve On/Off, the complete identification should be checked carefully.
Important information includes:
- Manufacturer
- Part number
- Reference number
- Product type
- Compressor model
- Valve installation position
- Mechanical interface
- Control arrangement
- Physical dimensions
- Weight
The supplied physical dimensions are:
250 × 180 × 160 mm
The supplied weight is:
6.2 kg
The relatively substantial weight compared with smaller pneumatic components should also be considered when planning handling and installation.
Physical Dimensions and Weight
| Physical Parameter | Value |
|---|---|
| Length | 250 mm |
| Width | 180 mm |
| Height | 160 mm |
| Overall Dimensions | 250 × 180 × 160 mm |
| Weight | 6.2 kg |
These dimensions can be useful for replacement planning, maintenance access, packaging, storage, and equipment-layout preparation.
Physical dimensions should not, however, be used as the sole method of determining compatibility.
Storage and Handling
The intake valve should be protected from contamination and mechanical damage before installation.
Recommended practices include:
- Store in a clean and dry environment.
- Protect connection points from dust and debris.
- Avoid dropping or striking the valve.
- Keep protective packaging in place until installation.
- Prevent moisture accumulation.
- Avoid placing heavy components on the valve.
- Inspect the component before installation.
Because the component weighs 6.2 kg, suitable handling practices should be used during transportation and installation.
Compatible System Components
The intake valve operates as part of a larger compressor assembly.
Typical associated components may include:
| Component | General Function |
|---|---|
| Intake Air Filter | Removes suitable contaminants from incoming air |
| Intake Valve | Controls compressor intake airflow |
| Compressor Air End | Compresses incoming air |
| Control System | Manages compressor operating states |
| Pressure Sensors | Monitor relevant pressure conditions |
| Control Solenoid / Pilot Circuit | Provides valve actuation where applicable |
| Air Piping | Transfers intake or compressed air |
| Separator and Cooling Components | Support downstream compressor operation |
The exact components depend on the compressor model and system configuration.
Engineering Best Practices
Use the Complete Part Number
Always verify 47704446001 / 47538566001 before ordering or installing a replacement.
Do Not Select Solely by Appearance
Industrial intake valves can have similar external appearances while having different mechanical or control characteristics.
Record the Original Installation
Before removing the existing valve, document its orientation and connection arrangement.
Inspect the Entire Intake System
A valve problem may actually originate from a blocked filter, restricted piping, control-system fault, or damaged connection.
Verify Operation After Replacement
A replacement should be functionally tested during compressor startup, loading, and unloading conditions.
Maintain Spare Components
Maintaining suitable replacement inventory can reduce downtime when an intake-control component requires unexpected replacement.
Key Advantages
The Ingersoll Rand 47704446001 47538566001 Intake Valve On/Off provides several important functions when correctly matched to the applicable compressor:
- Controls compressor intake airflow
- Supports compressor loading and unloading
- Integrates with the compressor control sequence
- Helps manage compressor operating states
- Provides a dedicated intake-control function
- Compact 250 × 180 × 160 mm physical configuration
- Listed weight of 6.2 kg
- Suitable for industrial compressor maintenance and replacement applications
Technical FAQs
What is the Ingersoll Rand 47704446001?
The 47704446001 is an Ingersoll Rand Intake Valve On/Off, associated with reference number 47538566001.
What is the function of an intake valve?
An intake valve controls the airflow entering a compressor. Depending on the compressor control strategy, it can participate in loading, unloading, and operating-state management.
What is the reference number?
The associated reference number is 47538566001.
What are the dimensions of the intake valve?
The supplied dimensions are 250 × 180 × 160 mm.
How much does the valve weigh?
The listed weight is approximately 6.2 kg.
What can cause an intake valve to malfunction?
Possible causes include contamination, mechanical wear, incorrect installation, damaged seals, control-system problems, actuator issues, or restricted intake conditions.
Can a compressor intake valve be replaced based only on dimensions?
No. The complete part number, reference number, compressor model, mechanical interfaces, and control requirements should be verified before replacement.
Why is intake-valve operation important?
The intake valve directly affects the availability of intake air and can therefore influence compressor loading, unloading, airflow, and operating stability.
What should be checked after replacing the valve?
The valve orientation, mechanical connections, sealing, control connections, airflow, compressor startup, loading, and unloading behavior should all be verified.
Should the intake filter be inspected when replacing the valve?
Yes. The intake filter and valve are part of the same general airflow path. A blocked or heavily contaminated filter can produce symptoms that may otherwise be incorrectly attributed to the valve.
Conclusion
The Ingersoll Rand 47704446001 47538566001 Intake Valve On/Off is an important compressor intake-control component designed to manage the flow of air entering compatible industrial compressor equipment. By controlling the intake path, the valve can participate in compressor loading, unloading, airflow management, and overall operating-state control.
The component is identified by Ingersoll Rand part number 47704446001 and reference number 47538566001. The supplied physical dimensions are 250 × 180 × 160 mm, and the listed weight is 6.2 kg.
For replacement applications, technicians should verify the complete part number and compressor configuration before installation. The mechanical installation, valve orientation, control connections, sealing surfaces, and associated intake components should all be checked carefully.
After replacement, functional testing during compressor startup, loading, and unloading provides an important final verification that the intake valve is operating correctly and that the compressor can return to stable service.
