Product Overview

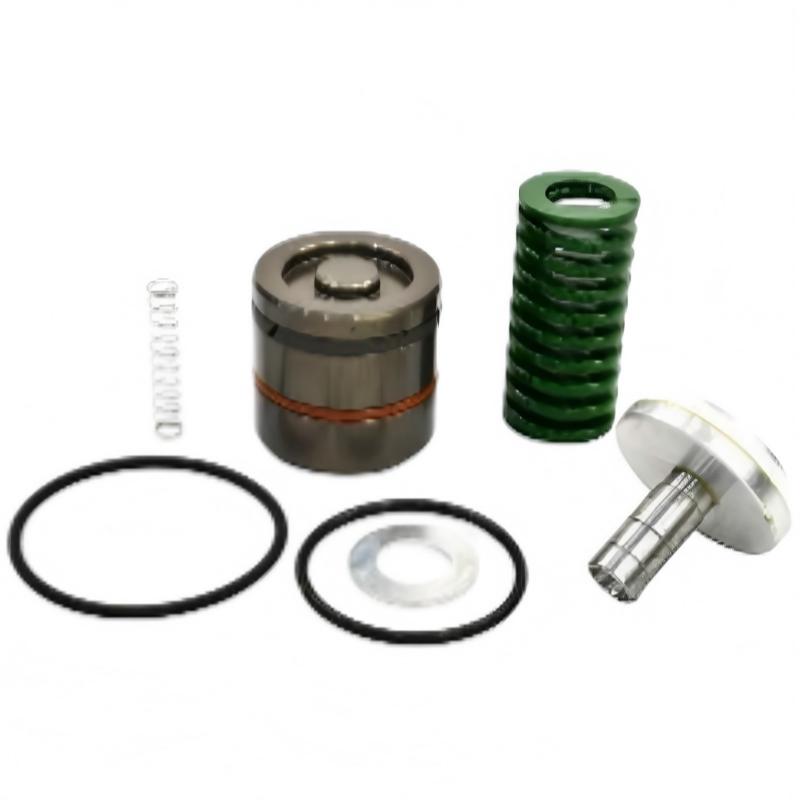

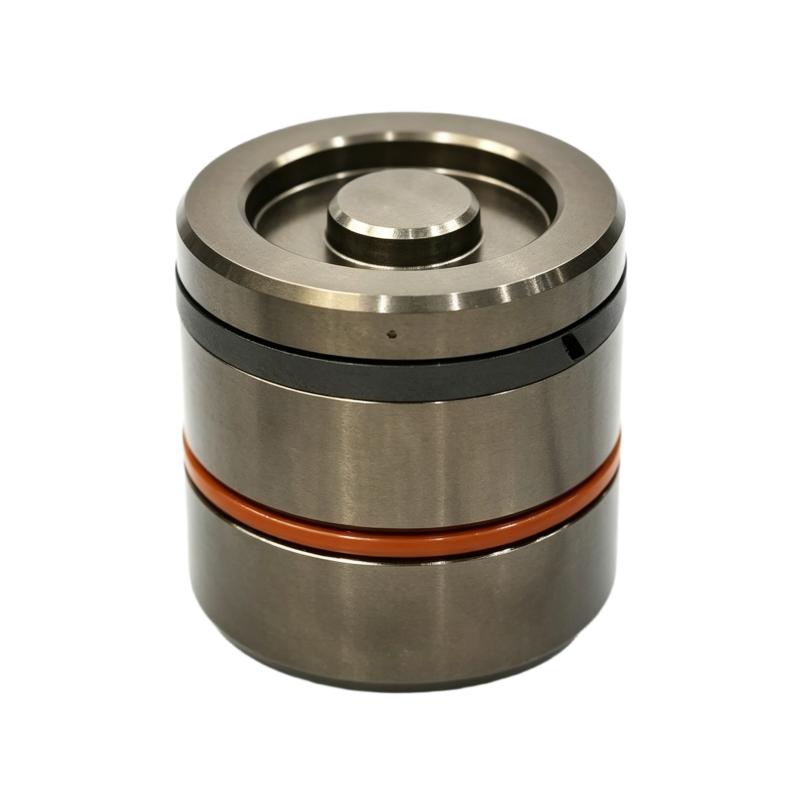

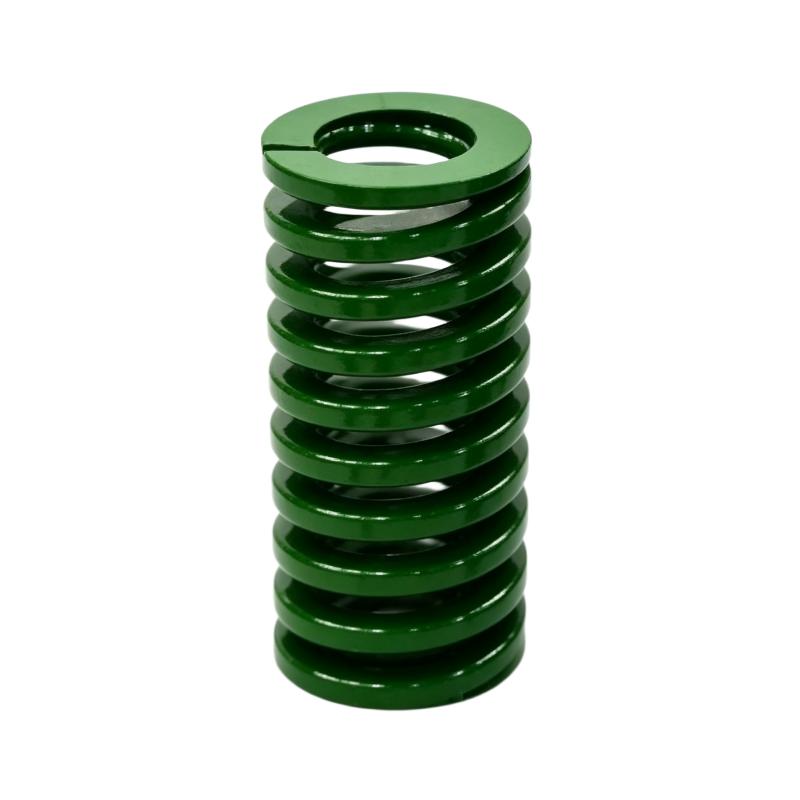

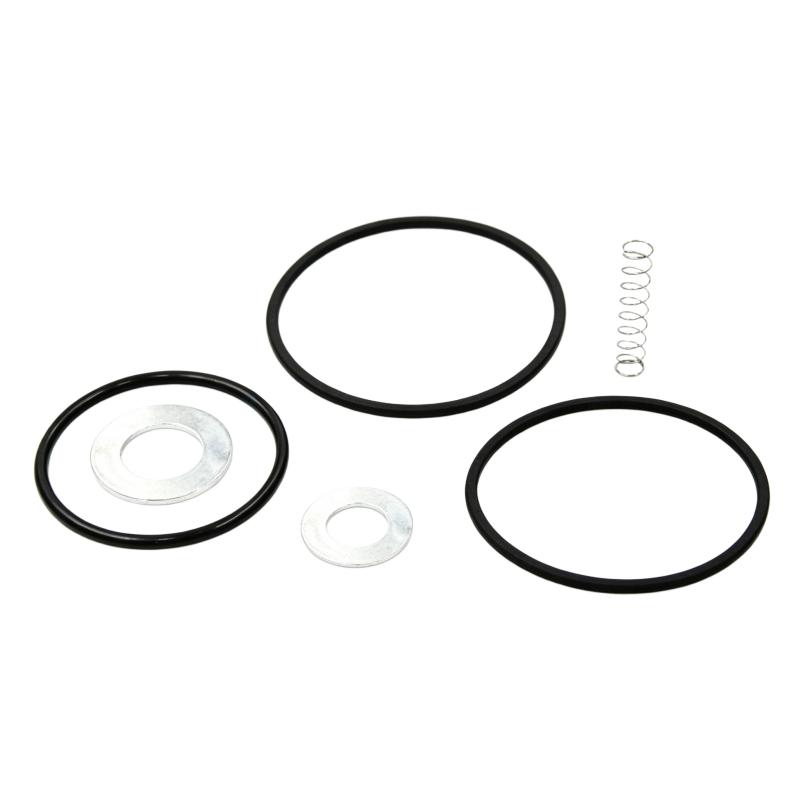

The Ingersoll Rand 47704431001 47690462001 Minimum Pressure Valve Kit is a compressor service component designed for use in compatible oil-injected compressed-air systems. The minimum pressure valve plays an important role in maintaining the required pressure inside the compressor’s separator and oil circuit while controlling the flow of compressed air toward the downstream air system.
A minimum pressure valve is commonly used to maintain sufficient internal compressor pressure during startup and low-load operation. Maintaining appropriate internal pressure helps support oil circulation and separation while preventing uncontrolled discharge of compressed air before the compressor reaches the required operating condition.
The supplied product information identifies the component as an Ingersoll Rand 47704431001 47690462001 Minimum Pressure Valve Kit, with dimensions of 100 × 15 × 80 mm and a weight of 0.1 kg.
Product Information
- Manufacturer: Ingersoll Rand
- Service Kit Number: 47704431001
- Component Number: 47690462001
- Product Type: Minimum Pressure Valve Kit
- Dimensions: 100 × 15 × 80 mm
- Weight: 0.1 kg
- Application: Oil-Injected Air Compressor Systems
- Primary Function: Minimum Pressure Regulation
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Service Kit Number | 47704431001 |
| Component Number | 47690462001 |
| Product Type | Minimum Pressure Valve Kit |
| Dimensions | 100 × 15 × 80 mm |
| Weight | 0.1 kg |
| Application | Industrial Air Compressor |
| Function | Minimum Pressure Control |
| Installation | Compressor Air/Oil Circuit |
| Maintenance | Inspection and Replacement |
The dimensions and weight above are based on the supplied product information. Compatibility should be verified against the specific compressor configuration before installation.
Function and Working Principle
The minimum pressure valve controls compressed-air flow leaving the compressor’s internal separator system.
A simplified operating sequence is:
Compressor Element
↓
Air-Oil Mixture
↓
Separator System
↓
Minimum Pressure Valve
↓
Compressed-Air Outlet
The valve remains sufficiently closed during low-pressure conditions to help maintain the required internal compressor pressure. Once the pressure reaches the appropriate operating level, the valve opens progressively to allow compressed air to flow to the downstream system.
The valve therefore contributes to:
- Maintaining separator pressure
- Supporting oil circulation
- Supporting proper oil separation
- Controlling compressor discharge
- Stabilizing compressor operation
- Protecting the compressor’s internal oil circuit
Why the Minimum Pressure Valve Is Important
The minimum pressure valve has a direct relationship with compressor startup and low-load operation.
If the valve does not close correctly, the compressor may have difficulty building internal pressure.
If the valve does not open correctly, excessive pressure may develop in the separator system.
A correctly functioning valve helps maintain the balance between internal compressor pressure and downstream compressed-air demand.
Industrial Applications
Rotary Screw Compressors
The kit is primarily associated with compatible oil-injected rotary screw compressor systems.
Manufacturing Plants
Supports reliable compressed-air generation for pneumatic tools, actuators, and production machinery.
Automotive Manufacturing
Helps maintain stable compressor discharge operation for automated production systems.
Food and Beverage
Supports compressor systems where reliable pressure control is required.
Pharmaceutical Facilities
Used in compressor maintenance programs where stable compressed-air generation is essential.
General Industrial Utilities
Supports plant compressed-air systems serving multiple production areas.
Installation Guide
Step 1 – Confirm the Replacement Kit
Before installation, verify:
Ingersoll Rand 47704431001
Component 47690462001
Minimum Pressure Valve Kit
Do not rely solely on appearance. Confirm compatibility with the compressor model and existing valve assembly.
Step 2 – Shut Down the Compressor
Before beginning maintenance:
- Stop the compressor normally.
- Isolate electrical power.
- Prevent automatic restart.
- Isolate the compressed-air outlet where required.
- Relieve internal pressure.
- Allow hot components and oil to cool.
Never disassemble a pressurized compressor system.
Step 3 – Prepare the Work Area
Prepare:
- Replacement minimum pressure valve kit
- Required seals
- Suitable hand tools
- Clean lint-free cloths
- Protective equipment
- Suitable cleaning materials
Keep the work area clean to prevent contamination of the air and oil circuits.
Step 4 – Inspect the Existing Valve Assembly
Before removing the existing valve, inspect:
- Valve body
- Spring mechanism
- Valve seat
- Seals
- Connections
- Nearby oil lines
- Air passages
Look for:
- Oil leakage
- Dirt
- Corrosion
- Mechanical damage
- Worn sealing surfaces
- Abnormal deposits
Step 5 – Remove the Existing Components
Carefully disconnect the valve assembly.
Record the original:
- Valve orientation
- Connection locations
- Seal positions
- Tubing arrangement
- Mounting arrangement
This makes reassembly easier and reduces installation errors.
Step 6 – Clean the Installation Area
Before installing the new kit:
- Clean the valve housing.
- Remove old sealing material.
- Inspect sealing surfaces.
- Remove contamination.
- Check connecting passages.
Do not allow dirt or foreign material to enter the compressor air or oil circuit.
Step 7 – Install the Replacement Kit
Install the components supplied with the 47690462001 Minimum Pressure Valve Kit according to the compressor’s mechanical arrangement.
Verify:
- Correct valve orientation
- Correct seal installation
- Proper spring placement
- Clean valve seat
- Secure mechanical connections
Avoid excessive tightening that could damage fittings or seals.
Step 8 – Inspect the Assembly
After installation verify:
- Valve movement
- Correct component position
- Proper sealing
- Secure connections
- No foreign material
- Correct tubing routing
Step 9 – Prepare for Startup
Before restoring the compressor:
- Install all covers.
- Remove tools.
- Confirm connections are secure.
- Confirm pressure has been safely restored to the normal startup condition.
- Verify electrical isolation has been removed only when the system is ready for operation.
Commissioning Procedure
After replacing the minimum pressure valve:
- Restore electrical power.
- Start the compressor.
- Observe startup pressure development.
- Monitor separator pressure where available.
- Observe discharge pressure.
- Check valve-related leakage.
- Monitor compressor temperature.
- Check oil circulation.
- Verify normal loading and unloading.
- Record the maintenance result.
Troubleshooting Guide
Problem 1 – Compressor Cannot Build Pressure
Possible causes:
- Minimum pressure valve stuck open
- Damaged valve seat
- Incorrect spring installation
- Seal leakage
- Excessive downstream demand
- Other compressor control problems
Diagnostic Procedure
- Check compressor startup behavior.
- Monitor internal pressure.
- Inspect the minimum pressure valve.
- Verify valve orientation.
- Check seals and valve seat.
- Inspect downstream air demand.
Problem 2 – Excessive Internal Pressure
Possible causes:
- Minimum pressure valve restricted
- Valve stuck closed
- Damaged valve components
- Downstream restriction
- Control-system fault
Check the valve’s mechanical movement and the complete discharge circuit.
Problem 3 – Slow Pressure Build-Up
Possible causes:
- Valve leakage
- Worn valve seat
- Damaged spring
- Incorrect installation
- Excessive compressed-air demand
- Compressor performance problem
A minimum pressure valve that cannot maintain sufficient internal pressure may affect compressor startup performance.
Problem 4 – Excessive Pressure Drop
Possible causes:
- Valve restriction
- Contamination
- Incorrect valve installation
- Damaged internal components
- Downstream restriction
Inspect both the valve and downstream air circuit.
Problem 5 – Oil Carryover Increases
Possible causes:
- Minimum pressure valve malfunction
- Insufficient separator pressure
- Oil recovery problem
- Separator deterioration
- Excessive oil level
- Incorrect compressor operating condition
The minimum pressure valve should be evaluated together with the separator and oil recovery circuit.
Problem 6 – Valve Leakage
Possible causes:
- Damaged seal
- Worn valve seat
- Contamination
- Incorrect assembly
- Damaged valve component
Disassemble and inspect the valve according to the applicable service procedure.
Problem 7 – Compressor Loads Incorrectly
Possible causes:
- Valve pressure-control problem
- Compressor control fault
- Incorrect installation
- Pressure-sensing problem
- Air demand fluctuation
Verify the minimum pressure valve together with the compressor’s control system.
Problem 8 – Unstable Operating Pressure
Possible causes:
- Valve sticking
- Contaminated valve
- Damaged spring
- Pressure-control instability
- Air demand changes
Observe pressure behavior during startup, loading, and unloading.
Problem 9 – Oil Leakage Around Valve
Possible causes:
- Damaged seal
- Loose fitting
- Incorrect installation
- Damaged sealing surface
Stop the compressor if significant leakage occurs and correct the problem before continued operation.
Problem 10 – New Valve Kit Does Not Resolve the Fault
If symptoms remain after installing a new kit, inspect:
- Compressor pressure-control system
- Separator
- Oil recovery circuit
- Pressure sensors
- Air outlet
- Compressor element
- Downstream air demand
- Other control components
Replacing the minimum pressure valve alone cannot resolve faults originating elsewhere in the compressor.
Fault Diagnosis Flow
A systematic diagnostic sequence is:
Compressor Startup
↓
Internal Pressure
↓
Minimum Pressure Valve
↓
Valve Seat and Spring
↓
Seals
↓
Separator System
↓
Oil Recovery Circuit
↓
Downstream Air System
↓
Compressor Control System
This sequence helps distinguish mechanical valve problems from wider compressor-system faults.
Minimum Pressure Valve Kit Replacement Procedure
Preparation
- Confirm the kit number.
- Verify compressor compatibility.
- Shut down the compressor.
- Isolate electrical power.
- Relieve pressure.
- Allow the compressor to cool.
Removal
- Open the required service access.
- Identify the valve assembly.
- Disconnect connected lines.
- Remove mounting components.
- Remove old valve components.
- Inspect the valve housing.
Cleaning and Inspection
Check:
- Valve seat
- Spring
- Sealing surfaces
- Internal passages
- Mounting threads
- Oil contamination
Clean the components carefully.
Installation
- Install the new valve components.
- Install new seals where supplied.
- Verify spring position.
- Verify valve orientation.
- Secure the assembly.
- Reconnect all lines.
Startup
- Close service access.
- Restore electrical power.
- Start the compressor.
- Monitor pressure build-up.
- Check for leakage.
- Verify normal loading and unloading.
- Record the maintenance result.
Preventive Maintenance
| Maintenance Item | Recommended Action |
|---|---|
| Minimum Pressure Valve | Inspect during compressor service |
| Valve Seat | Check for wear and contamination |
| Spring | Inspect for damage |
| Seals | Replace when required |
| Valve Housing | Check condition |
| Air Connections | Inspect for leakage |
| Oil Circuit | Check for abnormal contamination |
| Compressor Pressure | Monitor during operation |
| Loading/Unloading | Verify normal operation |
| Maintenance Records | Record service work |
Factors Affecting Valve Service Life
Minimum pressure valve performance can be affected by:
- Compressor operating hours
- Oil condition
- Oil contamination
- High operating temperature
- Dust and environmental contamination
- Frequent startup and shutdown
- Incorrect maintenance
- Mechanical wear
- Pressure fluctuations
Regular compressor maintenance helps reduce premature valve deterioration.
Common Installation Mistakes
Incorrect Kit Identification
Using an incompatible kit can result in incorrect valve performance.
Incorrect Spring Installation
Improper spring positioning can affect pressure regulation.
Damaged Seals
Old seals can cause leakage and pressure instability.
Contaminated Valve Seat
Dirt can prevent the valve from closing properly.
Incorrect Valve Orientation
Incorrect installation can interfere with proper air and oil flow.
Excessive Tightening
Overtightening can damage fittings, threads, or sealing components.
Failure to Relieve Pressure
Residual compressor pressure creates a serious maintenance hazard.
Failure to Test Startup
The compressor should be monitored after replacement to confirm correct pressure behavior.
Key Advantages
- Designed for compatible Ingersoll Rand compressor systems
- Supports minimum pressure regulation
- Helps maintain compressor internal pressure
- Supports stable oil separation
- Helps maintain proper oil circulation
- Supports reliable compressor startup
- Compact dimensions of 100 × 15 × 80 mm
- Lightweight design at 0.1 kg
- Suitable for scheduled compressor maintenance
- Helps reduce pressure-control-related downtime
Technical FAQs
What is the Ingersoll Rand 47704431001 47690462001?
It is a Minimum Pressure Valve Kit intended for maintenance of compatible Ingersoll Rand compressor systems.
What does the minimum pressure valve do?
It helps maintain sufficient internal compressor pressure before allowing compressed air to flow normally toward the downstream system.
What are the dimensions?
The supplied dimensions are 100 × 15 × 80 mm.
What is the weight?
The supplied weight is 0.1 kg.
What happens if the minimum pressure valve remains open?
The compressor may have difficulty building the required internal pressure, particularly during startup and low-load operation.
What happens if the valve remains closed?
Excessive internal pressure or restricted compressed-air discharge can occur.
Can a faulty minimum pressure valve increase oil carryover?
Yes. If the valve cannot maintain the required internal pressure, it can affect the compressor’s oil-separation conditions and contribute to oil carryover.
Why does a compressor build pressure slowly?
Possible causes include minimum pressure valve leakage, worn valve components, damaged seals, excessive downstream demand, or other compressor performance problems.
How should the valve kit be maintained?
Inspect the valve during scheduled compressor maintenance and check the valve seat, spring, seals, connections, and operating pressure.
When should the valve kit be replaced?
Replacement is appropriate when the valve exhibits persistent leakage, sticking, damaged components, abnormal pressure behavior, or other faults that cannot be corrected through normal servicing.
Conclusion
The Ingersoll Rand 47704431001 47690462001 Minimum Pressure Valve Kit is an important maintenance component for compatible oil-injected compressor systems. The minimum pressure valve helps maintain sufficient internal pressure during startup and low-load operation while supporting proper oil separation and circulation.
The supplied kit dimensions are 100 × 15 × 80 mm, with a weight of 0.1 kg. Correct installation requires careful attention to valve orientation, spring position, sealing surfaces, pressure relief, and connection integrity.
When troubleshooting, technicians should evaluate compressor pressure build-up, valve movement, valve-seat condition, seals, separator performance, oil recovery, and downstream demand as a complete system. Proper installation and preventive maintenance can help maintain stable compressor operation, reduce oil-related problems, and minimize unexpected downtime.
