Product Overview
The Ingersoll Rand 47704430001 47690462001 Minimum Pressure Valve Kit is a mechanical service component designed for use in compatible Ingersoll Rand industrial air compressor systems.
The minimum pressure valve is an important part of an oil-injected compressor’s air and oil management system. It helps maintain the required minimum pressure within the separator or compressor vessel before allowing compressed air to flow into the downstream air network.
Maintaining this minimum internal pressure supports proper operation of the compressor’s oil circulation and separation system. The valve also helps prevent undesirable pressure conditions during compressor startup and changing load conditions.

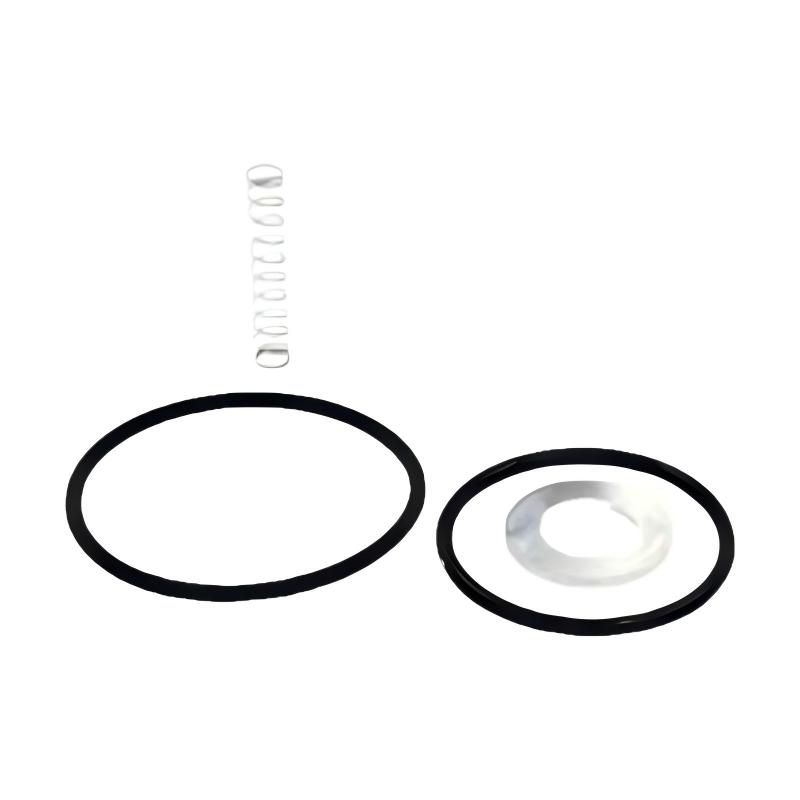

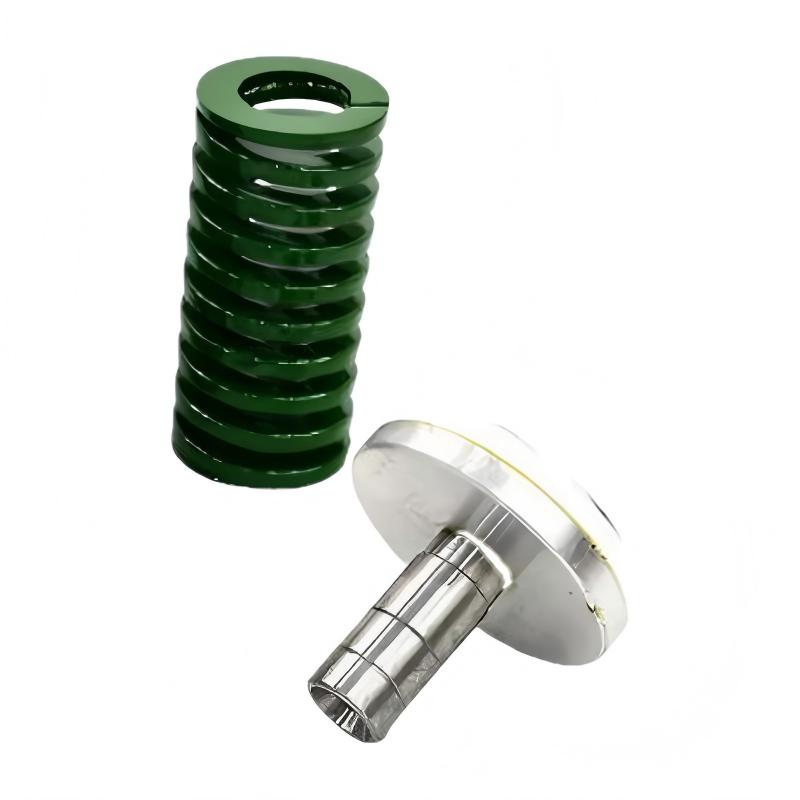

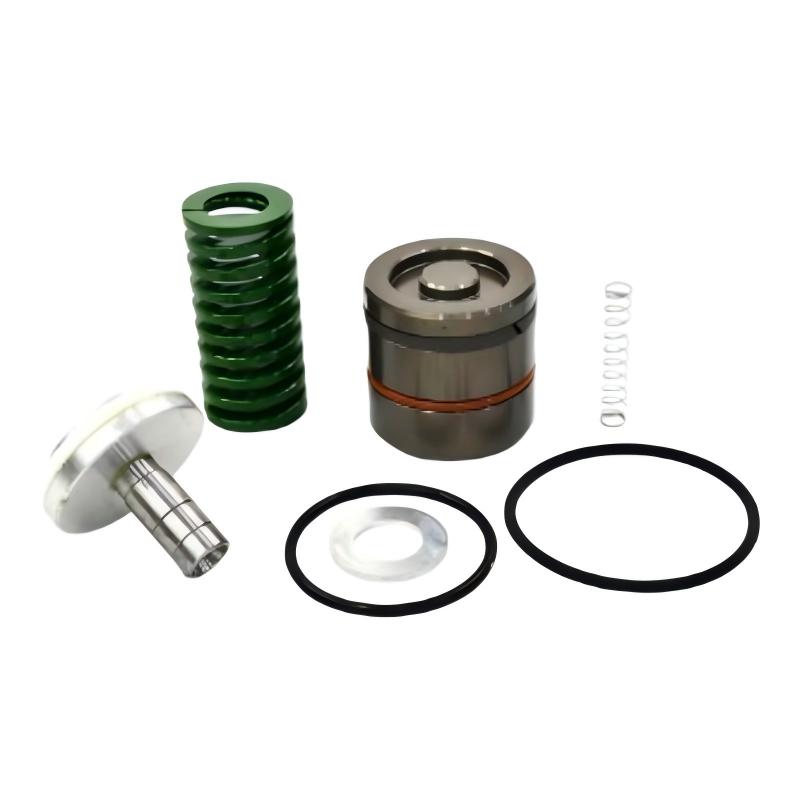

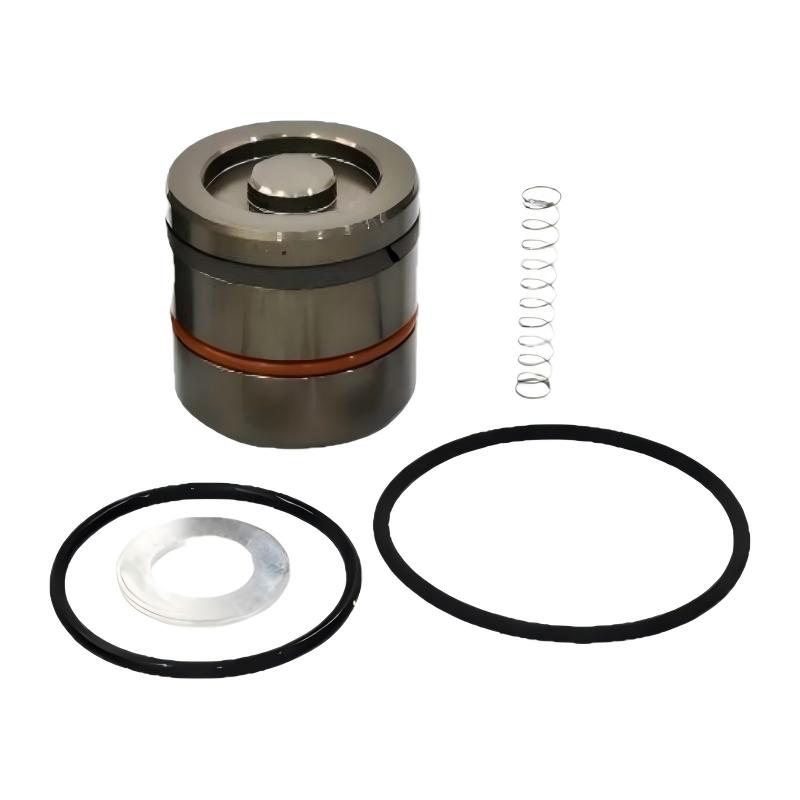

The 47690462001 Minimum Pressure Valve Kit is supplied as a compact maintenance component with listed dimensions of approximately 100 × 15 × 80 mm and a weight of approximately 0.1 kg.
Unlike an electrical control module, this product operates mechanically in the compressed-air circuit. Its performance directly affects compressor pressure regulation, oil circulation and the transition between compressor internal pressure and downstream system pressure.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Ingersoll Rand |
| Model | 47704430001 |
| Part Number | 47690462001 |
| Product Type | Minimum Pressure Valve Kit |
| Component Category | Compressor pressure-control component |
| Primary Function | Maintains minimum compressor internal pressure |
| Application | Oil-injected industrial air compressors |
| System | Compressed-air and oil circulation system |
| Valve Type | Minimum pressure valve |
| Installation Position | Compressor air/oil separation and outlet circuit |
| Product Dimensions | 100 × 15 × 80 mm |
| Weight | Approx. 0.1 kg |
| Application Environment | Industrial |
| Maintenance Type | Service / replacement kit |
| Pressure Control Function | Maintains minimum internal pressure |
| Airflow Function | Controls compressed-air outlet flow |
| Typical Equipment | Compatible Ingersoll Rand compressor systems |
| Maintenance Role | Compressor preventive maintenance |
Function and Working Principle
The 47690462001 Minimum Pressure Valve Kit is designed to maintain a minimum pressure level inside the compressor’s internal air/oil system.
A simplified operating sequence is:
Compressor Air End
↓
Air/Oil Separation System
↓
Minimum Pressure Valve
↓
Compressed-Air Outlet
↓
Downstream Air System
During compressor startup, the valve remains sufficiently closed or restricted until the internal compressor pressure reaches the required minimum operating level.
Once the internal pressure reaches the appropriate threshold, the valve permits compressed air to move toward the downstream system.
This operating principle provides several important benefits:
- Helps establish internal compressor pressure during startup
- Supports oil circulation
- Supports effective air/oil separation
- Controls compressor outlet airflow
- Helps prevent excessive reverse flow
- Supports stable compressor operation
The exact pressure characteristics and control behavior depend on the compressor design.
What Is the Ingersoll Rand 47690462001 Minimum Pressure Valve Kit Used For?
The Ingersoll Rand 47704430001 47690462001 Minimum Pressure Valve Kit is used in compatible oil-injected compressor systems to control the pressure relationship between the compressor’s internal separation system and the downstream compressed-air network.
Typical applications include:
- Industrial air compressors
- Rotary screw compressors
- Factory compressed-air systems
- Manufacturing plants
- Automotive production
- Packaging facilities
- Process industries
- Pneumatic production systems
- Industrial utility-air systems
- Central compressor stations
The valve becomes particularly important during compressor startup, unloading and changing system-pressure conditions.
Role in Industrial Compressor Systems
The minimum pressure valve is positioned within the compressor’s compressed-air outlet path.
A simplified system arrangement is:
Ambient Air
↓
Air Intake Filter
↓
Compressor Air End
↓
Air/Oil Mixture
↓
Air/Oil Separator
↓
Minimum Pressure Valve
↓
Aftercooler
↓
Air Receiver / Plant Network
At the same time, the compressor’s oil follows a separate recovery path:
Separated Oil
↓
Oil Return Circuit
↓
Oil Cooler
↓
Oil Filter
↓
Compressor Air End
The minimum pressure valve helps maintain the internal pressure conditions required for this system to operate correctly.
Why Minimum Pressure Is Important
An oil-injected compressor does not simply compress air and immediately send all of it downstream.
The compressor requires appropriate internal pressure to support several functions.
These include:
- Oil circulation
- Air/oil separation
- Compressor lubrication
- Cooling
- Stable internal operating conditions
If internal pressure becomes too low, the oil circulation system may not operate as intended.
The minimum pressure valve therefore helps establish a pressure level that allows the compressor’s internal systems to function properly.
Minimum Pressure Valve During Compressor Startup
Startup is one of the most important operating conditions for the minimum pressure valve.
A simplified sequence is:
Step 1 – Compressor Starts
The motor begins driving the compressor air end.
Step 2 – Internal Pressure Builds
Compressed air and oil accumulate within the internal compressor system.
Step 3 – Minimum Pressure Is Established
The minimum pressure valve restricts downstream airflow sufficiently to allow internal pressure to rise.
Step 4 – Valve Opens
Once the required pressure condition is reached, the valve allows compressed air to flow toward the downstream system.
Step 5 – Normal Operation
The compressor continues operating while the valve regulates the outlet relationship according to the system pressure conditions.
This sequence supports stable compressor startup and normal operation.
Minimum Pressure Valve and Air-Oil Separator
The minimum pressure valve works closely with the air-oil separator.
The separator removes oil from compressed air, while the minimum pressure valve helps maintain the pressure conditions required for effective operation of the separation system.
| Component | Main Function |
|---|---|
| Air-Oil Separator | Separates oil from compressed air |
| Minimum Pressure Valve | Maintains required minimum internal pressure |
| Oil Filter | Filters circulating compressor oil |
| Air Filter | Filters incoming atmospheric air |
| Oil Cooler | Controls oil temperature |
| Air Cooler | Reduces compressed-air temperature |
| Intake Valve | Controls compressor air intake |
A problem with one component can sometimes produce symptoms that appear to originate from another component.
For example, unusual oil carryover should not automatically be attributed to the separator without checking compressor pressure and valve operation.
Industrial Applications
Manufacturing Plants
Compressed air is widely used in manufacturing for:
- Pneumatic actuators
- Automated machinery
- Production tools
- Control valves
- Assembly equipment
- Material handling
The minimum pressure valve supports stable compressor operation in these applications.
Automotive Production
Automotive plants often operate large centralized compressor systems.
Stable pressure control helps maintain reliable compressed-air availability for production equipment.
Packaging Systems
Packaging machinery relies heavily on pneumatic components.
A properly functioning compressor contributes to consistent air pressure for cylinders, valves and grippers.
Process Industries
Process facilities may require compressors to operate continuously.
Pressure control becomes particularly important where compressor stability and continuous operation are critical.
Industrial Utility Systems
Large facilities often use compressor stations to supply plant-wide utility air.
The minimum pressure valve forms part of the internal compressor pressure-management system.
Installation and System Integration
The 47704430001 47690462001 Minimum Pressure Valve Kit should be installed only after the compressor has been placed in a safe maintenance condition.
A general service procedure includes:
- Shut down the compressor.
- Isolate the electrical power supply.
- Prevent accidental compressor startup.
- Completely depressurize the compressor system.
- Allow hot components to cool.
- Confirm the replacement kit identification.
- Access the minimum pressure valve assembly.
- Remove the existing valve components.
- Inspect the valve seat and surrounding components.
- Clean appropriate sealing surfaces.
- Inspect associated seals and fittings.
- Install the new valve kit.
- Verify correct orientation.
- Reassemble the valve assembly.
- Check all connections.
- Restore the compressor system.
- Start the compressor.
- Monitor startup pressure.
- Check downstream airflow.
- Inspect for leakage or abnormal operation.
The exact procedure depends on the compressor model and valve configuration.
Installation Precautions
Verify the Correct Part Number
Before replacement, confirm:
47704430001
and:
47690462001
The complete compressor model should also be checked.
Fully Depressurize the System
A minimum pressure valve is installed in a pressurized compressor circuit.
The system must be depressurized before maintenance begins.
Check the Valve Orientation
Incorrect installation can prevent the valve from regulating pressure correctly.
Inspect Sealing Components
Check associated seals and contact surfaces for:
- Wear
- Cracks
- Deformation
- Dirt
- Damage
Inspect the Valve Seat
The valve seat should be free from foreign material that could prevent proper closing.
Perform a Functional Check
After installation, startup behavior and operating pressure should be monitored.
Maintenance and Inspection
The minimum pressure valve should be included in the compressor’s preventive-maintenance program.
| Inspection Item | Purpose |
|---|---|
| Valve body | Check physical condition |
| Valve seat | Check sealing surface |
| Spring or regulating mechanism | Check mechanical condition |
| Seals | Prevent leakage |
| Internal pressure | Confirm proper operation |
| Outlet pressure | Check downstream behavior |
| Startup sequence | Verify pressure buildup |
| Oil circulation | Confirm proper compressor operation |
| Air/oil separation | Identify abnormal conditions |
| Leakage | Detect seal or valve problems |
A valve that is sticking, leaking or incorrectly adjusted can affect compressor performance.
Signs of a Minimum Pressure Valve Problem
| Symptom | Possible Cause |
|---|---|
| Slow pressure buildup during startup | Valve leakage or related pressure-system issue |
| Excessive internal pressure | Valve restriction or malfunction |
| Low internal pressure | Valve opening too early or another system issue |
| Unstable outlet pressure | Valve or control-system problem |
| Excessive oil carryover | Incorrect internal pressure or another separation-system issue |
| Poor oil circulation | Insufficient internal pressure |
| Compressor high-temperature condition | Possible oil circulation problem |
| Abnormal startup behavior | Valve or pressure-control issue |
| Air leakage | Damaged valve or sealing components |
| Compressor protection alarm | Abnormal pressure condition |
These symptoms can have multiple causes.
A complete diagnostic procedure should include pressure sensors, the air/oil separator, oil circuit, compressor controller and related valves.
Minimum Pressure Valve and Compressor Efficiency
The minimum pressure valve influences the pressure relationship between the compressor and the downstream air network.
If the valve creates excessive restriction, the compressor may need to operate against a higher internal pressure.
If it opens too easily, the compressor may have difficulty establishing the internal pressure required for proper oil circulation and separation.
Therefore, correct valve operation is important for balancing:
- Internal compressor pressure
- Downstream pressure
- Oil circulation
- Air/oil separation
- Compressor loading
- Energy efficiency
The valve should operate according to the intended characteristics of the compressor system.
Minimum Pressure Valve vs. Pressure Regulator
These components should not be confused.
| Component | Primary Purpose |
|---|---|
| Minimum Pressure Valve | Maintains a minimum internal compressor pressure |
| Pressure Regulator | Controls or reduces downstream pressure to a set value |
| Safety Relief Valve | Protects against excessive pressure |
| Check Valve | Prevents reverse airflow |
| Intake Valve | Controls compressor air intake |
The minimum pressure valve is primarily associated with the compressor’s internal operating conditions rather than general downstream pressure regulation.
Compatible System Components
The 47690462001 Minimum Pressure Valve Kit can operate as part of a larger compressor assembly containing:
| Component | Function |
|---|---|
| Compressor Air End | Generates compressed air |
| Air-Oil Separator | Separates oil from compressed air |
| Minimum Pressure Valve | Maintains minimum internal pressure |
| Oil Filter | Filters compressor oil |
| Oil Cooler | Controls oil temperature |
| Air Cooler | Reduces compressed-air temperature |
| Oil Return Line | Returns recovered oil |
| Air Intake Filter | Cleans incoming air |
| Intake Valve | Controls compressor airflow |
| Pressure Sensors | Monitor system pressure |
| Temperature Sensors | Monitor operating temperature |
| Compressor Controller | Controls and monitors operation |
| Air Receiver | Stores compressed air |
| Air Dryer | Removes moisture from compressed air |
The exact configuration depends on the compressor model.
Recommended Alternative Models
| Model | Type | Key Feature | Typical Application |
|---|---|---|---|
| 47704430001 / 47690462001 | Minimum Pressure Valve Kit | Maintains compressor internal minimum pressure | Compatible Ingersoll Rand systems |
| Compressor Minimum Pressure Valve | Pressure Control Valve | Controls internal compressor pressure | Oil-injected compressors |
| Heavy-Duty Minimum Pressure Valve | Compressor Valve | Designed for demanding operating conditions | Industrial compressors |
| Compressor Pressure Valve Kit | Service Kit | Replacement pressure-control components | Preventive maintenance |
| Minimum Pressure Control Assembly | Pressure-Control Component | Supports startup and operating pressure | Industrial compressed-air systems |
| Compressor Outlet Pressure Valve | Pressure Valve | Controls compressor outlet behavior | Compressor service |
| Compressor Valve Maintenance Kit | Service Component | Supports valve maintenance | Scheduled maintenance |
| Compatible Pressure Control Kit | Valve Kit | Replacement pressure-control solution | Industrial compressor systems |
Alternative components should be selected according to the complete compressor model, valve specifications, pressure requirements and installation arrangement.
Dimensions alone are not sufficient to establish compatibility.
Key Advantages
- Designed for compressor minimum-pressure control
- Helps establish appropriate internal compressor pressure
- Supports oil circulation
- Supports effective air/oil separation
- Helps regulate compressor outlet airflow
- Supports stable compressor startup
- Contributes to reliable compressor operation
- Compact service component
- Product dimensions of 100 × 15 × 80 mm
- Approximate weight of 0.1 kg
- Associated identification 47704430001 / 47690462001
- Suitable for compatible Ingersoll Rand compressor systems
- Useful for preventive compressor maintenance
Technical FAQs
What is the Ingersoll Rand 47704430001 47690462001?
The 47704430001 47690462001 is a Minimum Pressure Valve Kit designed for compatible Ingersoll Rand industrial compressor systems.
What is the main function of a minimum pressure valve?
It helps maintain the minimum internal pressure required for proper compressor operation, particularly during startup and low-pressure conditions.
Why does an oil-injected compressor need minimum internal pressure?
Minimum internal pressure helps support oil circulation, cooling, sealing and effective air/oil separation within the compressor.
What are the dimensions of the valve kit?
The supplied dimensions are approximately:
100 × 15 × 80 mm
What is the weight?
The listed weight is approximately:
0.1 kg
Is a minimum pressure valve the same as a pressure regulator?
No. A minimum pressure valve primarily maintains internal compressor pressure, while a pressure regulator is generally used to control downstream pressure.
What happens if the valve opens too early?
The compressor may have difficulty building the internal pressure required for proper oil circulation and air/oil separation.
What happens if the valve remains too restricted?
Excessive internal pressure and increased resistance may occur, potentially affecting compressor efficiency and operating temperature.
Can a minimum pressure valve cause oil carryover?
A valve problem can contribute to abnormal pressure conditions that affect the separation system, but excessive oil carryover can have several other causes and should be diagnosed systematically.
How often should the valve kit be replaced?
Replacement depends on compressor operating hours, valve condition, maintenance requirements and the specific compressor model.
Can I use another valve with the same dimensions?
No. Pressure characteristics, valve configuration, sealing arrangement and compressor compatibility must also be verified.
What should be checked after replacing the valve?
The compressor should be checked for:
- Startup pressure buildup
- Internal pressure
- Outlet pressure
- Oil circulation
- Oil carryover
- Leakage
- Abnormal temperature
- Diagnostic alarms
- Overall compressor operation
Conclusion
The Ingersoll Rand 47704430001 47690462001 Minimum Pressure Valve Kit is a compact but important mechanical component within compatible oil-injected industrial compressor systems.
Its primary purpose is to help maintain the minimum internal pressure required for stable compressor operation. By controlling the pressure relationship between the compressor’s internal air/oil system and the downstream compressed-air network, the valve supports oil circulation, air/oil separation and reliable startup behavior.
With supplied dimensions of 100 × 15 × 80 mm and an approximate weight of 0.1 kg, the component is suitable as a dedicated compressor service and replacement part.
The minimum pressure valve should be evaluated together with the air-oil separator, oil filter, oil-return circuit, pressure sensors, intake valve and compressor controller when troubleshooting abnormal pressure, oil carryover or startup behavior.
For maintenance engineers and system integrators, the key identification is 47704430001 / 47690462001, while actual compatibility should always be confirmed against the complete compressor model and valve configuration.
Overall, the Ingersoll Rand 47704430001 47690462001 Minimum Pressure Valve Kit provides an essential pressure-control function that helps maintain the internal operating conditions required for reliable and efficient industrial compressed-air generation.
