Product Overview

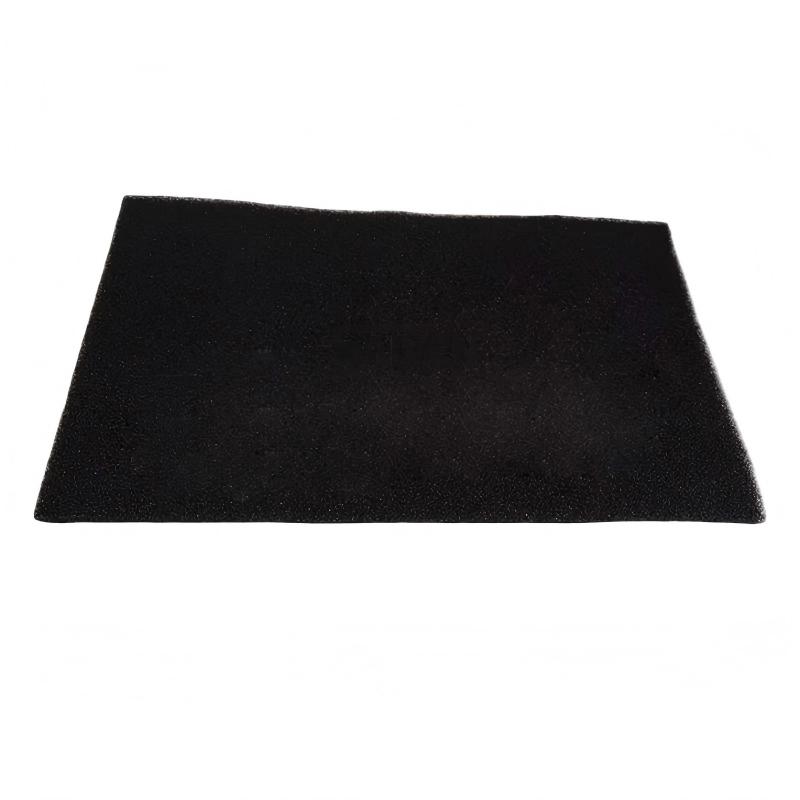

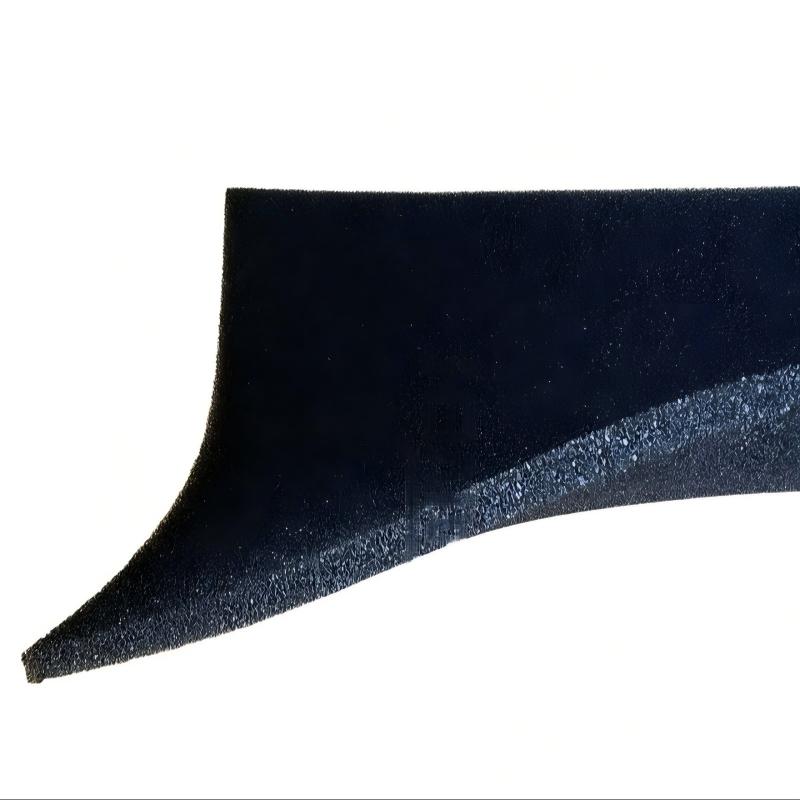

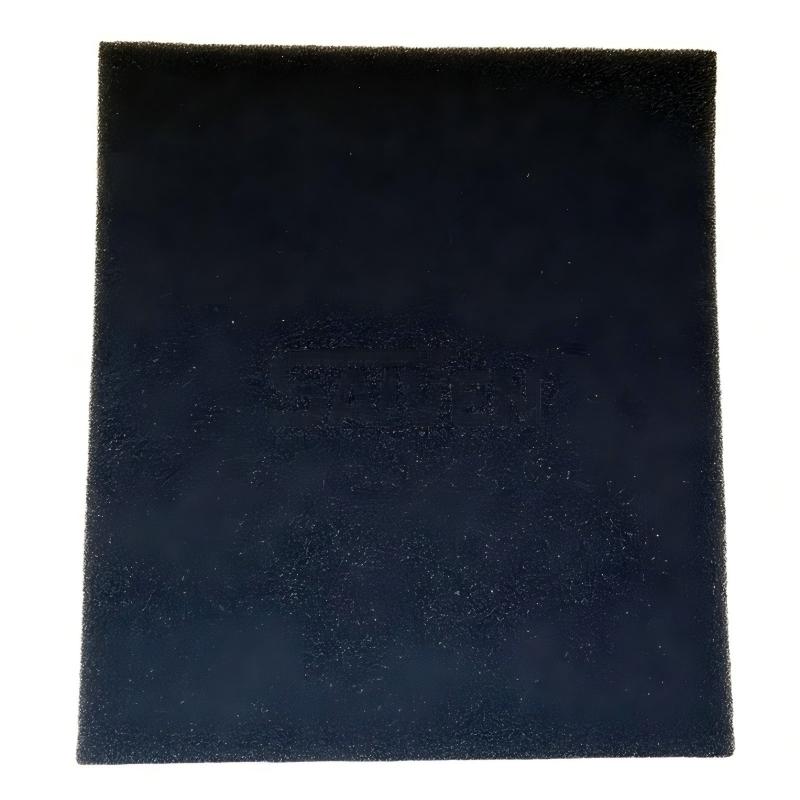

The Ingersoll Rand 47704429001 / 23595879 Pre-Filter is an industrial filtration component designed to provide an initial stage of protection for compatible Ingersoll Rand air compressor intake systems. Positioned ahead of the primary filtration stage, the pre-filter helps capture larger airborne contaminants before they reach the main air filter, supporting cleaner airflow and more reliable compressor operation.

Industrial compressor systems often operate in environments containing dust, fibers, dirt, debris, and other airborne particles. If these contaminants enter the intake system without adequate pre-filtration, they can rapidly load the primary filter and contribute to increased airflow resistance. The 23595879 pre-filter helps reduce this contamination load and supports the overall efficiency of the compressor filtration system.

The component is suitable for preventive maintenance programs where regular inspection and replacement of intake filtration elements are important for maintaining equipment performance. It can be particularly useful in manufacturing facilities, workshops, processing plants, mining environments, and other industrial locations where airborne contamination is present.

The pre-filter has approximate dimensions of 500 × 25 × 350 mm and an approximate weight of 0.2 kg, providing a lightweight filtration solution for compatible compressor intake assemblies.

Technical Specifications

Function and Working Principle

The 23595879 pre-filter operates as the initial filtration stage within the compressor air intake path. Ambient air enters the intake assembly and passes through the pre-filter before reaching the primary air filter.

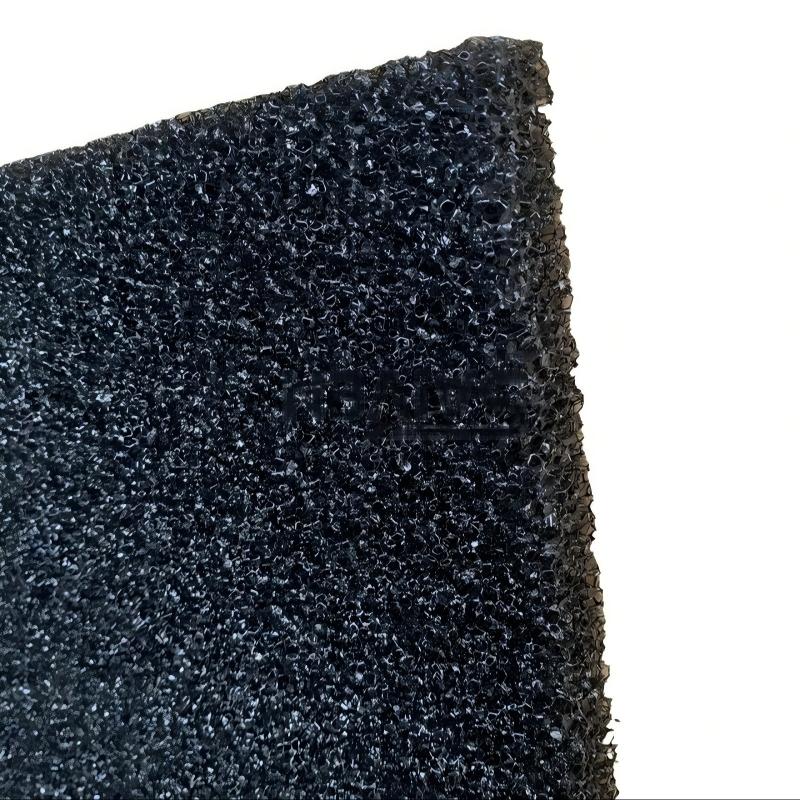

The filtration material captures larger airborne particles such as dust, fibers, dirt, and coarse debris. By removing these contaminants at the first stage, the pre-filter reduces the amount of contamination reaching the main filter element.

This arrangement helps maintain more stable airflow through the intake system. It can also extend the service interval of the primary filter by reducing the rate at which larger contaminants accumulate on its filtration media.

As the pre-filter becomes loaded with contaminants, airflow resistance may increase. Regular inspection and replacement are therefore important for maintaining efficient compressor intake performance.

Role in Industrial Compressor Systems

The pre-filter is a relatively simple component, but it provides an important protective function within the compressor system.

• Provides an initial stage of intake air filtration
• Captures larger airborne contaminants
• Reduces contamination reaching the primary air filter
• Helps maintain stable intake airflow
• Supports efficient compressor operation
• Helps extend primary filter service life
• Reduces contamination-related maintenance
• Supports reliable continuous compressor operation

Maintaining the pre-filtration stage is especially important when the compressor operates in dusty or contaminated industrial environments.

Industrial Applications

The Ingersoll Rand 47704429001 / 23595879 Pre-Filter can be used in a variety of industrial compressed-air applications, including:

• Manufacturing facilities
• Automotive production plants
• Metal processing facilities
• Mining operations
• Petrochemical plants
• Oil and gas facilities
• Power generation plants
• General industrial workshops
• Food and beverage production facilities
• Industrial utility air systems

In environments with significant airborne dust, regular pre-filter maintenance can help reduce the filtration burden placed on downstream components.

Installation and Maintenance

Correct installation and routine inspection are essential for maintaining effective pre-filtration.

• Shut down the compressor before servicing the intake system.
• Release pressure according to the equipment maintenance procedure.
• Open the intake filter assembly carefully.
• Remove the contaminated pre-filter.
• Clean accumulated dust and debris from the surrounding housing.
• Inspect the filter support and sealing surfaces.
• Install the replacement pre-filter in the correct position.
• Ensure that the filter is properly seated without gaps.
• Inspect the primary air filter at the same time.
• Restart the compressor and verify normal intake operation.

Maintenance frequency depends on operating conditions. Compressors operating in dusty environments may require more frequent inspection than equipment installed in relatively clean facilities.

Compatible Components

Recommended Alternative Models

Key Advantages

• Designed for compatible Ingersoll Rand compressor systems
• Provides an effective first stage of air filtration
• Captures larger airborne contaminants
• Helps protect the primary air filter
• Supports stable compressor intake airflow
• Helps extend primary filter service life
• Reduces contamination entering the compressor system
• Supports preventive maintenance programs
• Lightweight construction at approximately 0.2 kg
• Suitable for demanding industrial environments
• Simple inspection and replacement
• Helps maintain long-term compressor reliability

Technical FAQs

What is the main function of the 23595879 Pre-Filter?

The primary function is to capture larger airborne contaminants before they reach the main compressor intake filter.

Where is the pre-filter installed?

It is installed in the compressor air intake filtration assembly, upstream of the primary air filter.

Why is pre-filtration important?

Pre-filtration reduces the amount of coarse contamination reaching the main filter, helping maintain airflow and extend the primary filter’s service life.

What are the dimensions of the 23595879 Pre-Filter?

The approximate dimensions are 500 × 25 × 350 mm.

What is the weight of this pre-filter?

The approximate weight is 0.2 kg.

How often should the pre-filter be replaced?

Replacement intervals depend on operating conditions, contamination levels, and the maintenance requirements of the compatible compressor. Inspection should be performed regularly, especially in dusty environments.

Can a blocked pre-filter affect compressor performance?

Yes. Excessive contamination can restrict intake airflow and increase pressure drop, potentially reducing compressor efficiency.

Is the pre-filter suitable for continuous industrial operation?

It is intended for compatible industrial compressor intake systems and is suitable for use as part of routine maintenance in continuous-duty applications.

Conclusion

The Ingersoll Rand 47704429001 / 23595879 Pre-Filter is an important intake protection component for compatible industrial air compressor systems. By capturing larger airborne contaminants before they reach the primary filtration stage, it helps protect downstream filters, maintain airflow, and support reliable compressor operation.

With approximate dimensions of 500 × 25 × 350 mm and a weight of approximately 0.2 kg, the pre-filter provides a practical solution for routine compressor maintenance. Regular inspection and timely replacement can help reduce contamination-related problems, extend primary filter service life, and support efficient long-term operation.
