- Ingersoll Rand
- 47667846001 54601513
- Air/Oil Separator Element
- USA
- 300 × 300 × 190 mm
- 5.4 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 35
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

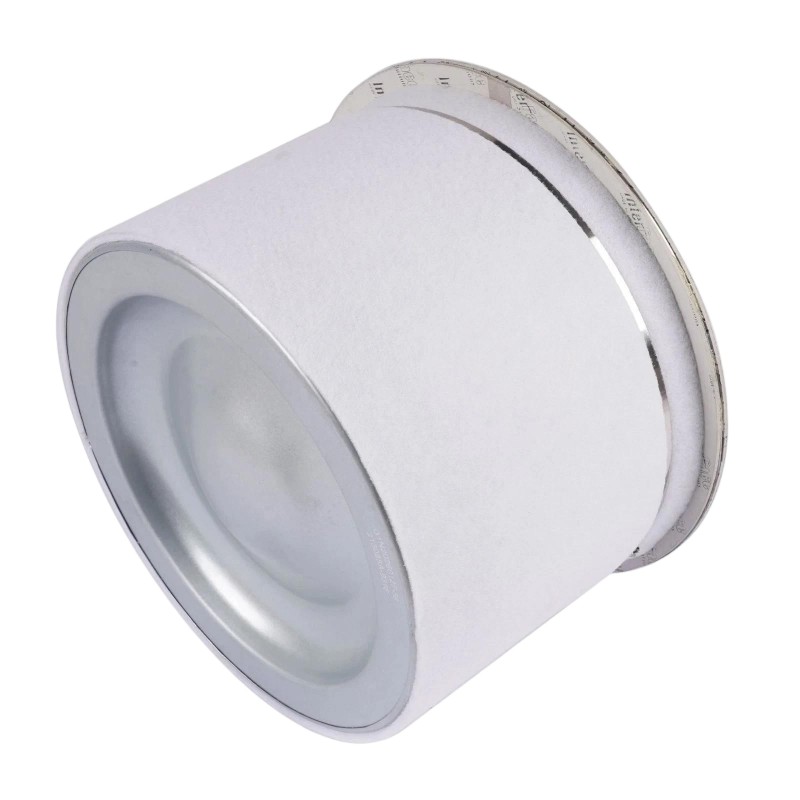

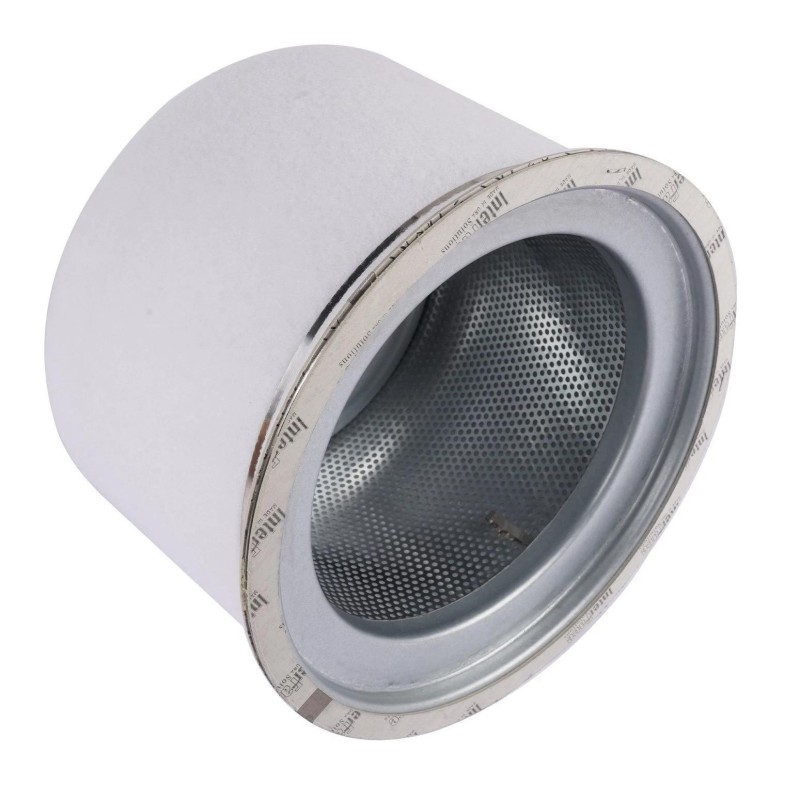

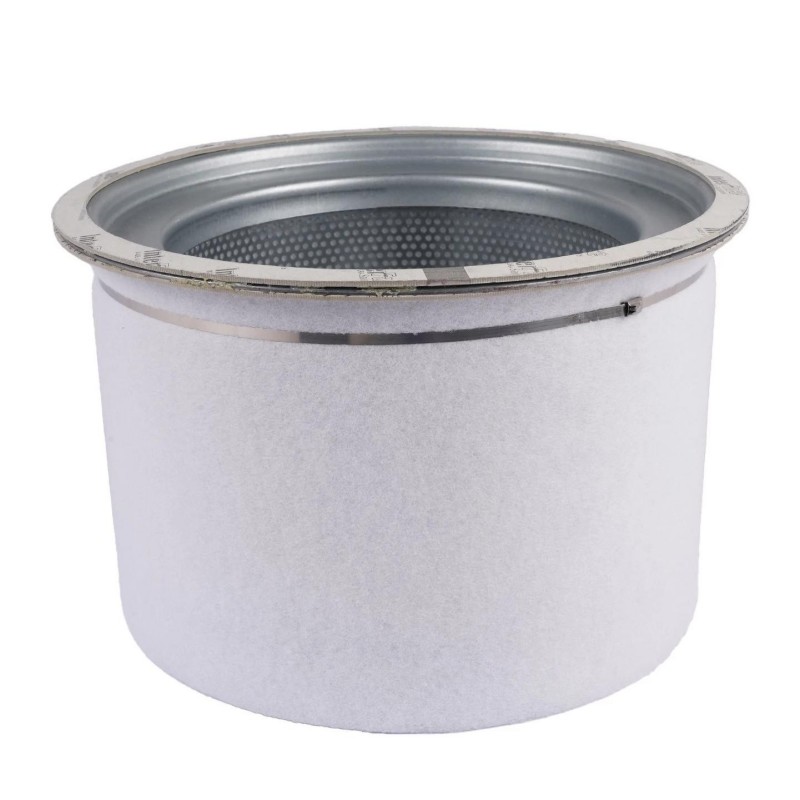

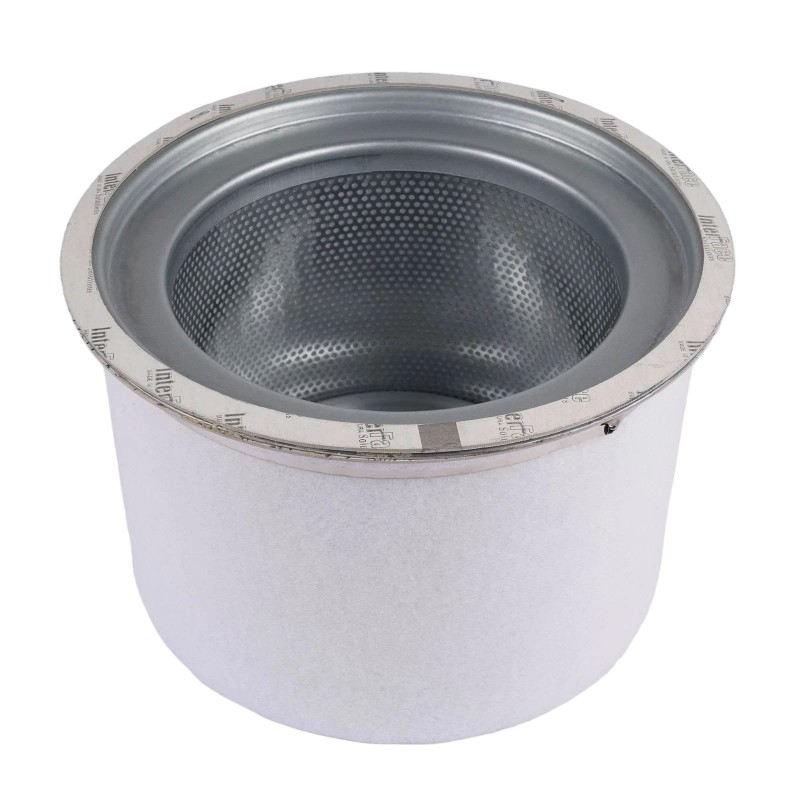

The Ingersoll Rand 47667846001 54601513 Air/Oil Separator Element is a replacement filtration component used in rotary screw compressor oil separation systems. It separates entrained oil from compressed air after the compression stage, helping maintain the required air quality while allowing recovered lubricant to return to the compressor oil circuit.
In a typical oil-injected screw compressor, compressed air leaving the airend contains a fine oil mist. The separator element captures these oil droplets as the air passes through the separation media. The separated oil is collected and returned to the lubrication system, while the treated compressed air continues toward the compressor outlet.
Separator condition has a direct effect on compressor operation. A restricted or damaged element can contribute to increased differential pressure, higher oil carryover, reduced compressor efficiency, or abnormal operating conditions. For this reason, the separator is commonly inspected or replaced as part of scheduled compressor maintenance.
The 47667846001 54601513 part number should be matched with the installed compressor configuration before replacement. Separator selection should be based on the equipment documentation and the existing filtration arrangement rather than appearance alone.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Part Number | 47667846001 54601513 |
| Product Type | Air/Oil Separator Element |
| Primary Function | Separation of oil mist from compressed air |
| System Role | Compressor air/oil separation |
| Application | Rotary screw compressor systems |
| Dimensions | 300 × 300 × 190 mm |
| Weight | 5.4 kg |
Product Features
- Air/oil separator element for compatible Ingersoll Rand compressor systems
- Removes entrained lubricant from compressed air
- Supports oil recovery within the compressor lubrication circuit
- Helps maintain compressed-air quality at the compressor outlet
- Suitable for scheduled compressor maintenance
- Designed for installation within the compressor’s air/oil separation assembly
- Supports normal compressor operating efficiency when properly maintained
- Requires correct part-number and equipment compatibility verification
Working Principle
The separator element operates after the screw compression stage, where the compressed air contains suspended lubricant droplets. The air/oil mixture enters the separator vessel and passes through the separation media.
As the mixture travels through the element, fine oil droplets are captured and coalesced into larger droplets. The recovered oil accumulates and is directed back into the compressor oil circuit through the appropriate oil-return arrangement.
Air/Oil Mixture → Separator Vessel → 54601513 Separator Element → Separated Oil Return / Compressed Air Outlet
The separator therefore handles two related tasks: reducing oil carried out with the compressed air and allowing usable compressor lubricant to be recovered. Its performance depends on the condition of the element, the surrounding separation assembly, the oil-return system, and the compressor operating conditions.
Role in a Rotary Screw Compressor Air/Oil Separation System
The 54601513 Air/Oil Separator Element forms part of the separation stage between the compressor airend and the compressed-air outlet. It works together with the separator vessel, oil-return circuit, and compressor lubrication system.
Airend → Air/Oil Separation Vessel → 54601513 Separator Element → Compressed Air Outlet
| System Element | Function |
|---|---|
| Compressor Airend | Compresses air and mixes it with injection lubricant |
| Air/Oil Separation Vessel | Provides the environment for bulk separation |
| 54601513 Separator Element | Removes fine oil mist from compressed air |
| Oil Return Circuit | Returns separated lubricant to the compressor system |
| Minimum Pressure System | Maintains appropriate compressor operating conditions |
| Aftercooler | Reduces compressed-air temperature downstream |
| Air Receiver / Dryer | Stores or conditions compressed air as required |
| Compressor Controller | Monitors and controls compressor operation |
The separator element is a consumable maintenance component within this system and should be evaluated together with the oil-return and pressure-control functions when investigating abnormal oil carryover.
Industrial Applications
| Application | Typical Use |
|---|---|
| Rotary Screw Compressors | Separation of lubricant from compressed air |
| Industrial Air Systems | Maintaining compressed-air quality |
| Manufacturing Plants | Compressor maintenance and air supply systems |
| Automotive Production | Oil-injected compressor air treatment |
| Food and Beverage Facilities | Compressor air systems requiring controlled oil carryover |
| Pharmaceutical Facilities | Maintenance of compatible compressed-air systems |
| Packaging Equipment | Compressed-air generation and preparation |
| General Industrial Utilities | Replacement of compressor separator elements |
Installation and Maintenance
- Verify the 47667846001 54601513 part number against the compressor maintenance documentation before installation.
- Shut down and isolate the compressor according to the applicable service procedure.
- Relieve internal pressure before opening the air/oil separation assembly.
- Allow the compressor system to reach a safe service condition before removing the existing separator.
- Inspect the separator vessel and sealing surfaces for contamination or damage.
- Remove the existing separator carefully to prevent debris from entering the oil or air circuit.
- Verify that the replacement element and sealing components match the intended compressor configuration.
- Install the separator according to the equipment manufacturer’s service procedure and specified tightening requirements.
- Inspect the oil-return circuit for blockage or contamination before restarting the compressor.
- Start the compressor under controlled conditions and check for abnormal differential pressure or oil carryover.
- Inspect downstream compressed air for signs of excessive lubricant carryover if abnormal operation is suspected.
- Record the separator replacement and operating observations as part of the compressor maintenance history.
Compatible System Components
| Component | Function |
|---|---|
| Ingersoll Rand Screw Airend | Produces compressed air and injects lubricant |
| Air/Oil Separator Vessel | Houses the separation assembly |
| Oil Return Line | Returns recovered lubricant to the compressor |
| Compressor Oil Filter | Removes contaminants from the lubrication oil |
| Minimum Pressure Valve | Supports appropriate compressor operating pressure |
| Aftercooler | Cools compressed air downstream of compression |
| Air Filter | Protects the compressor air intake |
| Compressor Controller | Monitors and manages compressor operation |
| Oil Circuit Components | Circulate and manage compressor lubricant |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Ingersoll Rand 47667846001 54601513 | Air/Oil Separator Element | Compressor oil separation |
| Ingersoll Rand Air/Oil Separator Elements | Separator Elements | Rotary screw compressor maintenance |
| Ingersoll Rand Oil Filters | Oil Filter | Compressor lubrication-system filtration |
| Ingersoll Rand Air Filters | Air Filter | Compressor intake filtration |
| Ingersoll Rand Compressor Service Components | Service Components | Routine compressor maintenance |
| Ingersoll Rand Compressor Oil System Components | Oil System Components | Lubricant circulation and filtration |
| Ingersoll Rand Screw Compressor Components | Compressor Components | Compressor service and repair |
Key Advantages
- Supports efficient separation of lubricant from compressed air.
- Helps reduce oil carryover into the downstream compressed-air system.
- Allows recovered compressor oil to return to the lubrication circuit.
- Suitable for routine maintenance of compatible rotary screw compressors.
- Supports continued performance of the compressor air/oil separation stage.
- Provides a dedicated replacement element for the specified compressor application.
Technical FAQs
What symptoms can indicate that the separator element requires attention?
Increasing oil carryover, abnormal differential pressure, reduced compressor performance, or changes in operating behavior can indicate a separator-related problem. The oil-return circuit and compressor operating conditions should also be checked before identifying the element as the sole cause.
Can a blocked oil-return circuit affect separator performance?
Yes. If separated oil cannot return correctly to the compressor oil circuit, oil can accumulate in the separation system and contribute to abnormal oil carryover or operating conditions. The return circuit should therefore be inspected when separator performance changes.
Why should the exact 47667846001 54601513 part number be verified before replacement?
Separator elements can differ in construction, sealing arrangement, and application compatibility. A visually similar element may not provide the required separation performance or fit the installed compressor assembly correctly.
What should be checked after installing a new separator element?
Verify the installation and sealing arrangement, inspect the oil-return path, then operate the compressor under controlled conditions. Check for abnormal pressure behavior and excessive oil carryover before returning the compressor to normal service.
