Product Overview

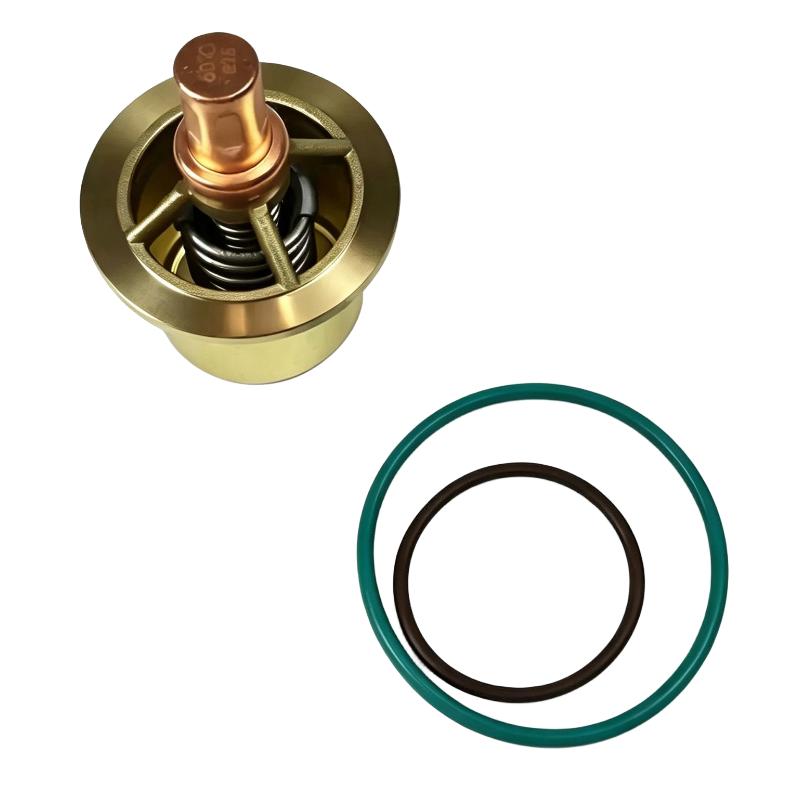

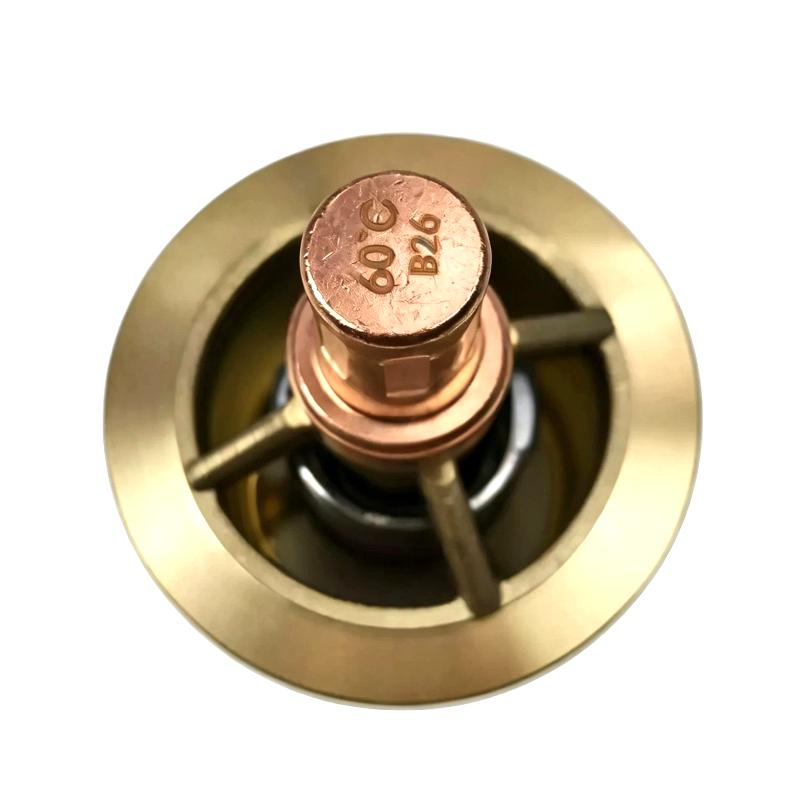

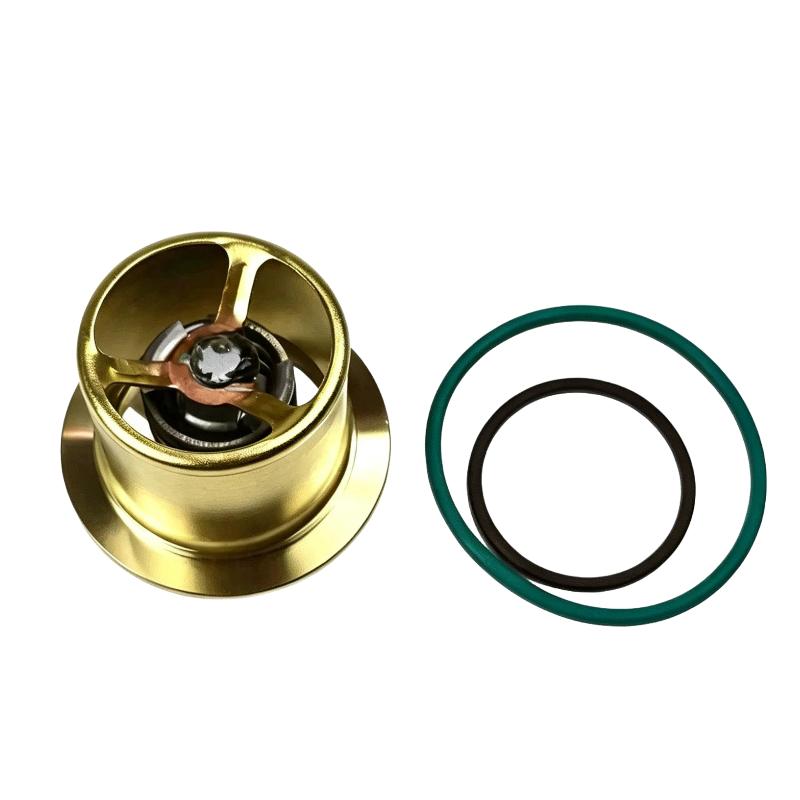

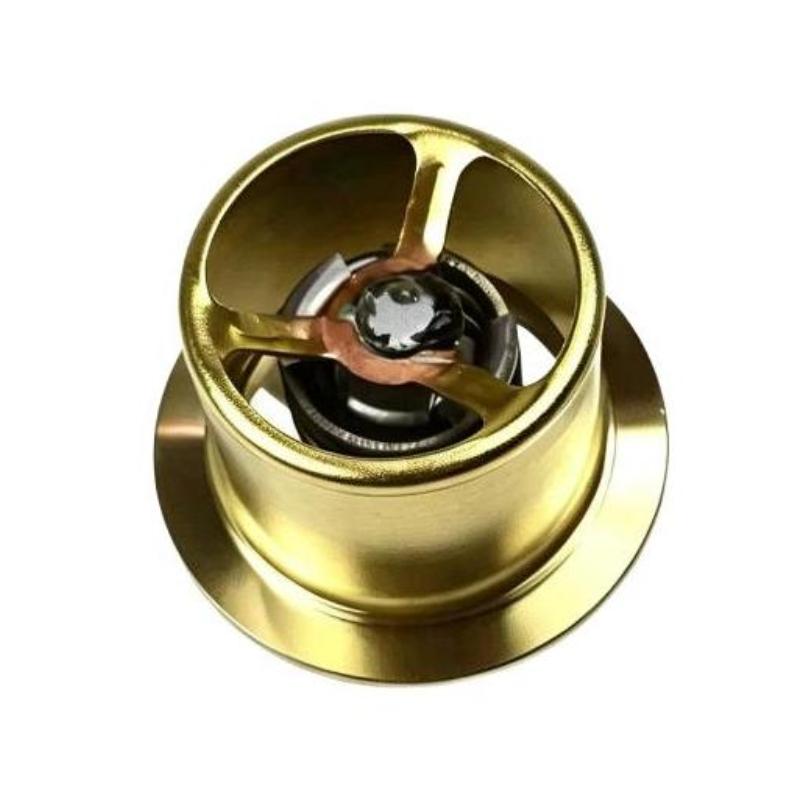

The Ingersoll Rand 47550996001 47545136001 Temperature Control Valve Maintenance Kit is a service kit used for maintenance of the temperature control valve assembly in compatible Ingersoll Rand compressed-air equipment. The kit is intended for service work where valve components require inspection, replacement, or restoration as part of scheduled compressor maintenance.
A temperature control valve is involved in managing the operating temperature of the compressor’s oil circuit. Its condition can affect how the oil is routed through the cooling circuit and, consequently, how effectively the compressor maintains an appropriate operating temperature under changing load and ambient conditions.
Using a dedicated maintenance kit allows service personnel to replace the applicable service components together rather than attempting to source individual parts separately. This is particularly useful during preventive maintenance or corrective work on established Ingersoll Rand compressor installations where maintaining the original valve configuration is important.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Product Model | 47550996001 / 47545136001 |
| Product Type | Temperature Control Valve Maintenance Kit |
| Product Family | Compressor Service Parts |
| Component Type | Valve Maintenance Kit |
| Service Function | Temperature Control Valve Maintenance |
| Primary Application | Compressor Oil Temperature Control |
| System Role | Temperature Control Valve Service |
| Equipment Type | Industrial Air Compressor |
| Maintenance Function | Replacement of Applicable Valve Service Components |
| System Integration | Compressor Oil Circuit |
| Application | Compressor Maintenance and Repair |
| Installation | Compressor Service Assembly |
| Dimensions | 180 × 140 × 80 mm |
| Weight | 1.20 kg |
Product Features
- Intended for maintenance of compatible Ingersoll Rand temperature control valve assemblies.
- Groups applicable service components for valve maintenance work.
- Supports preventive maintenance and corrective repair of compressor temperature-control hardware.
- Helps restore the service condition of the temperature control valve assembly.
- Suitable for maintenance programs involving established Ingersoll Rand compressor equipment.
- Used within the compressor oil-temperature management circuit.
- Useful when servicing a valve assembly rather than replacing the complete compressor system.
- Helps simplify spare-parts preparation for planned compressor maintenance.
- Suitable for field service and workshop maintenance operations where the compatible valve configuration has been identified.
Working Principle
The temperature control valve operates as part of the compressor’s oil-temperature management circuit. As compressor operating conditions change, the valve regulates the oil flow path through the cooling arrangement so that the oil can be maintained within the required operating condition.
During service, the maintenance kit is used to restore the condition of the valve assembly and its applicable service components. The exact components included in the kit should be verified against the equipment parts documentation for the relevant compressor model and valve configuration.
Compressor Oil Circuit → Temperature Control Valve → Oil Cooling Path → Compressor Lubrication System
When the valve assembly is functioning correctly, oil is directed through the appropriate circuit according to the operating condition of the compressor. A valve that is sticking, leaking, contaminated, or otherwise degraded can interfere with normal oil-temperature regulation.
After maintenance, the valve should be reassembled according to the applicable service procedure. The compressor can then be checked for abnormal oil-temperature behavior, leakage, or other indications of an improperly serviced valve.
Role in a Compressor Oil Temperature Control Architecture
The 47550996001 47545136001 maintenance kit belongs to the mechanical service layer of the compressor’s oil-temperature control system. It does not independently measure temperature or control the compressor. Instead, it is used to maintain the temperature control valve responsible for regulating the oil circuit.
| System Layer | Typical Component | Function |
|---|---|---|
| Compressor Control | Compressor Controller | Monitors operating conditions and manages compressor operation |
| Temperature Monitoring | Temperature Sensor | Provides temperature information to the control system |
| Oil Temperature Regulation | Temperature Control Valve | Directs oil through the appropriate cooling circuit |
| Valve Service | 47550996001 47545136001 Maintenance Kit | Supports maintenance and restoration of the temperature control valve |
| Oil Cooling | Oil Cooler | Removes heat from the compressor oil |
| Lubrication Circuit | Compressor Oil System | Circulates oil through the compressor |
| Mechanical Equipment | Air Compressor | Generates compressed air while producing operating heat |
Industrial Applications
| Application | Kit Role |
|---|---|
| Industrial Air Compressors | Supports maintenance of the temperature control valve |
| Manufacturing Plants | Used during scheduled compressor service |
| Process Industries | Helps maintain serviceability of compressor oil-temperature control hardware |
| Workshop Compressor Systems | Supports corrective valve maintenance and component replacement |
| Plant Utility Systems | Used when servicing compressed-air equipment |
| Preventive Maintenance Programs | Provides applicable service components for planned valve maintenance |
| Compressor Overhaul Work | Supports restoration of temperature control valve assemblies |
| Field Service | Used by maintenance technicians during compressor repair activities |
Installation and Maintenance
- Confirm the compressor model, temperature control valve configuration, and applicable part numbers before opening the maintenance kit.
- Shut down the compressor and isolate it from the compressed-air system according to the approved service procedure.
- Allow the equipment and oil circuit to reach a safe service condition before beginning work.
- Relieve stored pressure and follow the manufacturer’s isolation requirements before removing the valve assembly.
- Inspect the existing temperature control valve for contamination, leakage, sticking, or visible mechanical damage.
- Compare the replacement service components with the removed components before installation.
- Clean the applicable valve mating and sealing surfaces according to the compressor maintenance procedure.
- Install the maintenance components in the correct orientation and sequence specified for the valve assembly.
- Reassemble the temperature control valve and verify that all connections are properly secured.
- Restore the oil circuit and inspect the serviced area for leakage before returning the compressor to normal operation.
- Run the compressor under controlled conditions and check for abnormal oil-temperature behavior or other service indications.
- Record the maintenance work, installed part numbers, and compressor service history for future maintenance planning.
Related Components
| Component | Function in the System |
|---|---|
| Ingersoll Rand Temperature Control Valve | Regulates the oil flow path associated with compressor temperature control |
| Compressor Oil Cooler | Removes heat from the compressor oil circuit |
| Compressor Oil Filter | Removes contaminants from circulating compressor oil |
| Compressor Lubricating Oil | Provides lubrication and participates in compressor heat management |
| Temperature Sensor | Monitors temperature within the compressor system |
| Compressor Controller | Monitors operating conditions and manages compressor operation |
| Oil Circuit Piping | Carries oil between compressor components and cooling equipment |
| Air Compressor | Main equipment in which the temperature control system operates |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Ingersoll Rand 47550996001 24172215 | Air Filter | Related compressor maintenance component |
| Ingersoll Rand 47550996001 39911631 | Oil Filter | Related compressor oil-system service component |
| Ingersoll Rand 47550996001 54509427 | Air/Oil Separator | Related compressor service component |
| Ingersoll Rand 47550996001 99289894 | Minimum Pressure Check Valve Repair Kit | Related compressor valve maintenance component |
| Ingersoll Rand 47545135001 39911631 | Oil Filter | Related compressor maintenance part |
| Ingersoll Rand 47545144001 54509427 | Air/Oil Separator | Related compressor service component |
| Ingersoll Rand Compressor Service Parts | Compressor Maintenance Components | Complementary service parts for compressor maintenance |
Key Advantages
- Provides applicable service components for temperature control valve maintenance.
- Supports scheduled and corrective maintenance of compatible Ingersoll Rand compressors.
- Helps restore the condition of the compressor oil-temperature control assembly.
- Keeps valve maintenance within the established compressor service architecture.
- Useful for planned overhaul and field repair activities.
- Simplifies preparation of replacement components for temperature control valve service.
Technical FAQs
What is the purpose of the 47550996001 47545136001 maintenance kit?
The kit is used to service the temperature control valve assembly on compatible Ingersoll Rand compressor equipment. It supports maintenance work intended to restore the valve assembly to an appropriate service condition.
Why is the temperature control valve important in a compressor?
The temperature control valve regulates the oil flow path associated with the compressor’s cooling circuit. Proper oil-temperature management is important for maintaining the intended operating conditions of the compressor lubrication system.
When should the temperature control valve be serviced?
Service timing depends on the compressor model, operating environment, maintenance schedule, and observed equipment condition. Inspection is appropriate when scheduled maintenance calls for valve service or when symptoms such as abnormal oil temperature, leakage, or suspected valve malfunction are identified.
Should the complete kit contents be verified before installation?
Yes. The kit part numbers should be checked against the applicable Ingersoll Rand parts documentation for the specific compressor and temperature control valve configuration. This helps ensure that the supplied service components correspond to the valve being serviced.
