- Ingersoll Rand
- 47545145001 24172215
- Air Filter
- USA
- 126.2 × 126.2 × 209.6 mm
- 4.32 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 9
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

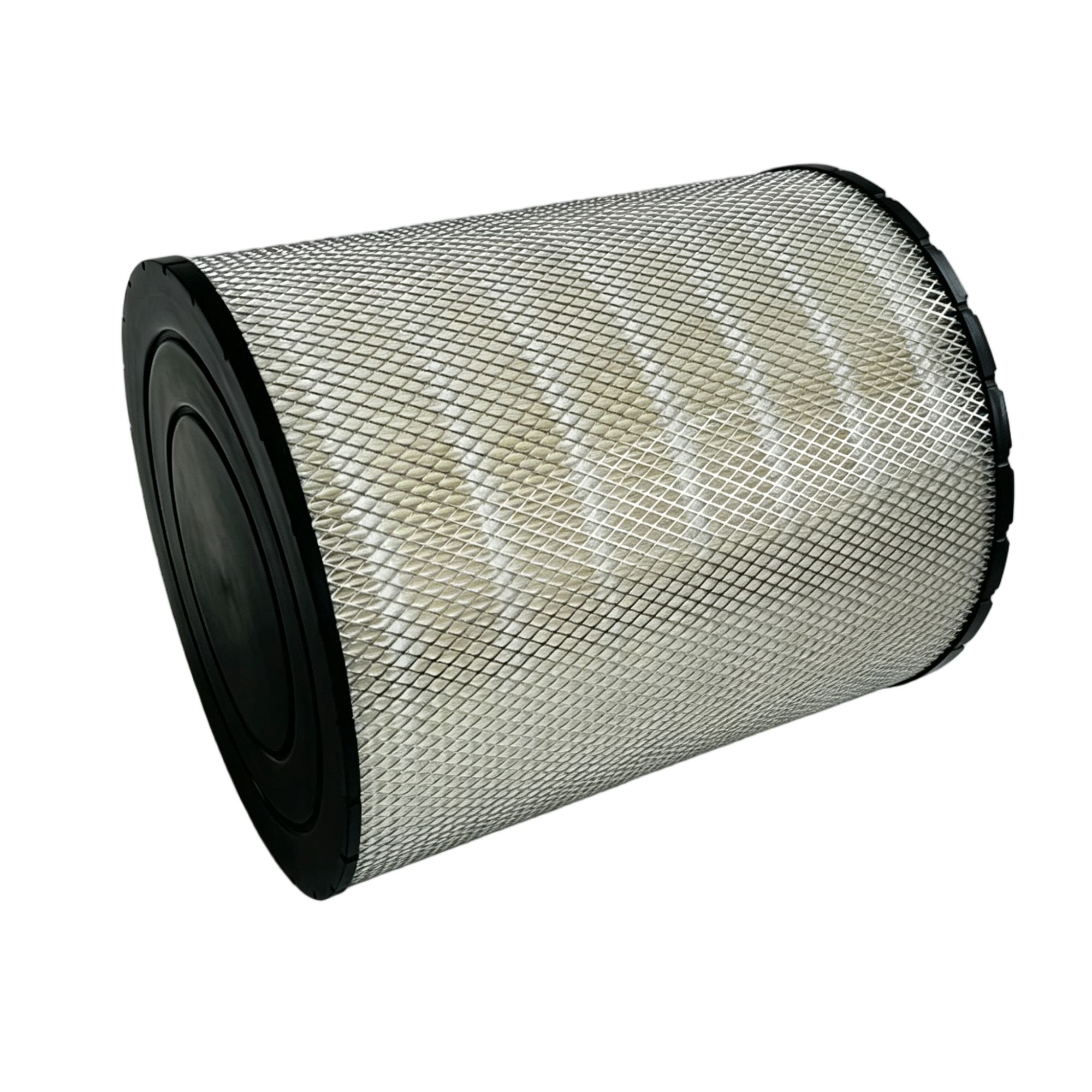

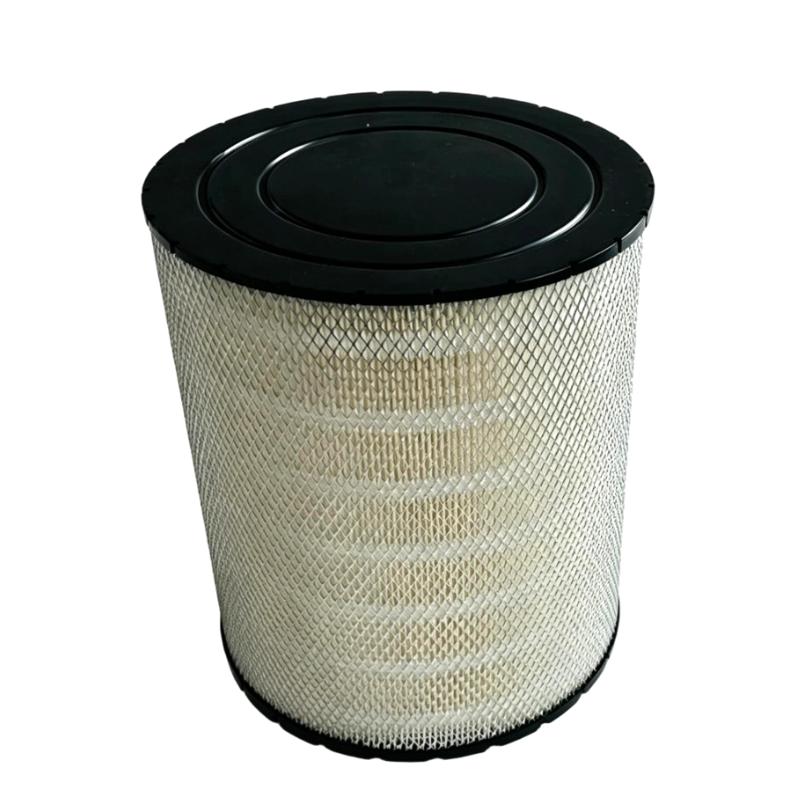

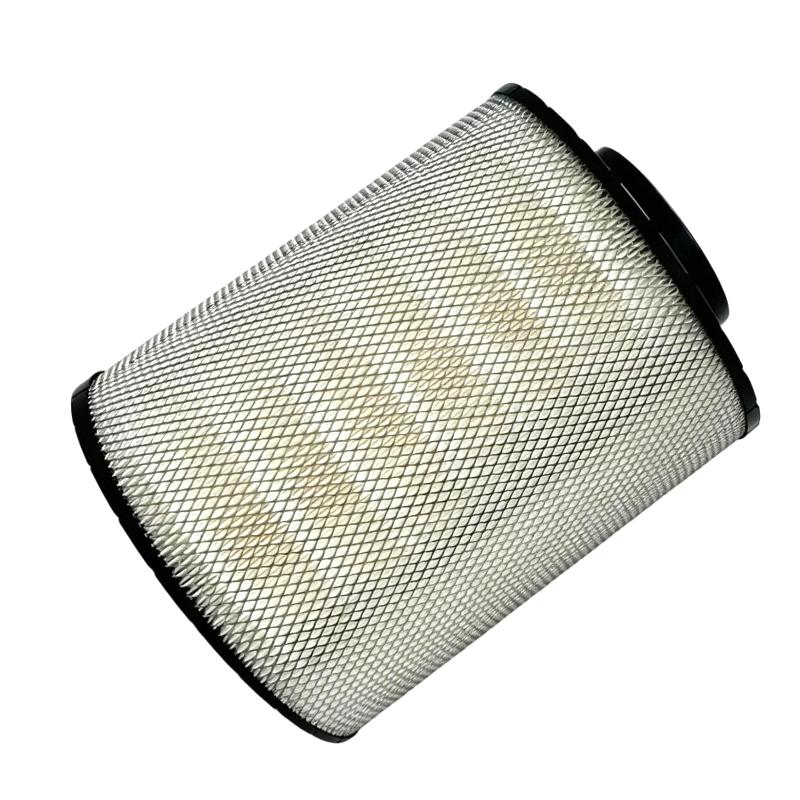

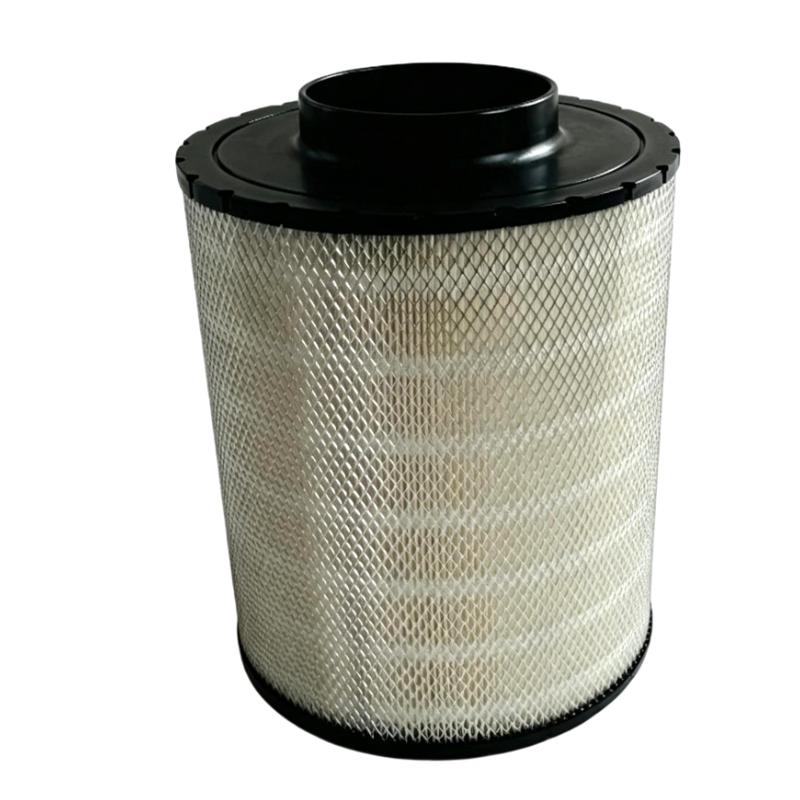

The Ingersoll Rand 47545145001 24172215 Air Filter is a replacement air filter used on compatible Ingersoll Rand compressor equipment. It sits on the compressor intake side, where it removes airborne dust and other contaminants before they enter the compression system.
For compressors operating in manufacturing plants, workshops, and other industrial environments, the intake air can contain dust, fibers, oil mist, and fine particles. Keeping these contaminants out of the airend helps reduce contamination of internal components and limits the amount of debris entering the compressor.
The 24172215 reference is associated with the air filter, while 47545145001 is the related reference supplied with the product identification. The filter is typically replaced as part of routine compressor maintenance or when inspection shows excessive contamination or restricted airflow.
Air-filter service is especially relevant for compressors working in dusty production areas or environments where the intake air quality changes significantly with operating conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Part Number | 24172215 |
| Related Reference | 47545145001 |
| Product Type | Air Filter |
| Application | Compressor intake air filtration |
| Installation Position | Compressor air intake |
| Function | Removes airborne contaminants from intake air |
| Equipment Type | Ingersoll Rand Compressor |
| Service Type | Replacement air filter |
| Maintenance Use | Scheduled filter replacement |
| Filtration Stage | Intake air |
| Product Category | Compressor Spare Part |
| Dimensions | 126.2 × 126.2 × 209.6 mm |
| Weight | 4.32 kg |
Product Features
- Ingersoll Rand Air Filter
- Part number 24172215
- Related reference 47545145001
- Installed on the compressor intake side
- Filters contaminants from incoming air
- Supports cleaner air entering the compression system
- Suitable for scheduled compressor maintenance
- Useful for replacement of a contaminated or restricted filter
- Suitable for industrial compressor service inventories
- Applicable to compatible Ingersoll Rand compressor equipment
Working Principle
The air filter is the first filtration point for air entering the compressor.
Ambient Air → Air Filter → Compressor Inlet → Airend
As ambient air passes through the filter media, airborne particles are retained before the air reaches the compressor inlet. The filtered air then continues into the compression system.
As the filter accumulates dust and other contaminants, airflow resistance can increase. This is why filter condition is normally checked during compressor maintenance rather than waiting for a complete loss of airflow.
In a dusty workshop or production environment, filter inspection may need to be more frequent than in a relatively clean installation area. Replacement is carried out when the filter condition or the compressor’s maintenance requirements indicate that continued use is no longer appropriate.
Role in an Ingersoll Rand Compressor Air Intake Architecture
The 24172215 Air Filter belongs to the intake section of the compressor rather than the compressed-air discharge circuit.
| System Component | Function |
|---|---|
| Ambient Air Intake | Supplies air to the compressor |
| 24172215 Air Filter | Removes airborne contaminants before compression |
| Compressor Inlet | Receives filtered intake air |
| Airend | Compresses the incoming air |
| Air/Oil Separator | Separates lubricant from compressed air |
| Oil Filter | Removes contaminants from compressor lubricant |
| Aftercooler | Reduces compressed-air temperature |
| Pressure Monitoring System | Monitors compressor pressure conditions |
| Compressor Controller | Manages compressor operating functions |
Industrial Applications
| Application | Typical Use |
|---|---|
| Manufacturing Plants | Replacement filtration for plant compressors |
| Machine Shops | Intake filtration where airborne metal and workshop dust may be present |
| Automotive Production | Compressor maintenance for pneumatic production systems |
| Metal Processing | Air-filter replacement in dusty operating environments |
| Packaging Facilities | Maintaining compressor intake filtration |
| Textile Plants | Filter service in environments containing airborne fibers |
| Process Industries | Routine compressor intake maintenance |
| Factory Utility Systems | Scheduled replacement of compressor air filters |
| Compressor Service Workshops | Filter inspection and replacement |
| General Industrial Air Systems | Intake-air filtration maintenance |
Installation and Maintenance
- Confirm the 24172215 part number and related 47545145001 reference before ordering or installing the filter.
- Verify the compressor model and installed air-filter configuration.
- Shut down the compressor and isolate the equipment before opening the intake assembly.
- Allow the compressor to reach a safe service condition before removing the existing filter.
- Clean the filter housing and surrounding intake area before installing the replacement.
- Inspect the old filter for excessive dust, oil contamination, moisture, or physical damage.
- Check the filter housing and sealing surfaces for accumulated debris.
- Compare the replacement filter with the removed filter before installation.
- Install the new filter in the correct orientation and position.
- Make sure the filter seats correctly and that the sealing area is properly closed.
- Start the compressor and check the intake assembly for abnormal airflow or air leakage.
- Record the filter replacement date and operating information for future maintenance planning.
Related Components
| Component | Relationship to Air Filter |
|---|---|
| Compressor Air Intake | Receives ambient air before filtration |
| Inlet Valve | Controls air entering the compressor |
| Airend | Compresses the filtered intake air |
| Air Filter Housing | Holds and seals the filter element |
| Air/Oil Separator | Handles oil separation after compression |
| Oil Filter | Filters compressor lubricant |
| Aftercooler | Cools compressed air after compression |
| Intake Ducting | Carries ambient air toward the compressor inlet |
| Compressor Controller | Monitors and manages compressor operation |
Recommended Related Models
| Product | Product Type | Application |
|---|---|---|
| 24172215 | Air Filter | Compressor intake filtration |
| 47545145001 | Air Filter Reference | Compressor maintenance identification |
| Ingersoll Rand Inlet Valve | Inlet Valve | Controls compressor intake air |
| Ingersoll Rand Air Filter Housing | Air Filter Housing | Supports intake filter installation |
| Ingersoll Rand Oil Filter | Oil Filter | Compressor lubricant filtration |
| Ingersoll Rand Air/Oil Separator | Air/Oil Separator | Separation of lubricant from compressed air |
Key Advantages
- Dedicated air filter for compatible Ingersoll Rand compressor equipment.
- Filters airborne contaminants before they enter the compression system.
- Suitable for scheduled compressor maintenance.
- Useful in dusty or particle-laden industrial environments.
- Supports clean compressor intake air.
- Suitable as a replacement maintenance part.
Technical FAQs
What is the function of the Ingersoll Rand 24172215 Air Filter?
The 24172215 filters airborne contaminants from intake air before the air enters the compressor inlet and airend.
Where is the 24172215 installed?
It is installed on the compressor’s intake side, upstream of the compressor inlet.
When should the compressor air filter be replaced?
Replacement depends on the compressor maintenance requirements and actual filter condition. Heavy dust loading, visible contamination, restricted airflow, or a maintenance indication can be reasons for replacement.
Can the air filter be cleaned instead of replaced?
That depends on the specific filter and compressor maintenance procedure. The filter should not be reused simply because its exterior can be cleaned; its condition and the applicable service instructions should determine whether replacement is required.
