Product Overview

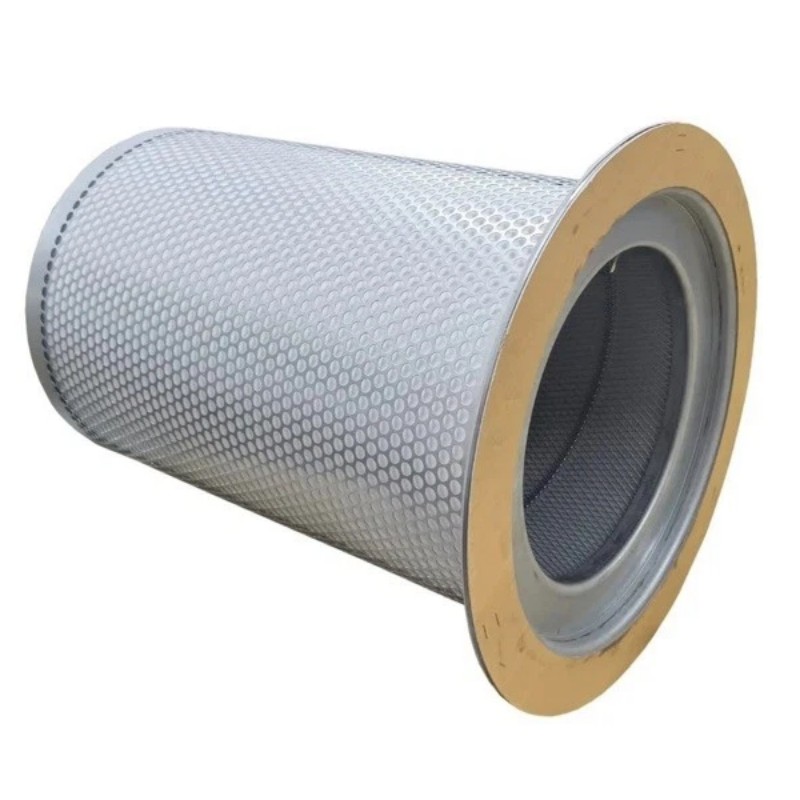

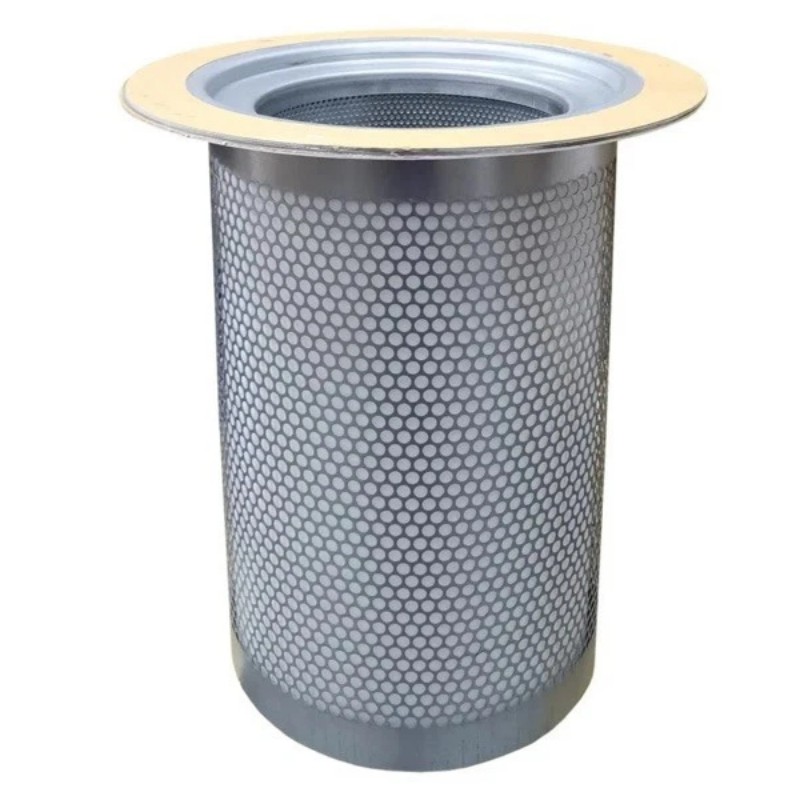

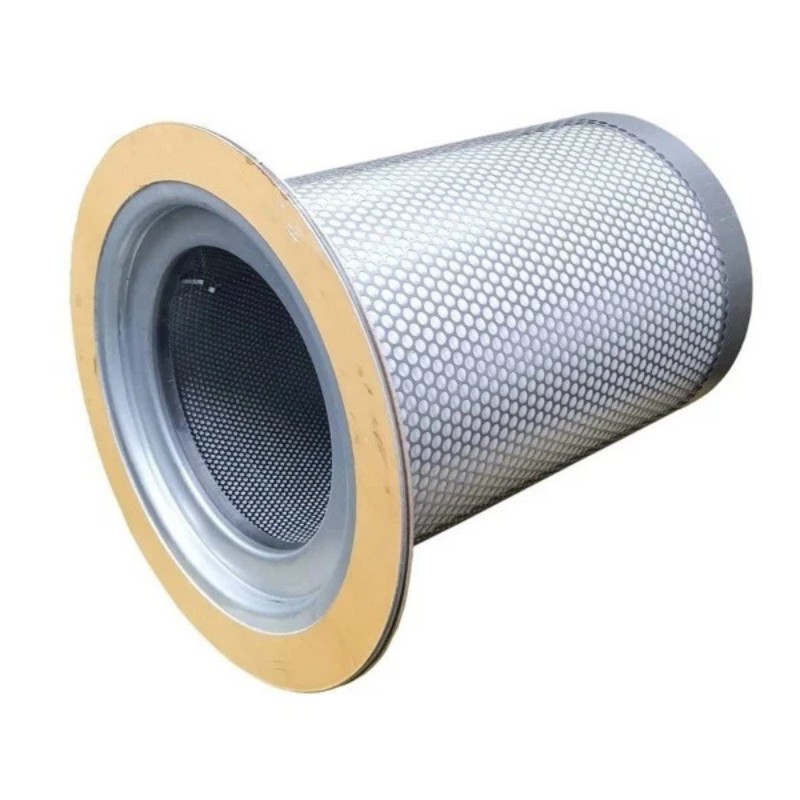

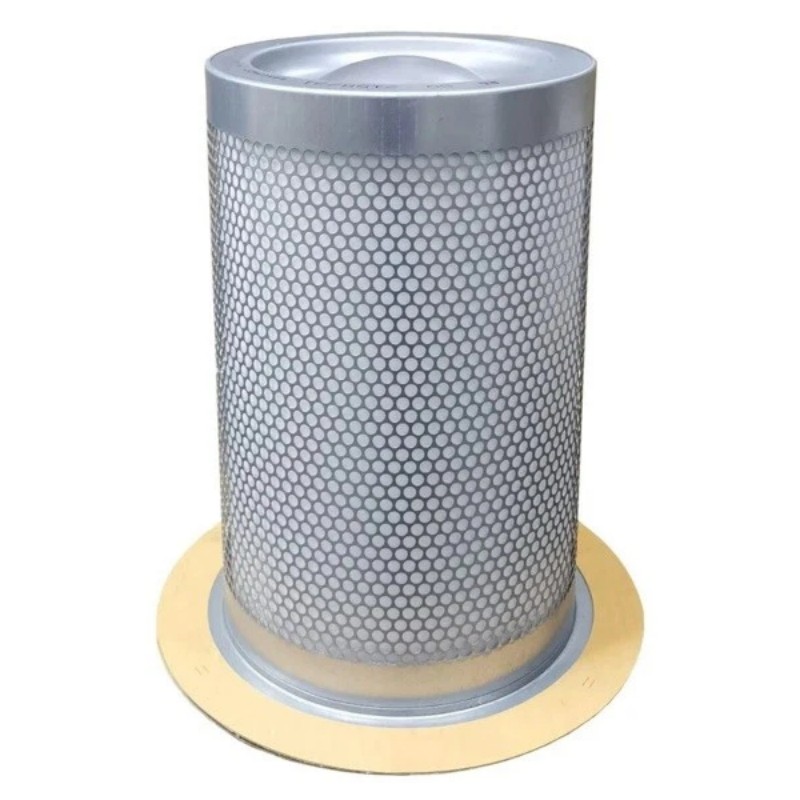

The Ingersoll Rand 47545139001 54509427 Air/Oil Separator is a compressor service component used in the separation stage of compatible oil-injected compressor systems. During compression, lubricant can become entrained in the compressed-air stream. The separator sits downstream of the compression process and separates the carried-over oil from the compressed air before the air continues toward the outlet system.
This component is particularly relevant in compressor maintenance because separation performance affects the condition of the discharged compressed air and the return of separated lubricant to the compressor oil circuit. In industrial plants where compressed air is used continuously for production equipment, pneumatic machinery, instrumentation, or utility systems, the air/oil separator is a routine service item.
When replacing the 54509427, maintenance personnel should treat the separator as part of the complete compressor separation and oil-return arrangement. The replacement should match the applicable compressor configuration, mounting arrangement, sealing requirements, and service procedure rather than being selected by physical appearance alone.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 47545139001 / 54509427 |
| Product Type | Air/Oil Separator |
| Manufacturer | Ingersoll Rand |
| Product Category | Compressor Air/Oil Separation Component |
| System Application | Oil-Injected Compressor System |
| Primary Function | Separation of Lubricant from Compressed Air |
| Separation Position | Downstream of Compression |
| System Role | Removes Entrained Oil from Compressed-Air Stream |
| Oil Management | Separated Oil Return to Compressor Oil Circuit |
| Air Path | Compressed-Air Separation Stage |
| Component Type | Replaceable Maintenance Component |
| Application Area | Compatible Ingersoll Rand Compressor Systems |
| Diameter | 374 mm |
| Weight | 8.59 kg |
Product Features
- Used in the air/oil separation stage of compatible Ingersoll Rand compressor systems.
- Separates lubricant carried with the compressed-air stream.
- Supports the compressor’s oil-management and compressed-air systems.
- Works as part of the separation and oil-return arrangement.
- Suitable for scheduled replacement during compressor maintenance.
- Helps maintain the intended separation process between compressed air and circulating lubricant.
- Applicable to service and overhaul work on compatible compressor installations.
- Requires correct matching with the compressor’s separator housing and associated connections.
Working Principle
The 54509427 operates after the compressor has produced an oil-laden compressed-air mixture. The mixture enters the separator, where the separation process removes entrained lubricant from the air stream.
The separated oil is retained and directed back into the compressor’s oil-management circuit where the system configuration calls for oil return. The treated compressed air continues toward the compressor outlet and downstream air system.
A simplified process path is:
Compression Process → Oil-Laden Compressed Air → 54509427 Air/Oil Separator → Separated Compressed Air + Recovered Oil
The separator therefore serves two connected purposes: controlling oil carryover in the compressed-air path and recovering lubricant for continued use within the compressor system. During service, the separator should be evaluated together with the housing, seals, oil-return path, and surrounding connections.
Role in a Compressor Air/Oil Separation Control Architecture
The 47545139001 54509427 sits between the compression stage and the downstream compressed-air system. It is a passive separation component rather than an independently controlled device. Its operation depends on the compressor’s air and oil flow arrangement and the condition of the associated separation hardware.
| System Layer | Typical Component | Function |
|---|---|---|
| Compressor Control | Compressor Controller | Monitors and manages compressor operation |
| Compression | Compressor Airend | Produces compressed air and associated oil-laden flow |
| Separation | 54509427 Air/Oil Separator | Separates entrained lubricant from compressed air |
| Oil Management | Oil Return Circuit | Returns separated lubricant where applicable |
| Air Outlet | Compressed-Air Outlet System | Carries separated compressed air downstream |
| Monitoring | Pressure / Temperature Monitoring | Tracks relevant compressor operating conditions |
| Service Layer | Maintenance Personnel | Inspects and replaces separation components |
Industrial Applications
| Application | Typical Use |
|---|---|
| Manufacturing Plants | Supports oil separation in compressors supplying production equipment |
| Automotive Production | Used during maintenance of compressed-air systems serving manufacturing lines |
| Packaging Machinery | Supports compressor service where clean compressed air is required for plant equipment |
| Machine Shops | Used in compressor maintenance for workshop compressed-air systems |
| Process Facilities | Supports routine servicing of industrial compressed-air equipment |
| Utility Air Systems | Used in compressors supplying plant utility air |
| Compressor Overhaul | Replaced when servicing the separation and oil-return system |
Installation and Maintenance
- Verify the part number — Confirm that 47545139001 / 54509427 corresponds to the compressor and separator configuration being serviced.
- Review the compressor service procedure — Check the applicable maintenance documentation before opening the separation system.
- Shut down the compressor — Stop the compressor using the normal shutdown procedure before beginning separator replacement.
- Isolate stored energy — Isolate electrical power and release compressed-air pressure according to the plant’s maintenance procedure.
- Allow the system to cool — Wait until the compressor and lubricant system have reached a safe service condition before opening the separator assembly.
- Identify the separator connections — Confirm the separator housing, oil-return arrangement, outlet connections, and associated sealing points before removal.
- Inspect the existing assembly — Look for oil leakage, contamination, damaged seals, abnormal deposits, or other conditions that may indicate an associated problem.
- Remove the used separator — Carefully remove the existing component while controlling residual oil and preventing contamination from entering open system connections.
- Inspect the housing and sealing surfaces — Clean and examine the separator installation area before fitting the replacement.
- Install the replacement separator — Position the 54509427 correctly and follow the specified installation and sealing procedure for the compressor.
- Perform a controlled restart — Restore the compressor to service and monitor the separator area, oil-return path, and compressed-air system for abnormal conditions.
- Record maintenance findings — Document the separator replacement, part number, service date, and any abnormal contamination or leakage observed during the work.
Compatible System Components
| Component | Function |
|---|---|
| Ingersoll Rand Compressor | Provides the compression process and associated air/oil flow |
| Compressor Airend | Produces the compressed-air and lubricant mixture requiring separation |
| Air/Oil Separator Housing | Holds the separator and directs the separation flow |
| Oil Return Circuit | Carries recovered lubricant back into the compressor oil system where applicable |
| Compressed-Air Outlet | Directs separated compressed air toward the downstream system |
| Compressor Oil Circuit | Supplies and recirculates lubricant within the compressor |
| Compressor Controller | Monitors and manages compressor operation |
| Compressor Maintenance Components | Support scheduled service of the air/oil separation system |
Recommended Related Models
| Model / Product Category | Product Type | Typical Relationship |
|---|---|---|
| Ingersoll Rand 47545139001 | Compressor Service Part | Associated service-part family |
| Ingersoll Rand 54509427 | Air/Oil Separator | Corresponding separator identification |
| Ingersoll Rand Compressor Air/Oil Separators | Separation Component | Related replacement-separator category |
| Ingersoll Rand Separator Housings | Compressor Separation Hardware | Associated installation hardware |
| Ingersoll Rand Compressor Maintenance Components | Maintenance Parts | Related service components used during separator replacement |
Key Advantages
- Supports separation of lubricant from compressed air.
- Helps maintain the compressor’s air/oil separation process.
- Supports recovery of separated lubricant into the oil circuit where applicable.
- Suitable for scheduled compressor maintenance and overhaul work.
- Integrates into the existing compressor separation arrangement.
Technical FAQs
What is the function of the 54509427 air/oil separator?
The 54509427 separates lubricant carried in the compressed-air stream after the compression process. The separated oil can then return to the compressor oil circuit where the system provides for oil recovery.
Why is the oil-return path important when replacing an air/oil separator?
The separator and oil-return arrangement work together. If the return path is restricted, damaged, or incorrectly connected, separated lubricant may not return to the intended oil circuit correctly. The return arrangement should therefore be inspected during separator service.
What should be checked before installing a replacement separator?
The compressor model and part number should be confirmed first. The separator housing, sealing surfaces, oil-return connections, outlet connections, and surrounding components should also be inspected for contamination or damage.
What symptoms can indicate a problem with the air/oil separation system?
Unusual oil carryover, abnormal oil consumption, leakage around the separator assembly, or changes in compressor operating conditions can indicate that the separation system requires attention. These symptoms should be investigated together with the compressor’s operating and maintenance records rather than attributed to the separator alone.
