Product Overview

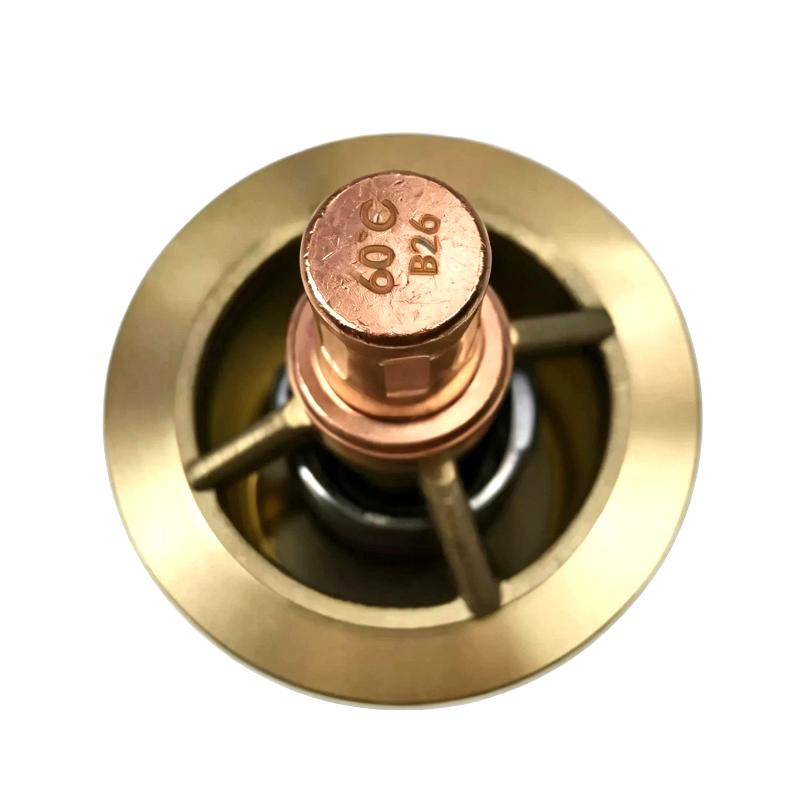

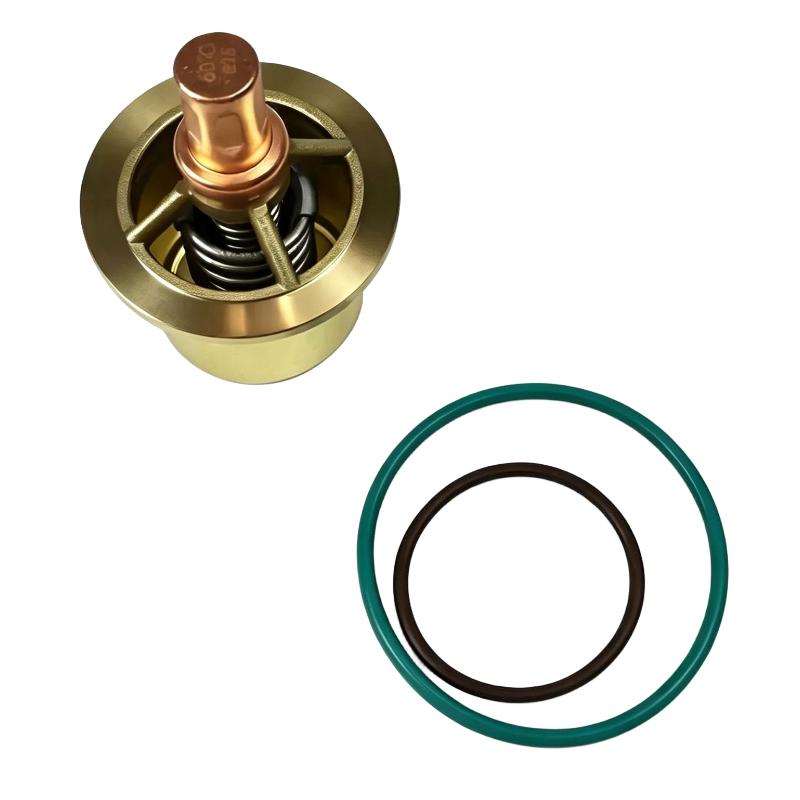

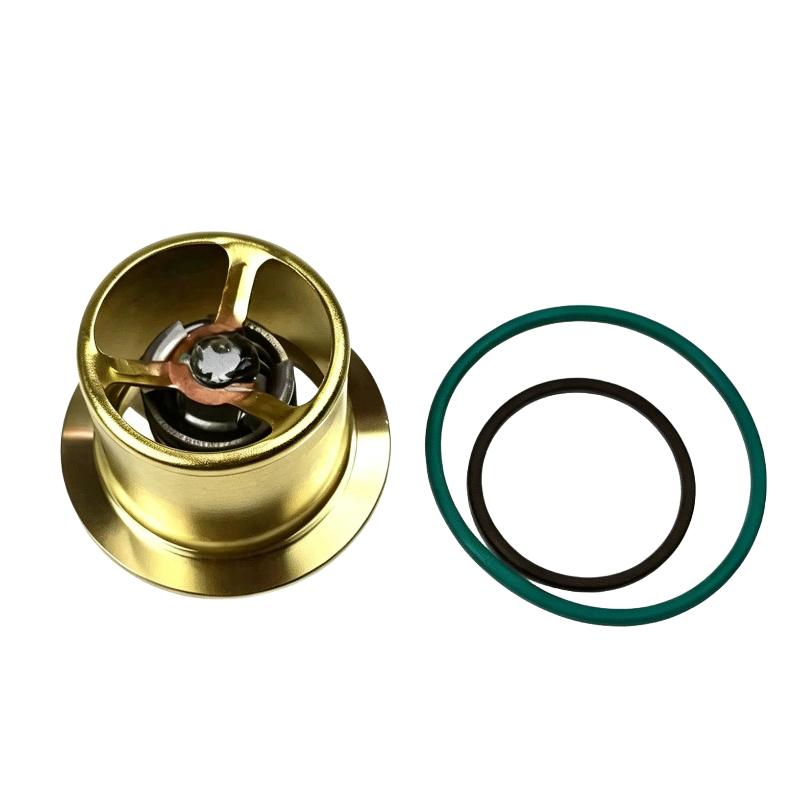

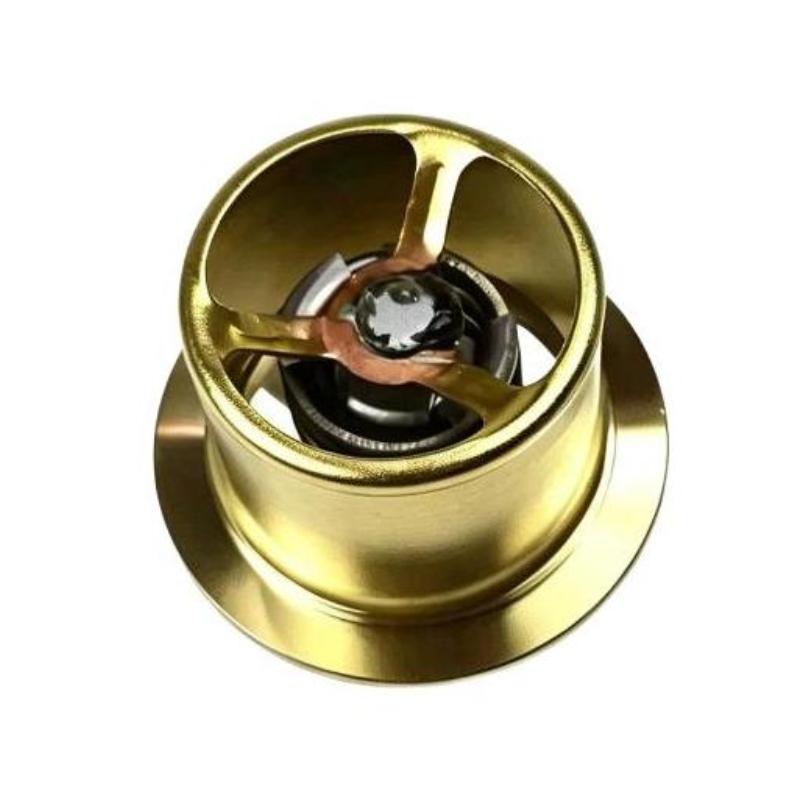

The Ingersoll Rand 47545139001 47545136001 Temperature Control Valve Maintenance Kit is used when servicing the temperature control valve in an Ingersoll Rand compressor. This valve is part of the compressor’s oil circulation system and controls how lubricant moves through the cooling circuit as operating conditions change.
A temperature control valve is commonly serviced during scheduled compressor maintenance, especially when oil temperature begins to run outside the normal operating range or the valve shows signs of sticking or internal wear. The maintenance kit allows the valve assembly to be serviced without replacing unrelated parts of the compressor.
For technicians working on an oil-injected rotary screw compressor, the valve is typically checked together with the oil cooler, oil filter, separator system, and lubricant circuit. Contamination or worn internal valve components can affect oil flow and, in turn, compressor operating temperature.
The 47545136001 reference is the maintenance kit part number supplied with the 47545139001 reference shown in the product identification. The kit is intended for temperature control valve maintenance rather than general compressor overhaul work.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Part Number | 47545136001 |
| Related Reference | 47545139001 |
| Product Type | Temperature Control Valve Maintenance Kit |
| Component | Temperature Control Valve |
| System | Compressor Lubrication and Cooling System |
| Function | Lubricant temperature control |
| Application | Compressor maintenance |
| Service Type | Valve maintenance |
| Equipment | Ingersoll Rand Compressor |
| Circuit | Lubricant circulation circuit |
| Maintenance Purpose | Temperature control valve service |
| Product Category | Compressor Maintenance Part |
| Dimensions | 180 × 140 × 80 mm |
| Weight | 1.20 kg |
Product Features
- Temperature control valve maintenance kit for Ingersoll Rand compressors
- Part number 47545136001
- Related reference 47545139001
- Used for service of the compressor temperature control valve
- Applicable to the lubricant circulation and cooling system
- Suitable for scheduled maintenance and corrective service
- Supports inspection and replacement of service components within the valve
- Useful when valve operation becomes abnormal due to wear or contamination
- Intended for compressor maintenance work rather than complete equipment replacement
Working Principle
The temperature control valve manages lubricant flow between the compressor oil circuit and the cooling path.
When the lubricant is below the required operating temperature, the valve keeps part of the oil away from the cooler so the compressor can reach its normal temperature range more quickly. As the oil temperature rises, the valve changes the flow path and sends more lubricant through the oil cooler.
A simplified service view is:
Compressor Oil Circuit → Temperature Control Valve → Oil Cooler / Bypass Path → Compressor
For maintenance technicians, the valve becomes a service concern when the compressor shows unusual oil-temperature behavior, the valve does not respond correctly to temperature changes, or internal components show wear. The 47545136001 maintenance kit is used during this type of valve service.
Role in an Ingersoll Rand Compressor Lubrication System
The temperature control valve sits within the lubricant-management circuit rather than the compressed-air control path.
| System Component | Function |
|---|---|
| Compressor Airend | Compresses air and generates operating heat |
| Lubricant Circuit | Circulates oil for lubrication and cooling |
| Temperature Control Valve | Directs lubricant through the appropriate cooling path |
| 47545136001 Maintenance Kit | Supports servicing of the temperature control valve |
| Oil Cooler | Removes heat from circulating lubricant |
| Oil Filter | Removes contaminants from compressor oil |
| Air/Oil Separator | Separates lubricant from compressed air |
| Temperature Monitoring Device | Monitors operating temperature |
| Compressor Controller | Monitors compressor operating conditions |
| Cooling System | Removes heat generated during compressor operation |
Industrial Applications
| Application | Service Scenario |
|---|---|
| Rotary Screw Compressors | Temperature control valve inspection and maintenance |
| Factory Air Systems | Preventive service of compressor lubrication circuits |
| Manufacturing Plants | Maintaining compressors supplying production equipment |
| Automotive Plants | Compressor service for pneumatic production systems |
| Metalworking Facilities | Maintenance of oil-injected compressor systems |
| Packaging Operations | Servicing compressor cooling and lubrication components |
| Textile Production | Routine compressor maintenance |
| Process Plants | Temperature-control valve service |
| Compressor Service Workshops | Valve inspection and component replacement |
| Industrial Utility Systems | Maintenance of compressor oil circuits |
Installation and Maintenance
- Verify the 47545136001 part number and related 47545139001 reference before beginning service.
- Confirm the compressor model and installed temperature control valve configuration.
- Shut down the compressor and isolate the electrical power supply.
- Release stored pressure from the compressor and associated air system before opening any component.
- Allow the compressor and lubricant to cool before working on the oil circuit.
- Clean the valve exterior and surrounding area to prevent contamination from entering the assembly.
- Remove the temperature control valve according to the applicable compressor service procedure.
- Inspect the valve body and internal components for deposits, scoring, sticking, corrosion, or other visible damage.
- Compare the maintenance-kit components with the removed parts before assembly.
- Replace applicable worn service components and reassemble the valve in the correct order.
- Return the valve to the compressor, restore the connections, and check for oil leakage.
- Run the compressor and monitor lubricant temperature and valve behavior under operating conditions.
Related Components
| Component | Relationship to Temperature Control Valve |
|---|---|
| Oil Cooler | Receives lubricant flow when cooling is required |
| Oil Filter | Filters lubricant before it circulates through the compressor |
| Compressor Oil | Carries heat away from internal compressor components |
| Air/Oil Separator | Separates oil from compressed air |
| Compressor Airend | Main compression and lubrication assembly |
| Temperature Sensor | Supplies temperature information for monitoring |
| Lubricant Piping | Carries oil between compressor components |
| Cooling Fan | Supports heat removal from the oil cooler |
| Compressor Controller | Monitors compressor operating conditions |
Recommended Related Models
| Product | Product Type | Application |
|---|---|---|
| 47545136001 | Temperature Control Valve Maintenance Kit | Temperature control valve service |
| 47545139001 | Temperature Control Valve Maintenance Kit Reference | Compressor maintenance identification |
| Ingersoll Rand Temperature Control Valve | Temperature Control Valve | Compressor lubricant temperature regulation |
| Ingersoll Rand Oil Cooler | Oil Cooler | Lubricant cooling |
| Ingersoll Rand Oil Filter | Oil Filter | Compressor oil filtration |
| Ingersoll Rand Air/Oil Separator | Air/Oil Separator | Oil separation and lubricant recovery |
Key Advantages
- Dedicated for temperature control valve maintenance.
- Supports service of the compressor lubricant cooling circuit.
- Useful for scheduled valve maintenance.
- Suitable for inspection and replacement of worn valve components.
- Helps restore proper lubricant-flow control after valve service.
- Can be kept as a maintenance spare for applicable compressor equipment.
Technical FAQs
What is the function of the 47545136001 maintenance kit?
It is used to service the temperature control valve in the compressor’s lubricant circulation and cooling system.
What symptoms can indicate a temperature control valve problem?
Abnormal lubricant temperature, inconsistent temperature behavior, valve sticking, or oil leakage around the valve can indicate that inspection or maintenance is required.
Does the temperature control valve control compressed-air pressure?
No. Its primary function is to regulate lubricant flow through the compressor cooling and bypass paths. It is part of the oil-temperature management system.
What should be checked before using this maintenance kit?
The compressor model, existing temperature control valve configuration, and part-number information should be verified before disassembly and installation.
