Product Overview

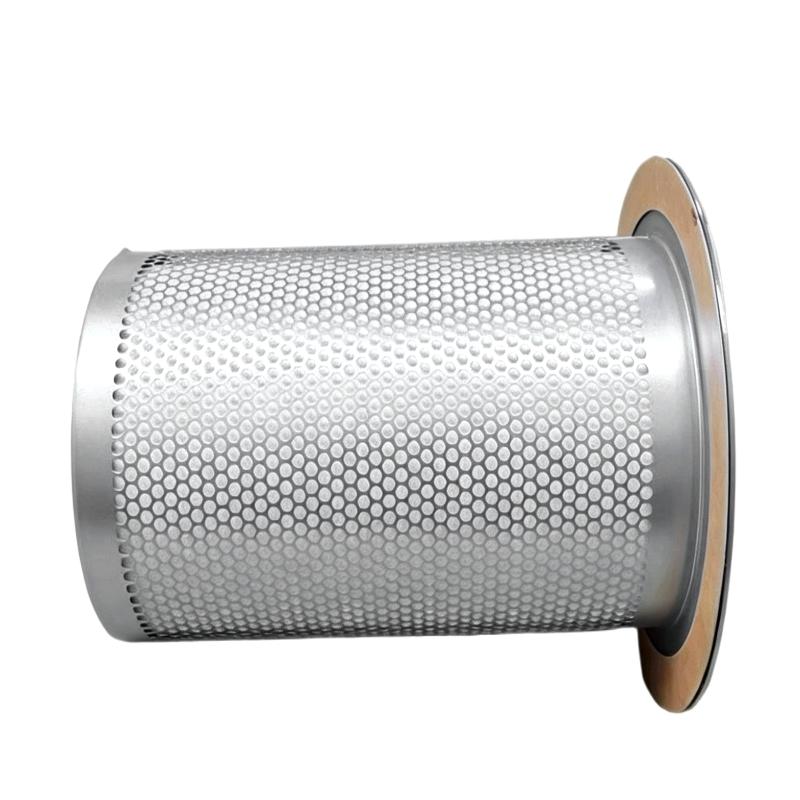

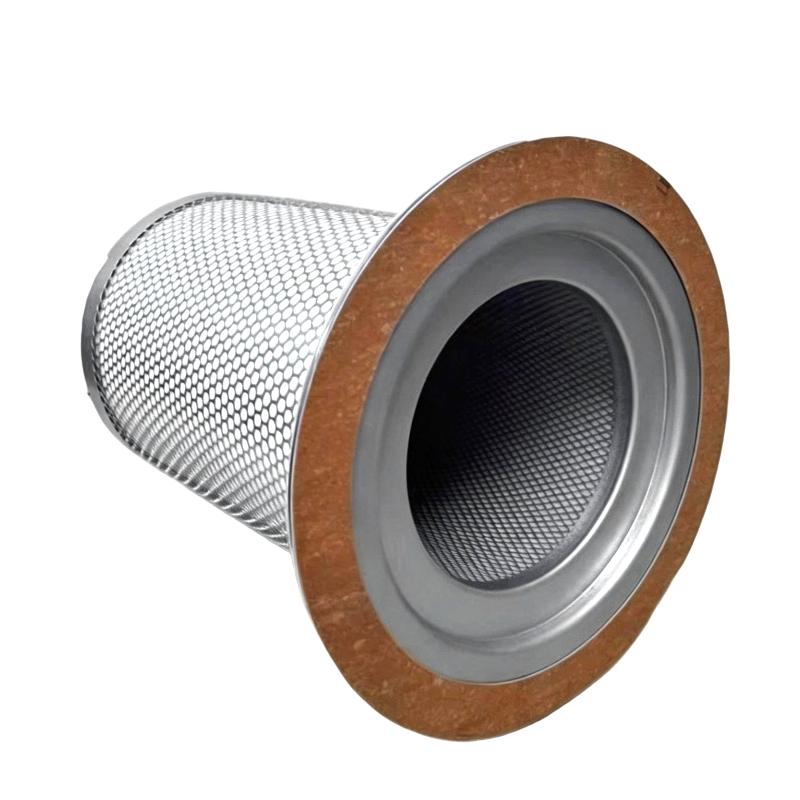

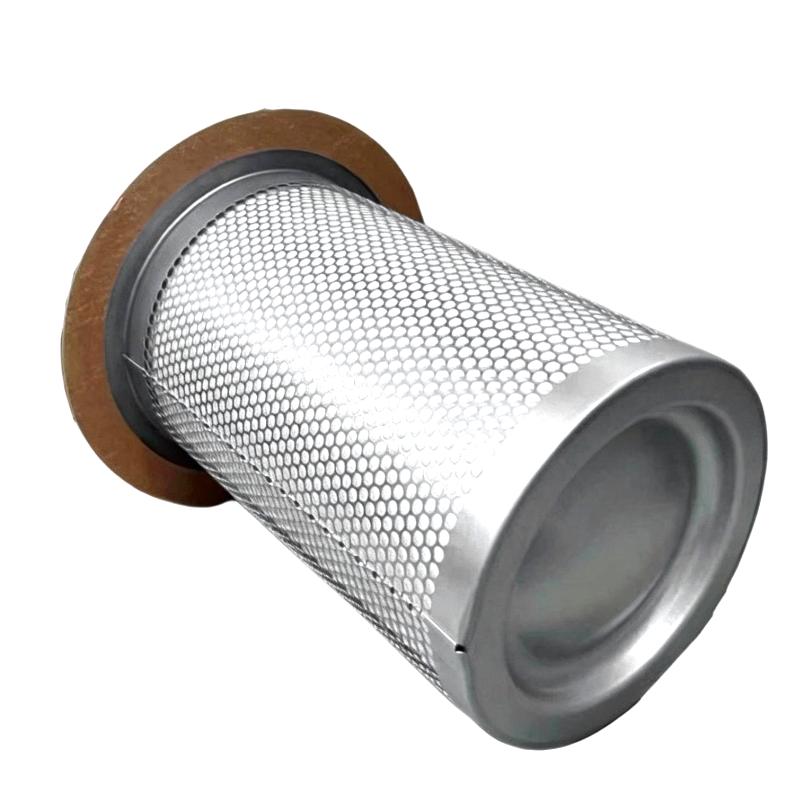

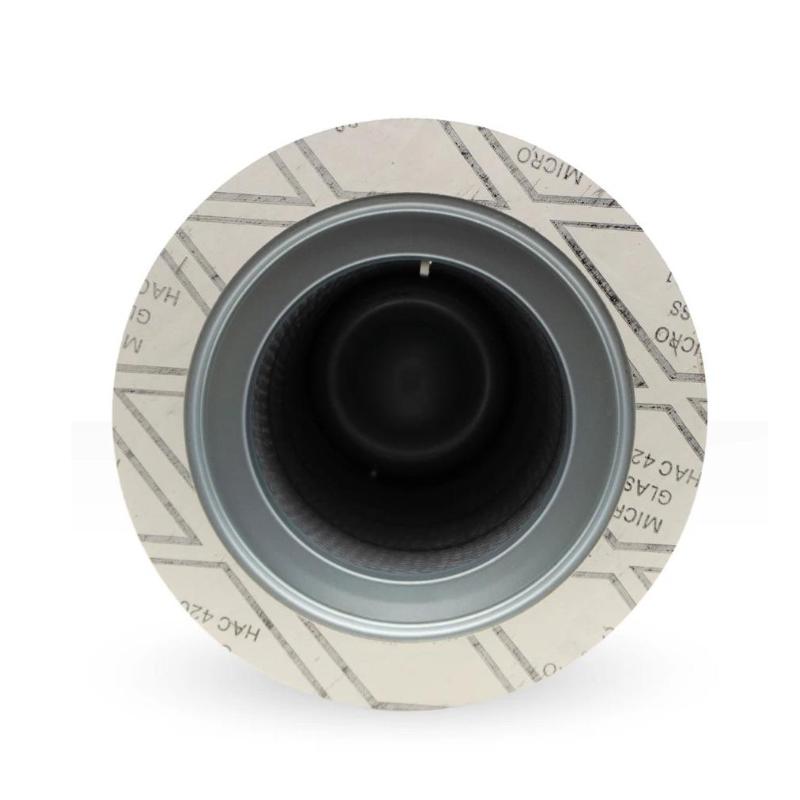

The Ingersoll Rand 47545137001 54509427 Air/Oil Separator is a filtration component used in compatible oil-injected compressed-air systems. Its primary role is to separate oil droplets from compressed air before the air moves downstream to the outlet and distribution system.

During compression, lubricating oil can become entrained in the compressed-air stream. The separator element removes much of this oil from the airflow, helping control oil carryover and allowing recovered oil to return to the compressor’s lubrication circuit where the system design supports oil recovery.

Separator condition affects compressed-air quality, oil consumption, and compressor operating performance. Replacing the separator at the prescribed maintenance interval helps maintain separation efficiency and reduces the risk of problems associated with a saturated or damaged element.

Technical Specifications

Product Features

• Oil carryover reduction: Separates entrained oil from compressed air to support downstream air quality.
• Oil recovery support: Allows separated oil to return to the lubrication circuit in systems equipped for oil recovery.
• Compressor maintenance: Serves as a replaceable component in scheduled compressor servicing.
• Filtration performance: Helps maintain separation effectiveness when the element is in suitable operating condition.
• Equipment protection: Helps reduce the amount of oil carried into downstream piping and connected equipment.
• Parts identification: The listed part numbers support purchasing, inventory management, and maintenance planning.

Working Principle

In an oil-injected compressor, the compressed-air and oil mixture enters the separation assembly after compression. The separator element removes oil droplets from the airflow through its separation media. Small droplets combine into larger droplets, which can then drain toward the designated oil recovery area.

The cleaned air continues toward the compressor outlet, while recovered oil returns to the lubrication circuit through the system’s designed recovery path. The actual arrangement depends on the compressor model and separator assembly.

As the element accumulates contaminants or experiences operating wear, airflow resistance may increase and separation performance may deteriorate. Routine maintenance helps preserve the intended balance between air delivery, oil recovery, and separator efficiency.

Role in an Industrial Compressor Air/Oil Separation System

The air/oil separator forms part of the compressor’s separation and lubrication arrangement. It helps control the amount of lubricating oil that remains in the compressed-air stream and supports the return of separated oil within the compressor.

Industrial Applications

Installation and Maintenance

1. Identify the separator: Confirm the part number and the compressor application before servicing.
2. Shut down the compressor: Follow the manufacturer’s shutdown and isolation procedure.
3. Relieve system pressure: Ensure the compressor and separator housing are fully depressurized according to the service instructions.
4. Allow the equipment to cool: Wait until the assembly reaches a safe temperature for maintenance.
5. Prepare a clean work area: Prevent dust and debris from entering the separator housing or oil circuit.
6. Remove the existing element: Follow the specified removal procedure and use suitable tools.
7. Inspect the housing: Check the sealing surfaces, internal areas, and connections for damage or contamination.
8. Prepare the replacement: Inspect the new separator and its sealing components before installation.
9. Install the separator: Follow the manufacturer’s seating, sealing, and tightening instructions.
10. Reconnect the oil recovery path: Ensure that applicable recovery lines and connections are correctly installed.
11. Check operation after startup: Inspect for leakage, abnormal pressure indications, and signs of excessive oil carryover.
12. Record the service: Document the replacement date, part number, and relevant operating observations.

Compatible System Components

Recommended Related Models

Key Advantages

• Helps reduce oil carryover in compressed air.
• Supports oil recovery in compatible compressor separation systems.
• Contributes to maintaining compressed-air system cleanliness.
• Supports scheduled compressor maintenance and separator replacement.
• Helps protect downstream equipment from excessive oil contamination.

Technical FAQs

1. What is the function of the Ingersoll Rand 47545137001 54509427 Air/Oil Separator?

It separates entrained oil from compressed air in compatible oil-injected compressor systems, helping reduce oil carryover and supporting oil recovery.

2. What are common signs of an air/oil separator problem?

Possible signs include increased oil carryover, abnormal pressure differential, higher oil consumption, or separator-related alarms. These symptoms should be assessed alongside the compressor’s operating data and maintenance history.

3. How often should the air/oil separator be replaced?

Replacement intervals depend on the compressor model, operating conditions, and maintenance schedule. Follow the prescribed service interval for the equipment.

4. Can an air/oil separator be reused after cleaning?

A separator element is generally serviced by replacement rather than routine cleaning. Follow the compressor manufacturer’s maintenance procedure for the specific separator assembly.
