- Ingersoll Rand
- 47545137001 24172215
- Air Filter
- USA
- 126.2 × 126.2 × 209.6 mm
- 4.32 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 5
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

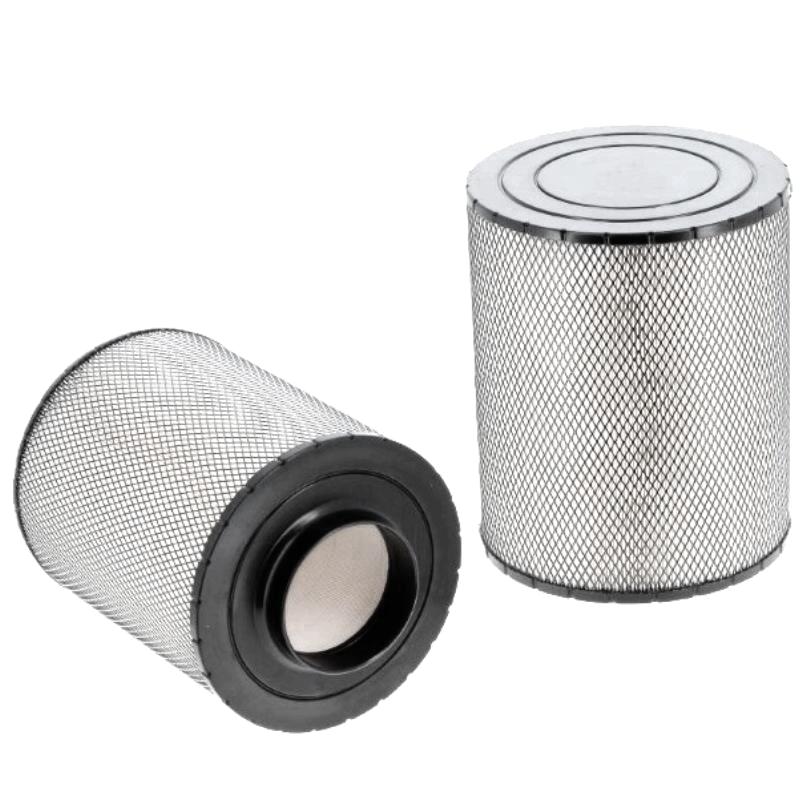

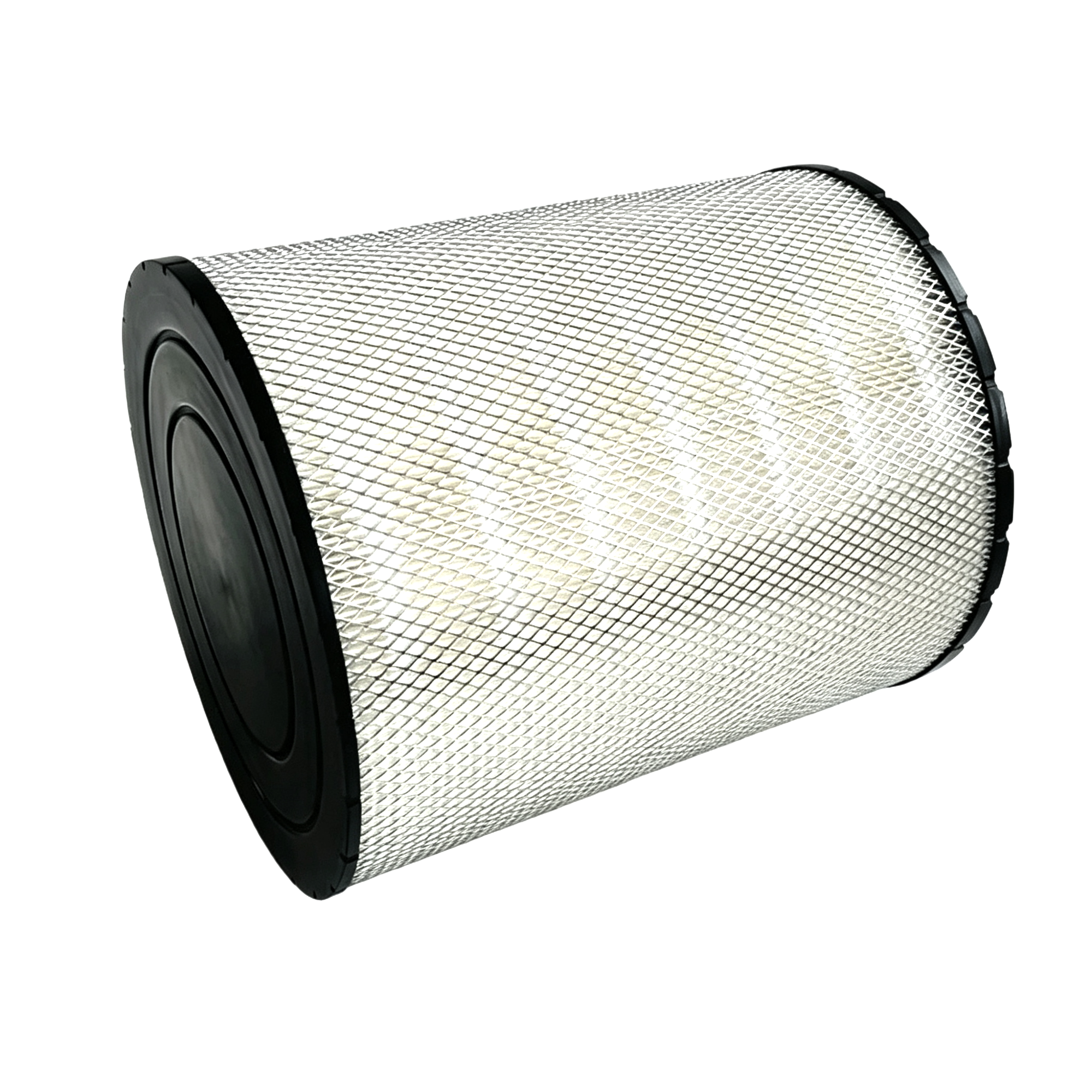

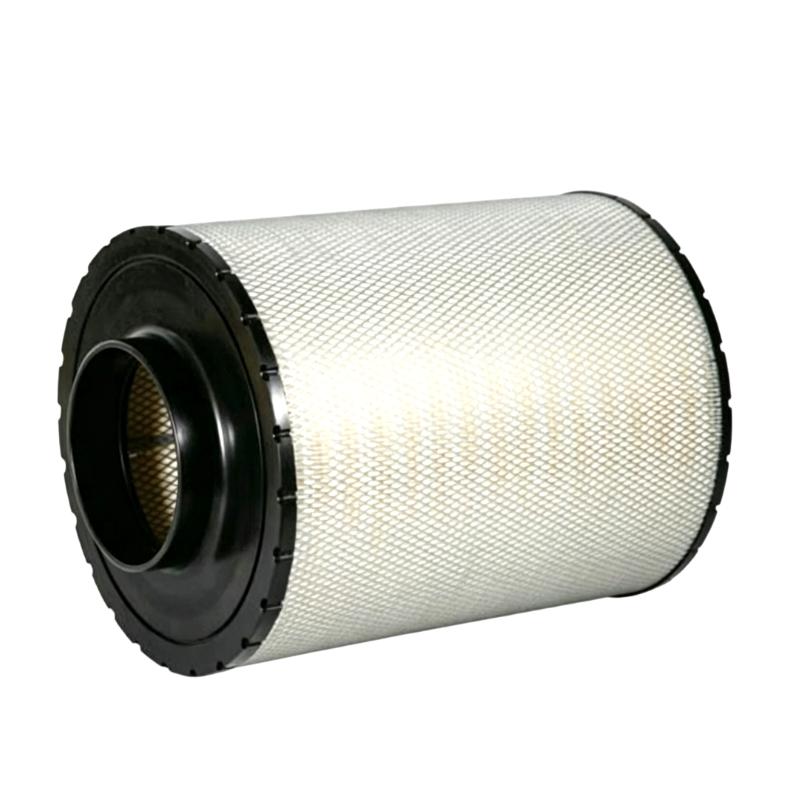

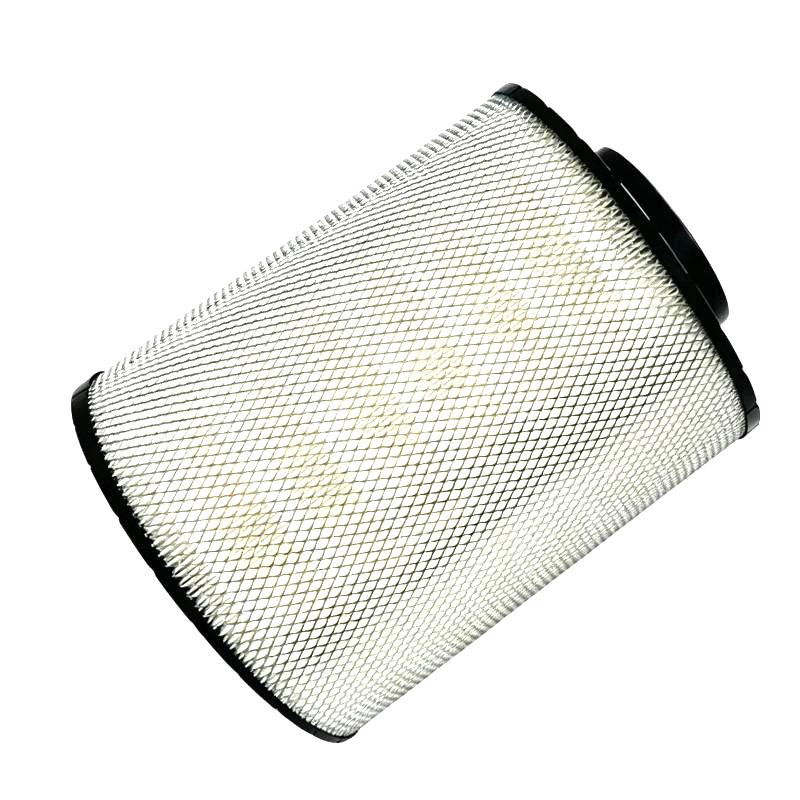

The Ingersoll Rand 24172215 Air Filter is a replacement filtration component used in compatible compressor intake systems. It removes airborne dust and other particulate contaminants before they enter the compressor, helping protect internal components from contamination and abrasive wear.
In a rotary screw compressor, intake air passes through the filter before reaching the compression element. If the filter becomes clogged, airflow can be restricted, potentially increasing the load on the intake system and affecting compressor performance. A damaged or poorly fitted filter can also allow contaminants to enter the machine.
Replacing the air filter at the appropriate service interval helps maintain intake airflow and supports routine compressor maintenance. The correct replacement should be selected according to the compressor model and its specified filter requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Air Filter |
| Brand | Ingersoll Rand |
| Part Number | 24172215 |
| Associated Part Number | 47545137001 |
| Component Category | Compressor filtration component |
| Primary Function | Intake air filtration |
| Application | Compatible industrial air compressors |
| Installation Position | Compressor air intake system |
| Filter Medium | Air filtration media |
| Contaminants Removed | Airborne dust and particulate matter |
| Maintenance Type | Inspection and replacement |
| Service Purpose | Protecting the compressor from intake contamination |
| Compatible Equipment | Ingersoll Rand compressor models requiring this filter |
| Dimensions | 126.2 × 126.2 × 209.6 mm |
| Weight | 4.32 kg |
Product Features
- Filters dust and airborne particles from compressor intake air.
- Helps protect the compression element from contaminant ingress.
- Supports consistent airflow when maintained in serviceable condition.
- Suitable for scheduled compressor filter replacement.
- Helps reduce contamination-related wear inside the compressor.
- Requires correct seating and sealing during installation.
- Intended for compatible Ingersoll Rand compressor configurations.
Working Principle
As the compressor draws in ambient air, the air passes through the filter media. Particles are retained by the media while filtered air continues toward the compressor intake and compression element.
Over time, captured contaminants accumulate in the filter. As the restriction increases, the compressor may require more effort to draw in air, and the intake system may no longer perform as intended. Filter condition therefore needs to be checked according to the equipment’s maintenance schedule and operating environment.
During replacement, the old element is removed and the intake housing is inspected for dust, damage, or residue. The new filter must sit correctly in its housing, with the sealing surfaces properly engaged to prevent unfiltered air from bypassing the media.
Role in a Rotary Screw Compressor Control Architecture
| Component | Role in the System |
|---|---|
| 24172215 Air Filter | Removes particulate contaminants from incoming air |
| Intake Housing | Holds the filter element and directs incoming air |
| Intake Valve | Regulates air entering the compression element |
| Screw Compressor Element | Compresses filtered intake air |
| Air/Oil Separator | Separates oil from compressed air |
| Oil Filter | Removes contaminants from circulating compressor oil |
| Temperature Control Valve | Regulates oil flow according to temperature conditions |
| Compressor Controller | Monitors operating conditions and manages compressor operation |
| Discharge System | Delivers compressed air to downstream equipment |
Industrial Applications
| Application | Filtration Purpose |
|---|---|
| Rotary Screw Compressors | Filters incoming air before compression |
| Manufacturing Plants | Supports compressor intake maintenance |
| Industrial Pneumatic Systems | Helps reduce particulate entry into compressed-air equipment |
| Process Air Installations | Maintains intake filtration for compatible compressors |
| Plant Utility Rooms | Supports routine service of compressed-air equipment |
| Compressor Service Workshops | Used during filter inspection and replacement |
| Industrial Production Lines | Helps protect compressor components from airborne contamination |
Installation and Maintenance
- Confirm that part number 24172215 matches the compressor model and required filter specification.
- Shut down the compressor and isolate the power supply according to the service procedure.
- Allow the equipment to reach a safe condition before opening the intake housing.
- Open the filter compartment using the manufacturer’s recommended procedure.
- Remove the existing filter carefully to avoid releasing accumulated dust into the intake.
- Inspect the filter housing for contamination, corrosion, or physical damage.
- Clean the housing as directed, ensuring that debris cannot enter the intake passage.
- Check the replacement filter for damage and confirm that its sealing surfaces are intact.
- Install the filter in the correct orientation and ensure that it sits evenly in the housing.
- Secure the housing cover and verify that all seals and fasteners are correctly positioned.
- Restart the compressor and check for abnormal intake noise or filter-related alarms, where fitted.
- Record the replacement and schedule the next inspection according to operating conditions and manufacturer guidance.
Related Components
| Component | Function |
|---|---|
| Air Filter | Removes particulate contaminants from intake air |
| Intake Housing | Supports and seals the filter element |
| Intake Valve | Controls air admission to the compressor element |
| Screw Compressor Element | Compresses incoming air |
| Oil Filter | Filters the compressor’s circulating oil |
| Air/Oil Separator | Separates oil from compressed air |
| Temperature Control Valve | Regulates oil flow in the compressor circuit |
| Minimum Pressure Check Valve | Maintains minimum pressure and controls discharge flow |
Recommended Related Models
| Model | Product Name | Application |
|---|---|---|
| 24172215 | Air Filter | Compressor intake air filtration |
| 39911631 | Oil Filter | Compressor oil filtration |
| 54509427 | Air/Oil Separator | Air/oil separation maintenance |
| 47545136001 | Temperature Control Valve Maintenance Kit | Temperature control valve servicing |
| 99289894 | Minimum Pressure Check Valve Repair Kit | Minimum pressure valve maintenance |
Key Advantages
- Filters airborne contaminants before they enter the compressor.
- Supports protection of the compression element.
- Helps maintain intake airflow when replaced at the appropriate interval.
- Supports planned compressor maintenance.
- Helps reduce the risk of contamination-related component wear.
Technical FAQs
What is the Ingersoll Rand 24172215 Air Filter used for?
The 24172215 is an air filter for compatible Ingersoll Rand compressor systems. It filters incoming air before it reaches the compressor’s internal components.
What are the signs that a compressor air filter may need replacement?
Possible indicators include increased filter restriction, a filter maintenance warning where fitted, visible damage, or excessive contamination. Follow the compressor manufacturer’s inspection and replacement criteria rather than relying on appearance alone.
Can a clogged air filter affect compressor operation?
Yes. Excessive filter restriction can reduce intake airflow and affect compressor performance. A damaged filter or poor seal can also allow contaminants to enter the intake system.
What should be checked when installing the replacement filter?
Confirm the part number, inspect the housing and sealing surfaces, and make sure the filter is correctly seated. The housing should be securely closed to prevent unfiltered air from bypassing the filter media.
