Product Overview

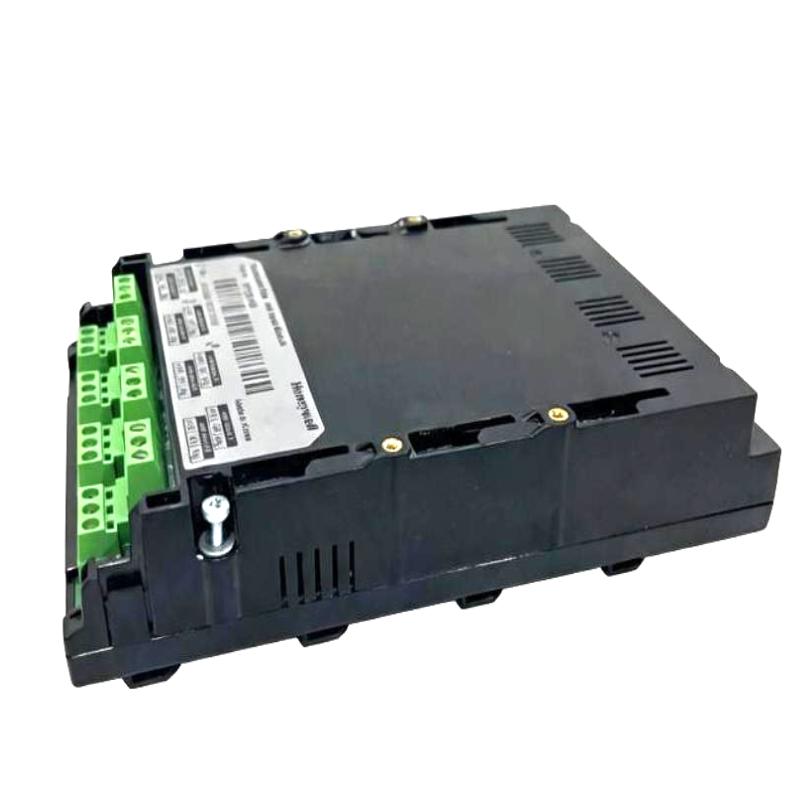

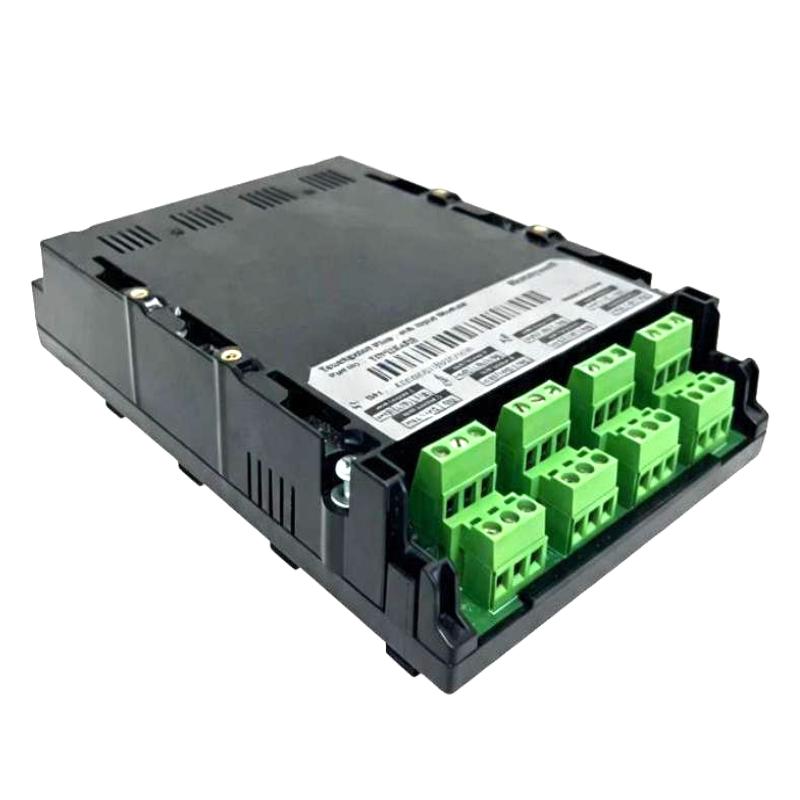

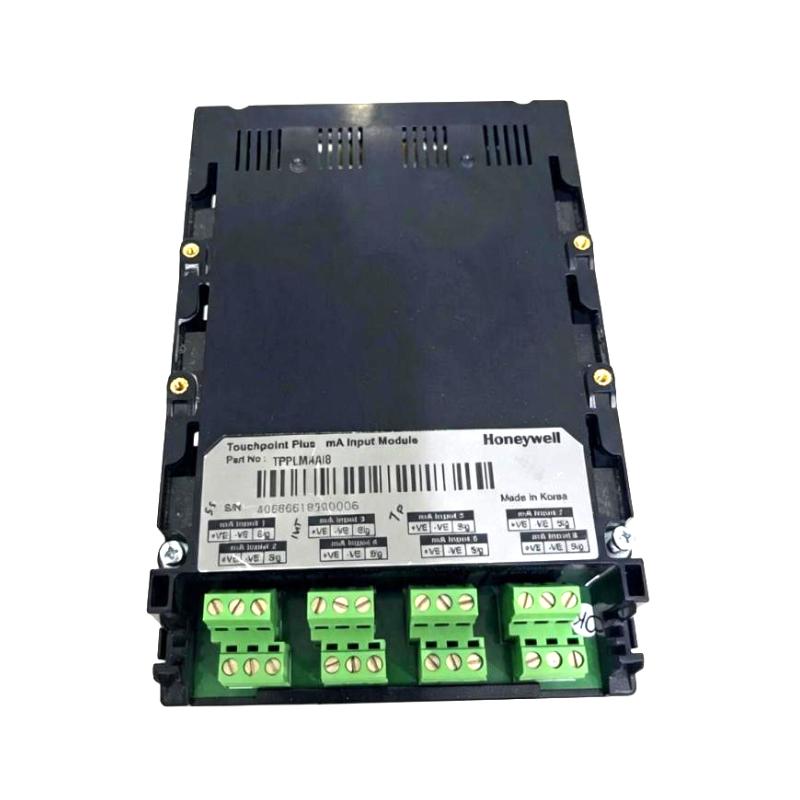

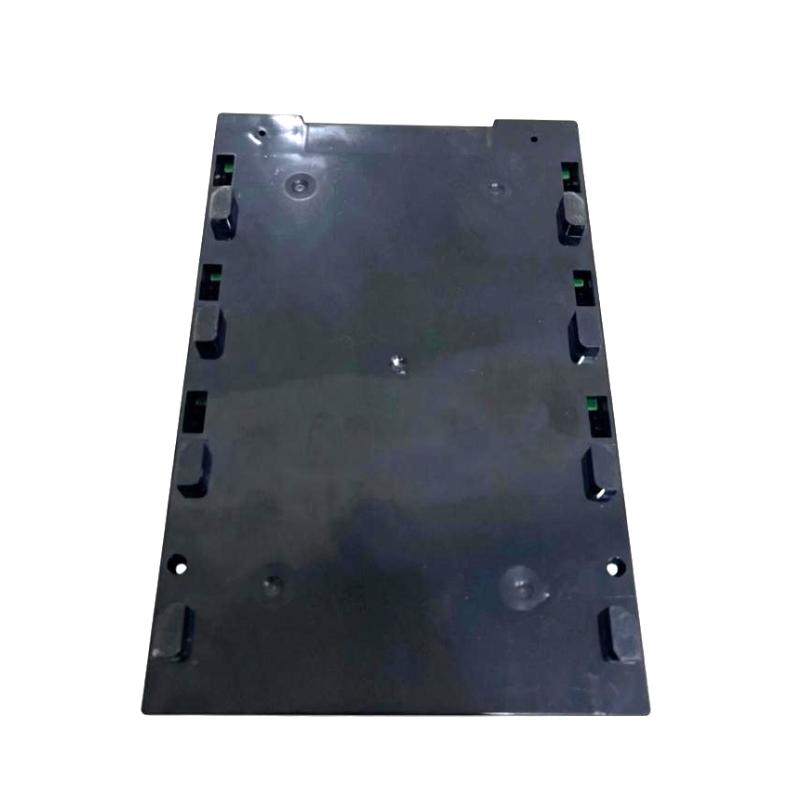

The Honeywell TPPLMAAI8 Touchpoint Plus 8-Channel mA Input Module is an analog signal acquisition module used in Honeywell Touchpoint Plus gas detection and safety monitoring systems.
This module provides multiple current input channels for connecting field transmitters and detection devices that output standard analog signals. It allows the Touchpoint Plus controller to collect real-time measurement data from different monitoring points and support centralized safety management.
The module is commonly installed in industrial facilities where continuous monitoring of hazardous gases and process conditions is required, including oil and gas plants, chemical processing sites, manufacturing facilities, and utility areas.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | TPPLMAAI8 |
| Product Family | Touchpoint Plus |
| Product Type | 8-Channel mA Input Module |
| Input Type | Analog Current Input |
| Application | Gas Detection and Safety Monitoring |
| Number of Channels | 8 Channels |
| Dimensions | 160 × 45 × 120 mm |
| Weight | 0.68 kg |
Product Features
The Honeywell TPPLMAAI8 is designed to provide reliable analog signal collection for industrial safety systems.
Key characteristics include:
- Honeywell Touchpoint Plus compatible input module
- Provides 8 independent mA input channels
- Supports connection with analog field transmitters
- Enables centralized monitoring of multiple detection points
- Compact structure for control cabinet installation
- Simplifies integration of field measurement devices
- Supports continuous safety monitoring applications
- Helps improve system expansion flexibility
By adding additional analog input capacity, the module allows the Touchpoint Plus system to manage more field devices within a single safety architecture.
Working Principle
The TPPLMAAI8 receives analog current signals from connected field instruments and transfers measurement information to the Touchpoint Plus controller.
The signal transmission process is:
Field Transmitter → Analog mA Signal → TPPLMAAI8 Input Module → Touchpoint Plus Controller → Alarm / Monitoring Interface
The module continuously collects current signals representing field conditions. The controller then processes these signals, compares them with configured alarm levels, and provides appropriate warnings or system responses.
The input process supports:
- Real-time data acquisition
- Multi-point monitoring
- Continuous signal evaluation
- Alarm condition detection
- Safety system coordination
Role in a Touchpoint Plus Safety System
Within the Honeywell Touchpoint Plus architecture, the TPPLMAAI8 works as an interface between field detection equipment and the central control unit.
A typical configuration is:
Gas Detector / Transmitter → TPPLMAAI8 → Touchpoint Plus Controller → Operator Display / Alarm System
The module expands the monitoring capability of the safety system by allowing additional analog devices to be connected.
It is commonly used for:
- Gas concentration monitoring
- Hazardous area detection
- Industrial safety supervision
- Process condition monitoring
- Emergency alarm systems
Industrial Applications
The Honeywell Touchpoint Plus 8-Channel mA Input Module is applied in various industrial safety environments.
| Application | Typical Use |
|---|---|
| Oil & Gas Industry | Gas leak monitoring and safety protection |
| Chemical Processing | Hazardous gas detection |
| Power Generation | Plant safety monitoring |
| Manufacturing Facilities | Environmental condition monitoring |
| Storage Areas | Gas concentration supervision |
| Utility Systems | Distributed safety detection |
The module is suitable for applications requiring multiple analog monitoring channels connected to one safety controller.
Installation and Maintenance
Proper installation ensures accurate signal acquisition and reliable safety operation.
Recommended procedures include:
- Confirm compatibility with the Touchpoint Plus controller
- Verify connected transmitter signal types
- Check field wiring and terminal connections
- Configure input channels correctly
- Inspect connections during maintenance intervals
- Monitor system diagnostics and alarms
- Perform periodic safety system testing
When replacing the module, confirm the existing channel configuration and connected field devices before system restart.
Related Components
The TPPLMAAI8 is typically used together with Honeywell safety system components.
| Component | Function |
|---|---|
| Honeywell Touchpoint Plus Controller | Central monitoring and control |
| Gas Detection Transmitters | Provide analog measurement signals |
| Alarm Indicators | Provide visual and audible warnings |
| Communication Modules | Transfer system information |
| Power Supply Components | Provide electrical support |
| Engineering Tools | System setup and configuration |
These components form an integrated gas detection and industrial safety monitoring solution.
Recommended Related Models
| Model | Product Type | Typical Application |
|---|---|---|
| Honeywell TPPLMAAI8 | Touchpoint Plus 8-Channel mA Input Module | Analog signal monitoring |
| Honeywell TPPLSMAAI8 | Touchpoint Plus 8-Channel mA Input Module | Gas detection applications |
| Honeywell Touchpoint Plus Series | Safety Monitoring System | Industrial hazard detection |
| Honeywell Gas Detection Modules | Signal Interface Equipment | Field transmitter connection |
| Honeywell Safety Controllers | Industrial Safety Control | Centralized monitoring |
Model selection should consider the number of field devices, signal requirements, and overall safety system configuration.
Key Advantages
- Supports 8-channel analog input monitoring.
- Integrates with Honeywell Touchpoint Plus systems.
- Enables centralized field signal management.
- Simplifies multi-point gas detection integration.
- Suitable for continuous industrial safety applications.
- Provides flexible system expansion capability.
Technical FAQs
What is the difference between Honeywell TPPLMAAI8 and other Touchpoint Plus input modules?
The TPPLMAAI8 provides eight analog current input channels for connecting compatible field transmitters within a Touchpoint Plus safety system.
How does the TPPLMAAI8 improve industrial gas monitoring capability?
By expanding the number of available analog inputs, it allows more detection devices to be connected and monitored through one centralized controller.
What types of signals are typically connected to a Touchpoint Plus mA input module?
The module is commonly used for industrial field devices that provide analog current measurement signals for monitoring gas or process conditions.
What configuration checks are required after installing a TPPLMAAI8 module?
Engineers should verify channel assignment, transmitter wiring, input settings, and controller communication before placing the safety system into operation.
