Product Overview

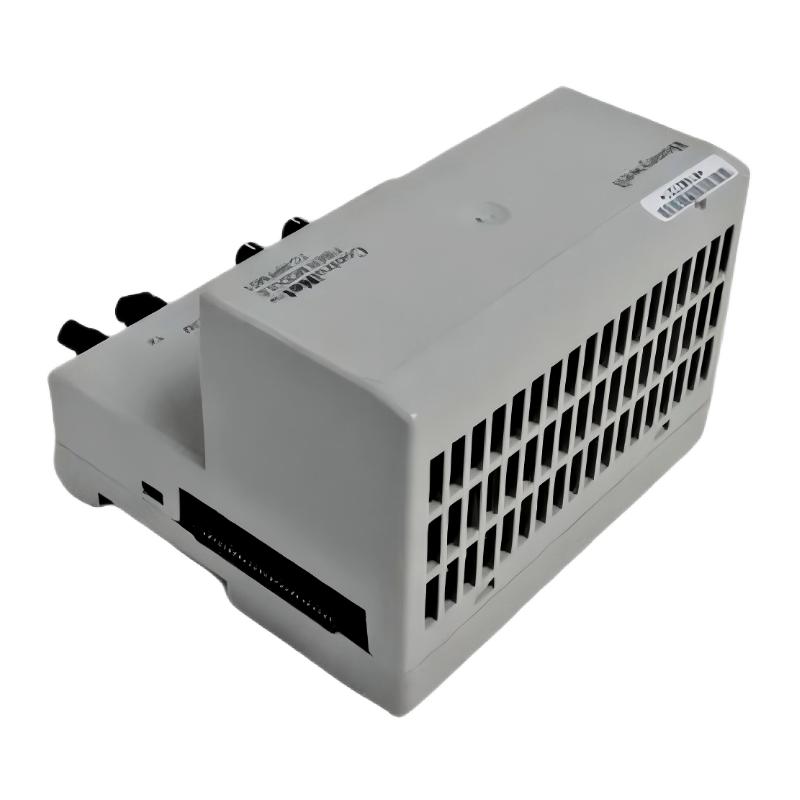

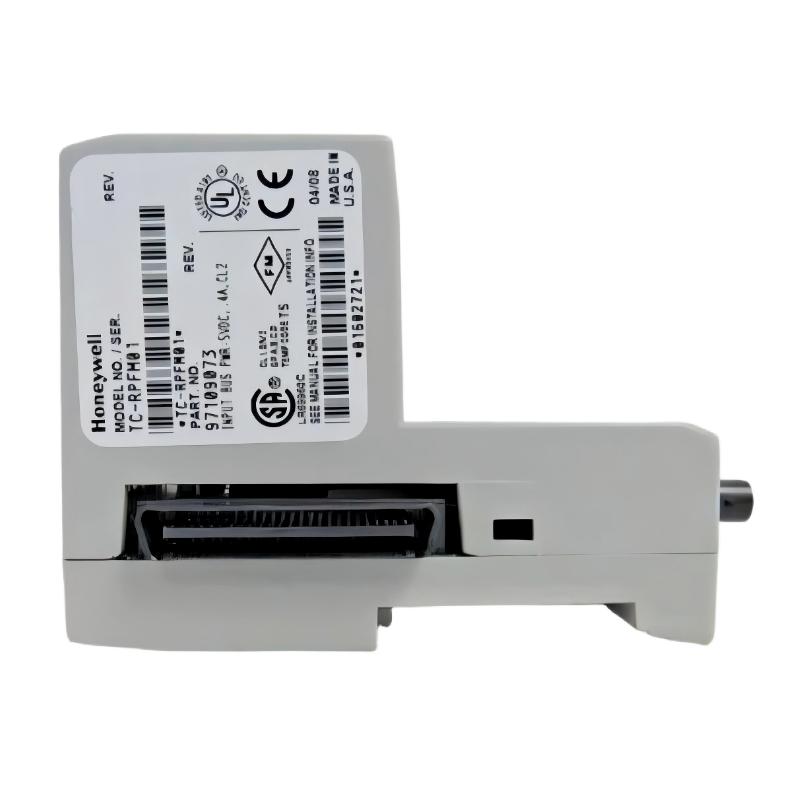

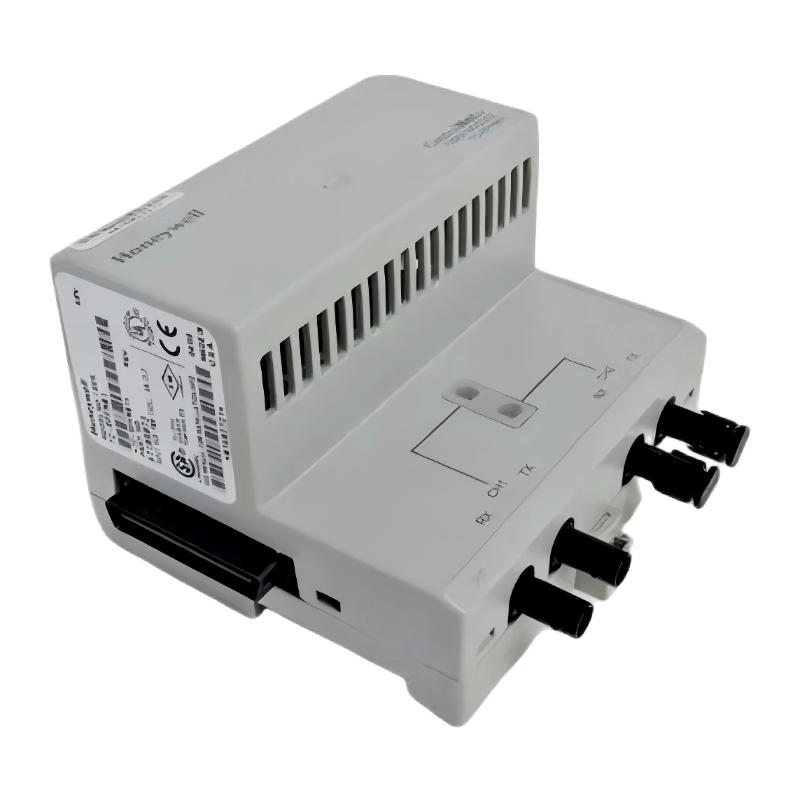

The Honeywell TC-RPFM01 Fiber Optic Module is an advanced communication component designed to extend ControlNet networks using fiber optic technology. It enables high-speed, long-distance data transmission while maintaining signal integrity in demanding industrial environments.
This module is typically used in distributed control systems where reliable communication across extended distances is required. By utilizing fiber optics, it significantly enhances system stability and eliminates issues caused by electrical interference.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | TC-RPFM01 |
| Part Number | 97109073 |
| Product Type | Fiber Optic Module |
| Communication Protocol | ControlNet |
| Function | Fiber optic signal transmission |
| Fiber Type | Single-mode |
| Transmission Distance | Up to several kilometers |
| Data Rate | High-speed communication |
| Signal Conversion | Electrical to optical |
| Connector Type | Industrial fiber connectors |
| Power Supply | Low-voltage DC |
| Dimensions | 108 × 108 × 70 mm |
| Weight | 0.07 kg |
| Mounting | Cabinet / rack installation |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Application Environment | Industrial automation systems |
Function and Working Principle
The TC-RPFM01 module converts electrical ControlNet signals into optical signals for transmission over fiber optic cables.
Its operation includes:
- Receiving electrical communication signals
- Converting signals into optical format
- Transmitting data over long distances via fiber
- Converting optical signals back to electrical form at the receiving end
This process ensures stable, high-speed communication with minimal signal loss and strong resistance to interference.
Role in Industrial Control Systems
Within industrial control architectures, the TC-RPFM01 functions as a network extension and communication enhancement module.
It supports:
- Long-distance communication between system nodes
- Stable data transmission in harsh environments
- Integration of distributed control components
- Expansion of ControlNet network infrastructure
It is commonly used together with repeater adapters to form extended communication networks.
Industrial Applications
The module is widely applied in:
- Distributed Control Systems (DCS)
- Industrial communication networks
- Oil and gas facilities
- Power generation plants
- Manufacturing automation systems
- Remote monitoring environments
It is particularly useful in installations where communication reliability and distance are critical.
Installation and System Integration
Proper installation ensures optimal performance:
- Installed in control cabinets or communication racks
- Connected via fiber optic cables
- Integrated with ControlNet repeater systems
- Requires proper connector alignment and cable handling
- Must follow industrial fiber installation standards
Correct setup ensures reliable and long-term communication stability.
Compatible System Components
The TC-RPFM01 module typically works with:
- ControlNet repeater adapters
- Control processors and communication modules
- Fiber optic cables and connectors
- Distributed I/O systems
- Network interface modules
These components together form a scalable industrial communication system.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| TC-RPFS01 | Fiber Optic Module | Short-distance communication | Compact systems |
| TC-RPA002 + Fiber Module | Repeater system | Network extension solution | Large systems |
| ControlNet Fiber Converter | Communication module | Signal conversion | Remote communication |
| Industrial Fiber Interface Module | Network component | Flexible integration | Custom systems |
| Fiber Communication Expansion Module | Extension device | Long-distance transmission | Distributed systems |
Key Advantages
- Enables long-distance communication using fiber optics
- Eliminates electromagnetic interference issues
- Ensures stable and high-speed data transmission
- Improves overall network reliability
- Compact and lightweight design
- Easy integration into existing systems
- Suitable for continuous industrial operation
Technical FAQs
What is the main function of the TC-RPFM01?
It converts ControlNet signals into optical signals for long-distance transmission.
Does it improve communication reliability?
Yes, fiber optics eliminate interference and reduce signal loss.
Where is it typically installed?
It is installed in control cabinets as part of a communication network.
Is it suitable for large systems?
Yes, it is ideal for distributed systems requiring extended communication distance.
Conclusion
The Honeywell TC-RPFM01 Fiber Optic Module is a critical component for extending industrial communication networks. By leveraging fiber optic technology, it ensures reliable, high-speed, and interference-free data transmission across distributed control systems.
For industrial automation environments, it provides a dependable solution for maintaining communication performance and system stability over long distances.
