Product Overview

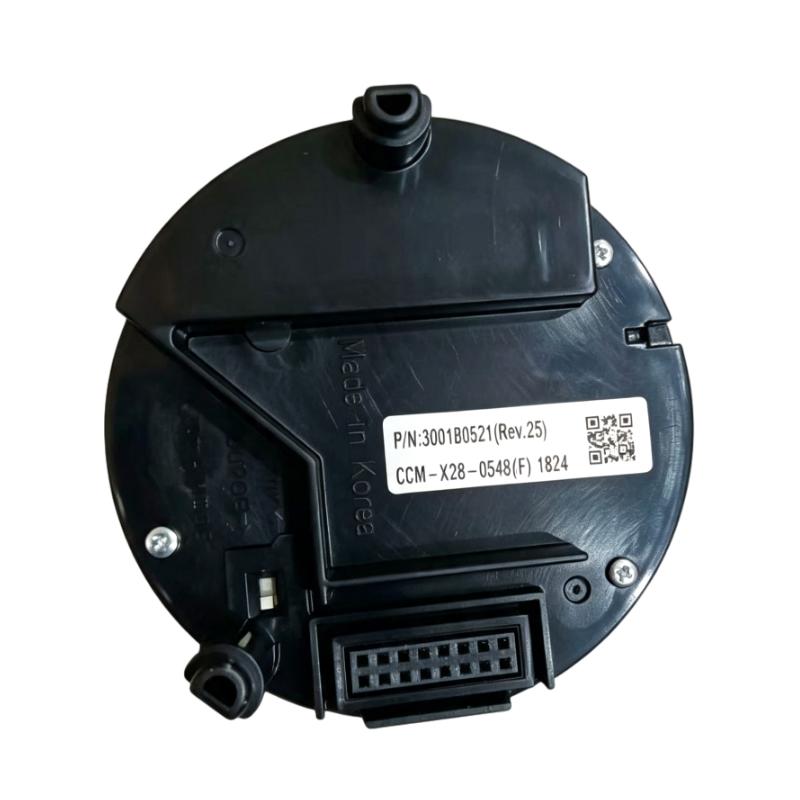

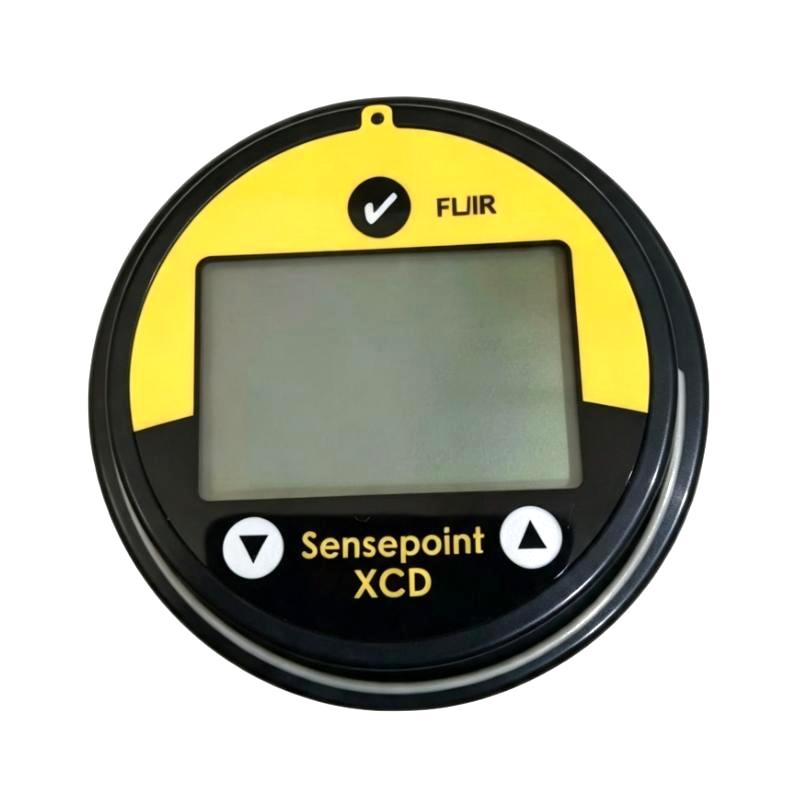

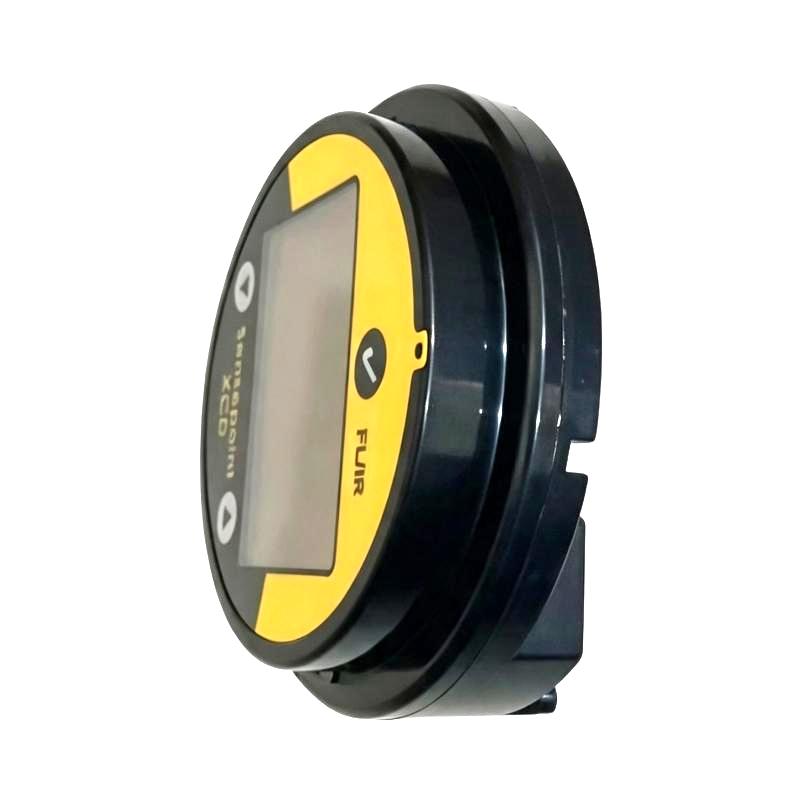

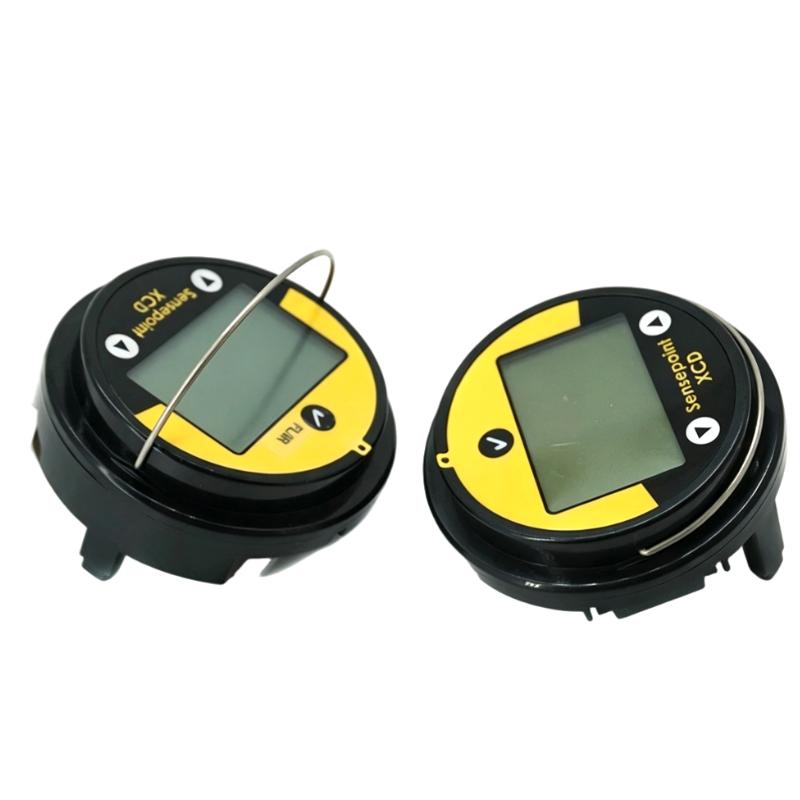

The Honeywell SPXCDDMF Sensepoint XCD Replacement Display Module is a replacement display component used for Honeywell Sensepoint XCD gas detection transmitters.
This module provides the local display interface required for viewing gas detection information at the installation location. It allows operators and maintenance personnel to check measured values, alarm conditions, device status, and diagnostic information directly from the gas detector.
The display module is commonly used in industrial gas monitoring systems where quick access to field device information is required, including oil and gas facilities, chemical plants, manufacturing areas, and utility installations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | SPXCDDMF |
| Product Family | Sensepoint XCD |
| Product Type | Replacement Display Module |
| Application | Gas Detection Transmitter Display |
| Function | Local Gas Measurement Display and Status Indication |
| Dimensions | 150 × 35 × 120 mm |
| Weight | 0.3 kg |
Product Features
The Honeywell SPXCDDMF display module provides a convenient local interface for Sensepoint XCD gas detection systems.
Key characteristics include:
- Honeywell Sensepoint XCD compatible replacement component
- Provides local display functionality
- Displays gas measurement and alarm information
- Supports maintenance and troubleshooting operations
- Compact structure for transmitter installation
- Helps improve field visibility of detector status
- Simplifies inspection and service activities
- Suitable for industrial gas monitoring environments
The module allows technicians to access important detector information without requiring additional external monitoring equipment.
Working Principle
The SPXCDDMF operates as the local visual interface of a Sensepoint XCD gas transmitter.
The information flow is:
Gas Sensor → Sensepoint XCD Transmitter → Display Module → Operator Interface
The transmitter collects gas concentration data from the sensing element and processes the measurement information. The display module receives this information and presents it locally through the display interface.
During operation, it provides visibility of:
- Gas concentration values
- Alarm status
- Device operating conditions
- Diagnostic information
- Maintenance indicators
This allows operators to quickly evaluate detector status during routine inspections.
Role in a Gas Detection System
Within a Honeywell Sensepoint XCD installation, the SPXCDDMF serves as the local information display interface for the gas detector.
A typical configuration is:
Gas Detection Sensor → Sensepoint XCD Electronics → SPXCDDMF Display Module → Local Operator Monitoring
The module improves field operation by allowing personnel to directly view detector conditions during installation, commissioning, and maintenance.
Typical functions include:
- Local measurement viewing
- Alarm confirmation
- Detector status checking
- Maintenance support
- Troubleshooting assistance
Industrial Applications
The Honeywell Sensepoint XCD Replacement Display Module is commonly used in industrial safety monitoring systems.
| Application | Typical Use |
|---|---|
| Oil & Gas Facilities | Local gas detector status monitoring |
| Chemical Plants | Hazardous gas detection systems |
| Manufacturing Areas | Industrial safety supervision |
| Power Plants | Equipment area gas monitoring |
| Utility Facilities | Gas leak detection |
| Storage Areas | Environmental safety monitoring |
The module is typically installed where local access to gas detector information is required.
Installation and Maintenance
Proper installation ensures accurate display operation and reliable gas detection performance.
Recommended procedures include:
- Confirm compatibility with the Sensepoint XCD transmitter
- Install according to detector maintenance procedures
- Check connection interfaces
- Verify display operation after replacement
- Confirm detector configuration settings
- Inspect module condition during maintenance activities
When replacing the display module, ensure the detector remains correctly configured and operational after installation.
Related Components
The SPXCDDMF is commonly used with Honeywell Sensepoint XCD gas detection components.
| Component | Function |
|---|---|
| Sensepoint XCD Gas Detector | Detects gas concentration |
| Sensor Cartridge | Provides gas sensing capability |
| Transmitter Electronics | Processes detection signals |
| Alarm System | Provides safety notifications |
| Control System | Central monitoring and management |
| Power Supply Components | Provides operating power |
Together, these components create a complete industrial gas detection solution.
Recommended Related Models
| Model | Product Type | Typical Application |
|---|---|---|
| Honeywell SPXCDDMF | Sensepoint XCD Replacement Display Module | Local detector display replacement |
| Honeywell Sensepoint XCD Series | Gas Detection Transmitters | Industrial gas monitoring |
| Honeywell Sensepoint Sensors | Gas Detection Sensors | Field gas measurement |
| Honeywell Touchpoint Plus Series | Gas Detection Controllers | Central safety monitoring |
| Honeywell 301C Series | Gas Detection Controllers | Building and industrial monitoring |
Model selection should consider detector type, gas measurement requirements, and existing system configuration.
Key Advantages
- Provides local viewing of gas detector information.
- Supports Sensepoint XCD transmitter maintenance.
- Simplifies field inspection and troubleshooting.
- Improves operator access to detector status.
- Suitable for industrial safety applications.
- Helps maintain effective gas monitoring operation.
Technical FAQs
What information can be viewed through the Honeywell SPXCDDMF display module?
The module allows operators to view gas measurement values, alarm conditions, and detector status information from the Sensepoint XCD transmitter.
When should a Sensepoint XCD display module be replaced?
Replacement may be required when the original display is damaged, malfunctioning, or no longer provides clear status information during operation.
How does the SPXCDDMF support gas detector maintenance?
By providing local access to detector readings and diagnostic information, it helps technicians perform inspection, calibration, and troubleshooting tasks more efficiently.
What should be confirmed before installing a replacement SPXCDDMF module?
Engineers should verify compatibility with the Sensepoint XCD transmitter model and check that display operation and detector settings remain correct after installation.
