Product Overview

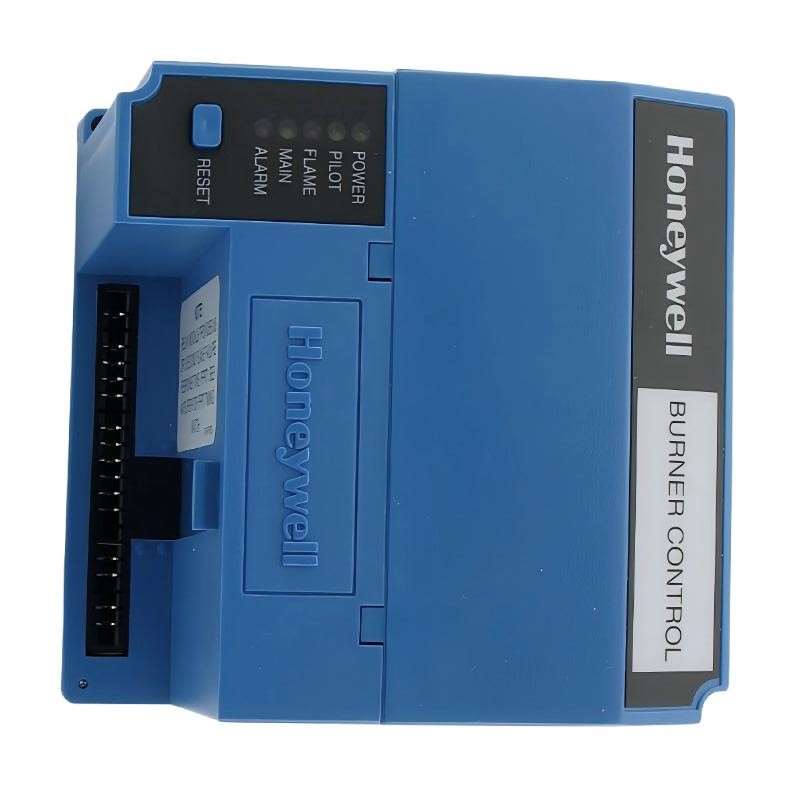

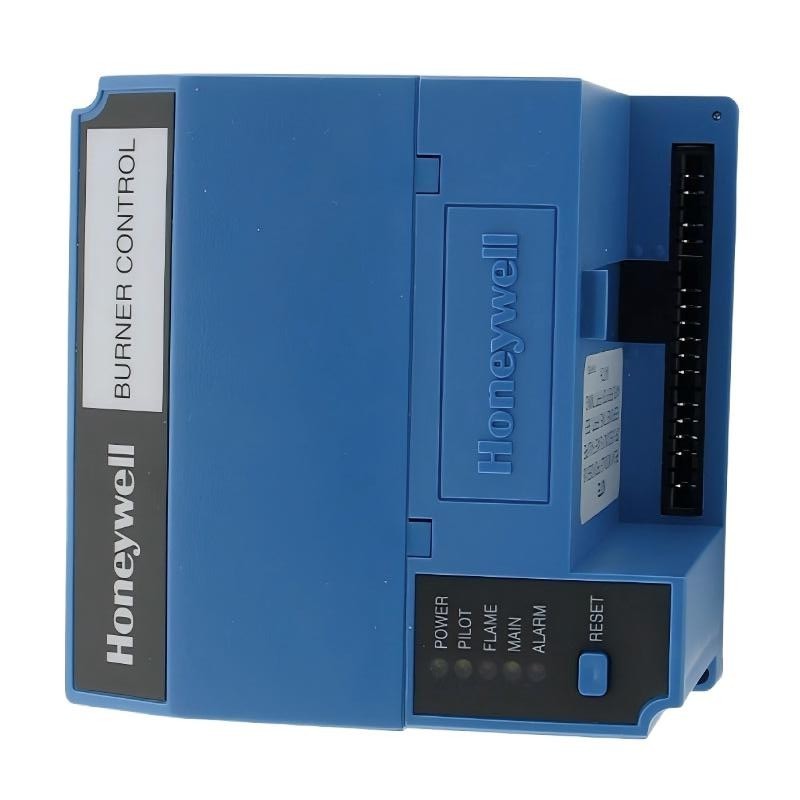

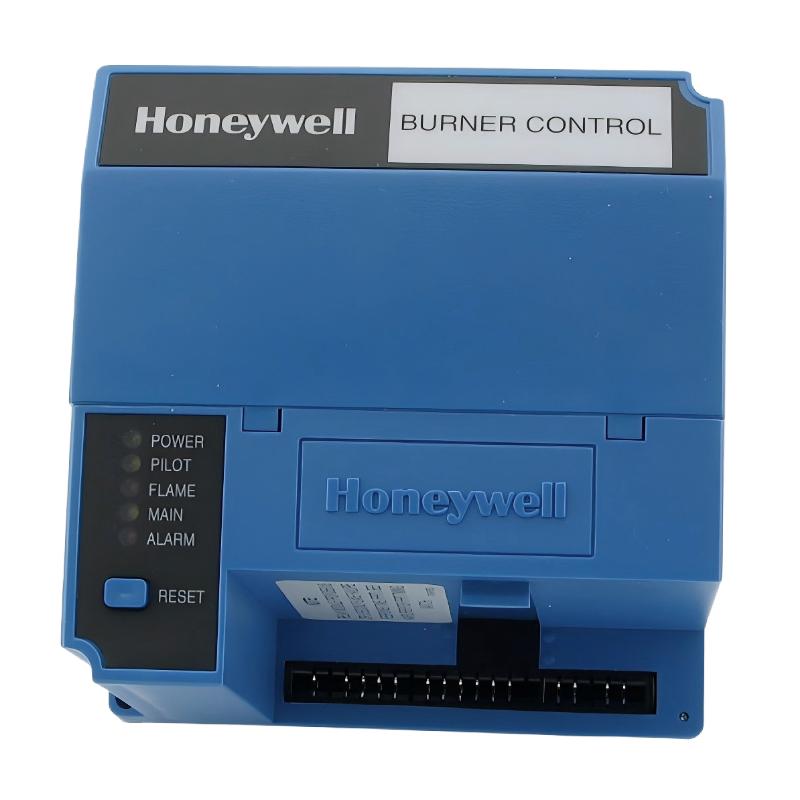

The Honeywell RM7896C1010 is a microprocessor-based burner controller from the Honeywell 7800 Series Burner Management System. It is designed for single-burner industrial combustion systems, providing automatic sequencing, flame supervision, ignition control, diagnostics, and safety shutdown functions.
It is typically used in gas, oil, coal, or combination fuel burners found in boilers, furnaces, kilns, and process heating equipment.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | RM7896C1010 |
| Product Type | Burner Controller |
| Series | 7800 Series |
| Function | Burner sequencing + flame safeguard control |
| Control Type | Microprocessor-based |
| System Role | Primary burner programmer/controller |
| Fuel Compatibility | Gas / Oil / Coal / Combination fuel |
| Flame Detection | Compatible with Honeywell flame amplifiers |
| Safety Functions | Flame monitoring, ignition supervision, lockout protection |
| Operating Voltage | 120 VAC |
| Frequency | 50/60 Hz |
| Mounting Type | Plug-in module (Q7800 subbase required) |
| System Architecture | Modular (subbase + amplifier + purge card + display) |
| Dimensions | 127 × 127 × 133 mm |
| Weight | 0.822 kg |
Function and Working Principle
The RM7896C1010 functions as a full-cycle burner management controller within the Honeywell 7800 Series system.
Its core functions include:
- Automatic prepurge before ignition
- Pilot ignition and main burner flame establishment
- Continuous flame supervision via flame amplifier input
- Monitoring of all safety interlocks (airflow, pressure, limits, etc.)
- Controlled burner operation during run mode
- Postpurge after shutdown cycle
- Safe lockout and fault memory storage during abnormal conditions
It ensures combustion only occurs when all safety conditions are confirmed and maintained throughout operation.
Key Features
- Microprocessor-based burner sequencing control
- Full automatic burner cycle (prepurge → ignition → run → postpurge)
- Flame supervision with plug-in amplifier support
- Non-volatile memory for fault history and diagnostics
- LED status indication for sequence monitoring
- Self-diagnostics and troubleshooting capability
- Compatible with S7800 display/keyboard module
- Modular Honeywell 7800 Series architecture
- Designed for high-integrity industrial combustion safety
Industrial Applications
- Industrial boilers
- Process furnaces
- Thermal oil heaters
- Kilns and dryers
- Gas/oil/coal combustion systems
- Single-burner industrial heating systems
Role in Industrial Systems
The RM7896C1010 acts as the central burner programmer/controller, responsible for:
- Safe burner startup sequencing
- Verification of all permissives before ignition
- Flame establishment and supervision
- Enforcing combustion safety shutdown logic
- Providing diagnostics for troubleshooting and maintenance
It replaces traditional electromechanical flame safeguard relays with electronic microprocessor control.
Installation Notes
- Installed on Honeywell Q7800 series subbase
- Requires compatible flame amplifier module
- Requires ST7800 purge timer module depending system configuration
- Proper grounding and shielding required for flame signal integrity
- Wiring must comply with industrial combustion safety standards
- Commissioning must be performed by qualified combustion technicians
Compatible Equipment
- Honeywell Q7800 subbases
- S7800A keyboard/display module
- ST7800 purge timer modules
- Flame amplifiers (R7847, R7852, etc.)
- Flame detectors (UV, IR, flame rod types)
- Burner valves and ignition systems
Advantages
- Fully integrated burner sequencing and safety control
- High reliability for industrial combustion systems
- Strong diagnostics and fault memory capability
- Modular system architecture simplifies maintenance
- Proven Honeywell 7800 Series platform
Limitations
- Requires full Honeywell 7800 ecosystem
- Cannot operate as a standalone unit
- Requires trained commissioning and setup
- Designed specifically for combustion applications
Conclusion
The Honeywell RM7896C1010 Burner Controller is a high-integrity industrial combustion control module used for automated burner sequencing, flame supervision, and safety shutdown functions within the Honeywell 7800 Series system.
