Product Overview

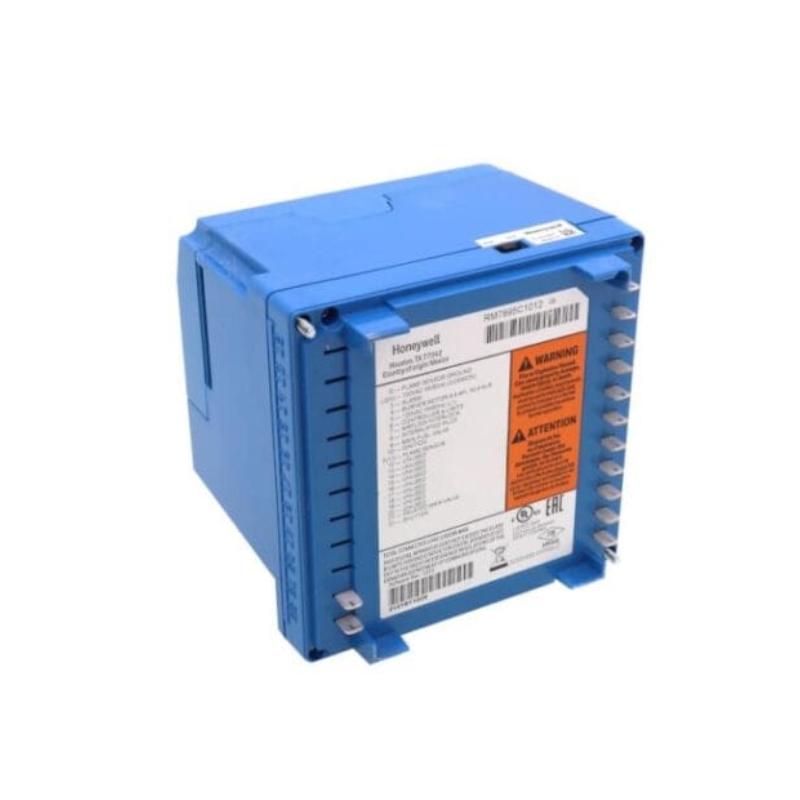

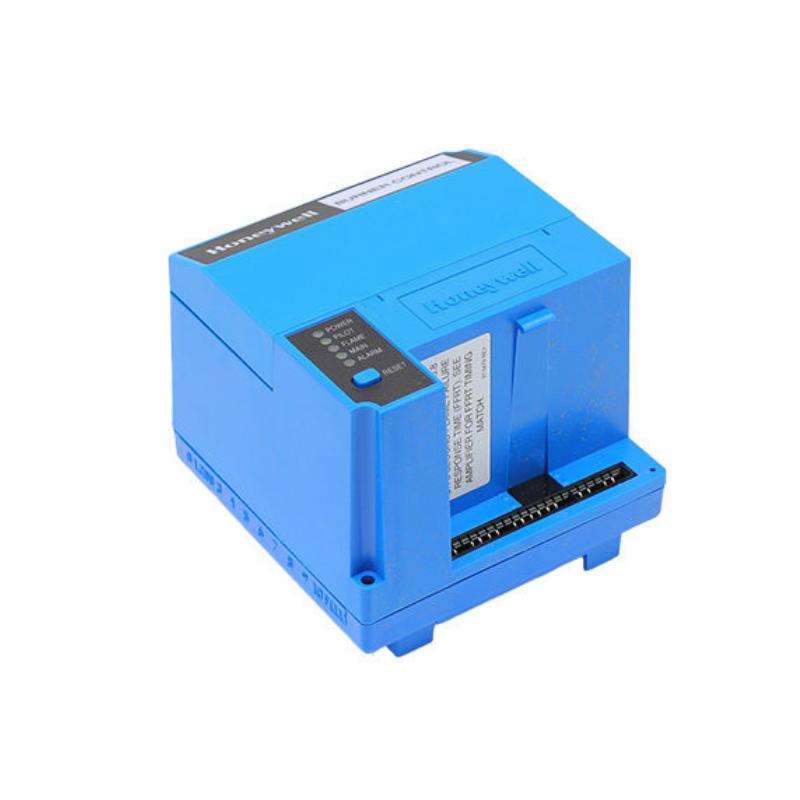

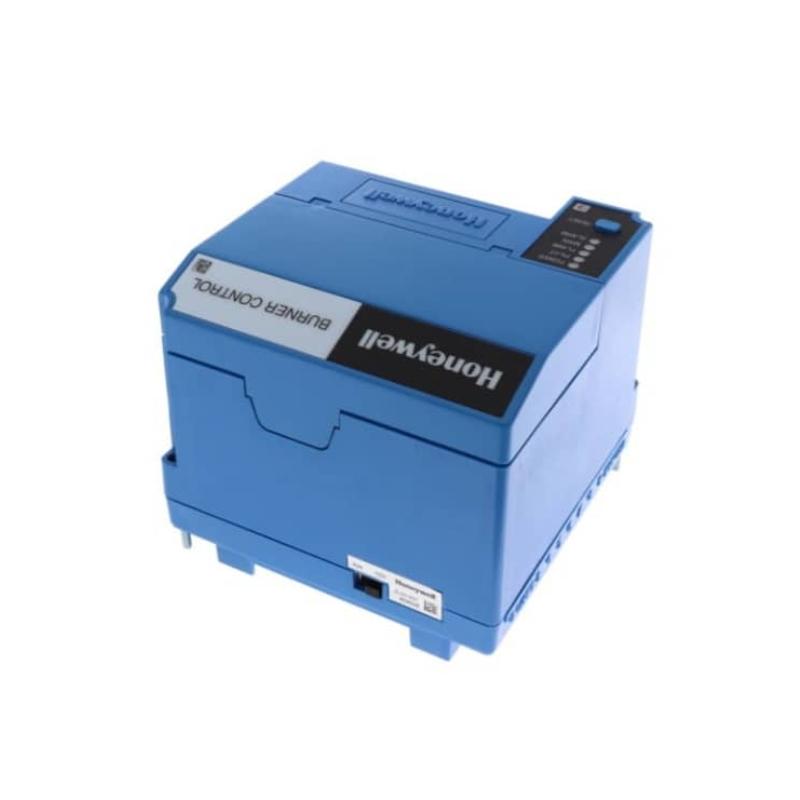

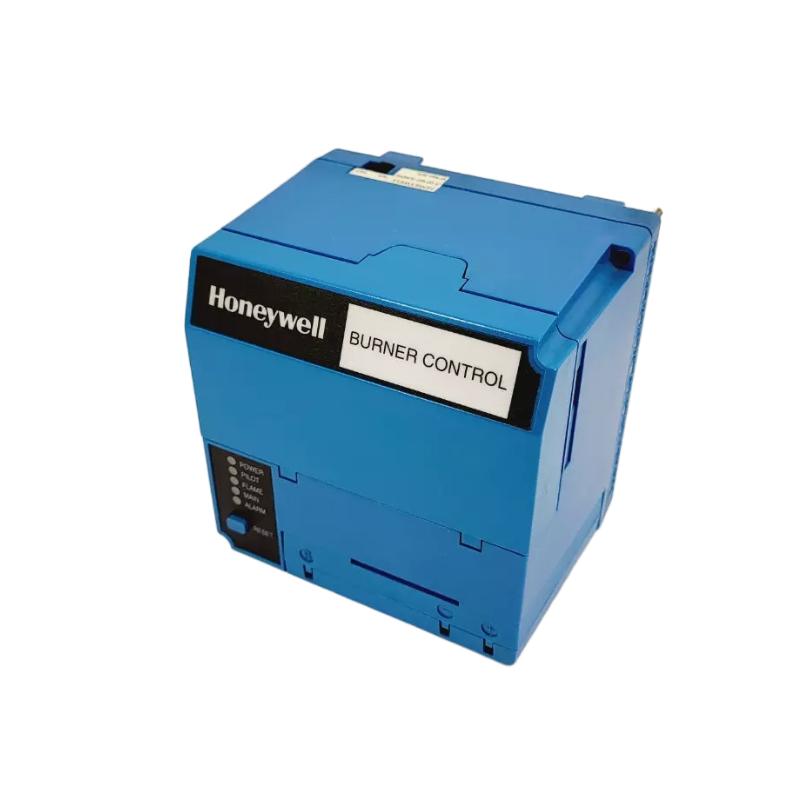

The Honeywell RM7895C1012 is a microprocessor-based burner management and flame safeguard control module belonging to Honeywell’s 7800 Series burner control family.
It is designed for automatic sequencing, flame supervision, and safety shutdown control in single-burner combustion systems such as boilers, furnaces, and industrial heaters. The module ensures safe startup, operation, and shutdown of fuel-fired equipment by continuously monitoring flame presence and system interlocks.
This model is widely used in industrial combustion safety systems requiring high reliability and compliance with safety standards.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | RM7895C1012 |
| Series | 7800 Series Burner Controls |
| Product Type | Burner Management / Flame Safeguard Module |
| Application | On/off single-burner control systems |
| Supply Voltage | 120 VAC |
| Frequency | 50/60 Hz |
| Control Type | Microprocessor-based sequencing control |
| Flame Detection | Compatible with Honeywell flame amplifiers |
| Operating Modes | Prepurge, pilot ignition, main flame operation |
| Pilot Type | Interrupted pilot |
| Timing Functions | Configurable purge and ignition timing cycles |
| Diagnostics | LED status indicators + fault memory |
| Memory | Non-volatile memory for sequencing and fault history |
| Safety Functions | Flame failure lockout, interlock supervision |
| Mounting Type | Plug-in module with subbase |
| Operating Environment | Industrial combustion systems |
| Dimensions | 127 × 127 × 133 mm |
| Weight | 0.8 kg |
Function and Working Principle
The RM7895C1012 functions as a fully automated burner sequencing and flame safety controller.
It is responsible for:
- Managing burner startup and shutdown sequences
- Controlling purge, ignition, and fuel valve timing
- Monitoring flame presence via flame detectors
- Ensuring safe ignition and stable combustion
- Locking out system during flame failure or unsafe conditions
- Performing self-diagnostics and system status monitoring
If unsafe conditions are detected, the module immediately enters lockout mode and shuts off fuel supply.
System Role in Architecture
The Honeywell RM7895C1012 is the central safety and sequencing controller in burner management systems.
It is typically used in:
- Industrial boilers
- Gas and oil-fired furnaces
- Process heaters
- Thermal oxidation systems
- HVAC combustion systems
- Industrial heating equipment
It acts as the primary safety brain of the burner system, coordinating ignition and flame monitoring.
Industrial Applications
- Oil and gas facilities
- Petrochemical plants
- Power generation stations
- Industrial boiler systems
- Manufacturing heating systems
- HVAC combustion systems
- Process furnace systems
Installation & Integration
Proper installation is critical for safe operation:
- Mounted on Honeywell Q7800 series subbase
- Connected to flame amplifiers and sensors
- Interfaces with gas/oil valves and ignition transformers
- Requires correct wiring of interlocks and safety circuits
- Commissioned using burner management setup procedures
- Installed by qualified combustion control technicians
Compatible Components
- Honeywell Q7800A / Q7800B subbases
- Flame amplifiers (R7847, R7848, etc.)
- UV/IR flame detectors
- Ignition transformers
- Gas and oil safety shutoff valves
- S7800 series display and diagnostic modules
Recommended Alternative Models
| Model | Type | Application |
|---|---|---|
| RM7890 series | Burner control module | Similar sequencing functions |
| RM7800 series | Enhanced burner control | Advanced combustion systems |
| RM7895C1012 variants | Regional versions | Same functional family |
| EC/RM7900 series | Modern burner controllers | Updated architecture |
| Siemens / Fireye burner controls | Third-party alternatives | Industrial combustion systems |
Key Advantages
- Fully automated burner sequencing control
- Integrated flame safety supervision
- Fast and reliable lockout protection
- Built-in diagnostics and LED status indication
- Non-volatile memory for fault history
- Compatible with multiple flame detection systems
- Proven reliability in industrial combustion applications
FAQs
Q1: What is the main function of the RM7895C1012?
It controls burner sequencing and ensures flame safety.
Q2: What happens during flame failure?
It immediately shuts off fuel and enters safety lockout.
Q3: What systems is it used in?
Boilers, furnaces, heaters, and industrial burners.
Q4: Is it programmable?
It has configurable timing and safety parameters via system components.
Q5: What is its role in the system?
It is the primary burner management and safety controller.
Conclusion
The Honeywell RM7895C1012 Burner Module is a critical safety and control component in industrial combustion systems. It ensures reliable burner sequencing, flame supervision, and automatic shutdown protection, making it essential for safe and efficient operation of fuel-fired industrial equipment.
