Product Overview

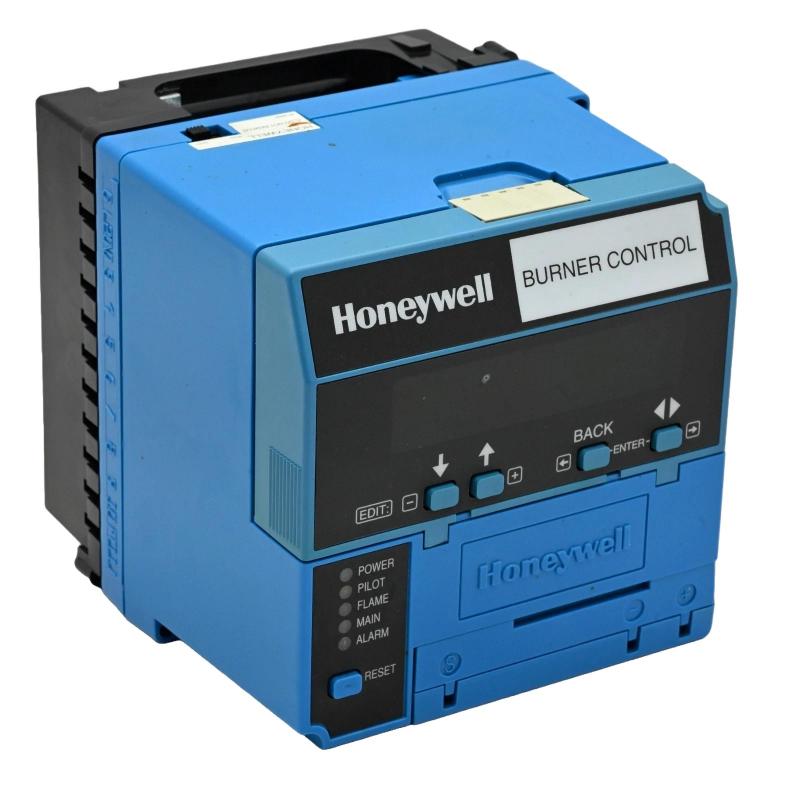

The Honeywell RM7890A1056 is a microprocessor-based burner management / flame safeguard control module used in industrial combustion systems.
It is part of Honeywell’s 7800 Series Burner Control family, designed to provide safe sequencing, flame supervision, and automatic burner operation for gas, oil, or combination-fuel single-burner systems.
This module is widely used in boilers, furnaces, process heaters, and industrial combustion equipment, where reliable flame monitoring and safety shutdown functions are critical.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | RM7890A1056 |
| Series | 7800 Series Burner Controls |
| Product Type | Burner Management / Flame Safeguard Module |
| Application | On-off primary burner control |
| Fuel Type | Gas / oil / combination (single burner systems) |
| Supply Voltage | 120 VAC (system dependent) |
| Frequency | 50/60 Hz |
| Control Type | Microprocessor-based sequencing control |
| Flame Detection | Compatible with Honeywell flame amplifiers |
| Timing Function | Pilot and main flame establishing periods |
| Valve Proving | Supported (VPS function) |
| Diagnostics | Built-in LED status and fault indication |
| Memory | Non-volatile memory for fault history |
| Mounting | Plug-in module with subbase |
| Operating Environment | Industrial combustion control systems |
| Temperature Range | -40°C to +60°C (storage/operating range typical) |
| Dimensions | 127 × 127 × 133 mm |
| Weight | 0.8 kg |
Function and Working Principle
The RM7890A1056 functions as a burner sequence controller and flame safety device.
It is responsible for:
- Managing automatic burner start-up sequencing
- Controlling ignition and fuel valve operation
- Monitoring flame presence through flame detectors
- Providing safe shutdown (lockout) in flame failure conditions
- Performing system self-diagnostics and fault detection
- Ensuring valve proving and safety interlock logic
If unsafe conditions occur, the module will immediately shut down fuel supply and enter lockout mode to prevent hazardous operation.
System Role in Architecture
The Honeywell RM7890A1056 serves as a central safety controller in burner management systems.
It is typically used in:
- Industrial boiler systems
- Gas-fired furnaces
- Process heaters
- Thermal oxidizers
- HVAC combustion systems
- Industrial drying and heating equipment
It acts as the primary safety and sequencing brain of the burner system.
Industrial Applications
- Oil and gas facilities
- Petrochemical plants
- Power generation stations
- Industrial boilers
- Manufacturing heating systems
- Food processing thermal systems
- HVAC and combustion systems
Installation & Integration
Proper installation is critical for safe operation:
- Mounted on Honeywell Q7800 series subbase
- Connected to flame amplifiers and sensors
- Interfaces with gas/oil valves and ignition transformers
- Requires correct wiring configuration for safety loops
- Commissioned according to burner management standards
- Installed by qualified combustion control technicians
Compatible Components
- Honeywell Q7800A / Q7800B subbases
- Flame signal amplifiers (R7847, R7848, etc.)
- UV/IR flame detectors
- Ignition transformers
- Gas and oil safety shutoff valves
- Honeywell display and diagnostic modules (S7800 series)
Recommended Alternative Models
| Model | Type | Application |
|---|---|---|
| RM7800 series | Burner control module | Similar combustion systems |
| RM7895 series | Enhanced burner control | Advanced sequencing |
| EC/RM7900 series | Modern burner controller | Updated architecture |
| Siemens LFL/LGK series | Alternative burner controls | Industrial combustion systems |
| Fireye burner controls | Third-party alternative | Flame safeguard systems |
Key Advantages
- High-reliability burner sequencing control
- Integrated flame supervision and safety shutdown
- Built-in diagnostics and fault indication
- Supports valve proving safety functions
- Non-volatile fault memory storage
- Compatible with multiple flame detection systems
- Widely used in industrial combustion safety systems
FAQs
Q1: What is the main function of the RM7890A1056?
It controls burner sequencing and ensures flame safety during operation.
Q2: What happens if flame is lost?
It immediately shuts off fuel and enters safety lockout mode.
Q3: What systems is it used in?
Boilers, furnaces, heaters, and industrial combustion systems.
Q4: Is it programmable?
It has configurable safety and timing parameters via accessory modules.
Q5: Is it still commonly used?
Yes, it is widely used in industrial burner management systems.
Conclusion
The Honeywell RM7890A1056 Burner Module is a critical safety and control component in industrial combustion systems. It provides reliable burner sequencing, flame supervision, and automatic safety shutdown, ensuring safe and efficient operation of fuel-fired equipment in demanding industrial environments.
