Product Overview

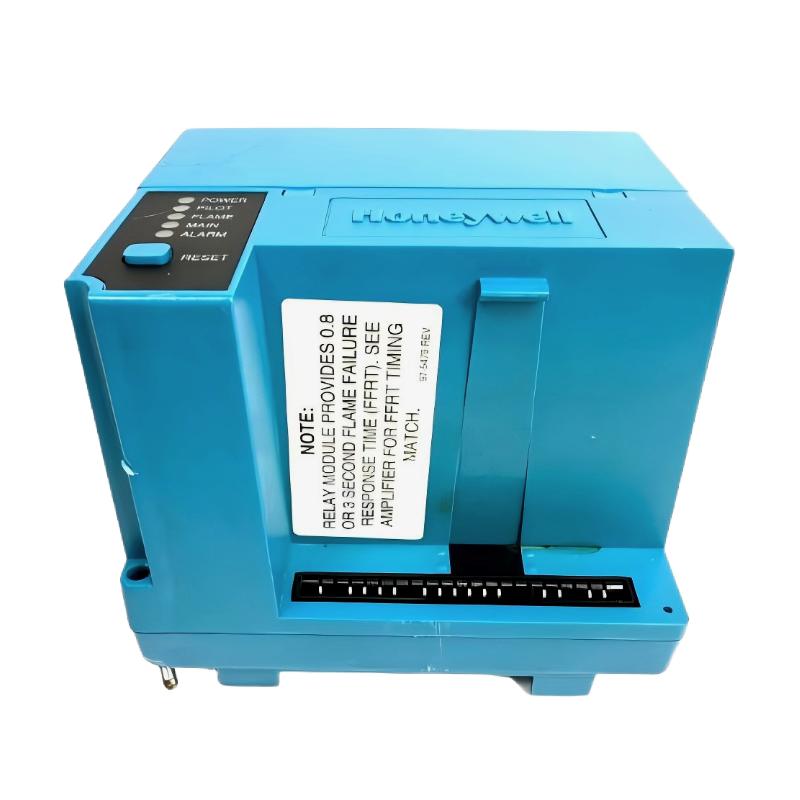

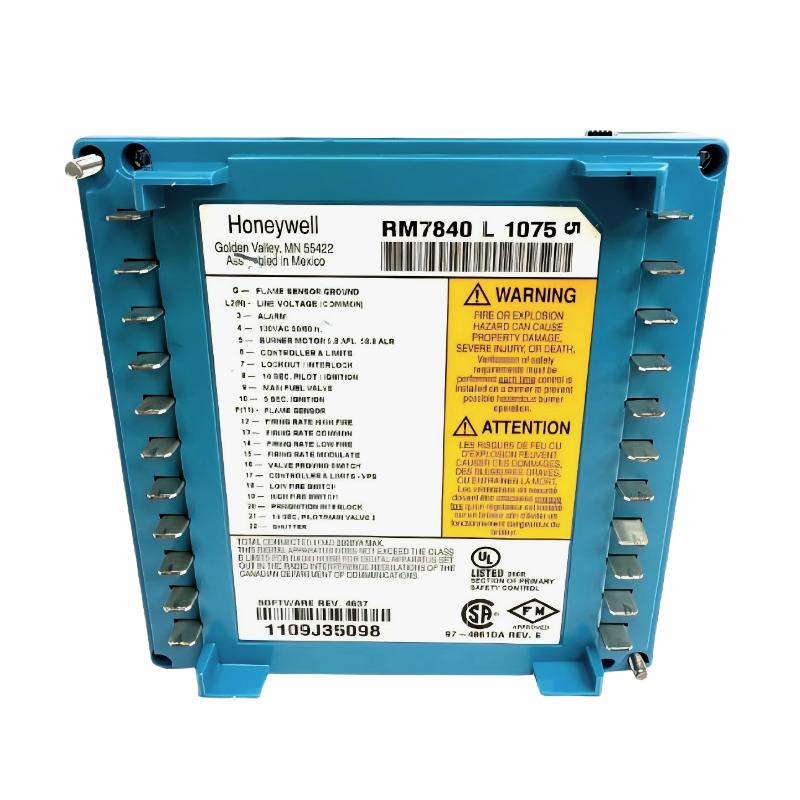

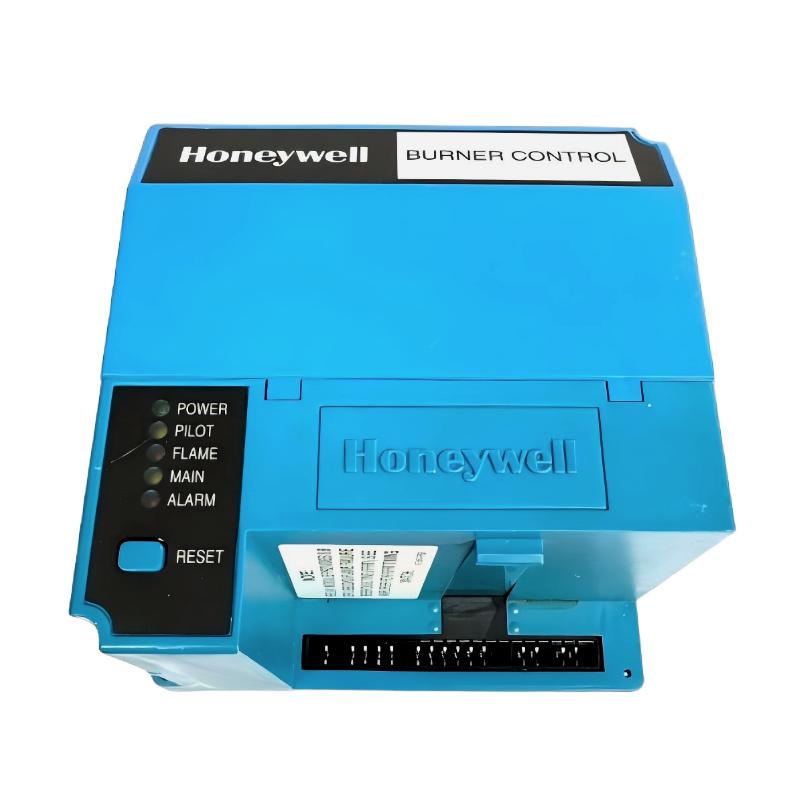

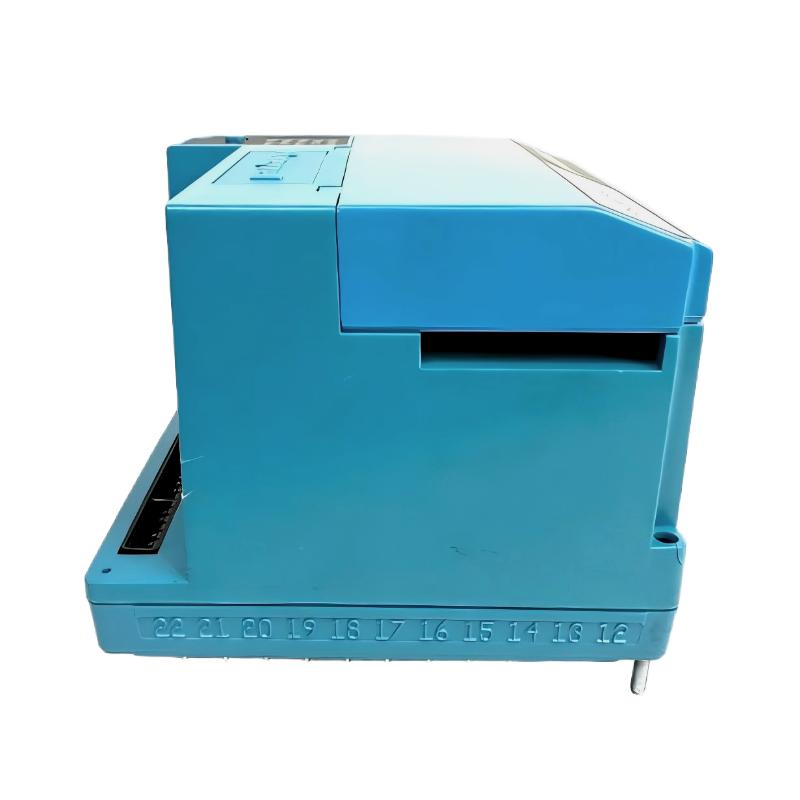

The Honeywell RM7840L1075 is a microprocessor-based integrated burner controller from the Honeywell 7800 Series Burner Management System. It is designed for single-burner industrial combustion applications, providing full burner sequencing, flame supervision, ignition control, diagnostics, and safety shutdown functions.
This model is commonly used in gas, oil, coal, and combination fuel burners, especially where advanced safety functions such as valve proving (VPS) are required.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | RM7840L1075 |
| Product Type | Integrated Burner Controller |
| Series | 7800 Series |
| Function | Burner sequencing + flame safeguard control |
| Control Type | Microprocessor-based |
| System Role | Primary burner programmer/controller |
| Fuel Compatibility | Gas / Oil / Coal / Combination fuel |
| Flame Detection | Compatible with Honeywell flame amplifiers |
| Safety Functions | Flame monitoring, ignition supervision, lockout protection |
| Special Feature | Valve Proving System (VPS) support |
| Operating Voltage | 120 VAC |
| Frequency | 50/60 Hz |
| Mounting Type | Plug-in module (Q7800 subbase required) |
| System Architecture | Modular (subbase + amplifier + purge card + display) |
| Dimensions | 127 × 127 × 133 mm |
| Weight | 0.83 kg |
Function and Working Principle
The RM7840L1075 operates as the primary burner sequencing and safety controller within the Honeywell 7800 architecture.
Its core functions include:
- Checking all safety permissives before burner startup
- Managing purge, pre-ignition, ignition, and run sequences
- Supervising pilot and main flame establishment
- Monitoring flame signal continuously during operation
- Executing post-purge and shutdown sequences
- Performing Valve Proving System (VPS) checks to verify fuel valve tightness
- Initiating safety lockout during abnormal conditions
- Providing diagnostics and fault history via display module
It ensures that combustion only occurs when all safety conditions are validated.
Key Features
- Microprocessor-based integrated burner sequencing control
- Automatic burner cycle management (purge → ignition → run → shutdown)
- Flame supervision via plug-in amplifier modules
- Valve Proving System (VPS) capability
- Self-diagnostics and non-volatile fault memory
- LED sequence status indicators
- Compatible with S7800 keyboard/display module
- Modular Honeywell 7800 Series architecture
- High-integrity industrial safety design
Industrial Applications
- Industrial boilers
- Process furnaces
- Thermal oil heaters
- Kilns and dryers
- Oil, gas, coal, and combination fuel burners
- Single-burner industrial combustion systems
Role in Industrial Systems
The RM7840L1075 serves as the primary burner programmer/controller, responsible for:
- Safe ignition and flame establishment
- Continuous flame supervision
- Execution of burner sequencing logic
- Valve integrity verification via VPS
- Enforcing safety interlocks and shutdown conditions
- Providing diagnostic feedback for maintenance and troubleshooting
It is a core control component in modern industrial combustion systems.
Installation Notes
- Installed on Honeywell Q7800 series subbase
- Requires compatible flame amplifier module (UV/IR/flame rod types)
- Requires ST7800 purge timer module depending configuration
- Valve proving setup requires S7800 display/keyboard module
- Proper grounding and shielding required for flame signal stability
- Commissioning must be performed by qualified combustion engineers
- Wiring must comply with combustion safety standards (UL/FM/CSA environments)
Compatible Equipment
- Honeywell Q7800 subbases
- S7800A keyboard/display module
- ST7800 purge timer modules
- Flame amplifiers (R7847, R7852, etc.)
- Flame detectors
- Burner valves and ignition systems
Advantages
- High-integrity burner safety control
- Supports valve proving for enhanced safety
- Strong diagnostics and fault memory features
- Modular architecture simplifies maintenance
- Flexible configuration for industrial burner systems
Limitations
- Requires full Honeywell 7800 ecosystem (subbase, amplifier, purge module)
- Not usable as a standalone controller
- Requires trained setup and commissioning
- Designed exclusively for combustion control applications
Conclusion
The Honeywell RM7840L1075 Burner Controller is a high-integrity integrated combustion safety controller used in industrial burner systems.
It provides full sequencing control, flame supervision, diagnostics, and valve proving safety functions for gas, oil, coal, and combination fuel burners within the Honeywell 7800 Series architecture.
