Product Overview

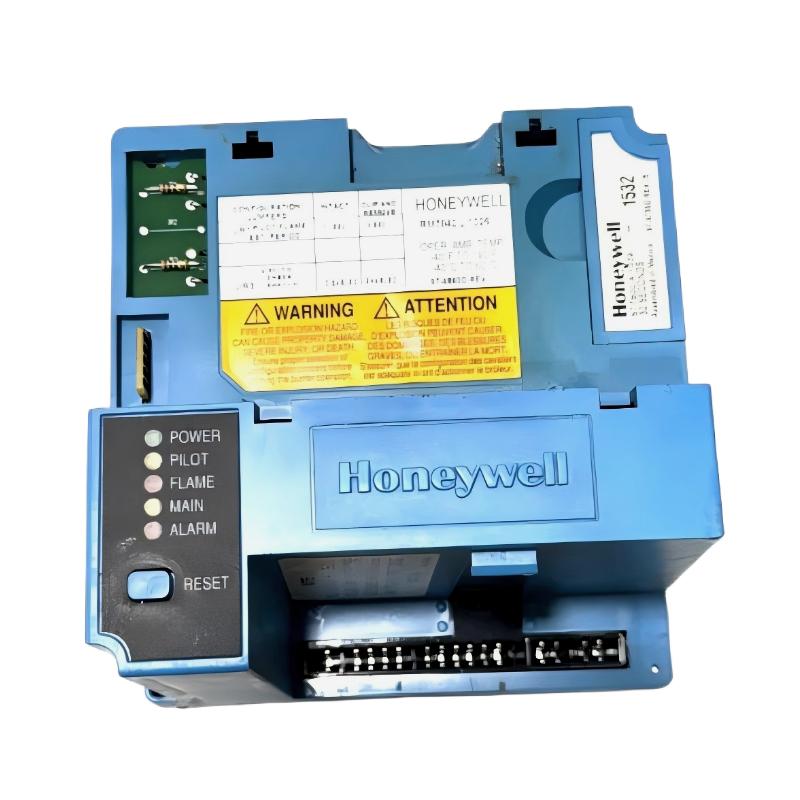

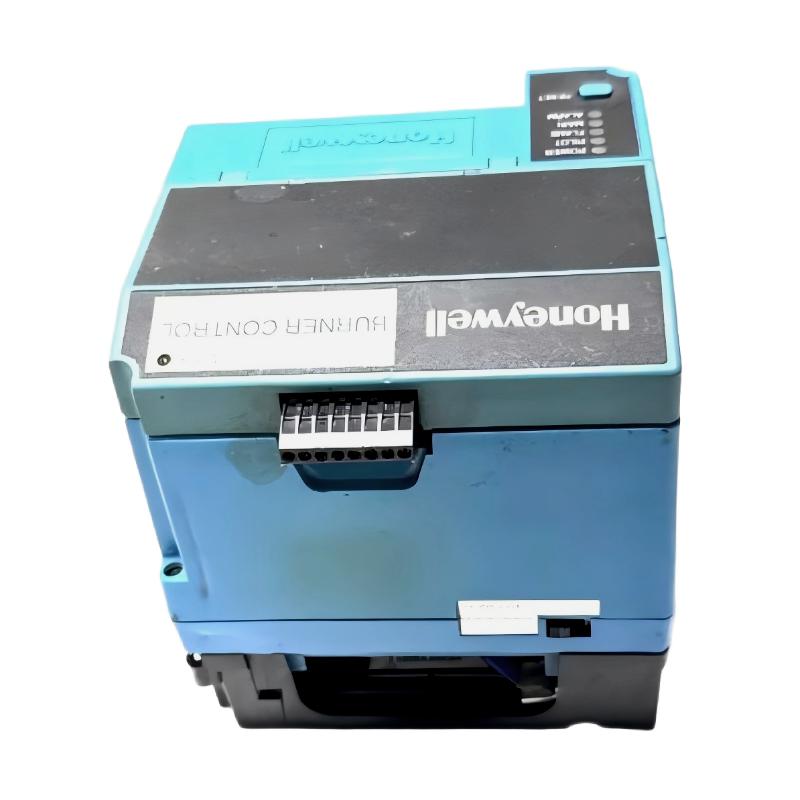

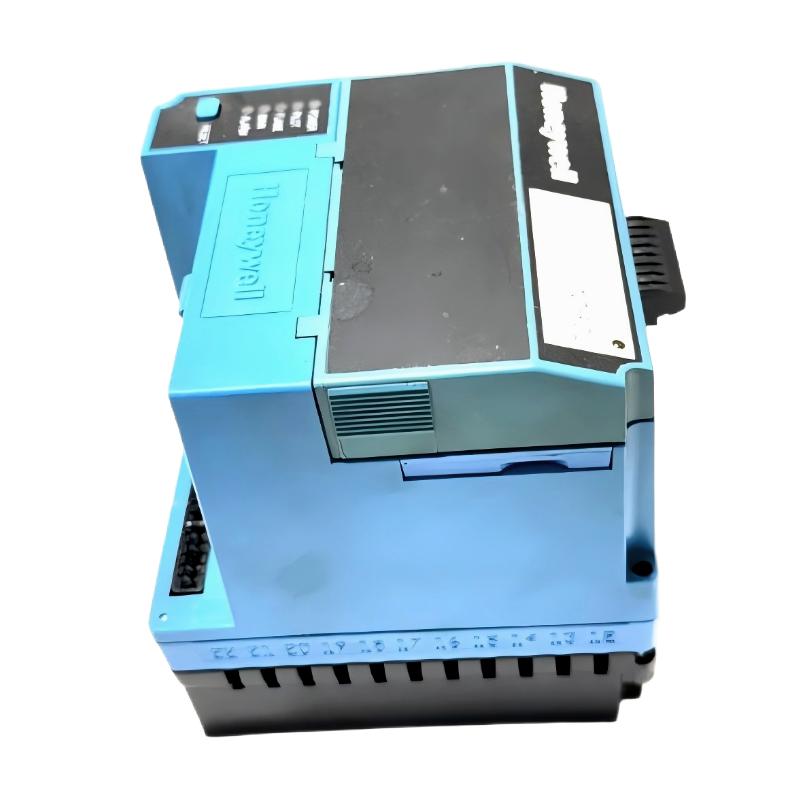

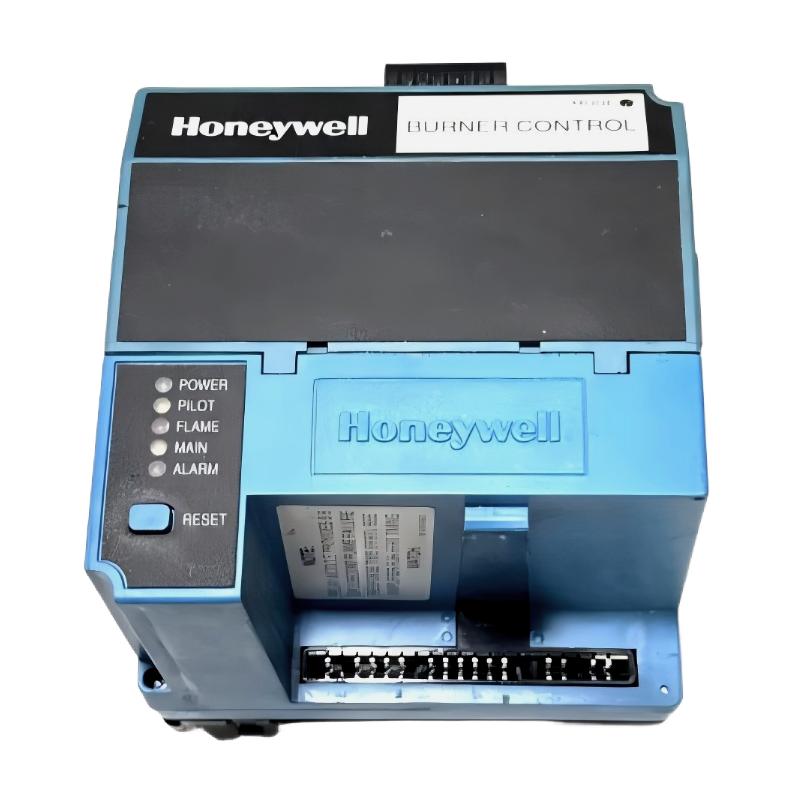

The Honeywell RM7840L1026 is a microprocessor-based integrated burner controller from the Honeywell 7800 Series Burner Management System. It is designed for single-burner industrial combustion systems, providing full burner sequencing, flame supervision, ignition control, diagnostics, and safety shutdown functions.
This model is widely used in gas, oil, coal, or combination fuel burners where reliable automatic sequencing and flame safety are required.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | RM7840L1026 |
| Product Type | Integrated Burner Controller |
| Series | 7800 Series |
| Function | Burner sequencing + flame safeguard control |
| Control Type | Microprocessor-based |
| System Role | Primary burner programmer/controller |
| Fuel Compatibility | Gas / Oil / Coal / Combination fuel |
| Flame Detection | Compatible with Honeywell flame amplifiers |
| Safety Functions | Flame monitoring, ignition supervision, lockout protection |
| Operating Voltage | 120 VAC |
| Frequency | 50/60 Hz |
| Mounting Type | Plug-in module (Q7800 subbase required) |
| System Architecture | Modular (subbase + amplifier + purge card + display) |
| Dimensions | 127 × 127 × 133 mm |
| Weight | 0.83 kg |
Function and Working Principle
The RM7840L1026 operates as the main burner sequencing and safety controller within a Honeywell 7800 system.
Its core functions include:
- Verifying all safety permissives before burner startup
- Controlling purge, pre-ignition, ignition, and run sequences
- Supervising pilot and main flame establishment
- Continuously monitoring flame signal during operation
- Managing post-purge shutdown cycles
- Initiating safety lockout during abnormal conditions
- Providing system diagnostics and fault history via display modules
It ensures combustion only occurs when all safety conditions are satisfied.
Key Features
- Microprocessor-based integrated burner sequencing control
- Automatic purge, ignition, run, and shutdown cycles
- Flame supervision via plug-in amplifier modules
- Self-diagnostics and fault history storage
- LED status indicators for burner sequence monitoring
- Compatible with S7800 keyboard/display module
- Modular 7800 Series architecture
- High safety integrity for industrial burner systems
Industrial Applications
- Industrial boilers
- Process furnaces
- Thermal oil heaters
- Kilns and dryers
- Oil, gas, coal, and combination fuel burners
- Single-burner industrial heating systems
Role in Industrial Systems
The RM7840L1026 acts as the primary burner programmer/controller, responsible for:
- Safe ignition and flame establishment
- Continuous flame supervision
- Execution of burner sequencing logic
- Enforcing safety interlocks and shutdowns
- Providing diagnostics for troubleshooting and maintenance
It replaces traditional relay-based burner sequencing systems with microprocessor-based control logic.
Installation Notes
- Installed on Honeywell Q7800 series subbase
- Requires compatible flame amplifier module (UV/IR/flame rod types)
- Requires ST7800 purge timer module depending configuration
- Proper grounding and shielding are critical for flame signal stability
- Commissioning must be performed by qualified combustion engineers
- Wiring must comply with burner safety standards (UL/FM/CSA environments)
Compatible Equipment
- Honeywell Q7800 subbases
- S7800A keyboard/display module
- ST7800 purge timer modules
- Flame amplifiers (R7847, R7852, etc.)
- Flame detectors
- Burner valves and ignition systems
Advantages
- Full integrated burner sequencing control
- High safety integrity and compliance capability
- Strong diagnostics and fault memory features
- Modular architecture simplifies maintenance
- Flexible configuration for different burner applications
Limitations
- Requires full Honeywell 7800 ecosystem (subbase, amplifier, purge module)
- Not usable as a standalone controller
- Requires trained setup and commissioning
- Designed exclusively for combustion systems
Conclusion
The Honeywell RM7840L1026 Burner Controller is a high-integrity integrated combustion safety controller used in industrial burner systems.
It provides full sequencing control, flame supervision, diagnostics, and safety shutdown functions for gas, oil, coal, and combination fuel burners within the Honeywell 7800 Series architecture.
