Product Overview

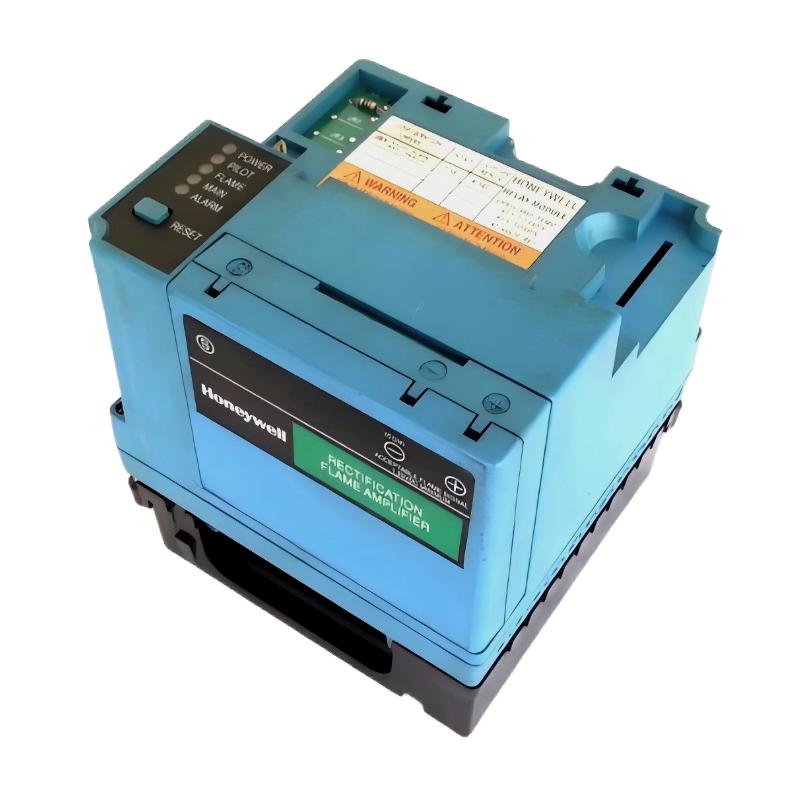

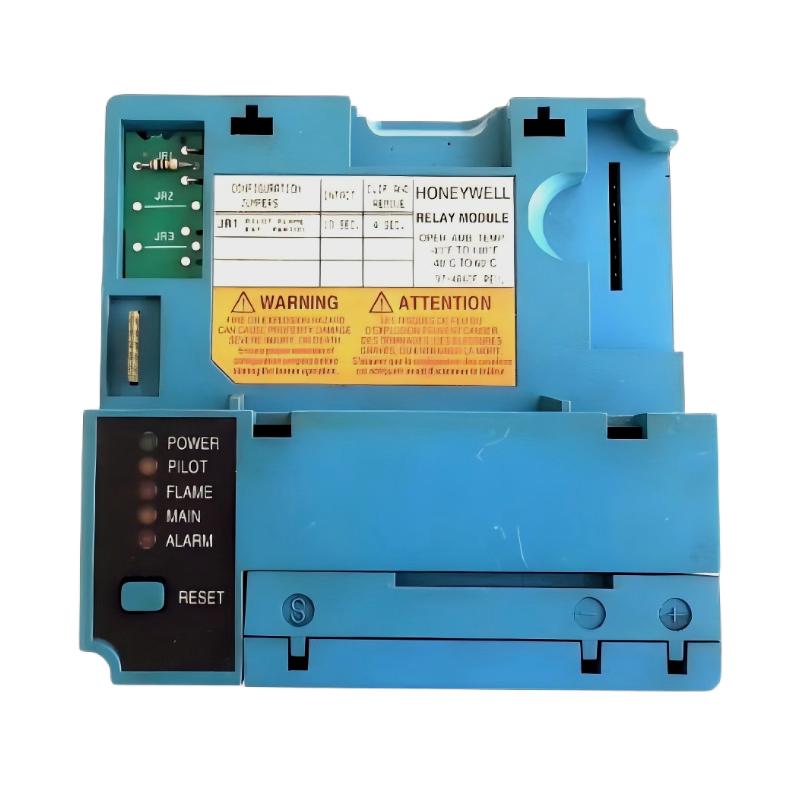

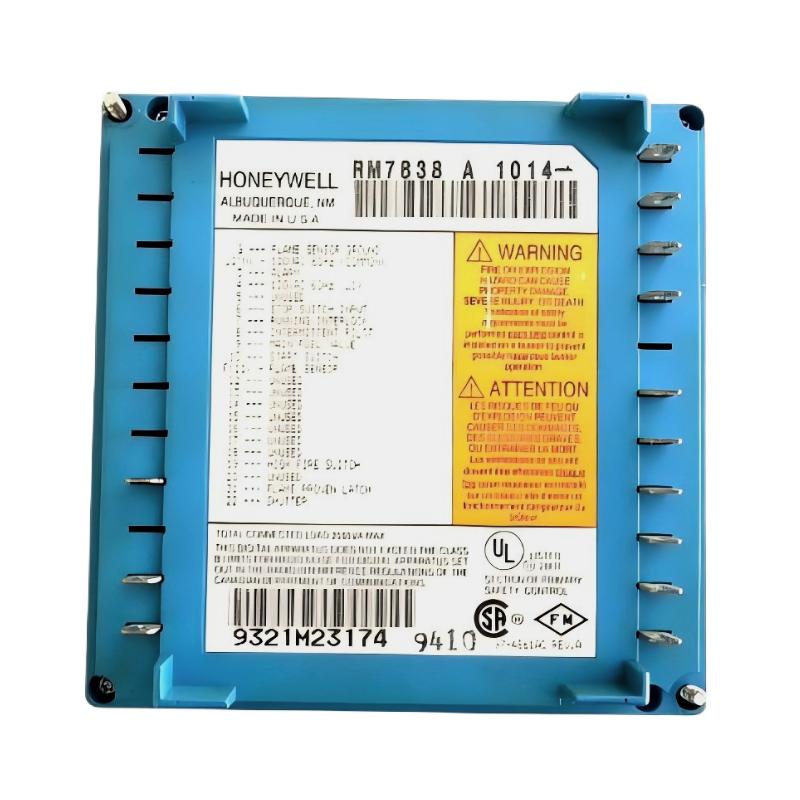

The Honeywell RM7838A1014 is an integrated microprocessor-based burner controller from the Honeywell 7800 Series Burner Management System. It is designed for single-burner industrial combustion applications, providing full burner sequencing, flame supervision, ignition control, diagnostics, and safety shutdown functions.
This model belongs to the RM7830/7838 integrated control family, which functions as a primary burner programmer for industrial heating systems such as boilers, furnaces, and process heaters.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | RM7838A1014 |
| Product Type | Burner Controller |
| Series | 7800 Series |
| Function | Integrated burner sequencing and flame safeguard control |
| Control Type | Microprocessor-based |
| System Role | Primary burner programmer/controller |
| Flame Detection | Compatible with Honeywell flame amplifiers & detectors |
| Safety Functions | Ignition supervision, flame monitoring, lockout protection |
| System Architecture | Modular (Q7800 subbase system) |
| Display Support | Works with S7800 keyboard/display module |
| Operating Voltage | 120 VAC (system dependent) |
| Dimensions | 127 × 127 × 133 mm |
| Weight | 0.74 kg |
Function and Working Principle
The RM7838A1014 operates as a central burner sequencing controller within the Honeywell 7800 architecture.
Its main functions include:
- Verifying all burner safety permissives before startup
- Managing purge, pre-ignition, ignition, and run sequences
- Supervising pilot and main flame establishment
- Monitoring flame signal continuously during operation
- Controlling post-purge and shutdown sequences
- Initiating safety lockout under fault conditions
- Providing diagnostic and status information via display module
It ensures combustion only occurs under validated safe operating conditions.
Key Features
- Integrated burner sequencing control
- Microprocessor-based flame safeguard logic
- Automatic purge, ignition, and shutdown cycles
- Advanced self-diagnostics and fault history storage
- Plug-in flame amplifier compatibility
- Modular 7800 Series architecture
- Supports S7800 display/keyboard module
- High reliability industrial safety design
Industrial Applications
- Industrial boilers
- Process heaters
- Furnaces and kilns
- Thermal oil heaters
- Oil & gas combustion systems
- Single-burner industrial heating systems
Role in Industrial Systems
The RM7838A1014 is used to:
- Act as the main burner sequencing controller
- Ensure safe ignition and flame establishment
- Supervise combustion conditions continuously
- Enforce safety interlocks and shutdown logic
- Provide fault diagnostics for maintenance and troubleshooting
It functions as a core control unit in Honeywell 7800 burner management systems.
Installation Notes
- Installed on Honeywell Q7800 series subbase
- Requires compatible flame amplifier module
- Requires purge timing module (ST7800 series depending configuration)
- Proper grounding and shielding required for flame signal stability
- Commissioning must be performed by qualified combustion technicians
- Wiring must follow burner safety standards
Compatible Equipment
- Honeywell Q7800 subbases
- S7800A keyboard/display module
- Flame amplifiers (R7847, R7852, etc.)
- Flame detectors (UV, IR, flame rod systems)
- ST7800 purge timer modules
- Burner valves and ignition systems
Advantages
- Full integrated burner sequencing and safety control
- High reliability and industrial-grade design
- Strong diagnostics and fault tracking capability
- Modular system simplifies maintenance and upgrades
- Suitable for a wide range of combustion applications
Limitations
- Requires full Honeywell 7800 system ecosystem
- Not usable as a standalone controller
- Requires trained setup and commissioning
- Designed exclusively for combustion applications
Conclusion
The Honeywell RM7838A1014 Burner Controller is an integrated combustion safety controller designed for industrial burner management systems.
It provides complete sequencing control, flame supervision, diagnostics, and safety shutdown protection for industrial combustion applications, operating as a core controller within the Honeywell 7800 Series architecture.
