Product Overview

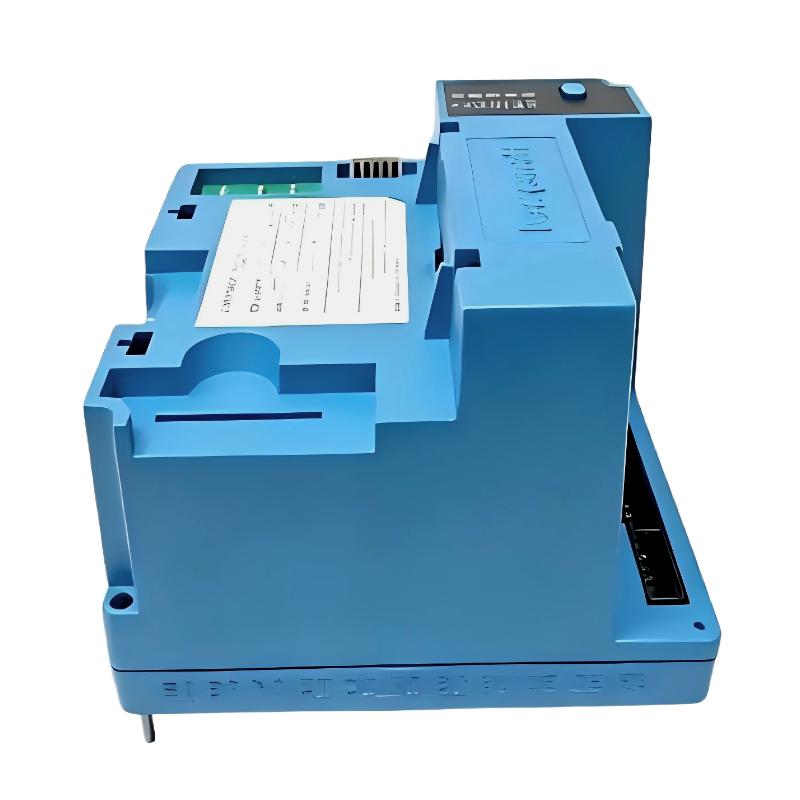

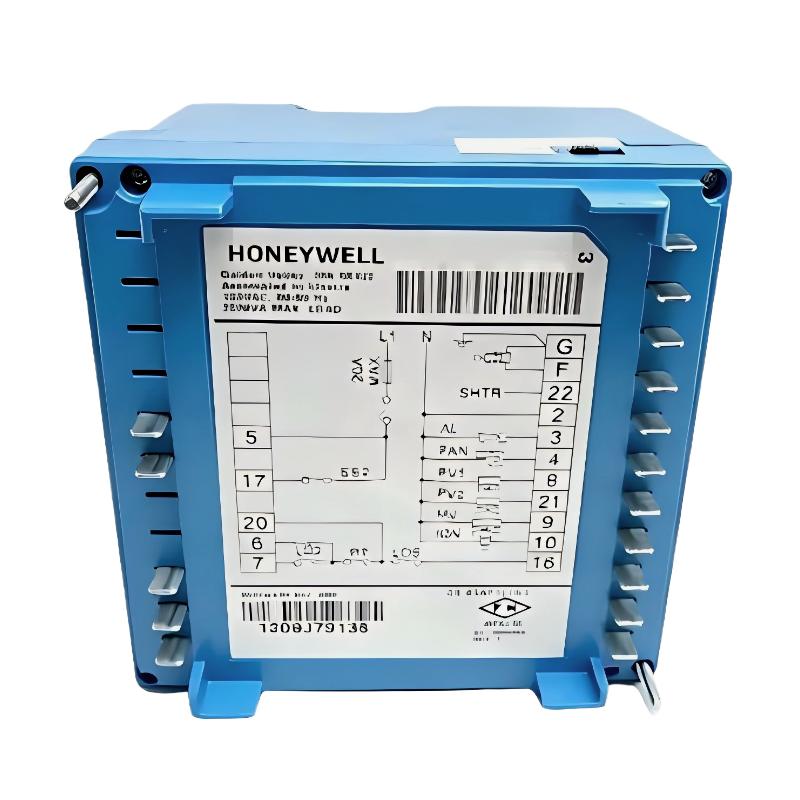

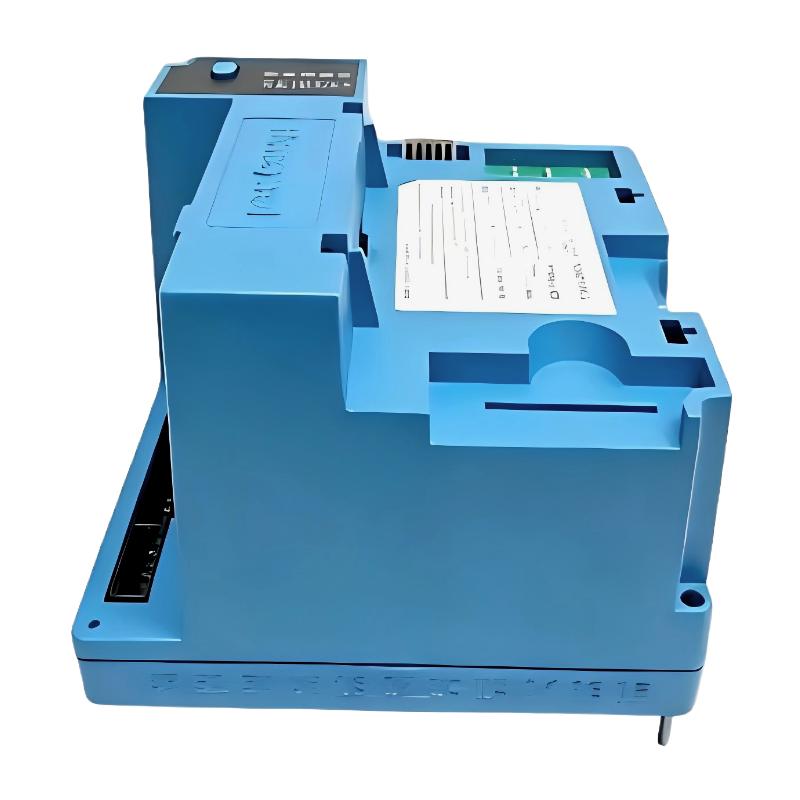

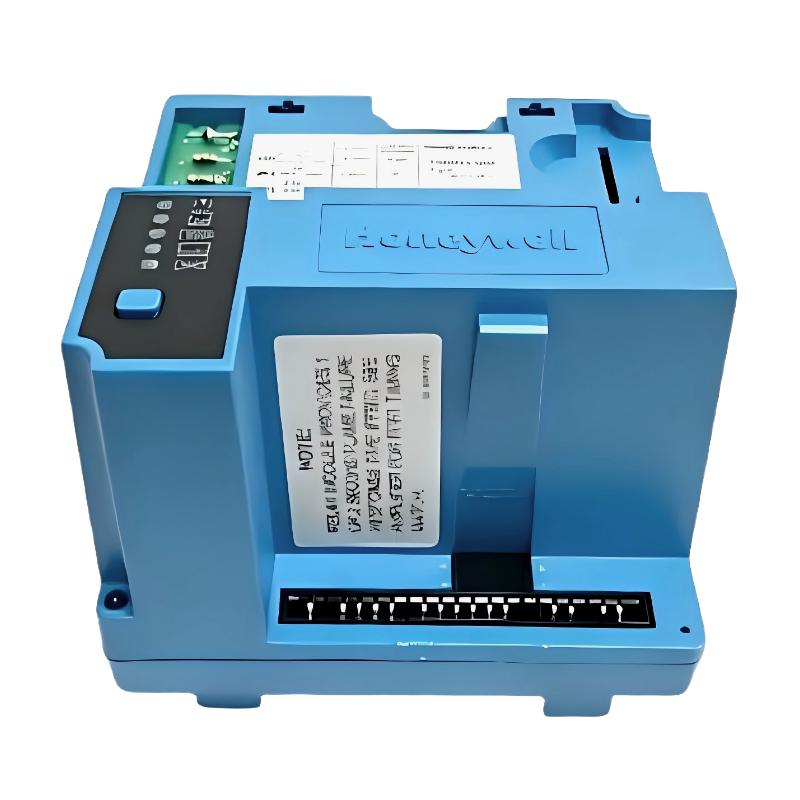

The Honeywell RM7830A1011 is an integrated burner control module from the Honeywell 7800 Series Burner Management System. It is designed to provide full burner sequencing, flame supervision, ignition control, diagnostics, and safety shutdown functions in industrial combustion applications.
Compared with flame-switch-only modules (such as RM7823/RM7824), the RM7830 series is a higher-level integrated controller, capable of handling more complete burner management logic within the 7800 system architecture.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | RM7830A1011 |
| Product Type | Integrated Burner Control |
| Series | 7800 Series |
| Function | Burner sequencing + flame safeguard control |
| Control Type | Microprocessor-based |
| System Role | Primary burner programmer/controller |
| Flame Detection | Compatible with Honeywell flame amplifiers |
| Safety Functions | Ignition supervision, flame monitoring, lockout protection |
| System Architecture | Modular (Q7800 subbase system) |
| Display Support | Works with S7800 keyboard/display module |
| Operating Voltage | 120 VAC (system dependent) |
| Dimensions | 127 × 127 × 133 mm |
| Weight | 0.73 kg |
Function and Working Principle
The RM7830A1011 operates as a central burner sequencing controller within a 7800 Series combustion system.
Its functions include:
- Checking all safety permissives before startup
- Controlling purge, pre-ignition, ignition, and run sequences
- Supervising pilot and main flame establishment
- Monitoring flame signal continuously during operation
- Managing controlled shutdown and post-purge cycles
- Triggering safety lockout during abnormal conditions
- Providing system status and fault diagnostics
It acts as the main logic controller for burner operation in integrated combustion systems.
Key Features
- Fully integrated burner sequencing control
- Microprocessor-based flame safeguard system
- Automatic purge, ignition, and shutdown logic
- Advanced self-diagnostics and fault history logging
- Compatible with plug-in flame amplifiers and detectors
- Modular 7800 Series architecture
- Supports external display/keyboard module
- High safety integrity design for industrial combustion
Industrial Applications
- Industrial boilers
- Process furnaces
- Thermal heaters
- Kilns and ovens
- Oil and gas combustion systems
- Single-burner industrial heating systems
Role in Industrial Systems
The RM7830A1011 is used to:
- Act as the primary burner sequencing controller
- Ensure safe ignition and flame establishment
- Supervise combustion conditions continuously
- Enforce safety interlocks and shutdown logic
- Provide diagnostics for troubleshooting and maintenance
It is essentially a higher-level “brain” within the Honeywell 7800 burner control ecosystem.
Installation Notes
- Installed on Honeywell Q7800 series subbase
- Requires compatible flame amplifier module
- Requires purge timing module (ST7800 series depending configuration)
- Must be configured with correct burner application data
- Proper grounding and shielding required for flame signal stability
- Commissioning must be done by qualified combustion technicians
Compatible Equipment
- Honeywell Q7800 subbases
- S7800A keyboard/display module
- Flame amplifiers (R7847, R7852, etc.)
- Flame detectors (UV, IR, flame rod systems)
- ST7800 purge timer modules
- Burner valves and ignition systems
Advantages
- Full burner control and sequencing in one module
- High safety integrity and reliability
- Strong diagnostics and fault tracking capability
- Modular upgrade/maintenance design
- Suitable for complex industrial combustion systems
Limitations
- Requires full Honeywell 7800 system ecosystem
- Not usable as a standalone controller
- Requires trained setup and commissioning
- Designed only for combustion applications
Conclusion
The Honeywell RM7830A1011 Integrated Burner Control is a primary burner management controller designed for industrial combustion systems.
It provides full sequencing control, flame supervision, diagnostics, and safety shutdown functions, making it suitable for reliable operation of industrial burners in demanding environments.
