Product Overview

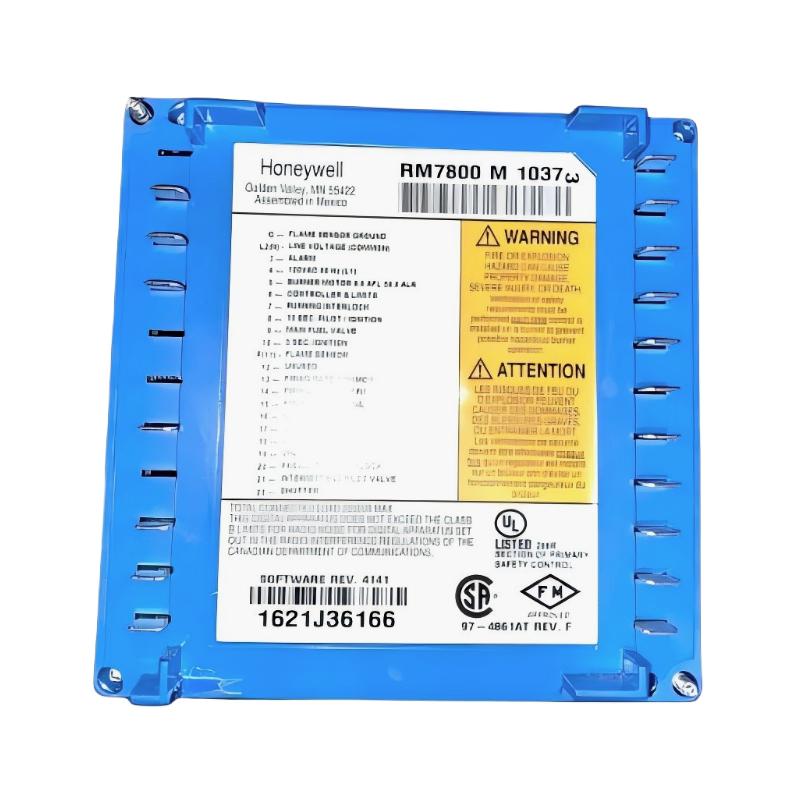

The Honeywell RM7800M1037 is a microprocessor-based burner control module from the Honeywell 7800 Series Burner Management System. It is designed for industrial combustion applications and provides automated burner sequencing, flame supervision, ignition control, diagnostics, and safety shutdown functions.
This model is used in single-burner gas, oil, or combination fuel systems, where reliable flame safety and process control are required.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | RM7800M1037 |
| Product Type | Burner Control Module |
| Series | 7800 Series |
| Function | Burner management and flame safeguard control |
| Control Type | Microprocessor-based |
| Fuel Compatibility | Gas / Oil / Combination fuel burners |
| Flame Detection | Compatible with plug-in flame amplifiers |
| Safety Functions | Flame monitoring, ignition supervision, lockout protection |
| Operating Voltage | 120 VAC |

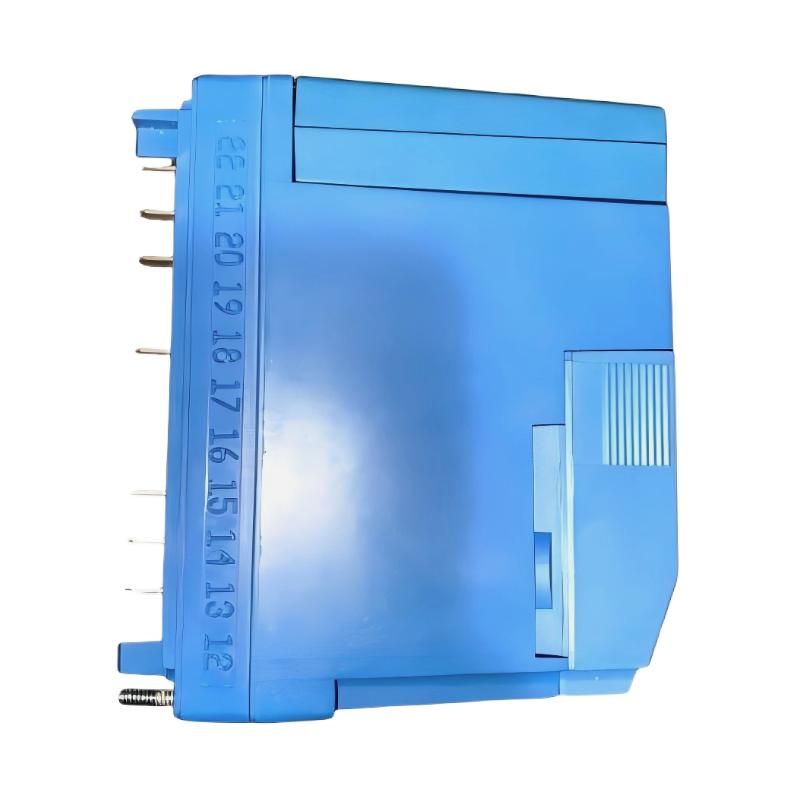

| Mounting Type | Plug-in relay module (Q7800 subbase required) |
| System Architecture | Modular (subbase + amplifier + purge card + display) |
| Dimensions | 127 × 127 × 133 mm |
| Weight | 0.83 kg |
Function and Working Principle
The RM7800M1037 manages burner operation through a structured combustion safety sequence.
Its main functions include:
- Verifying all safety permissives before start-up
- Controlling purge and pre-ignition cycles
- Managing pilot and main burner ignition timing
- Monitoring flame signal continuously during operation
- Executing safe shutdown and post-purge sequences
- Triggering safety lockout during fault conditions

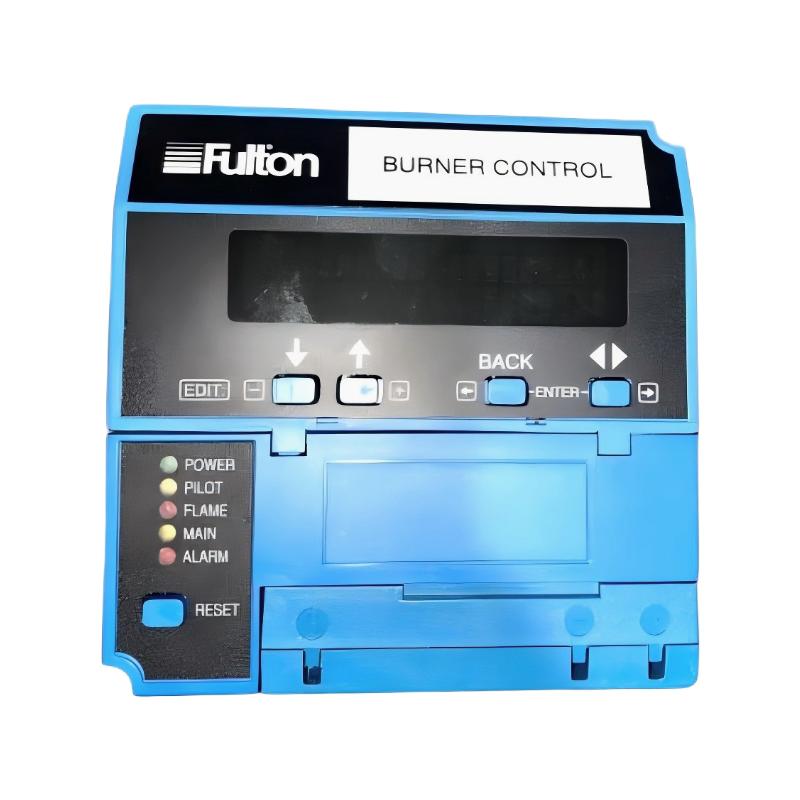

- Providing diagnostic and status information via display modules
It ensures that combustion only occurs under validated and safe operating conditions.
Key Features
- Microprocessor-based burner sequencing control
- Integrated flame safeguard logic
- Automatic ignition and shutdown cycles
- Built-in self-diagnostics and fault history storage
- Compatible with multiple flame amplifier types
- Modular 7800 Series architecture
- Supports remote or local display modules
- Designed for industrial safety compliance
Industrial Applications
- Industrial boilers
- Process heaters
- Furnaces and kilns
- Thermal processing equipment
- Oil & gas burner systems
- Single-burner combustion systems
Role in Industrial Systems
This module functions as the central safety and logic controller for burner operation, including:
- Ensuring safe ignition conditions
- Monitoring flame stability
- Controlling combustion sequencing
- Enforcing safety interlocks and lockouts
- Supporting system diagnostics and troubleshooting
It replaces older electromechanical burner sequencing systems with electronic control logic.
Installation Notes
- Installed on Honeywell Q7800 subbase
- Requires compatible flame amplifier module
- Requires purge card (ST7800 series depending configuration)
- Proper grounding and shielding required
- Must be commissioned by qualified combustion technicians
- Wiring must follow burner safety standards
Compatible Equipment
- Honeywell 7800 Series subbases (Q7800A/B)

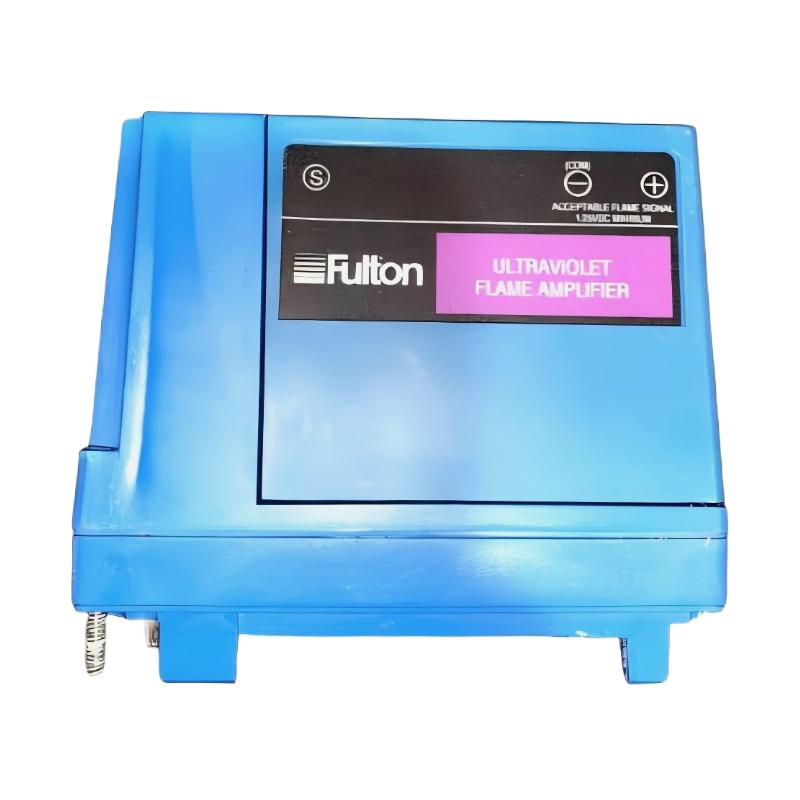

- Flame amplifiers (R7847, R7848, R7851, etc.)
- Flame detectors (UV, IR, flame rod systems)
- ST7800 purge timer modules
- Burner valves and ignition systems
Advantages
- High-integrity burner safety control
- Modular and configurable architecture
- Strong diagnostic and fault tracking capability
- Reliable sequencing for industrial combustion
- Suitable for a wide range of burner applications
Limitations
- Requires full 7800 Series ecosystem (subbase, amplifier, purge card)
- Specialized for combustion control only
- Requires trained setup and commissioning
- Not a general-purpose industrial controller
Conclusion
The Honeywell RM7800M1037 Burner Control Module is a modular microprocessor-based combustion safety controller designed for industrial burner systems.
It provides automated sequencing, flame supervision, diagnostics, and safety shutdown protection for gas, oil, and combination fuel burners in industrial heating applications.
