Product Overview

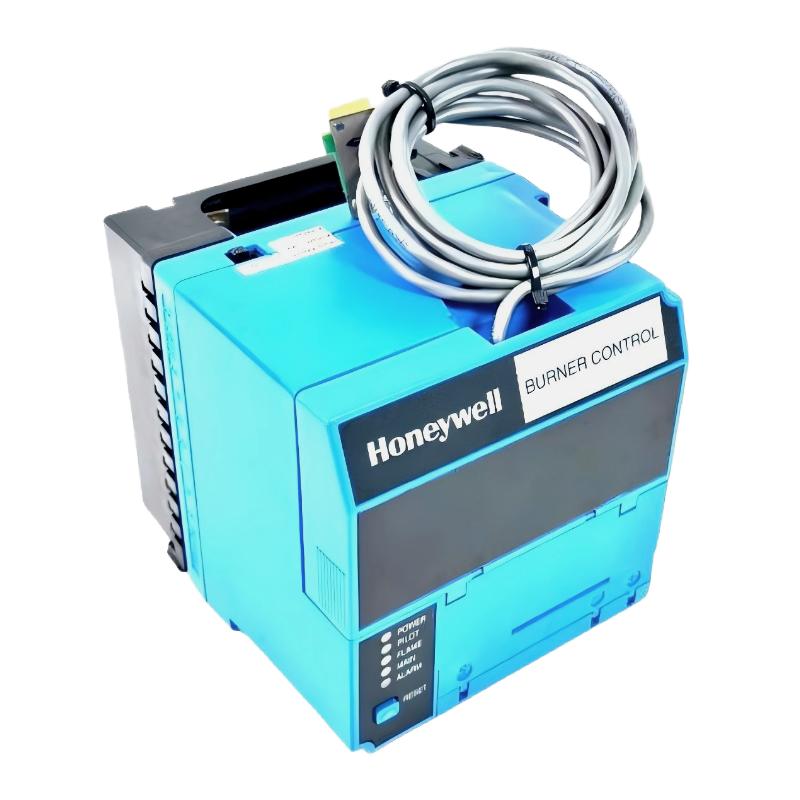

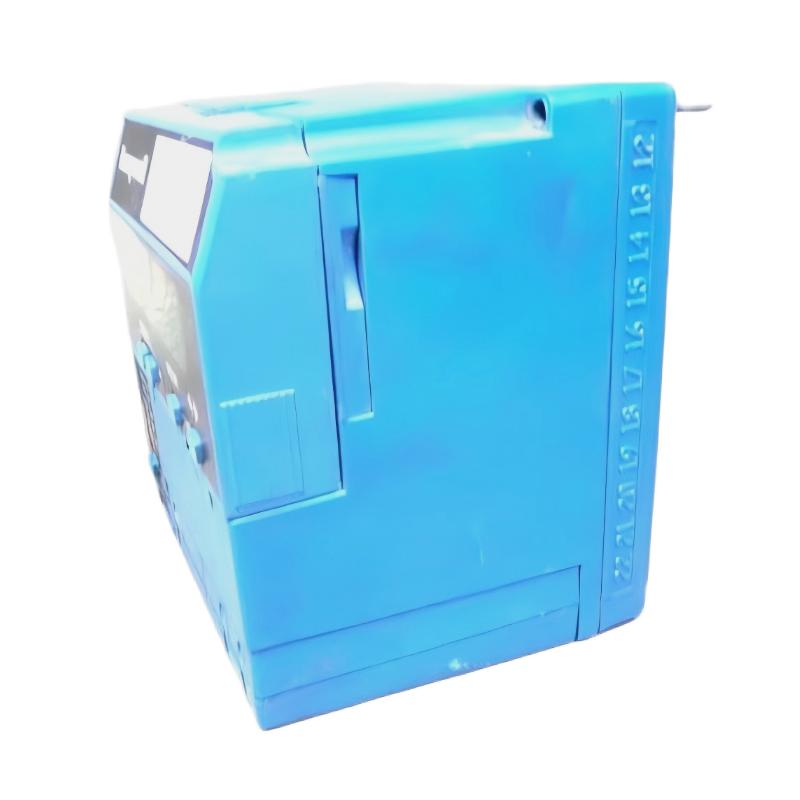

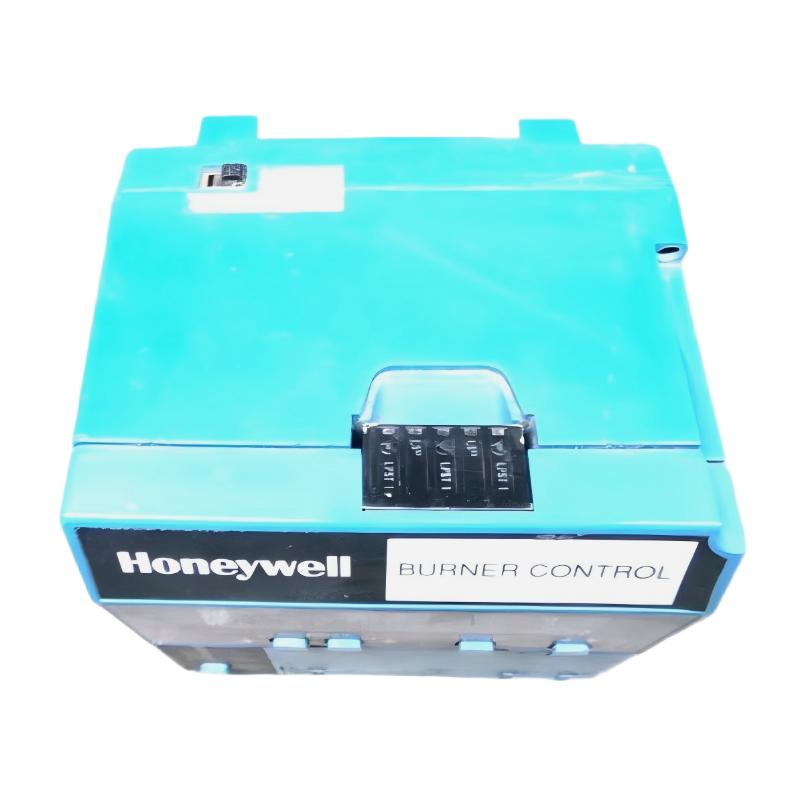

The Honeywell RM7800M1011 is a microprocessor-based programmable burner control unit from the Honeywell 7800 Series Burner Control platform. It is designed for industrial combustion systems requiring advanced burner sequencing, flame supervision, ignition control, diagnostics, and safety shutdown functions.
It is widely used in single-burner applications such as boilers, furnaces, and process heaters operating on gas, oil, coal, or combination fuels.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | RM7800M1011 |
| Product Type | Programmable Burner Control |
| Series | 7800 Series |
| Function | Burner management and flame safeguard control |
| Control Type | Microprocessor-based |
| Fuel Compatibility | Gas / Oil / Coal / Combination fuel |
| Flame Detection | Compatible with plug-in flame amplifiers |
| Safety Functions | Ignition supervision, flame monitoring, lockout protection |
| Operating Voltage | 120 VAC |
| Frequency | 50/60 Hz |
| Mounting Type | Plug-in relay module |
| Display | Includes keyboard display module |
| Dimensions | 127 × 127 × 133 mm |
| Weight | 0.83 kg |
Function and Working Principle
The RM7800M1011 operates as a fully automated burner sequencing and safety controller.
Its main functions include:
- Verifying all safety permissives before start
- Controlling purge and pre-ignition sequences
- Managing pilot and main burner ignition timing
- Monitoring flame signal continuously during operation
- Executing controlled shutdown and post-purge cycles
- Triggering safety lockout under fault conditions
- Providing diagnostics and status feedback via display and LEDs
The controller ensures that combustion only occurs under safe, validated conditions.
Key Features
- Microprocessor-based burner sequencing control
- Integrated flame safeguard logic
- Advanced self-diagnostics and fault history storage
- Plug-in flame amplifier compatibility
- Built-in keyboard/display module support
- Non-volatile memory retains fault and lockout history
- Flexible timing for purge, ignition, and flame proving
- Modular 7800 Series architecture
Industrial Applications
- Industrial boilers
- Process heaters
- Furnaces and kilns
- Thermal processing systems
- Oil & gas combustion systems
- Single-burner industrial heating equipment
Role in Industrial Systems
This controller is used to:
- Manage safe burner startup and shutdown sequences
- Supervise flame presence and combustion stability
- Enforce safety interlocks and permissive conditions
- Provide diagnostic feedback for troubleshooting
- Replace traditional relay-based burner sequencing systems
It acts as the central safety and logic controller for burner operation.
Installation Notes
- Installed in Honeywell Q7800 series subbases
- Requires compatible flame amplifier module
- Requires purge timer card (ST7800A series depending configuration)
- Wiring must follow combustion safety standards
- Commissioning must be performed by qualified personnel
Compatible Equipment
- Honeywell 7800 Series subbases (Q7800A / Q7800B)
- Flame amplifiers (UV, IR, flame rod types)
- Flame detectors
- Purge timer modules (ST7800A series)
- Burner valves and ignition systems
Advantages
- High-level combustion safety automation
- Strong diagnostic and fault memory capability
- Flexible configuration for different burner types
- Modular architecture simplifies maintenance
- Reliable operation in industrial environments
Limitations
- Requires full 7800 Series ecosystem (subbase, amplifier, purge card)
- Specialized for burner/combustion systems only
- Requires trained commissioning and setup
- Not suitable as a general PLC or universal controller
Conclusion
The Honeywell RM7800M1011 Programmable Burner Control is a high-integrity combustion safety controller designed for industrial burner management.
It provides automated sequencing, flame supervision, diagnostic monitoring, and safety shutdown protection for gas, oil, coal, and combination fuel burner systems.
