Product Overview

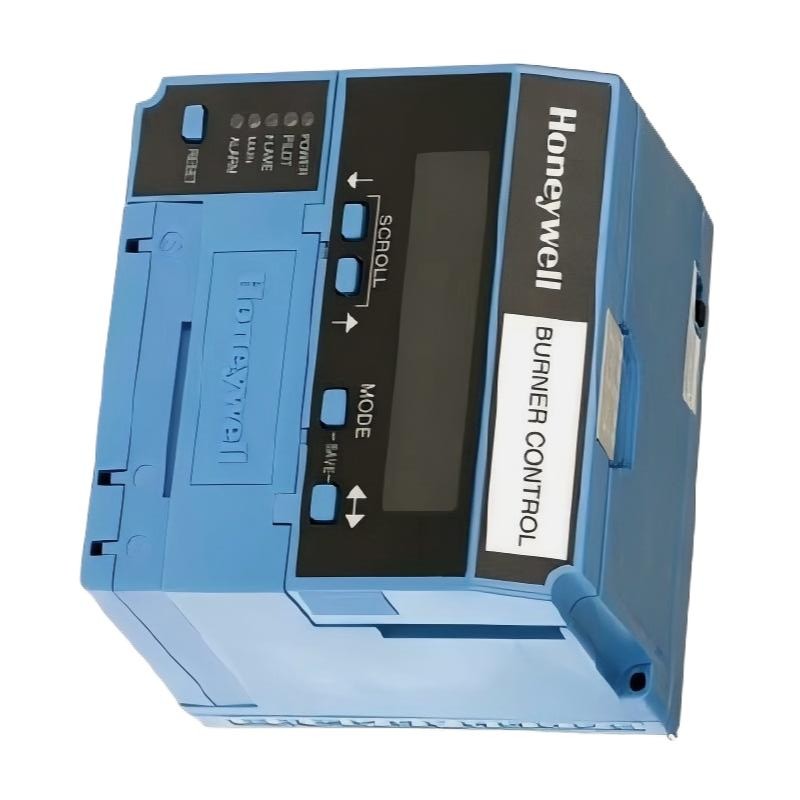

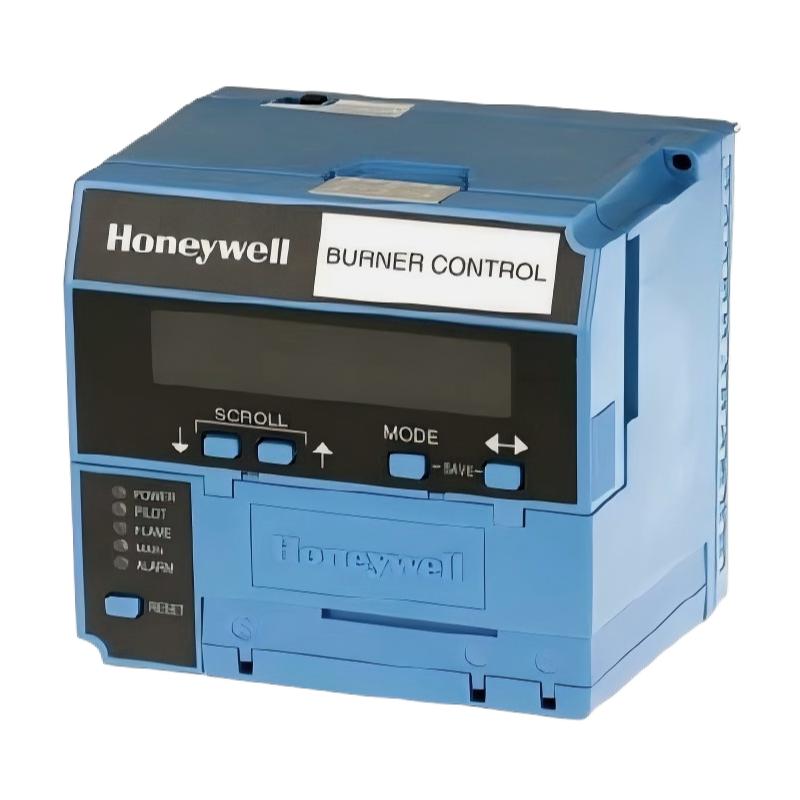

The Honeywell RM7800E1010 is a microprocessor-based relay module designed for industrial burner management and flame safeguard applications. It is part of the Honeywell 7800 Series Burner Control platform and is used to supervise burner startup, flame monitoring, shutdown sequencing, and safe combustion control operations.
The module is commonly applied in industrial boilers, furnaces, heaters, and combustion systems where reliable flame safety management is required.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | RM7800E1010 |
| Product Type | Relay Module |
| Series | 7800 Series Burner Control |
| Function | Burner management and flame safeguard control |
| Control Type | Microprocessor-based |
| Flame Detection | Compatible with flame amplifiers and detectors |
| Display Support | Compatible with keyboard display modules |
| Safety Functions | Burner sequencing, flame supervision, lockout protection |
| Mounting Type | Plug-in module |
| Operating Voltage | 120 VAC (series dependent) |
| Dimensions | 127 × 127 × 133 mm |
| Weight | 0.822 kg |
Function and Working Principle
The RM7800E1010 controls and supervises industrial burner operation through programmed safety sequencing.
Its operation includes:
- Monitoring burner startup conditions
- Managing ignition and pilot sequences
- Supervising flame presence during operation
- Controlling burner shutdown sequences
- Triggering safety lockout during unsafe conditions
- Communicating status and diagnostic information
The module continuously checks system safety conditions to ensure reliable combustion operation.
Key Features
- Microprocessor-based burner management
- Integrated flame safeguard functionality
- Automatic burner sequencing control
- Self-diagnostic and fault monitoring capability
- Lockout protection for unsafe conditions
- Compatible with Honeywell 7800 Series accessories
Industrial Applications
- Industrial boilers
- Process heaters
- Furnaces and kilns
- Commercial combustion systems
- Thermal processing equipment
- Oil and gas burner systems
Role in Industrial Systems
This module is used to:
- Ensure safe burner startup and shutdown
- Monitor flame stability during combustion
- Protect combustion systems from unsafe operating conditions
- Support reliable industrial heating processes
It serves as a critical safety control component in combustion management systems.
Installation Notes
- Installed in compatible Honeywell 7800 Series subbases
- Requires proper flame detector and amplifier configuration
- Safety wiring must comply with combustion safety standards
- Proper grounding and electrical isolation are recommended
- Commissioning should be performed by qualified personnel
Compatible Equipment
- Honeywell 7800 Series subbases
- Flame amplifier modules
- Flame detectors
- Burner ignition systems
- Industrial combustion control systems
Advantages
- High combustion safety reliability
- Advanced self-diagnostic functions
- Stable burner sequencing operation
- Fast fault detection and lockout response
- Suitable for demanding industrial applications
Limitations
- Requires compatible Honeywell 7800 Series components
- Intended specifically for burner management systems
- Proper commissioning and safety configuration are essential
Conclusion
The Honeywell RM7800E1010 Relay Module is a microprocessor-based burner management controller designed for safe and reliable combustion system operation.
It provides flame safeguard supervision, burner sequencing, and safety lockout protection for industrial heating and combustion applications.
