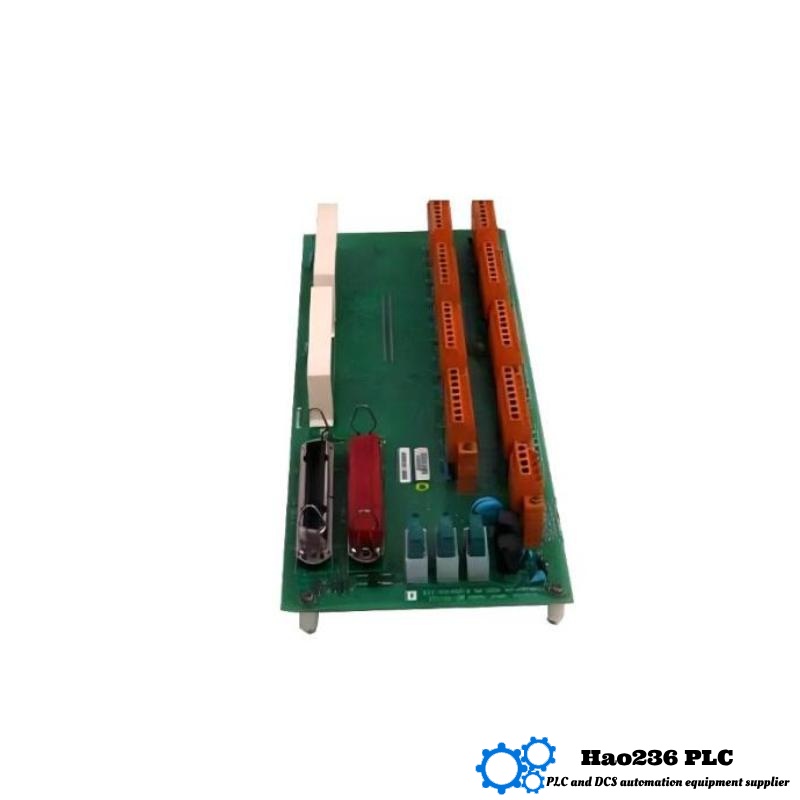

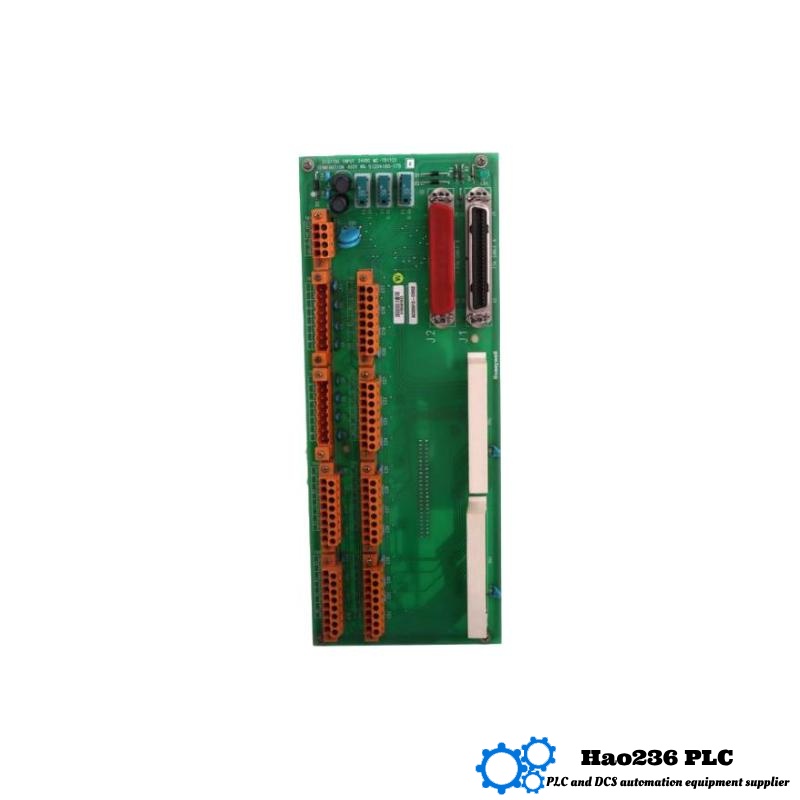

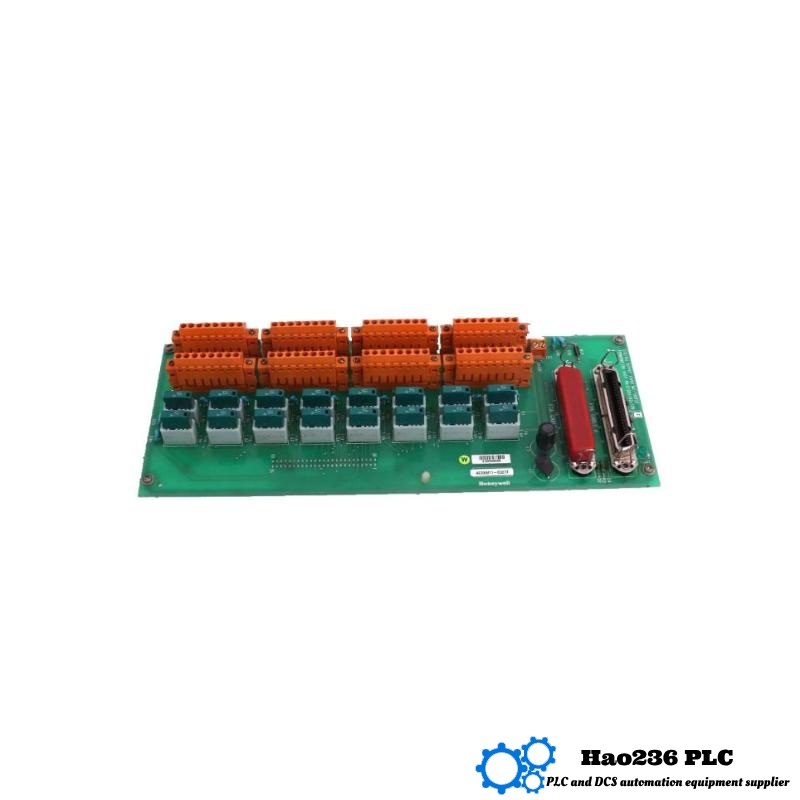

Honeywell MU-TDIY22 80366180-125 Digital Input Field Terminal Module
Product Overview
The Honeywell MU-TDIY22 80366180-125 is a Digital Input Field Terminal Module designed to interface various field devices with central control systems. This component is a vital part of industrial automation, allowing for smooth, efficient digital signal transmission from the field level to the control systems. This module supports multiple digital input signals, converting these into data readable by the control system, thus enhancing the automation process. Known for its reliability and performance, the Honeywell MU-TDIY22 is ideal for demanding applications such as manufacturing, chemical processing, energy production, and power generation.
Product Specifications
| Parameter | Value |
|---|---|
| Model | MU-TDIY22 |
| Module Type | Digital Input Field Terminal |
| Dimensions (L x W x H) | 307.3 x 120.7 mm |
| Weight | 0.2 kg |
| Input Channels | 8 Digital Inputs |
| Input Type | Dry Contact (On/Off) |
| Input Voltage Range | 24 VDC ±20% |
| Signal Type | Digital (Binary) |
| Mounting Type | DIN Rail Mount |
| Operating Temperature | -40°C to +85°C |
| IP Rating | IP20 |
| Relay Output | 8 Outputs, No Potential |
| Power Supply | 24 VDC ±20% |
| Communication Interface | RS485 (Modbus RTU) |
Product Applications
The Honeywell MU-TDIY22 80366180-125 is widely used in the following applications:
-
Industrial Automation: This module helps interface various digital field devices like sensors, switches, and alarms with central control systems for automated operations.
-
Process Control Systems: It enables smooth data acquisition from field devices, which is critical for the accurate monitoring and control of industrial processes.
-
Energy Systems: In power plants and energy distribution systems, the module integrates digital inputs from safety devices, status indicators, and alarms into the control system.
-
Oil and Gas Industry: Ideal for connecting field sensors like pressure sensors and flow meters, the MU-TDIY22 ensures safe and efficient process control.
-
Chemical Processing: It aids in real-time monitoring and control of chemical reactions and processes by reliably integrating data from field devices.
Product Advantages
-
High Reliability: Honeywell’s MU-TDIY22 module is designed to deliver consistent performance even in harsh industrial environments, offering robust protection against electrical noise and interference.
-
Versatile Input Handling: With 8 digital inputs, this module supports a variety of digital signals and is adaptable to different field devices.
-
Wide Temperature Range: The operating temperature range of -40°C to +85°C ensures that the module performs reliably in extreme conditions.
-
Compact Design: Its compact size (307.3 x 120.7 mm) and lightweight construction (0.2 kg) make installation quick and easy, even in confined spaces.
-
Modbus RTU Communication: This feature enables long-distance communication via RS485, facilitating integration into existing control systems.
-
DIN Rail Mounting: The module is easily mounted on a DIN rail, which simplifies installation in industrial control panels.
Brand: Honeywell
Honeywell is a global leader in industrial technologies, offering a wide range of products that span across multiple sectors, including aerospace, building technologies, and process automation. Known for innovation and reliability, Honeywell’s field devices, like the MU-TDIY22, provide robust solutions for industries requiring high performance, flexibility, and ease of integration.
Recommended Models in the Same Series
| Model | Input Channels | Dimensions (L x W x H) | Weight | Communication |
|---|---|---|---|---|
| MU-TDIY24 | 16 Digital Inputs | 307.3 x 120.7 mm | 0.3 kg | Modbus RTU (RS485) |
| MU-TDIY23 | 8 Digital Inputs | 307.3 x 120.7 mm | 0.2 kg | Modbus RTU (RS485) |
| MU-TDIY20 | 4 Digital Inputs | 307.3 x 120.7 mm | 0.2 kg | Modbus RTU (RS485) |
| MU-TDIY25 | 8 Digital Inputs | 307.3 x 120.7 mm | 0.2 kg | Modbus RTU (RS485) |
| MU-TDIY26 | 16 Digital Inputs | 307.3 x 120.7 mm | 0.3 kg | Modbus RTU (RS485) |
Recommended Popular Models from Honeywell
| Model | Input Voltage | Output Voltage | Output Current | Dimensions (L x W x H) | Weight |
|---|---|---|---|---|---|
| MU-TDOR22 | 100-240 VAC | 12 VDC | 1.0 A | 140 x 80 x 40 mm | 0.5 kg |
| MU-TDOR52 | 100-240 VAC | 24 VDC | 2.5 A | 160 x 90 x 50 mm | 0.7 kg |
| MU-TDOY22 | 100-240 VAC | 12 VDC | 2.0 A | 150 x 85 x 45 mm | 0.6 kg |
| MU-TDOR62 | 100-240 VAC | 24 VDC | 3.0 A | 170 x 100 x 55 mm | 0.8 kg |
| MU-TDOY32 | 100-240 VAC | 48 VDC | 4.0 A | 180 x 110 x 60 mm | 1.0 kg |
FAQ (Frequently Asked Questions)
Q1: How many digital inputs does the Honeywell MU-TDIY22 module support?
A1: The Honeywell MU-TDIY22 supports 8 digital inputs.
Q2: What is the weight of the Honeywell MU-TDIY22?
A2: The weight of the Honeywell MU-TDIY22 is 0.2 kg.
Q3: What is the operating temperature range of the Honeywell MU-TDIY22?
A3: The operating temperature range is -40°C to +85°C.
Q4: How is the Honeywell MU-TDIY22 mounted?
A4: The Honeywell MU-TDIY22 is mounted using a DIN rail system.
Q5: Does the Honeywell MU-TDIY22 support Modbus communication?
A5: Yes, the Honeywell MU-TDIY22 supports RS485 Modbus RTU communication.
Q6: What type of input does the Honeywell MU-TDIY22 accept?
A6: The module accepts dry contact (On/Off) digital inputs.
Q7: Can the Honeywell MU-TDIY22 be used in hazardous environments?
A7: The Honeywell MU-TDIY22 is designed for general industrial environments and is not rated for hazardous locations.
Q8: What is the input voltage range for the Honeywell MU-TDIY22?
A8: The input voltage range is 24 VDC ±20%.
Q9: What is the IP rating of the Honeywell MU-TDIY22?
A9: The Honeywell MU-TDIY22 has an IP20 rating.
Q10: What is the maximum number of inputs available in the Honeywell Field Devices series?
A10: Honeywell’s Field Devices series includes modules with up to 16 digital inputs.
