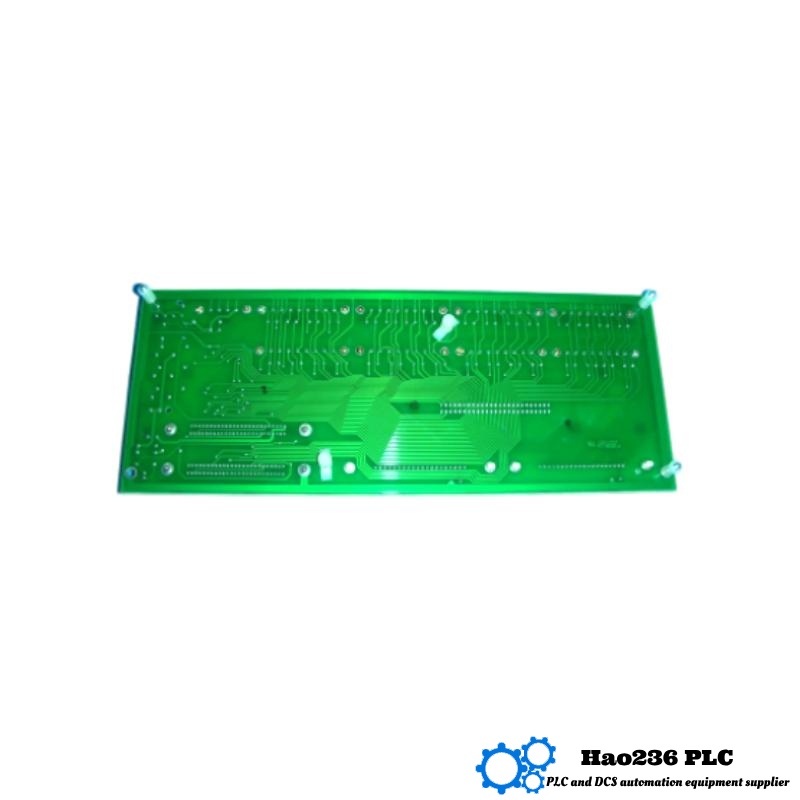

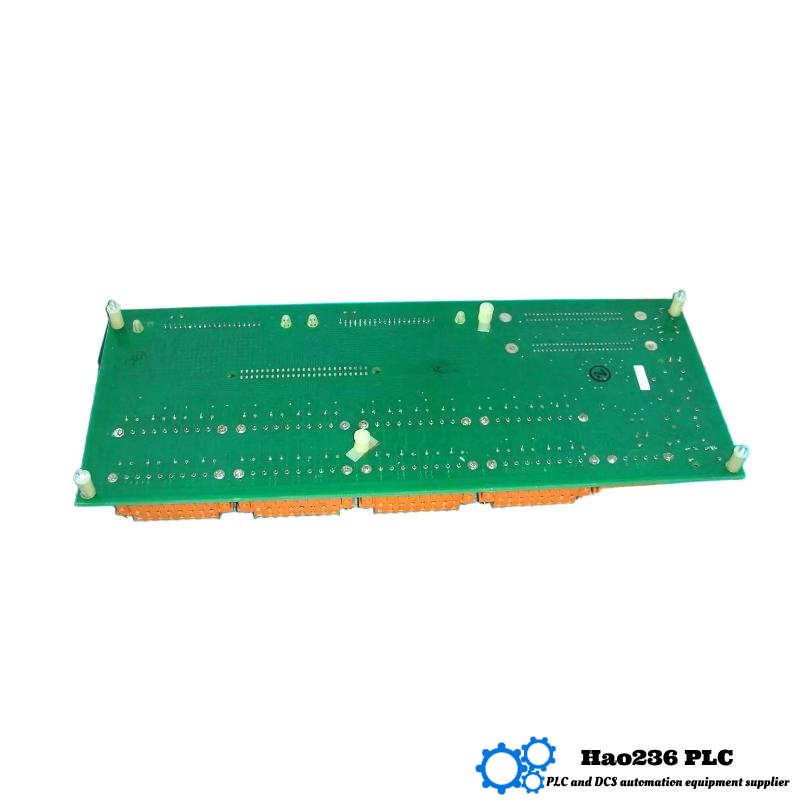

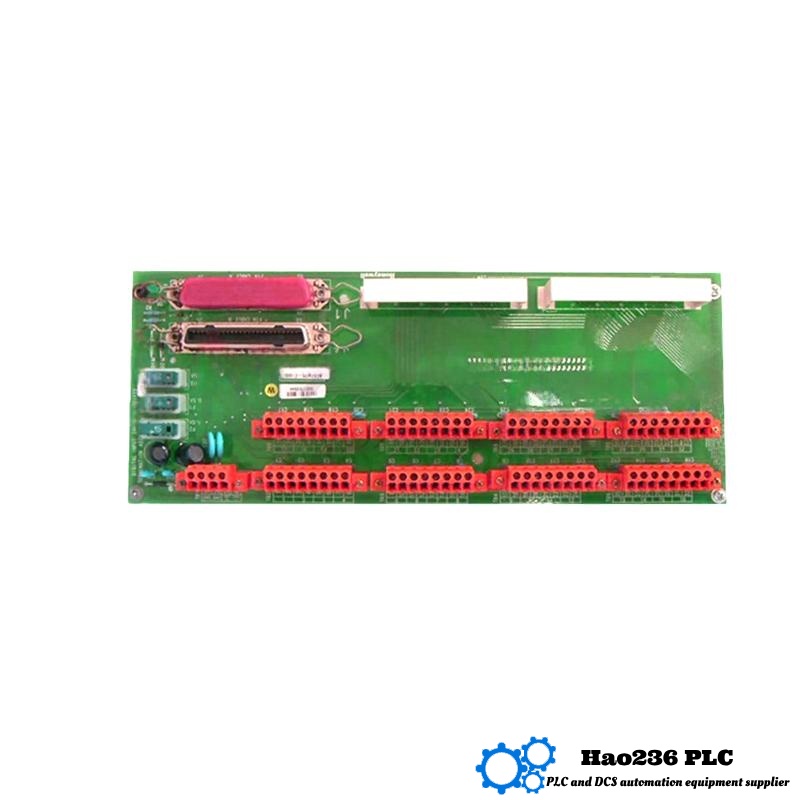

Honeywell MU-TDIY22 51204160-125 Digital Input Field Terminal Module
Product Overview
The Honeywell MU-TDIY22 51204160-125 is a digital input field terminal module designed to provide reliable and efficient digital signal conversion from field devices to control systems. This module is a vital component in industrial automation systems, ensuring seamless integration between field inputs (such as switches and sensors) and central control systems. It is part of Honeywell’s trusted Field Devices series and excels in providing a rugged solution for industries requiring precise data transmission and robust performance.
Product Specifications
| Parameter | Value |
|---|---|
| Model | MU-TDIY22 |
| Module Type | Digital Input Field Terminal |
| Dimensions (L x W x H) | 307.3 x 120.7 mm |
| Weight | 0.2 kg |
| Input Channels | 8 Digital Inputs |
| Input Type | Dry Contact (On/Off) |
| Input Voltage Range | 24 VDC ±20% |
| Signal Type | Digital (Binary) |
| Mounting Type | DIN Rail Mount |
| Operating Temperature | -40°C to +85°C |
| IP Rating | IP20 |
| Relay Output | 8 Outputs, No Potential |
| Power Supply | 24 VDC ±20% |
| Communication Interface | RS485 (Modbus RTU) |
Product Applications
The Honeywell MU-TDIY22 Digital Input Field Terminal Module is ideal for a wide range of industrial applications where digital signals need to be acquired from field devices and transmitted to control systems. These include:
-
Industrial Automation Systems: Connecting digital field devices such as switches and sensors to control systems for automated monitoring and control.
-
Process Control: Facilitating real-time data acquisition from field devices in process control systems, providing accurate and timely feedback.
-
Power and Energy Systems: Ensuring seamless integration of digital inputs from safety alarms, status indicators, and emergency stop switches in power plants.
-
Oil and Gas: Connecting devices like pressure and flow sensors to process control systems in oil and gas plants.
-
Chemical Processing: Used in chemical plants to integrate digital input signals into the central control system for monitoring, process control, and safety applications.
Product Advantages
-
High Reliability: The module is designed to operate continuously under harsh conditions, ensuring that field signals are accurately transmitted without any disruptions.
-
Wide Input Range: It accepts a wide range of digital input signals, making it flexible enough to interface with various field devices.
-
Temperature Tolerance: With an operating temperature range of -40°C to +85°C, the module can function reliably in extreme environmental conditions.
-
Compact and Efficient: The compact size of 307.3 x 120.7 mm and the lightweight design of 0.2 kg make it ideal for installation in tight spaces and easy integration into control systems.
-
Modbus RTU Communication: The RS485 Modbus RTU communication protocol ensures that the module can communicate effectively over long distances, providing real-time data transmission.
Brand: Honeywell
Honeywell is a world leader in technology, offering comprehensive solutions for process control, automation, and safety. Their products are widely used in a variety of industries, such as aerospace, building technologies, and industrial automation. Honeywell’s field devices, like the MU-TDIY22, provide reliable, high-quality solutions for integrating field signals into control systems, improving operational efficiency and safety.
Recommended Models in the Same Series
| Model | Input Channels | Dimensions (L x W x H) | Weight | Communication |
|---|---|---|---|---|
| MU-TDIY24 | 16 Digital Inputs | 307.3 x 120.7 mm | 0.3 kg | Modbus RTU (RS485) |
| MU-TDIY23 | 8 Digital Inputs | 307.3 x 120.7 mm | 0.2 kg | Modbus RTU (RS485) |
| MU-TDIY20 | 4 Digital Inputs | 307.3 x 120.7 mm | 0.2 kg | Modbus RTU (RS485) |
| MU-TDIY25 | 8 Digital Inputs | 307.3 x 120.7 mm | 0.2 kg | Modbus RTU (RS485) |
| MU-TDIY26 | 16 Digital Inputs | 307.3 x 120.7 mm | 0.3 kg | Modbus RTU (RS485) |
Recommended Popular Models from Honeywell
| Model | Input Voltage | Output Voltage | Output Current | Dimensions (L x W x H) | Weight |
|---|---|---|---|---|---|
| MU-TAIL03 | 100-240 VAC | 12 VDC | 1.5 A | 140 x 80 x 40 mm | 0.5 kg |
| MU-TAMR02 | 100-240 VAC | 24 VDC | 2.0 A | 160 x 90 x 50 mm | 0.6 kg |
| MU-TAMR03 | 100-240 VAC | 48 VDC | 3.0 A | 180 x 100 x 55 mm | 0.8 kg |
| MU-TAMR04 | 100-240 VAC | 12 VDC | 2.0 A | 150 x 85 x 45 mm | 0.7 kg |
| MU-TAIL04 | 100-240 VAC | 24 VDC | 3.0 A | 170 x 100 x 60 mm | 0.9 kg |
FAQ (Frequently Asked Questions)
Q1: How many digital inputs does the Honeywell MU-TDIY22 module support?
A1: The Honeywell MU-TDIY22 supports 8 digital inputs.
Q2: What is the weight of the Honeywell MU-TDIY22?
A2: The weight of the Honeywell MU-TDIY22 is 0.2 kg.
Q3: What is the operating temperature range of the Honeywell MU-TDIY22?
A3: The operating temperature range is -40°C to +85°C.
Q4: How is the Honeywell MU-TDIY22 mounted?
A4: The Honeywell MU-TDIY22 is mounted using a DIN rail system, which is commonly used in industrial environments.
Q5: Does the Honeywell MU-TDIY22 support Modbus communication?
A5: Yes, the Honeywell MU-TDIY22 supports RS485 Modbus RTU communication.
Q6: What type of input does the Honeywell MU-TDIY22 accept?
A6: The module accepts dry contact (On/Off) digital inputs.
Q7: Can the Honeywell MU-TDIY22 be used in hazardous environments?
A7: The Honeywell MU-TDIY22 is not specifically rated for hazardous environments but can be used in a wide range of industrial applications.
Q8: What is the voltage range required for the Honeywell MU-TDIY22?
A8: The input voltage range is 24 VDC ±20%.
Q9: What is the IP rating of the Honeywell MU-TDIY22?
A9: The Honeywell MU-TDIY22 has an IP20 rating.
Q10: What is the maximum number of inputs in the Honeywell Field Devices series?
A10: The Honeywell Field Devices series includes modules with up to 16 digital inputs.
