Product Overview

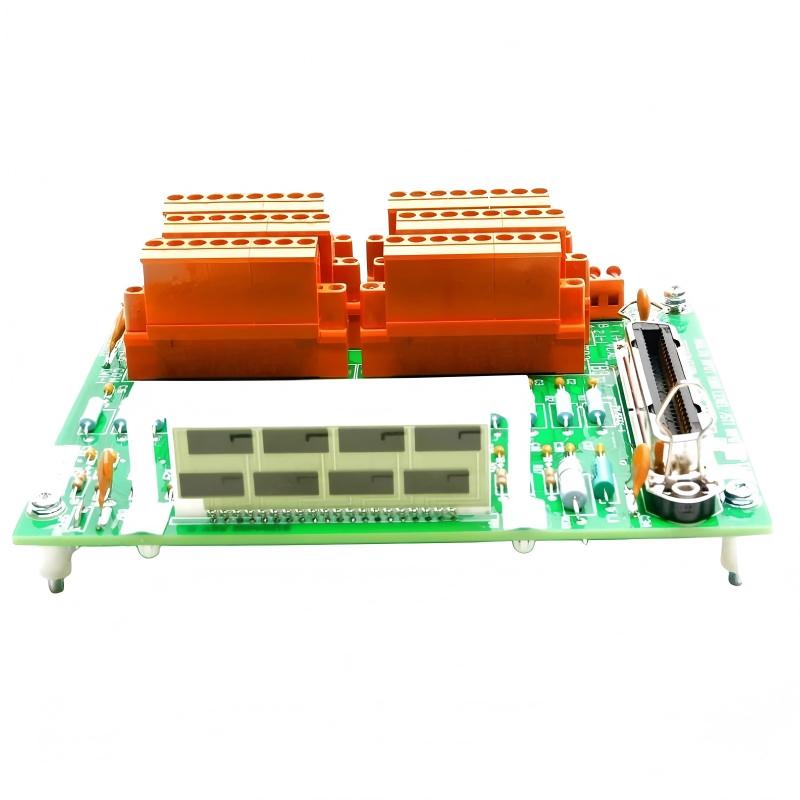

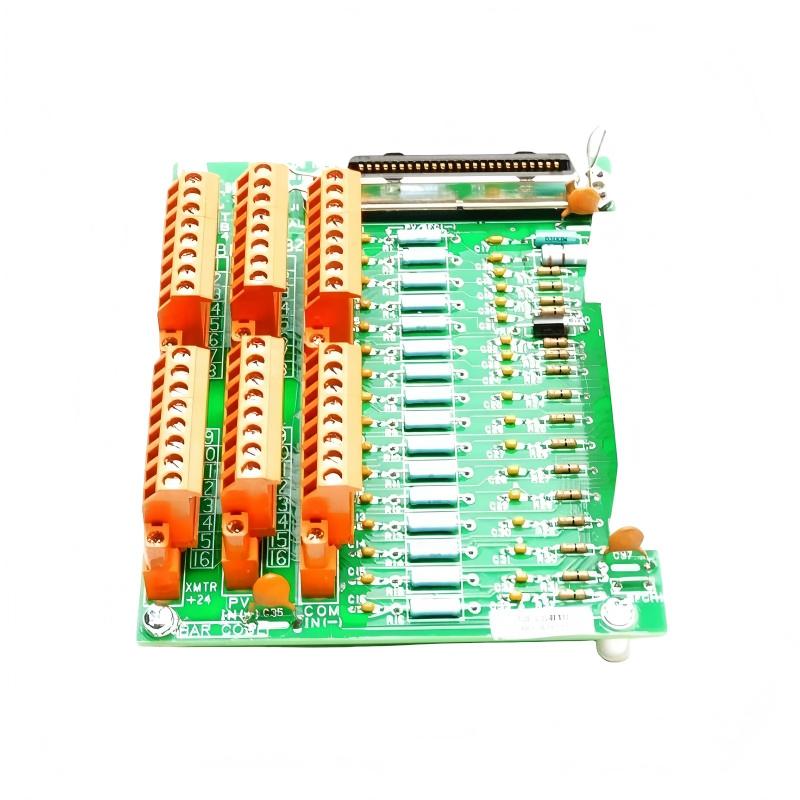

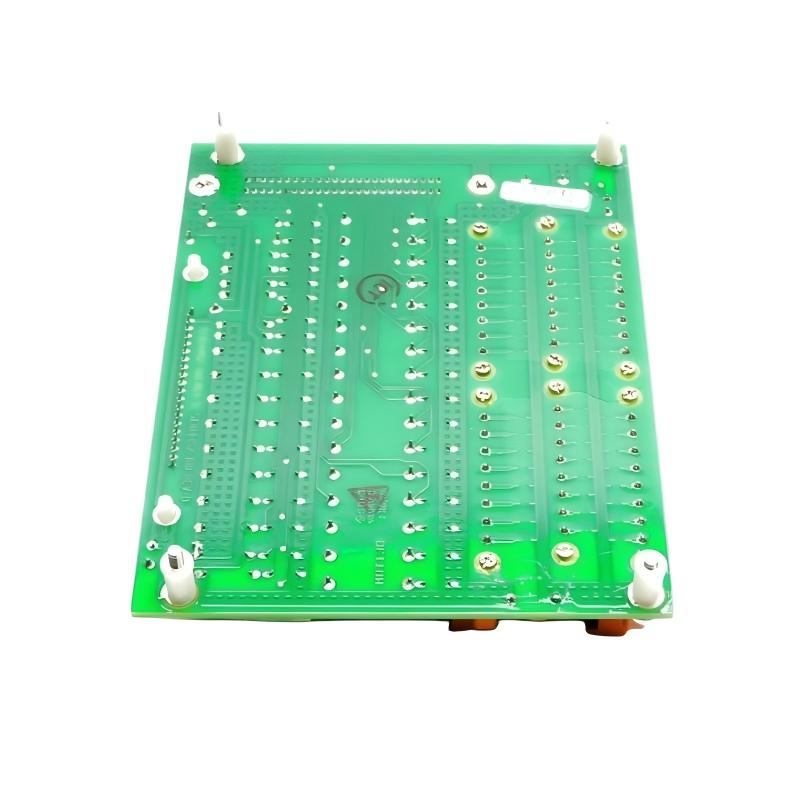

The Honeywell MU-TAIH01 (51303956-100) is an Analog Input High-Level Termination Module Board designed for integration within Honeywell distributed control systems (DCS). It functions as a field termination interface, providing organized wiring connections between field instruments and analog input modules.
The module is engineered to support reliable signal transmission, simplified installation, and efficient maintenance in industrial automation environments. Its compact design and robust construction make it suitable for continuous operation in critical process control applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | MU-TAIH01 |
| Part Number | 51303956-100 |
| Product Type | Analog Input High-Level Termination Module Board |
| Dimensions | 260 × 120 × 45 mm |
| Weight | 0.308 kg |
| Signal Type | High-Level Analog Input |
| Function | Field Signal Termination and Distribution |
| Connection Type | Terminal Board Interface |
| Mounting Method | Control Cabinet Installation |
| System Compatibility | Honeywell DCS Platforms |
| Application | Industrial Process Monitoring and Control |
Function and Working Principle
The MU-TAIH01 serves as an interface between field-mounted instruments and the control system’s analog input modules.
Operating Process
- Receives analog signals from field transmitters and sensors.
- Provides organized termination points for incoming wiring.
- Routes signals to the corresponding analog input processing modules.
- Maintains signal integrity throughout the transmission path.
- Supports reliable acquisition of process variables by the control system.
This architecture simplifies field wiring while improving system maintainability and troubleshooting efficiency.
Key Features
- High-level analog signal termination capability
- Reliable signal distribution and routing
- Compact and lightweight design
- Simplified field wiring management
- Industrial-grade construction
- Easy installation and maintenance
- Supports continuous process operation
- Designed for Honeywell automation systems
- Enhanced wiring organization within control cabinets
Industrial Applications
- Oil and gas production facilities
- Petrochemical processing plants
- Chemical manufacturing
- Power generation stations
- Water and wastewater treatment systems
- Pulp and paper mills
- Pharmaceutical manufacturing
- Industrial automation systems
- Process monitoring and control applications
Installation
The module is typically installed inside a control cabinet as part of a Honeywell I/O subsystem.
Installation Steps
- Mount the module in the designated cabinet location.
- Connect field analog signal wiring to the terminal points.
- Connect system-side wiring to the corresponding input module.
- Verify grounding and shielding requirements.
- Perform signal continuity and functional testing.
Compatible Components
| Component | Description |
|---|---|
| Analog Input Modules | Receive and process analog field signals |
| Honeywell Controllers | Execute monitoring and control functions |
| Field Transmitters | Pressure, temperature, flow, and level instruments |
| System Cables | Connect termination assemblies to I/O modules |
| Control Cabinets | Provide installation and environmental protection |
Alternative Models
| Model | Description |
|---|---|
| MU-TAIH02 | Analog Input Termination Module |
| MU-TAIH03 | Analog Input Interface Module |
| MC-TAIH04 | High-Level Analog Input Module |
| MC-PAIL02 | Low-Level Analog Input Processor |
Advantages
- Improves wiring organization
- Simplifies installation and maintenance
- Reliable signal transmission
- Compact installation footprint
- Reduces wiring complexity
- Supports long-term industrial operation
- Compatible with Honeywell control architectures
- Facilitates efficient troubleshooting
Frequently Asked Questions
What is the primary purpose of the MU-TAIH01?
The module provides termination and signal routing for high-level analog input signals between field devices and Honeywell control systems.
Is the module used for signal processing?
No. Its primary function is signal termination and distribution rather than analog signal processing.
Where is the MU-TAIH01 typically installed?
It is installed inside industrial control cabinets as part of a Honeywell DCS I/O subsystem.
What types of devices connect to this module?
Field transmitters, sensors, and analog input modules commonly connect through the MU-TAIH01.
Conclusion
The Honeywell MU-TAIH01 (51303956-100) Analog Input High-Level Termination Module Board is a dependable field interface solution designed to simplify signal termination and wiring management within Honeywell automation systems. With its compact dimensions (260 × 120 × 45 mm), lightweight construction (0.308 kg), and robust industrial design, it provides reliable connectivity and efficient integration for critical process control applications.
