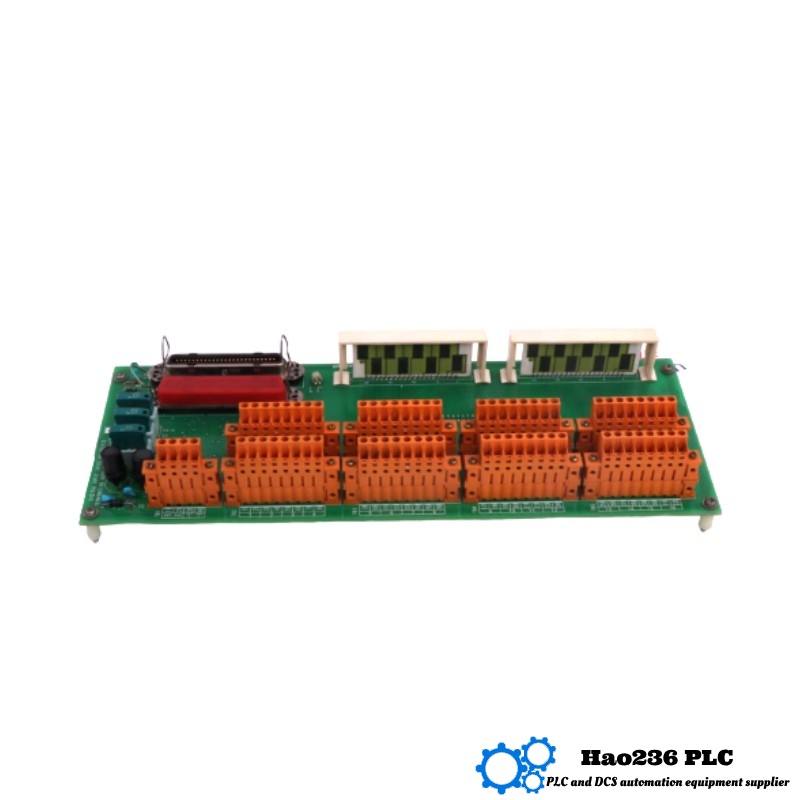

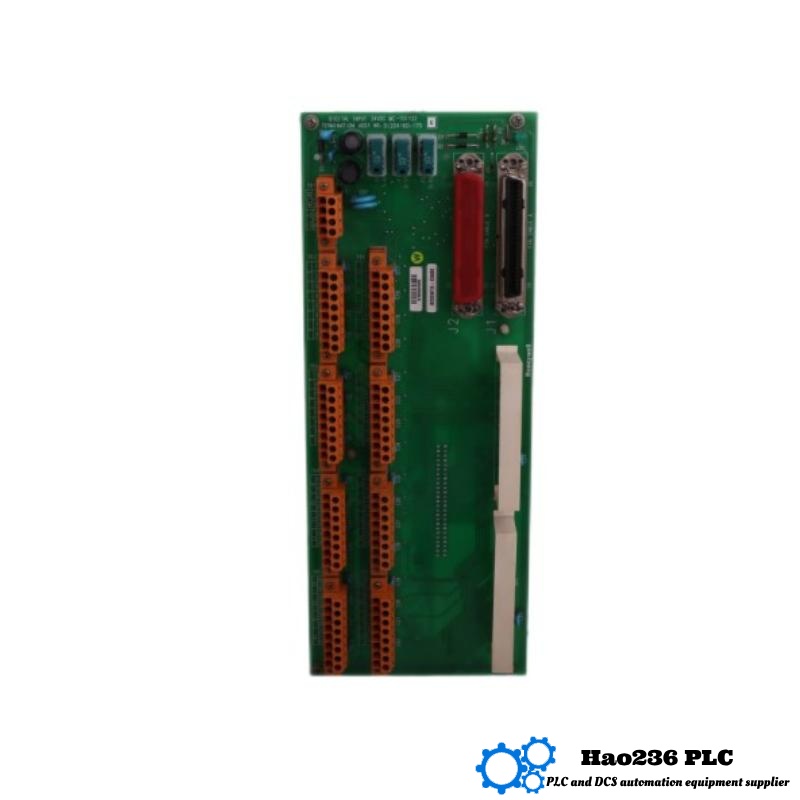

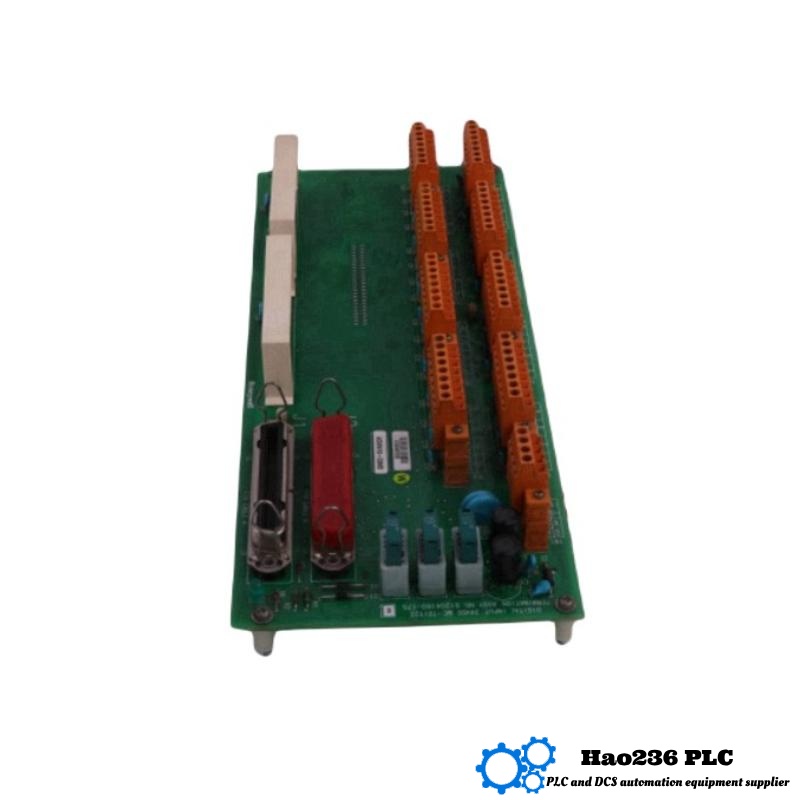

Honeywell MC-TDIY22 (51204160-175) Digital Input Module
Product Overview
The Honeywell MC-TDIY22 (Part No. 51204160-175) is a 16-channel digital input module designed for integration within Honeywell’s modular I/O platforms. It accepts 24 V DC logic-level signals from field devices such as proximity sensors, limit switches, and PLC outputs. Housed in a compact chassis, the MC-TDIY22 provides reliable signal conditioning, fault detection, and LED status indication on each channel, ensuring clear diagnostics and minimal downtime.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | MC-TDIY22 |
| Part Number | 51204160-175 |
| Module Type | Digital Input Module |
| Input Voltage | 24 V DC nominal |
| Number of Channels | 16 |
| Input Current | 6 mA per channel |
| Isolation | Optical, channel-to-backplane |
| Response Time | ≤ 5 ms |
| Status Indicators | LED per channel (ON/OFF) |
| Dimensions (W×H×D) | 160 × 100 × 30 mm |
| Weight | 0.308 kg |
| Mounting | DIN rail or panel mount |
| Operating Temperature | –20 °C to +60 °C |
| Certifications | CE, UL, RoHS |
Applications
-
Factory Automation: Interfaces with limit switches and proximity sensors on assembly lines.
-
Material Handling: Captures discrete signals from conveyors, gates, and safety interlocks.
-
Building Management: Monitors door contacts, motion detectors, and alarm systems.
-
Water Treatment: Receives status inputs from pumps, level switches, and flow sensors.
-
OEM Control Panels: Provides high-density digital inputs for custom machinery controllers.
Advantages
-
High Channel Density
Sixteen inputs in a slim 30 mm module conserve valuable panel space. -
Fast, Reliable Response
≤ 5 ms signal detection ensures prompt reaction in time-critical processes. -
Clear Diagnostics
Individual LED indicators simplify troubleshooting and reduce maintenance time. -
Robust Isolation
Optical isolation protects the backplane and other modules from ground-loop faults. -
Flexible Installation
Supports both DIN rail and direct panel mounting to suit varied enclosure designs.
Brand
Honeywell is a global leader in automation and safety solutions, renowned for delivering robust, high-performance I/O modules that meet the exacting demands of industrial control systems.
Related Models in the Same Series
| Model | Description | Channels | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| MC-TDIY12 | 12-Channel Digital Input Module | 12 | 120 × 100 × 30 | 0.25 |
| MC-TDIO22 | 16-Channel Digital Input/Output Hybrid | 16 I/8 O | 160 × 100 × 30 | 0.32 |
| MC-TDOY16 | 16-Channel Digital Output Module | 16 | 160 × 100 × 30 | 0.30 |
| MC-ADIY08 | 8-Channel Analog Input Module (4–20 mA) | 8 | 120 × 100 × 30 | 0.28 |
| MC-ADOY04 | 4-Channel Analog Output Module (0–10 V) | 4 | 80 × 100 × 30 | 0.20 |
Popular Honeywell I/O Modules
| Model | Description | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| MC-TDIN22 | 16-Channel Sink-Source Input Module | Digital Input | 160 × 100 × 30 | 0.30 |
| FS-TSDI-1648 | 16-Channel Safety Digital Input (FTA) | Safety Input | 90 × 70 × 58 | 0.30 |
| MC-ADOM16 | 16-Channel Analog Output (4–20 mA) | Analog Output | 200 × 100 × 30 | 0.40 |
| MC-TDOY08 | 8-Channel High-Speed Relay Output Module | Relay Output | 120 × 100 × 30 | 0.35 |
| MC-COMM01 | Ethernet Communications Module | Network Interface | 160 × 100 × 30 | 0.45 |
Frequently Asked Questions (FAQ)
Q1: What voltage does the MC-TDIY22 accept?
A1: It accepts a 24 V DC nominal input signal on each channel.
Q2: How many channels are available?
A2: The module provides 16 discrete input channels.
Q3: Can it detect input wiring faults?
A3: Yes, optical isolation and channel-level diagnostics help identify faults.
Q4: What is the module’s response time?
A4: The typical response time is ≤ 5 ms per channel.
Q5: How are status indications provided?
A5: Each channel has a dedicated LED showing ON/OFF state.
Q6: What mounting options exist?
A6: It supports DIN rail mounting or direct panel mounting.
Q7: What are the dimensions and weight?
A7: 160 × 100 × 30 mm; weight is 0.308 kg.
Q8: What operating temperature range does it cover?
A8: –20 °C to +60 °C for reliable industrial use.
Q9: Is the module CE and UL certified?
A9: Yes, it carries CE, UL, and RoHS certifications.
Q10: Which systems is it compatible with?
A10: It integrates seamlessly into Honeywell Experion® PK and ControlEdge™ PK I/O racks.
