Product Overview – MC‑TAOX12 (51304335‑175)
Product Introduction

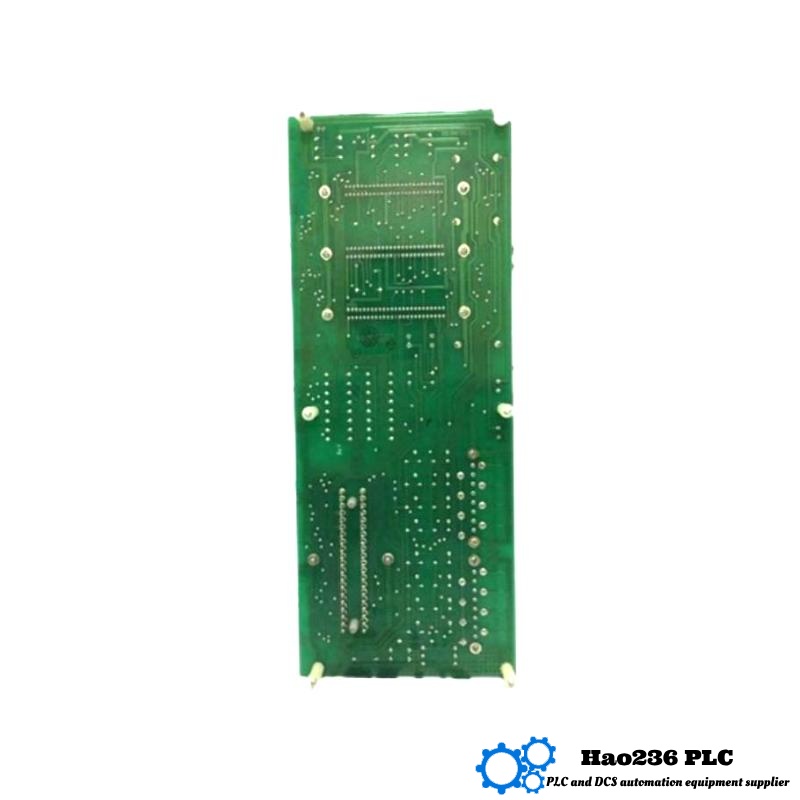

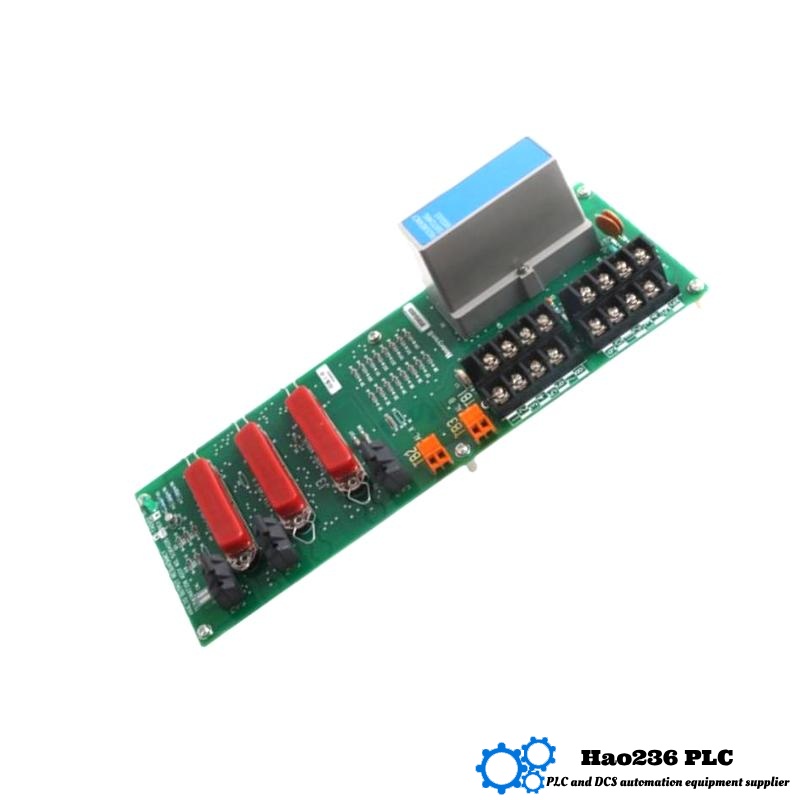

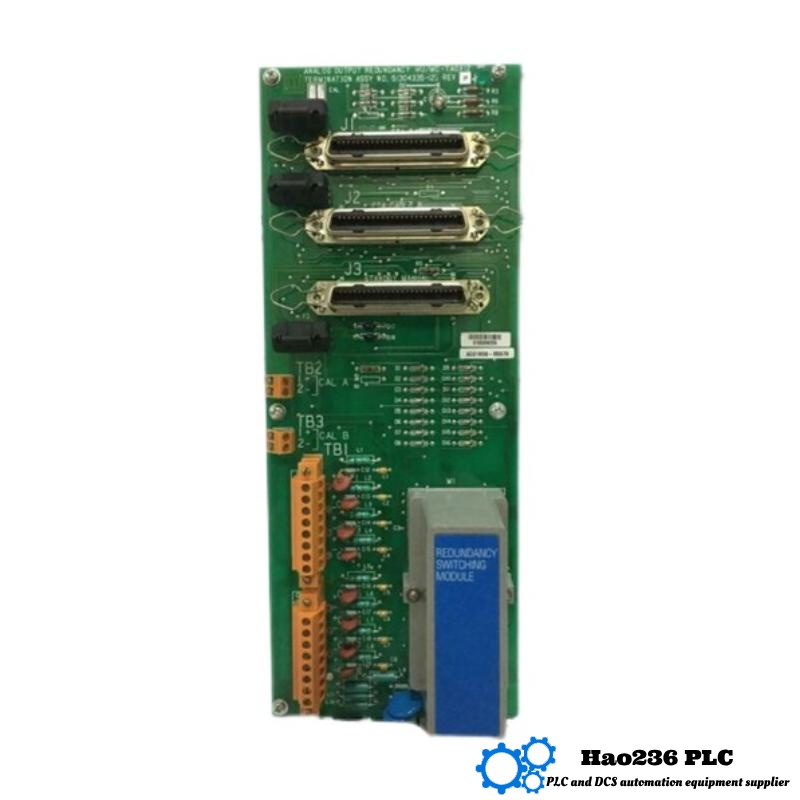

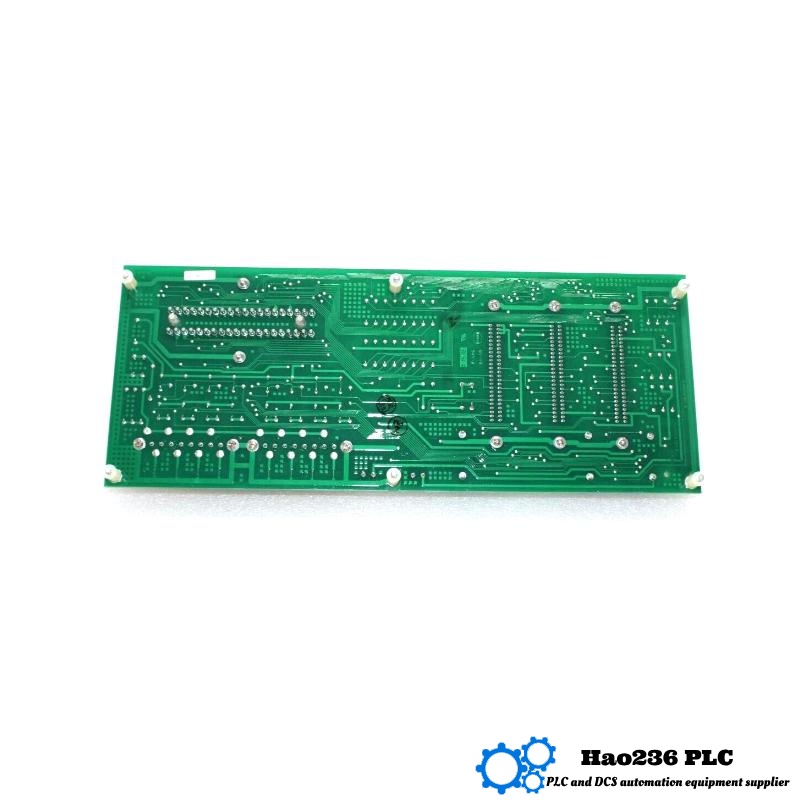

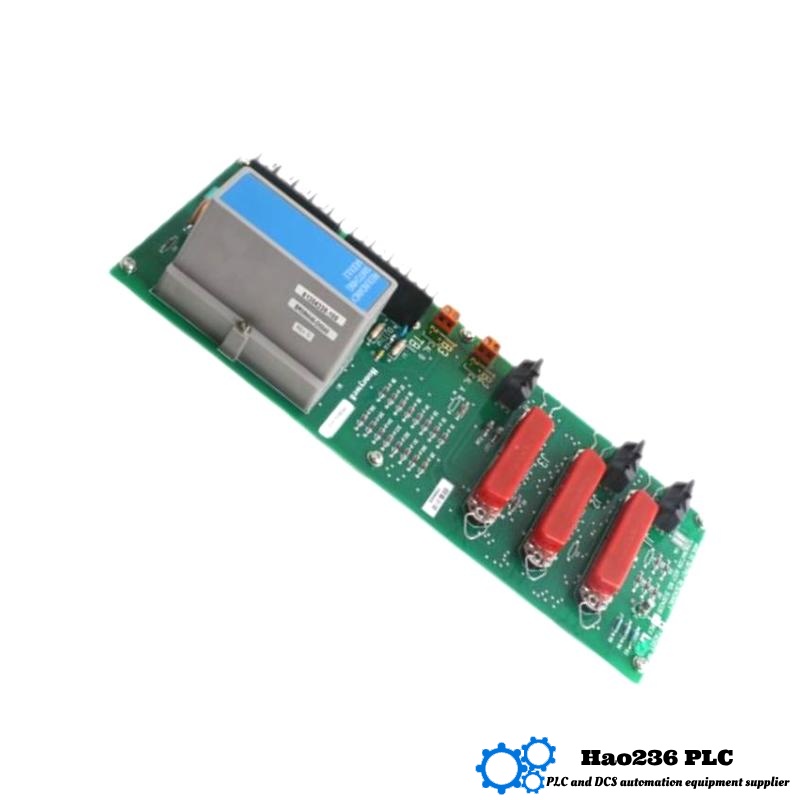

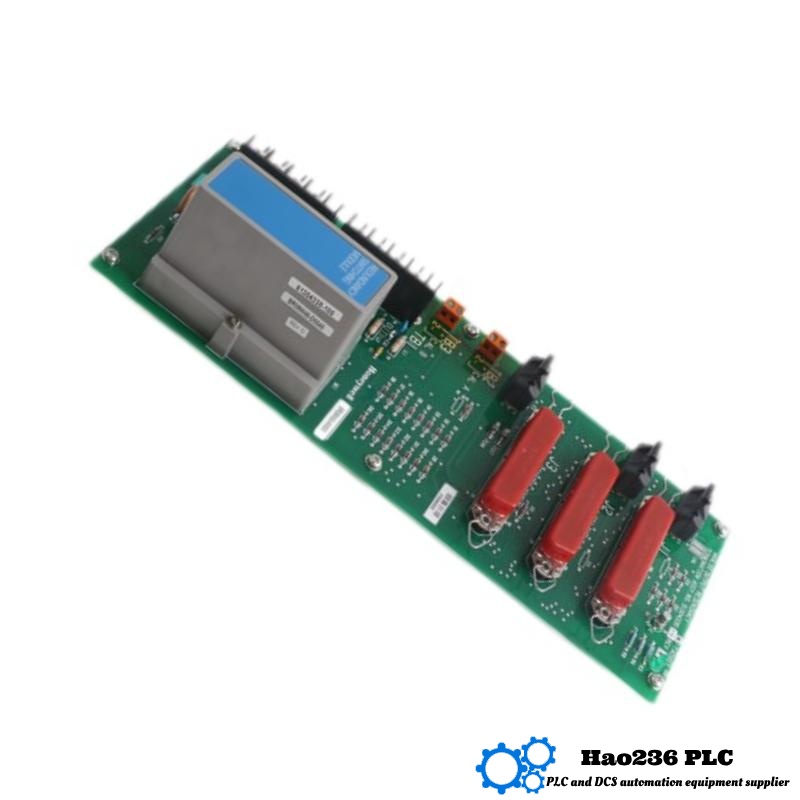

The MC‑TAOX12 module (part number 51304335‑175) is a high-performance Analog Output Module designed for precise control in industrial automation systems. With twelve selectable analog output channels, it communicates robust 4–20 mA (or 0–20 mA) signals to drive actuators, valves, and other field devices. Its diagnostics, compact design, and compatibility with industrial control platforms make it a reliable choice for process control environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MC‑TAOX12 |
| Part Number | 51304335‑175 |
| Analog Output Channels | 12 |
| Output Signal Type | 4–20 mA or 0–20 mA (configurable per channel) |
| Resolution | 12‑bit |
| Accuracy | ±0.1 % of full scale |
| Output Load Resistance | 0–750 Ω |
| Isolation | 500 V RMS between field and logic |
| Power Supply Voltage | 24 V DC |
| Features | Open-loop detection, signal verification, status LEDs |
| Dimensions (cm) | Approx. 12 × 8.5 × 30.7 cm |
| Weight (kg) | Approx. 0.48 kg |
Applications
This module is ideally suited for environments needing precise analog control with sturdy diagnostics:
-
Process Control Systems – Drives control loops for valves, pumps, and other instruments with high integrity.
-
Oil & Gas, Chemical, and Power Plants – Supplies stable analog outputs in demanding industrial settings.
-
Manufacturing Automation – Controls actuators and other field components across production lines.
-
Distributed Control Systems (DCS) – Seamlessly integrates into Experion PKS and legacy TDC 3000 systems.
Advantages
-
High Precision – ±0.1 % full‑scale accuracy ensures accurate analog actuation.
-
Flexible Output – Selectable 4–20 mA or 0–20 mA per channel adapts to varied process needs.
-
Robust Diagnostics – Built-in open-loop detection and per-channel health monitoring improve reliability.
-
Strong Isolation – 500 V RMS isolation enhances safety and protects control electronics.
-
Compact & Lightweight – Slim profile and light weight (~0.48 kg) suit tight control cabinets.
Brand & Series
-
Brand: Industrial Automation Division (name omitted)
-
Series: Analog Output FTA modules—a family tailored for modular I/O in distributed control architectures
Related or Similar Models in the Same Series
| Model | Function | Channels / Details | Size & Weight |
|---|---|---|---|
| MC‑TAOX12 | Analog Output FTA | 12 channels | 12 × 8.5 × 30.7 cm, ~0.48 kg |
| MC‑TAOX52 | Analog Output FTA (redundant) | Enhanced redundancy | Similar size, ~0.52 kg |
| MC‑TAOX02 | Analog Output FTA (single) | 8 channels | Compact size |
| MC‑TAIH12 | Analog Input FTA | 16 inputs, redundant, coated | ~10.8 × 12 × 3.5 cm, ~0.35 kg |
| MC‑TAIH13 | High‑Level Analog Input FTA | Redundant, with coating | Similar form |
Other Popular Models from the Same Brand
| Model | Role | Function | Weight (kg) |
|---|---|---|---|
| Power Supply Unit | 24 V system power | Powers modular I/O racks | ~0.5–0.7 kg |
| Logic Manager | Central logic controller | Orchestrates I/O and logic processing | ~0.6 kg |
| Analog Input Module | Multi-channel input | Reads RTD / current / voltage signals | ~0.5–0.6 kg |
| Digital Input Module | High-speed digital input | Processes digital signals from field | ~0.5 kg |
| Digital Output Module | Digital output control | Drives relays and alarms via logic | ~0.6 kg |
FAQ – MC‑TAOX12 (51304335‑175)
Q1: How many analog outputs are available?
A1: There are twelve independent analog output channels.
Q2: What output range does it support?
A2: Each channel can be set to output either 4–20 mA or 0–20 mA.
Q3: What is the accuracy of the outputs?
A3: The accuracy is ±0.1 % of full scale.
Q4: Does the module include diagnostics?
A4: Yes—open-loop detection, signal verification, and status LEDs are present.
Q5: What is the electrical isolation?
A5: It offers 500 V RMS isolation between field outputs and logic circuits.
Q6: What are its physical dimensions?
A6: Approximately 12 × 8.5 × 30.7 cm and weighs about 0.48 kg.
Q7: Is output load range specified?
A7: Yes—compatible load resistances are 0–750 Ω.
Q8: Where is this module typically used?
A8: Commonly in process control, oil & gas, power plants, and distributed control systems.
Q9: Is it compatible with DCS platforms?
A9: Yes, it’s designed for integration with systems like Experion PKS and legacy control networks.
Q10: What if I need redundancy?
A10: Consider the MC‑TAOX52 variant, which includes output redundancy for increased reliability
