Product Overview

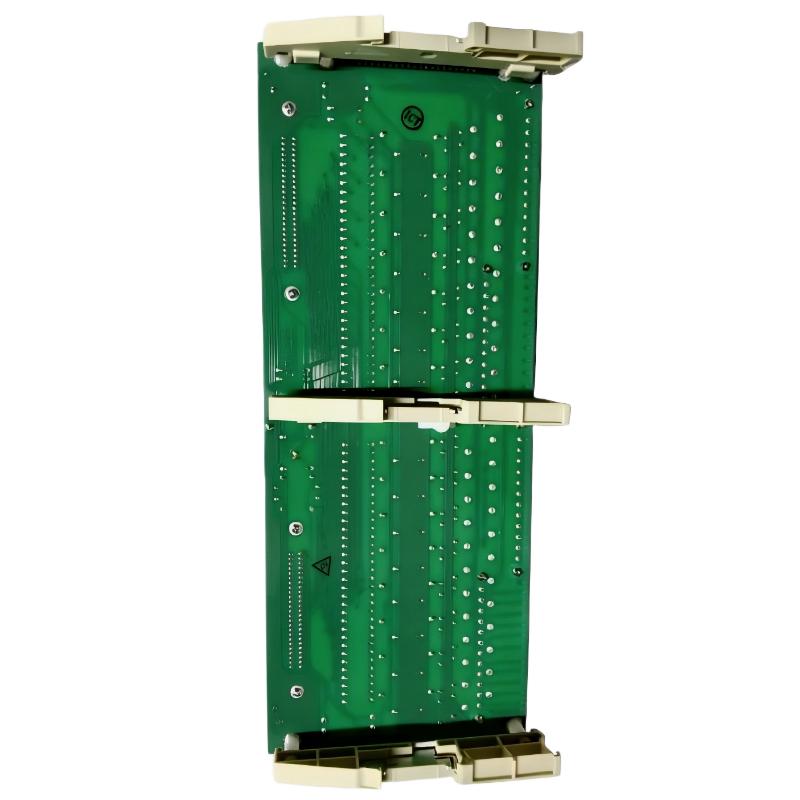

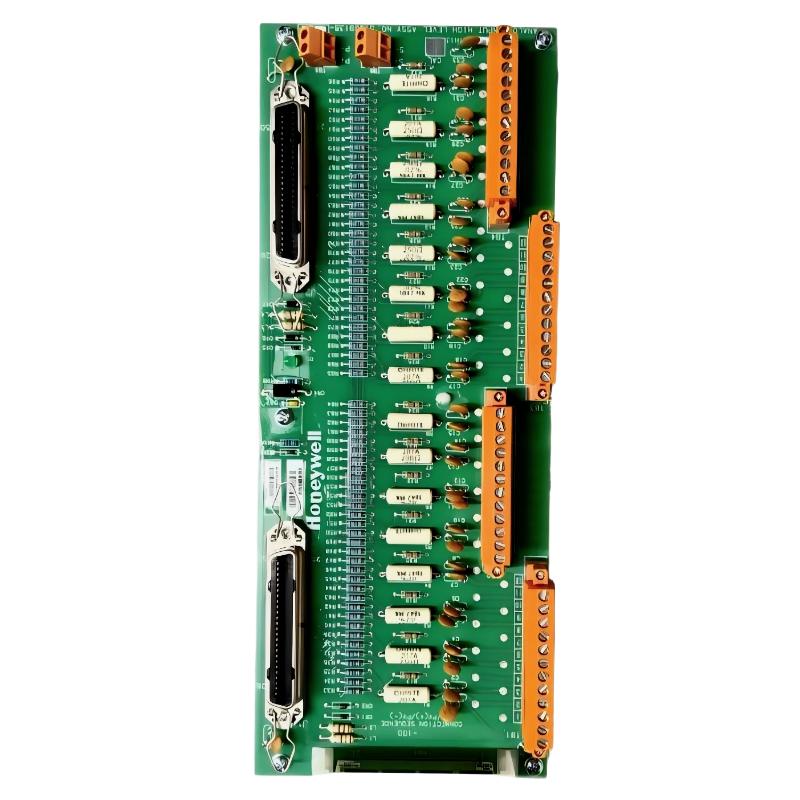

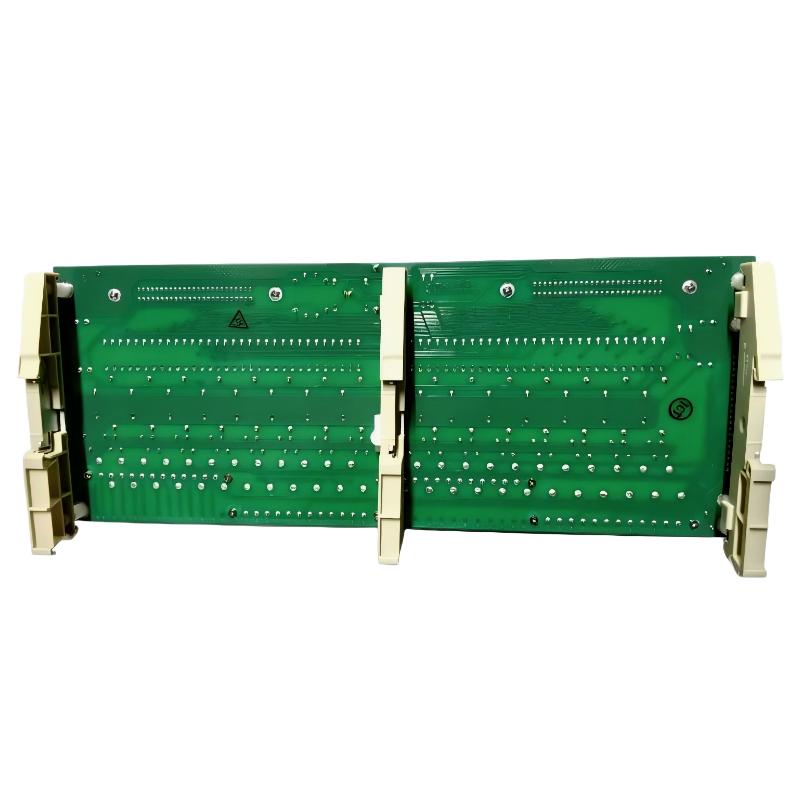

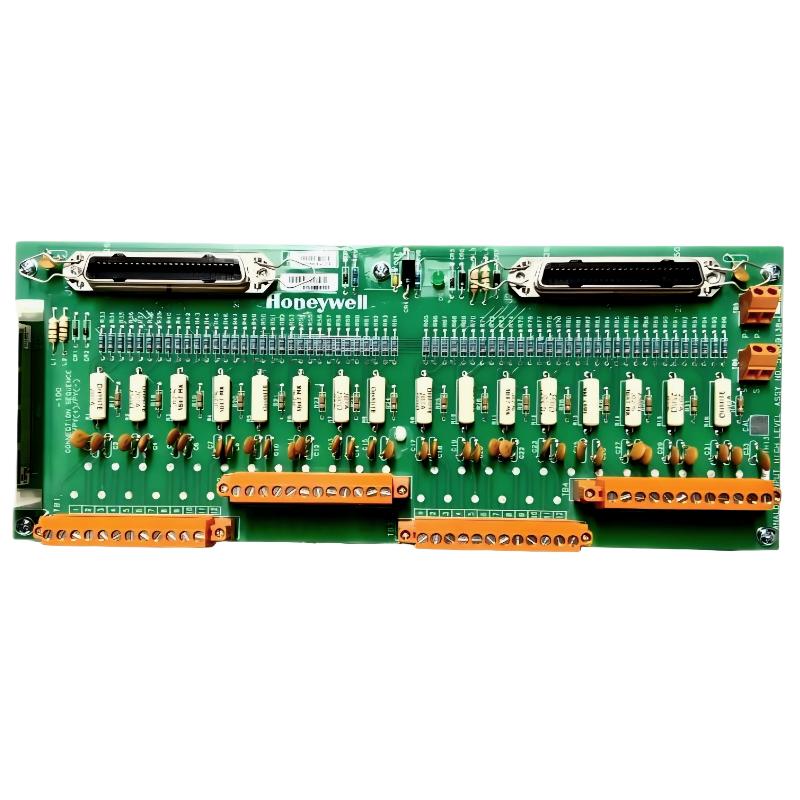

The Honeywell MC-TAIH13 (Part No. 51309138-175) is a high-level analog input Field Termination Assembly (FTA) used in Honeywell Experion PKS / Series C I/O systems.
It is designed to receive and condition multiple high-level analog process signals, typically 4–20 mA inputs, from field instrumentation such as transmitters for pressure, temperature, flow, and level measurement. The module provides a structured interface between field wiring and the control system I/O processor, ensuring stable and accurate signal acquisition.
It is commonly used in distributed control systems (DCS) for process industries requiring high-density analog signal monitoring.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | MC-TAIH13 |
| Part Number | 51309138-175 |
| Product Type | High-Level Analog Input FTA |
| System Series | Experion PKS / Series C I/O architecture |
| Input Channels | 16 analog input channels |
| Input Signal Type | 4–20 mA high-level analog signals |
| Mounting Size | Type B (system classification) |
| Wiring Type | Compression terminal field wiring |
| Signal Conditioning | Built-in protection and input conditioning circuitry |
| Isolation | Channel-to-system isolation (system dependent) |
| Diagnostics | Channel status and module health monitoring |
| Compatibility | MU-PAIH03 / MC-PAIH03 I/O processors |
| Redundancy Support | Supported in redundant I/O configurations |
| Operating Environment | Industrial control systems |
| Operating Temperature | -40°C to +85°C (industrial-grade range) |
| Dimensions | 137 × 51 × 151 mm |
| Weight | 0.454 kg |
Function and Working Principle
The MC-TAIH13 functions as a signal interface and conditioning layer between field transmitters and the DCS controller system.
It is responsible for:
- Receiving 4–20 mA analog signals from field instruments
- Providing electrical termination and protection for input circuits
- Conditioning signals for accurate digital conversion
- Transferring processed inputs to I/O processors (MU/MC series)
- Supporting high-density analog signal acquisition
- Ensuring noise-immune signal transmission in industrial environments
It does not execute control logic; it ensures accurate and reliable signal acquisition from field devices.
System Role in Architecture
The Honeywell MC-TAIH13 plays a front-end analog signal acquisition role in industrial automation systems.
It is typically used for:
- Process monitoring systems
- Refinery and petrochemical control loops
- Power generation instrumentation systems
- Water treatment monitoring networks
- Large-scale distributed analog input systems
It acts as the interface between field transmitters and control system processing units.
Industrial Applications
- Oil and gas production facilities
- Petrochemical and refining plants
- Power generation stations
- Chemical processing industries
- Water and wastewater treatment systems
- Industrial automation monitoring systems
Installation & Integration
Proper installation ensures reliable signal performance:
- Installed in Honeywell Experion PKS I/O cabinets
- Connected to field transmitters via analog wiring
- Interfaces with MC/MU series I/O processors
- Requires proper grounding and shielding for analog signals
- Configured using Honeywell system engineering tools
- Used in loop-powered or externally powered transmitter systems
Compatible Components
- Honeywell Experion PKS controllers
- MC-PAIH03 / MU-PAIH03 I/O processors
- Field transmitters (4–20 mA devices)
- Field Termination Assemblies (FTAs)
- Analog signal conditioning modules
- Distributed control system backplane modules
Recommended Alternative Models
| Model | Type | Application |
|---|---|---|
| MC-TAIH03 | Analog input FTA | Standard variant |
| MC-TAIH02 | Alternate HLAI module | Similar configuration |
| MC-TAIH04 | HART-enabled variant | Smart transmitter support |
| Universal I/O modules | Flexible replacement | Modern DCS systems |
| Remote analog I/O modules | Distributed architecture | Network-based systems |
Key Advantages
- High-density 16-channel analog input capability
- Reliable 4–20 mA signal handling
- Strong industrial noise immunity
- Compact FTA-based design
- Supports redundancy configurations
- Integrated diagnostics and protection features
- Stable long-term industrial operation
FAQs
Q1: What is the main function of this module?
It receives and conditions analog signals from field transmitters.
Q2: What signal type does it support?
Primarily 4–20 mA high-level analog inputs.
Q3: Does it perform control functions?
No, it only handles signal acquisition and conditioning.
Q4: How many channels does it support?
Typically 16 analog input channels.
Q5: Where is it used?
In Honeywell Experion PKS distributed control systems.
Conclusion
The Honeywell MC-TAIH13 (51309138-175) High-Level Analog Input Module is a key signal interface component in Honeywell DCS architectures. It provides reliable acquisition, conditioning, and transmission of analog process signals, ensuring accurate monitoring and stable performance in industrial automation environments.
