Product Overview – MC‑PDOY22 (80363975‑150)
Product Introduction

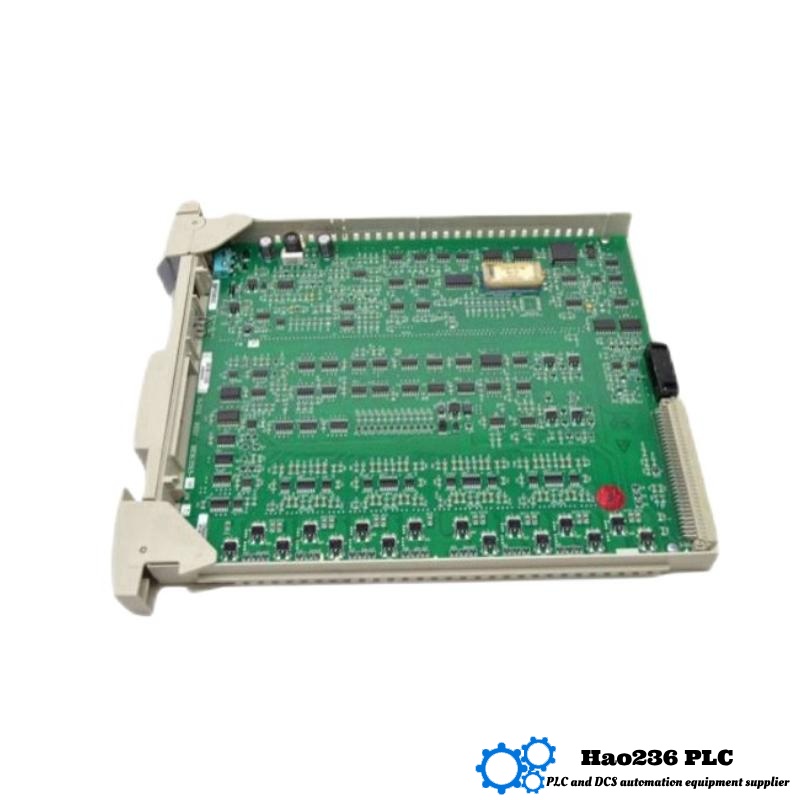

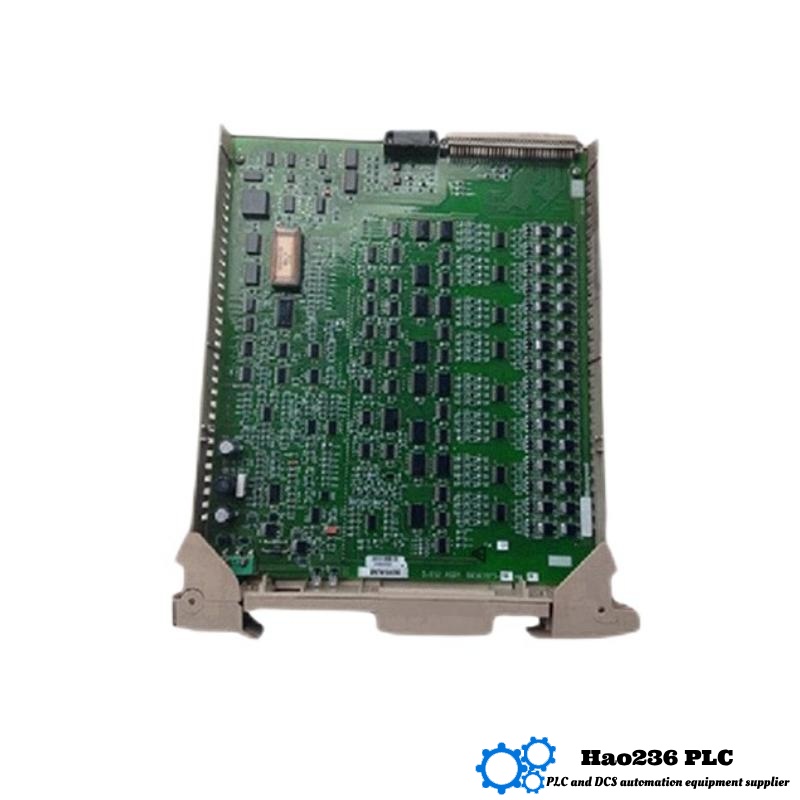

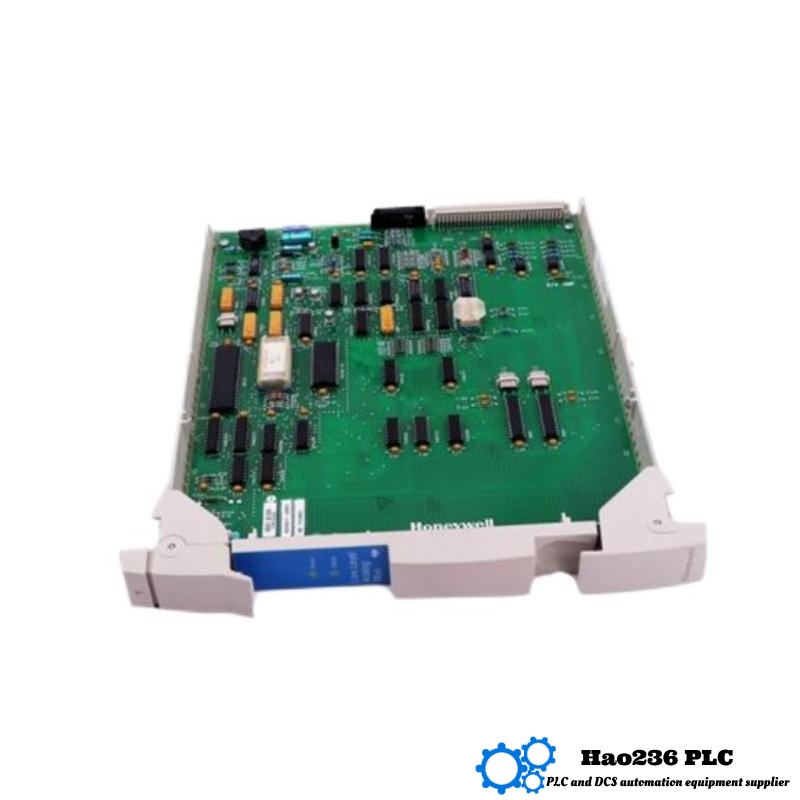

The MC‑PDOY22 module with part number 80363975‑150 is a digital output processor engineered for industrial automation systems. It supports up to 32 digital channels and uses open‑collector, current‑sinking outputs. Its design enables quick actuation of field devices while providing electrical isolation and environmental resilience. Rugged and compact, it’s tailored for seamless integration into distributed control environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MC‑PDOY22 |
| Part Number | 80363975‑150 |
| Output Channels | 32 digital outputs |
| Output Type | Open‑collector, current‑sinking transistors (NPN) |
| Load Voltage Range | 15–30 V DC (standard FTAs), up to 250 VAC/125 V DC with relay FTAs |
| Load Current | Up to 0.5 A per point; 5 A total across 32 outputs |
| Isolation | Galvanic isolation via photocoupler |
| Operating Temperature | –40 °C to +60 °C (or +85 °C depending on spec) |
| Dimensions (L × W × H) | Approximately 318 mm × 28 mm × 279 mm |
| Weight (kg) | Approximately 0.58 kg |
Applications
This module fits industrial operations that require reliable digital output control with isolation and robustness:
-
Process control systems – Activates relays, solenoids, and alarms with precision.
-
Machine automation – Drives actuators and control signals across manufacturing lines.
-
Building management – Coordinates HVAC, lighting, and security device outputs.
-
Utility and safety systems – Supports outputs in power distribution and safety interlocks.
-
DCS and I/O panels – Integrates into modular I/O racks for automation architectures.
Advantages
-
High output density – 32 channels in a compact form saves cabinet space.
-
Electrical isolation – Protects logic from field noise via photocoupler isolation.
-
Flexible voltage compatibility – Handles both low‑voltage solid‑state outputs and high‑voltage relay FTAs.
-
Robust build – Tolerates temperature extremes, industrial contaminants, and provides defense with coating.
-
Efficient power handling – Supports cumulative current demands safely.
Brand & Series
-
Brand: Industrial Automation Division (name omitted)
-
Series: Digital Output Processors – part of modular I/O family for control systems, compatible with FTA modules.
Related or Similar Models in the Same Series
| Model | Function | Channels / Details | Dimensions & Weight |
|---|---|---|---|
| MC‑PDOY22 | Digital Output Processor | 32 channels | As above, ~0.58 kg |
| MC‑PDIX02 | Digital Input Module | 32 inputs | Comparable size, ~0.50 kg |
| MC‑PDIY22 | Digital Input Processor | 32 inputs, conformally coated | Similar footprint, ~0.51 kg |
| MC‑PDIS12 | SOE Digital Input Processor | 32 inputs with timestamps | Slightly larger, ~0.45 kg |
| MC‑PAOX03 | Analog Output Module | 8 analog outputs | Similar panel size, ~0.7 kg |
Other Popular Models from the Same Brand
| Model | Role | Function | Weight (kg) |
|---|---|---|---|
| Power Supply Unit | System power | Supplies 24 V to I/O racks | ~0.5–0.7 kg |
| Logic Manager | System controller | Manages sequencing and logic tasks | ~0.6 kg |
| Analog Input Module | Multi‑signal input | Reads RTD, mA, V inputs | ~0.5–0.6 kg |
| Analog Output Module | Field analog output | Drives analog devices (4–20 mA) | ~0.5 kg |
| Fieldbus Interface | I/O network gateway | Connects to industrial networks | ~0.4 kg |
FAQ – MC‑PDOY22 (80363975‑150)
Q1: How many output channels does the MC‑PDOY22 support?
A1: It supports up to 32 digital output channels.
Q2: What is the output configuration?
A2: Outputs are open‑collector (current‑sinking) transistors that require the high side to connect to +24 V DC.
Q3: What voltage types can it drive?
A3: It can drive loads at 15–30 V DC, and with relay FTAs, up to 250 VAC or 125 V DC.
Q4: Is there electrical isolation?
A4: Yes, galvanic isolation is provided via photocouplers for safety and signal integrity.
Q5: What’s the operating temperature range?
A5: Typically from –40 °C up to +60 °C, depending on the certification or coating.
Q6: How heavy is the module?
A6: Around 0.58 kg, making it manageable in modular racks.
Q7: Can the outputs handle high current?
A7: Yes—each channel supports up to 0.5 A; the module can handle up to 5 A cumulative.
Q8: What application environments suit this unit?
A8: Ideal for industrial, process, building, and utility control systems requiring multiple digital actuations.
Q9: Is the module ruggedized?
A9: Yes, it features a rugged housing and may include conformal coating for harsh environments.
Q10: What if I need digital inputs instead?
A10: Consider the 32‑channel input modules in the same family, such as the input processors.
