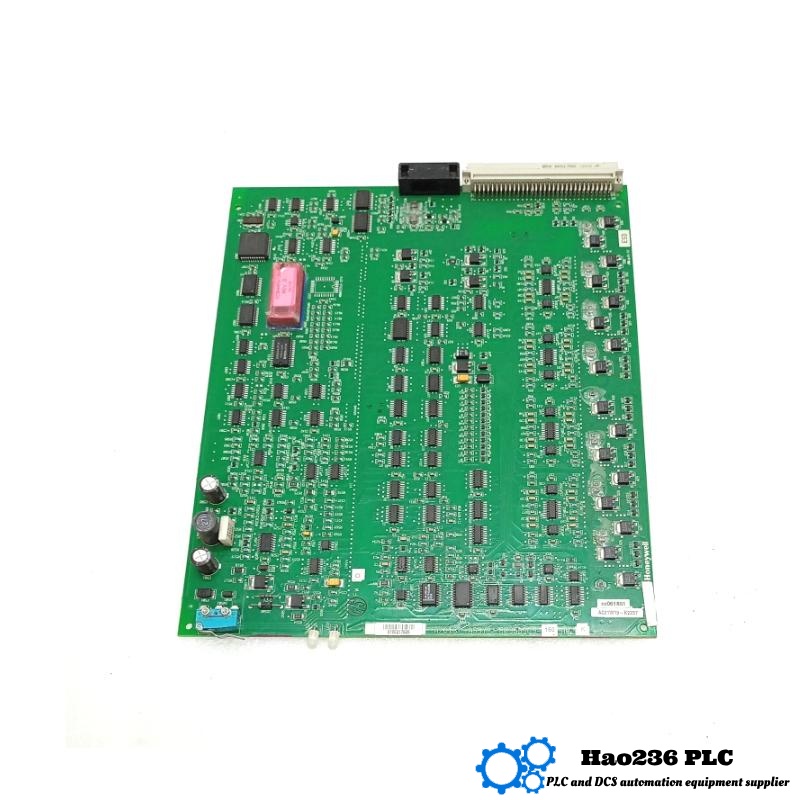

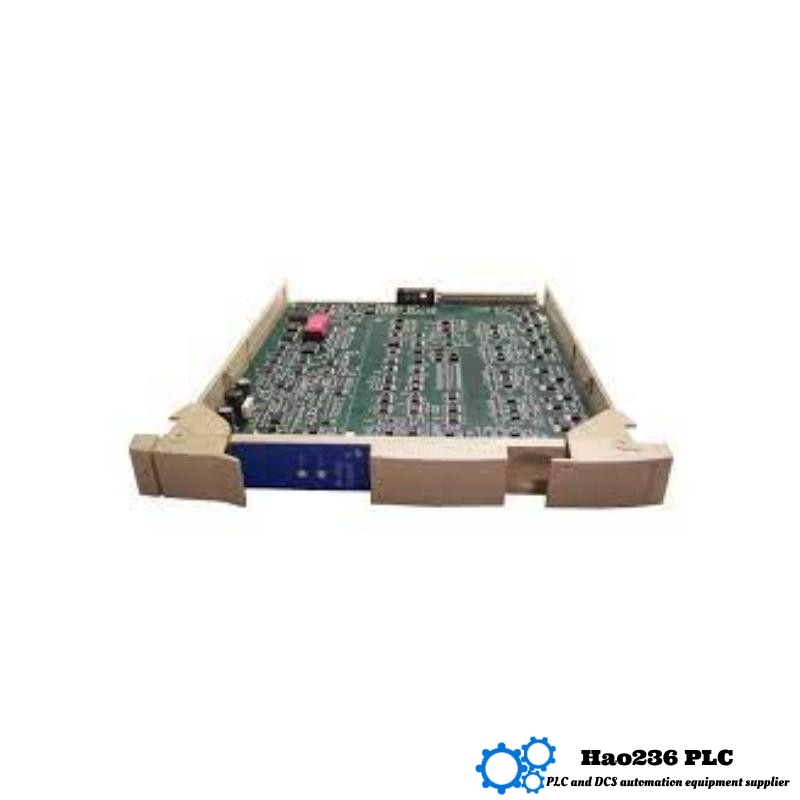

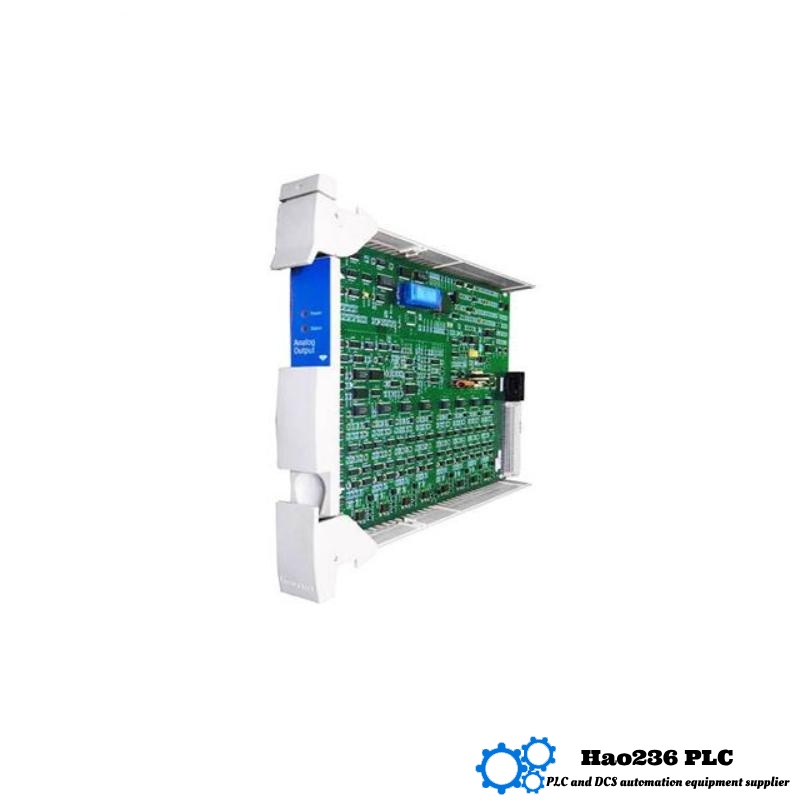

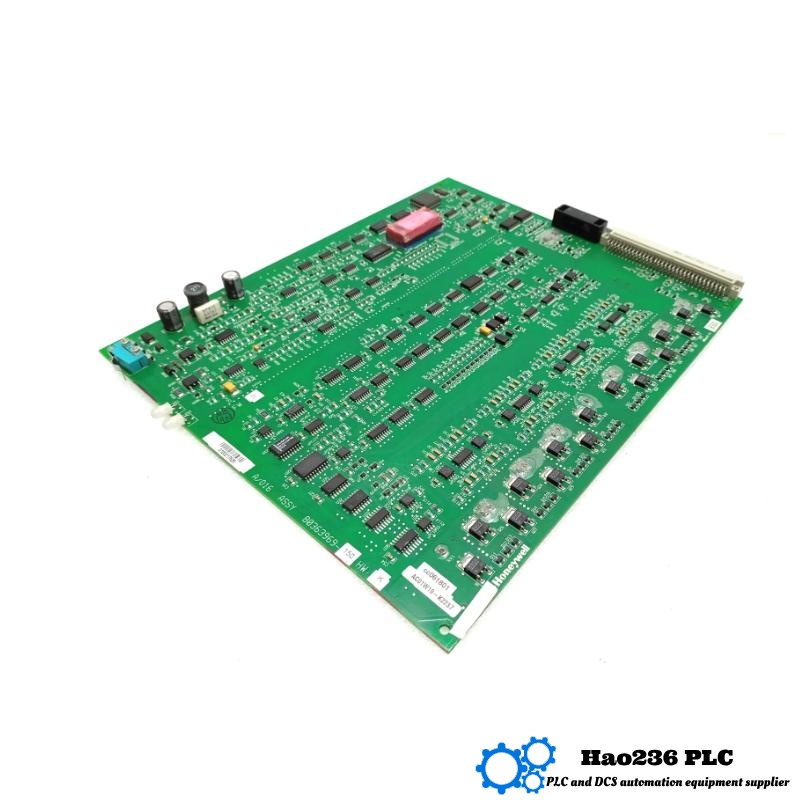

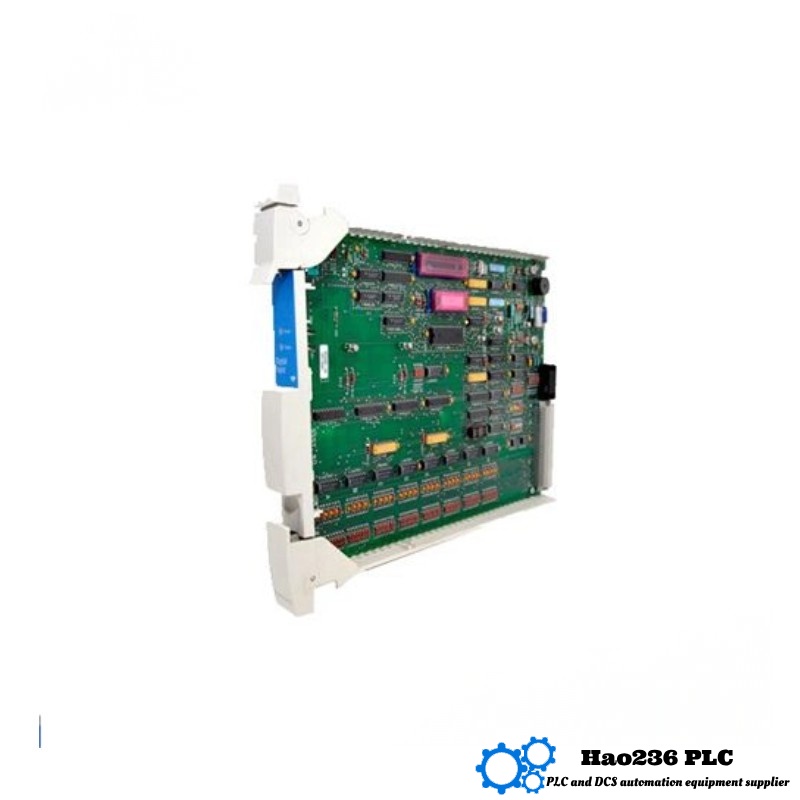

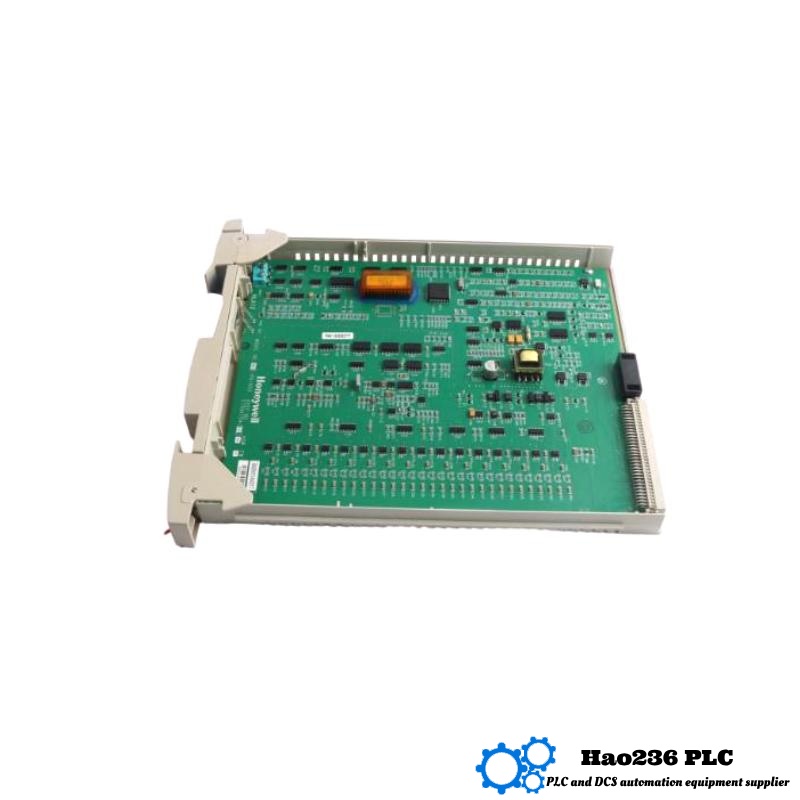

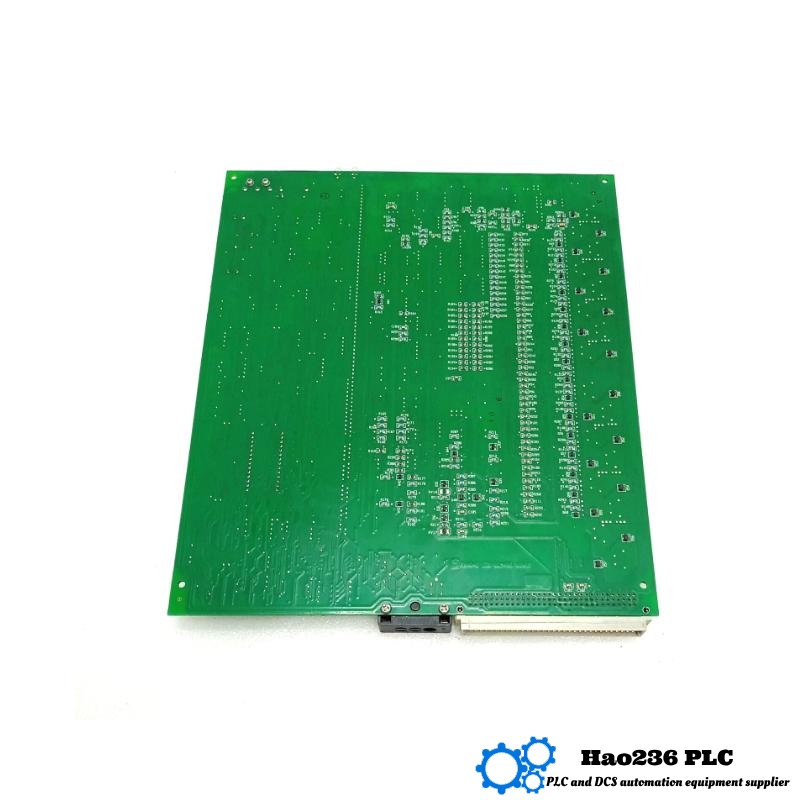

Product Overview – MC‑PAOY22 (80363949‑150)
Product Introduction
The MC‑PAOY22 module, part number 80363949‑150, is a compact analog output device designed for precise process control. It features four independent 4–20 mA output channels in a rugged DIN‑rail‑mountable form. It offers high accuracy (±0.25 % full‑scale), making it ideal for fine-grained control of industrial actuators within distributed automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MC‑PAOY22 |
| Part Number | 80363949‑150 |
| Output Channels | 4 |
| Output Signal Type | 4–20 mA DC |
| Accuracy | ±0.25 % of full scale |
| Mounting | DIN‑rail |
| Series | FSC (or analogous industrial I/O series) |
| Origin | USA |
| Dimensions (L × W × H) | Compact, approximate module size |
| Weight (kg) | Estimated 0.3 kg (typical analog module) |
Applications
-
Process control systems – Drives control valves, actuators with precise analog currents.
-
Industrial automation – Interfaces with PLCs to deliver accurate analog output for industrial devices.
-
Flow, pressure, level regulation – Supplies analog control signals to field instrumentation.
-
Laboratory or pilot-scale setups – Offers clean, repeatable analog outputs in control loops.
Advantages
-
High precision analog output – ±0.25 % accuracy ensures tight control accuracy.
-
Compact and DIN‑rail mountable – Saves space and simplifies installation inside control panels.
-
Robust industrial design – Built for reliability in process environments.
-
Compact four‑channel configuration – Balances output density with simplicity.
Brand & Series
-
Brand: Honeywell (industrial automation division)
-
Series: FSC or analogous analog output I/O module series for distributed control systems.
Related Models in Same Series
| Model | Type | Channels | Output Type | Accuracy | Dimensions & Weight |
|---|---|---|---|---|---|
| MC‑PAOY22 (8‑ch?) | Analog output | 8 (broader) | 4–20 mA | Similar ±0.25 % | Slightly larger, ~0.5 kg |
| MC‑PAOX03 | Analog output | 8 | Voltage/current | Comparable | DIN‑rail, similar size (~0.4 kg) |
| MC‑PAIH03 | Analog input | 16 | High‑level input | High resolution | Compact, ~0.4 kg |
| MC‑PDIX02 | Digital input | 16 | DI signals | – | Module size, ~0.4–0.5 kg |
| MC‑PDOY22 | Digital output | 16 outputs | Digital output | – | Module size, ~0.6 kg |
Other Popular Models from Same Brand
| Model | Type | Channels / Function | Key Parameter | Weight (kg) |
|---|---|---|---|---|
| 51109684‑100 | Power supply | N/A | High reliability | ~0.5 kg |
| MC‑ELMMS1 | Logic manager | – | Enhanced logic control | ~0.6 kg |
| MU‑TAIH13 | High‑level analog in | Multiple inputs | High‑level blocking | ~0.4 kg |
| PBA455971‑002 | Ethernet interface | Network interface | Industrial Ethernet | ~0.3 kg |
| CC‑PAON01 | Analog output | Multiple channels | Analog control | ~0.5 kg |
FAQ – MC‑PAOY22 (80363949‑150)
Q1: What is the primary function of this module?
A1: It drives analog 4–20 mA output signals to field devices like valves and actuators.
Q2: How many output channels are available?
A2: There are four independent analog output channels.
Q3: What is the accuracy of the outputs?
A3: The module delivers ±0.25 % full‑scale accuracy.
Q4: How is it mounted?
A4: It is designed for DIN‑rail mounting within control cabinets.
Q5: Can it handle hot‑swapping?
A5: Hot‑swap capability is not specified; assume module replacement should be done with power off.
Q6: What environments is it suitable for?
A6: Industrial control panels and distributed control systems with standard environmental ratings.
Q7: What is the intended application area?
A7: Process control and automation systems requiring precise analog outputs.
Q8: Does it offer isolation between channels?
A8: Typically analog output modules offer internal isolation, though specific details would be in datasheets.
Q9: Is the module calibrated?
A9: It comes factory calibrated; periodic validation recommended for precision systems.
Q10: What replacement options exist for higher channel count?
A10: For more channels, consider 8‑ or 16‑channel analog output variants like MC‑PAOX03 or 16‑channel IOPs.
