- Honeywell
- MC-PAOX03 51309152-175
- Analog Output Module
- USA
- 127 × 40 × 250 mm
- 0.45 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 5
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

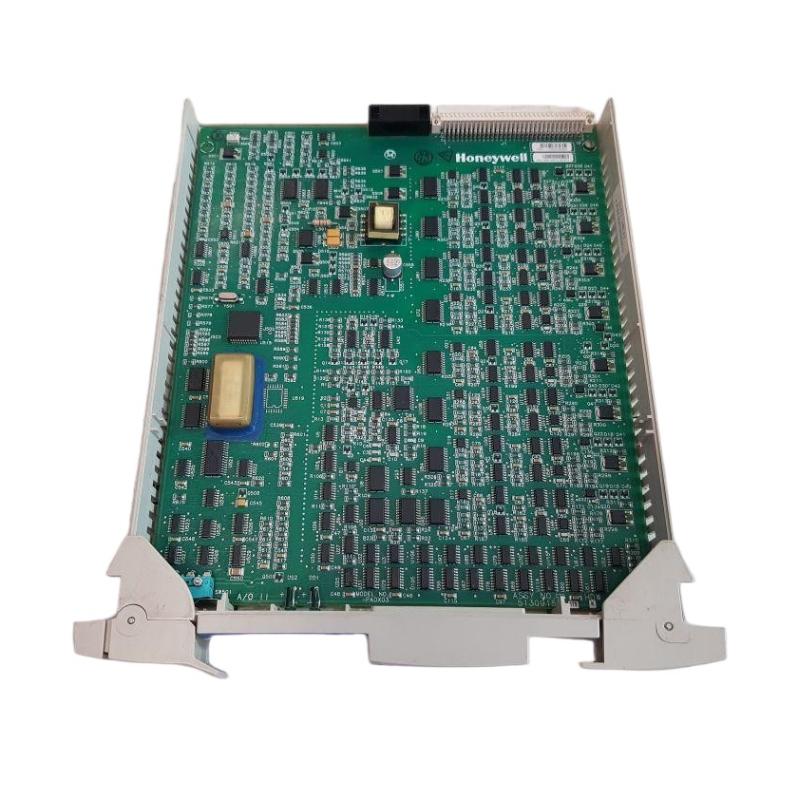

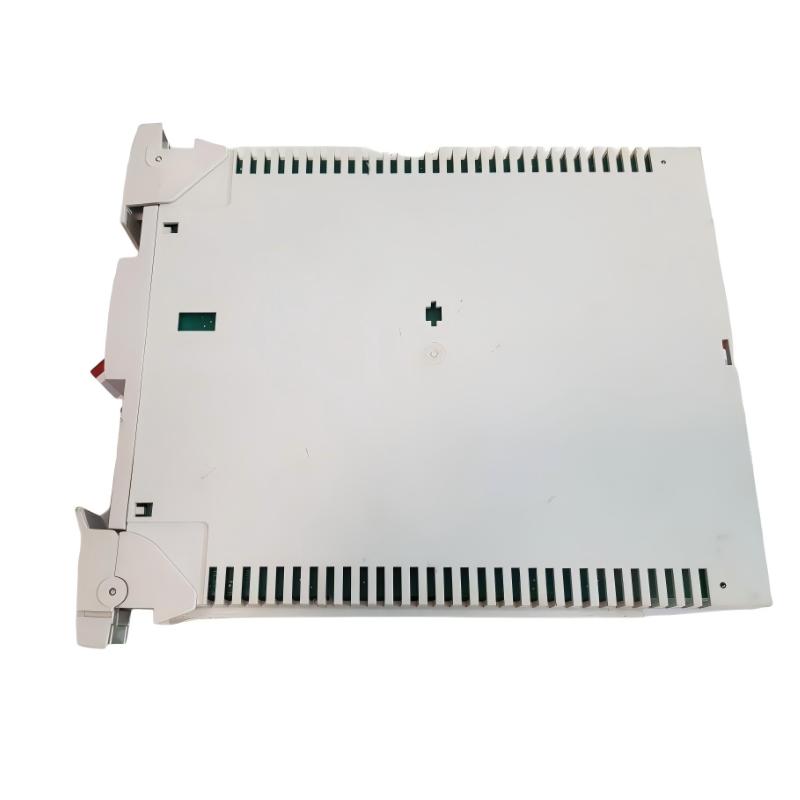

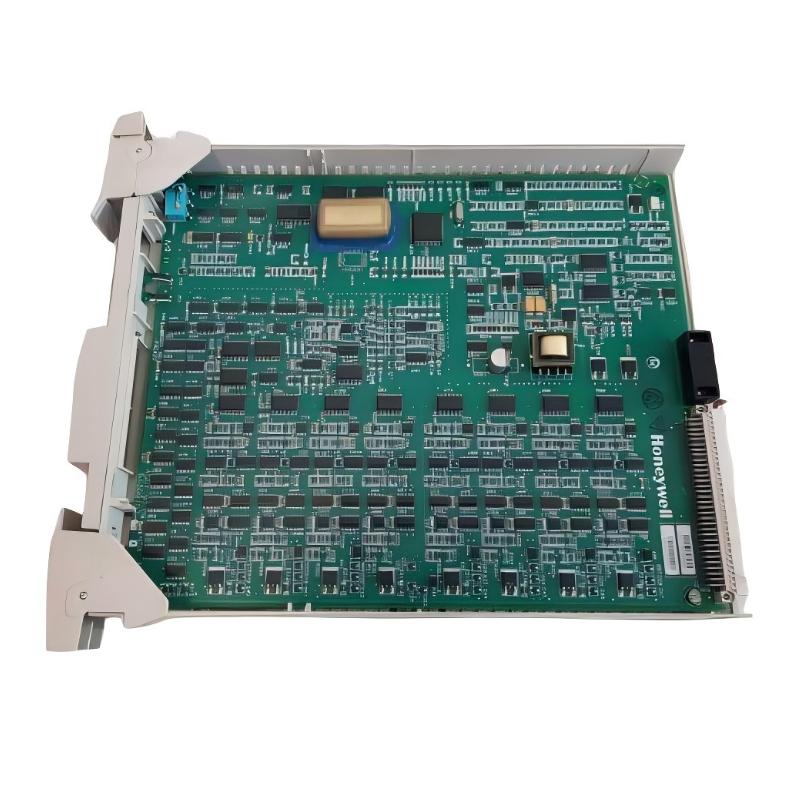

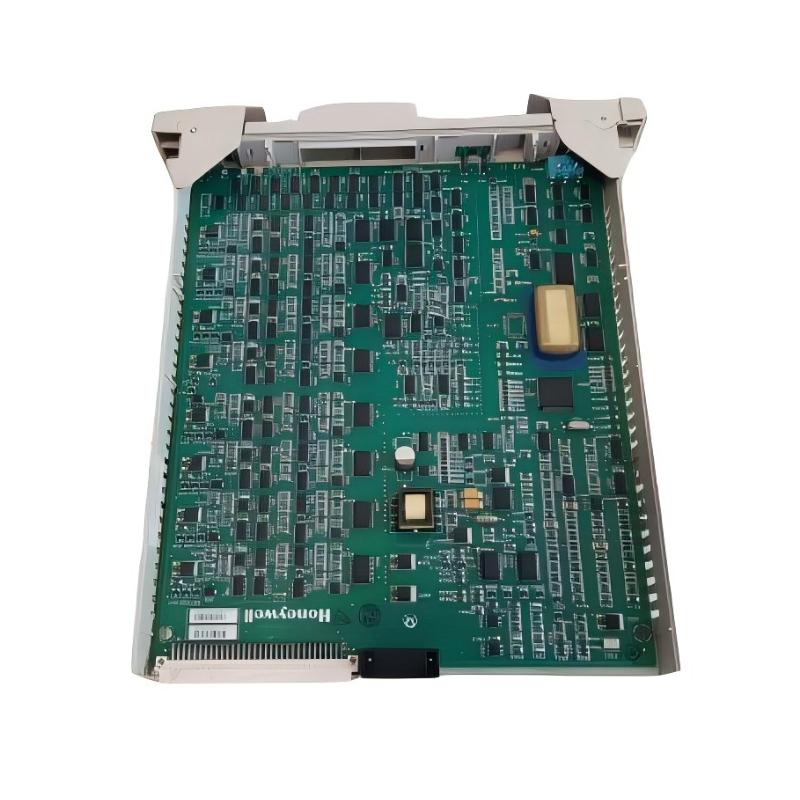

The Honeywell MC-PAOX03 (51309152-175) is an Analog Output Module designed for use in Honeywell distributed control systems (DCS) and industrial automation platforms. The module converts digital control commands from the controller into precise analog output signals for controlling field devices such as control valves, actuators, variable speed drives, and other process equipment.
Its compact design, reliable performance, and high output accuracy make it suitable for critical process control applications across a wide range of industries.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | MC-PAOX03 |
| Part Number | 51309152-175 |
| Product Type | Analog Output Module |
| Dimensions | 127 × 40 × 250 mm |
| Weight | 0.45 kg |
| Output Type | Analog Output |
| Signal Formats | Current and Voltage Outputs |
| Output Channels | Multiple Independent Channels |
| Resolution | High-Resolution Digital-to-Analog Conversion |
| Isolation | Channel and System Isolation |
| Mounting Method | Rack Installation |
| Application | Process Control and Industrial Automation |
| Environmental Rating | Industrial Grade |
Function and Working Principle
The MC-PAOX03 converts digital commands from the control processor into analog output signals required by field instruments and final control elements.
Operating Process
- Receives digital control instructions from the Honeywell controller.
- Processes output commands through internal circuitry.
- Converts digital values into analog current or voltage signals.
- Transmits the output signals to connected field devices.
- Enables precise regulation of process variables such as flow, pressure, temperature, and level.
This functionality allows accurate and stable control of industrial processes.
Key Features
- High-accuracy analog signal output
- Multiple independent output channels
- High-resolution digital-to-analog conversion
- Industrial-grade reliability
- Stable long-term operation
- Fast signal response
- Compact module design
- Integrated isolation protection
- Seamless integration with Honeywell DCS systems
Industrial Applications
- Oil and gas production facilities
- Petrochemical plants
- Chemical processing industries
- Power generation stations
- Water and wastewater treatment systems
- Pharmaceutical manufacturing
- Pulp and paper mills
- Industrial automation systems
- Continuous process control applications
Installation
The module is installed within a Honeywell control cabinet and connected to field devices through appropriate termination assemblies.
Installation Steps
- Insert the module into the designated control system slot.
- Connect output wiring to field instruments.
- Verify grounding and shielding requirements.
- Configure output parameters in the control system.
- Perform functional testing and calibration.
Compatible Components
| Component | Description |
|---|---|
| Honeywell Controllers | Generate control commands for output processing |
| Control Valves | Receive analog control signals |
| Variable Frequency Drives (VFDs) | Speed control applications |
| Termination Assemblies | Field wiring interfaces |
| I/O Cabinets | Module installation and protection |
| Engineering Workstations | Configuration and diagnostics |
Alternative Models
| Model | Description |
|---|---|
| MC-TAOY25 | Analog Output Module |
| MC-PAIH03 | Analog Input Module |
| MC-PAIL02 | Low-Level Analog Input Processor |
| MC-TAIH04 | High-Level Analog Input Module |
Advantages
- Accurate analog signal generation
- Reliable process control performance
- Excellent signal stability
- Compact and lightweight construction
- Easy integration with Honeywell systems
- High immunity to industrial electrical noise
- Reduced maintenance requirements
- Suitable for critical control applications
Frequently Asked Questions
What is the primary function of the MC-PAOX03?
It converts digital control commands into analog output signals for controlling field devices and process equipment.
What devices can be connected to the module?
Control valves, actuators, variable frequency drives, recorders, and other analog-controlled field equipment.
Is the module suitable for continuous industrial operation?
Yes. It is designed for continuous operation in demanding industrial environments.
Where is the MC-PAOX03 commonly used?
It is widely used in oil and gas, petrochemical, power generation, water treatment, pharmaceutical, and manufacturing industries.
Conclusion
The Honeywell MC-PAOX03 (51309152-175) Analog Output Module is a high-performance industrial output module designed to provide accurate and reliable analog control signals for industrial automation systems. With its compact dimensions (127 × 40 × 250 mm), lightweight design (0.45 kg), robust construction, and high-precision output capabilities, it serves as a critical component in modern process control and automation applications.
