Product Overview

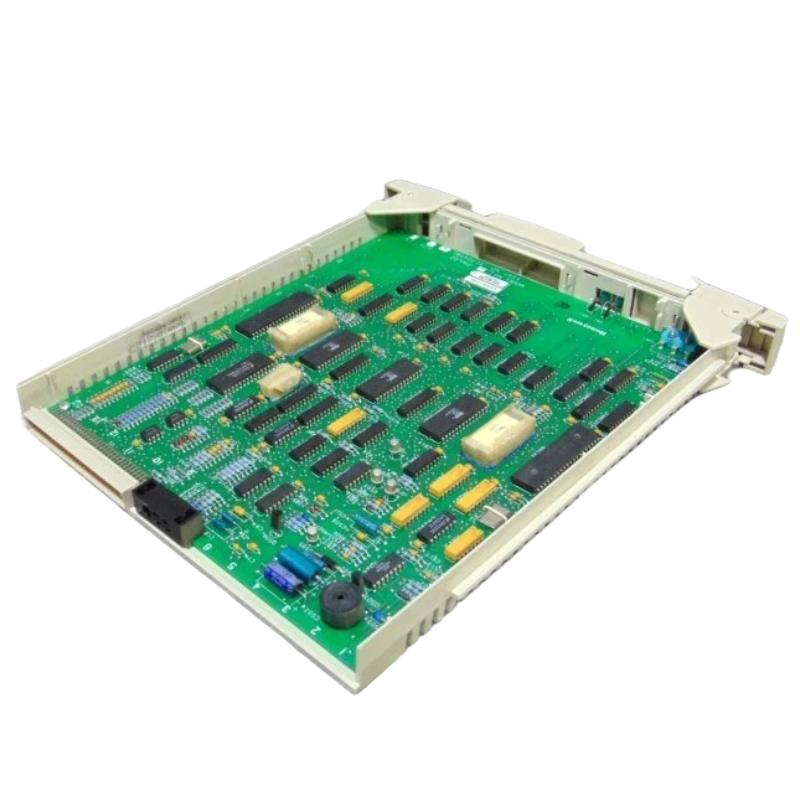

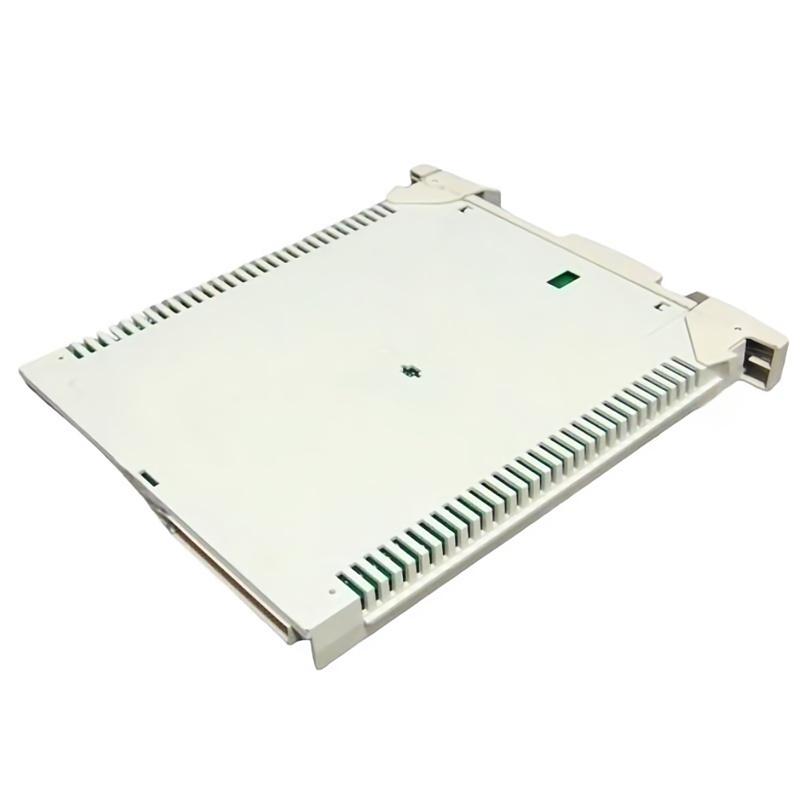

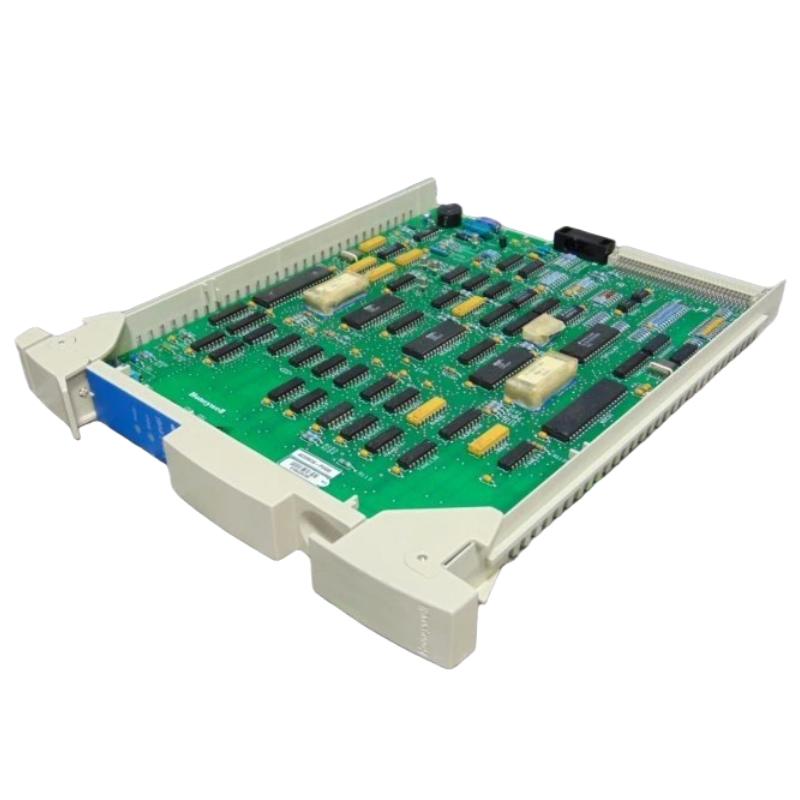

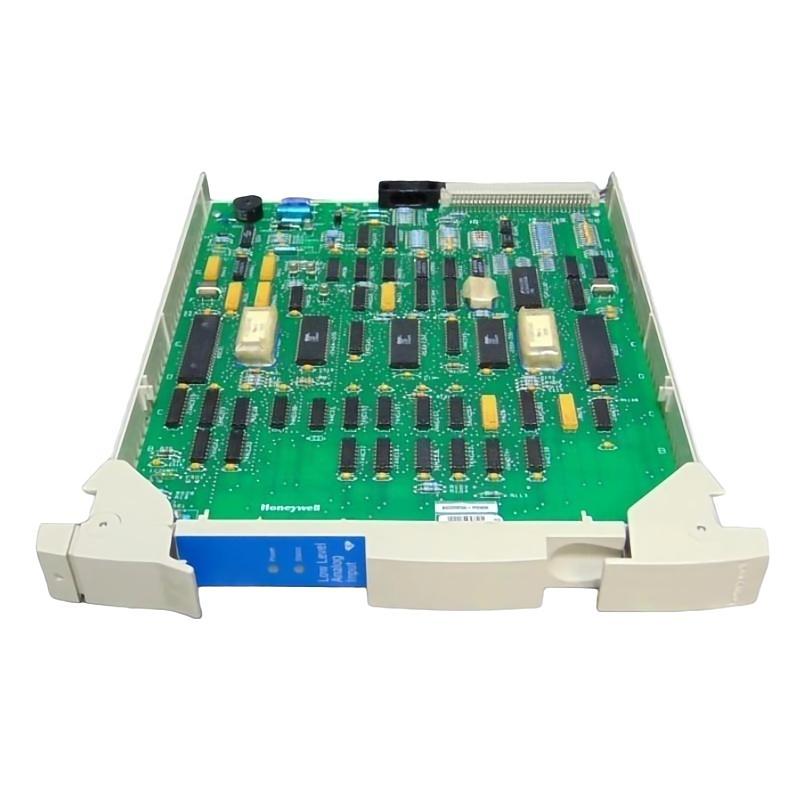

The Honeywell MC-PAIL02 (51304481-150) is a Low-Level Analog Input Processor (LLAI) designed for high-precision acquisition of low-level analog signals in industrial automation and process control systems.
As part of Honeywell’s distributed control system (DCS) architecture, the module receives signals from field instruments and converts them into digital data for monitoring, control, and analysis. Its robust design and high signal accuracy make it suitable for critical industrial applications where reliable measurement is essential.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | MC-PAIL02 |
| Part Number | 51304481-150 |
| Product Type | Low-Level Analog Input Processor (LLAI) |
| Dimensions | 127 × 203 × 152 mm |
| Weight | 1.1 kg |
| Input Type | Low-Level Analog Inputs |
| Input Channels | 8 Analog Inputs |
| Signal Configuration | Differential Input Processing |
| Resolution | High-Resolution Signal Conversion |
| Mounting Method | Rack Installation |
| Environmental Protection | Conformal Coating |
| Application | Industrial Process Monitoring and Control |
Function and Working Principle
The MC-PAIL02 is designed to process low-level analog signals from field devices and transmit accurate process information to the control system.
Operating Process
- Receives low-level analog signals from transmitters and sensors.
- Amplifies and conditions incoming signals.
- Filters electrical noise and interference.
- Converts analog signals into digital process data.
- Transfers processed information to the Honeywell control platform for monitoring and control.
This architecture ensures stable signal acquisition and accurate process measurements in demanding industrial environments.
Key Features
- High-precision low-level analog signal acquisition
- Supports multiple analog input channels
- Differential input technology for improved noise immunity
- Conformal-coated circuitry for enhanced environmental protection
- High reliability for continuous operation
- Excellent signal stability and accuracy
- Industrial-grade construction
- Seamless integration with Honeywell control systems
Industrial Applications
- Oil and gas production facilities
- Petrochemical plants
- Chemical processing industries
- Power generation stations
- Water and wastewater treatment facilities
- Pulp and paper mills
- Pharmaceutical manufacturing
- Industrial process automation systems
- Continuous process monitoring applications
Installation
The module is installed within a Honeywell control cabinet and connected to field instrumentation through approved termination assemblies.
Installation Steps
- Install the module in the designated rack slot.
- Connect field analog input wiring.
- Verify grounding and shielding requirements.
- Configure channel parameters within the control system.
- Perform calibration and functional testing.
Compatible Components
| Component | Description |
|---|---|
| Honeywell Controllers | Process control and data management |
| Analog Transmitters | Pressure, temperature, flow, and level transmitters |
| Termination Assemblies | Field wiring interface modules |
| I/O Cabinets | Module installation and protection |
| Engineering Workstations | Configuration and diagnostics |
Alternative Models
| Model | Description |
|---|---|
| MC-TAIH04 | High-Level Analog Input Module |
| MC-TAIH02 | Analog Input Module |
| MC-TAOY25 | Analog Output Module |
| MC-TAID52 | Digital Input Module |
Advantages
- Accurate low-level signal processing
- High immunity to electrical noise
- Reliable long-term operation
- Robust industrial design
- Enhanced environmental protection through conformal coating
- Easy integration into Honeywell DCS platforms
- Reduced maintenance requirements
- Supports critical process measurements
Frequently Asked Questions
What is the primary function of the MC-PAIL02?
It acquires and processes low-level analog signals from field devices for use by the control system.
How many input channels does the module support?
The module supports multiple low-level analog input channels, including differential signal processing capabilities.
Is the module suitable for harsh industrial environments?
Yes. Its conformal-coated design helps protect electronic components from humidity, dust, and corrosive atmospheres.
Where is the MC-PAIL02 commonly used?
It is widely used in oil and gas, petrochemical, power generation, water treatment, and other industrial automation applications.
Conclusion
The Honeywell MC-PAIL02 (51304481-150) Low-Level Analog Input Processor is a high-performance industrial I/O module engineered for accurate acquisition and processing of low-level analog signals. With its compact dimensions (127 × 203 × 152 mm), weight of 1.1 kg, robust industrial design, and reliable signal conditioning capabilities, it provides dependable performance for critical process monitoring and control applications.
