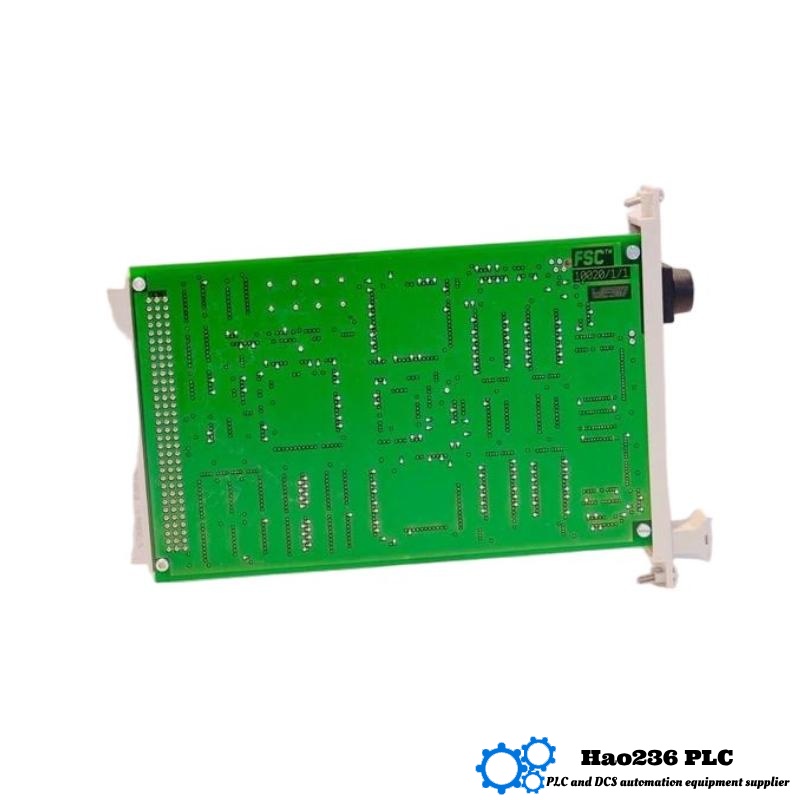

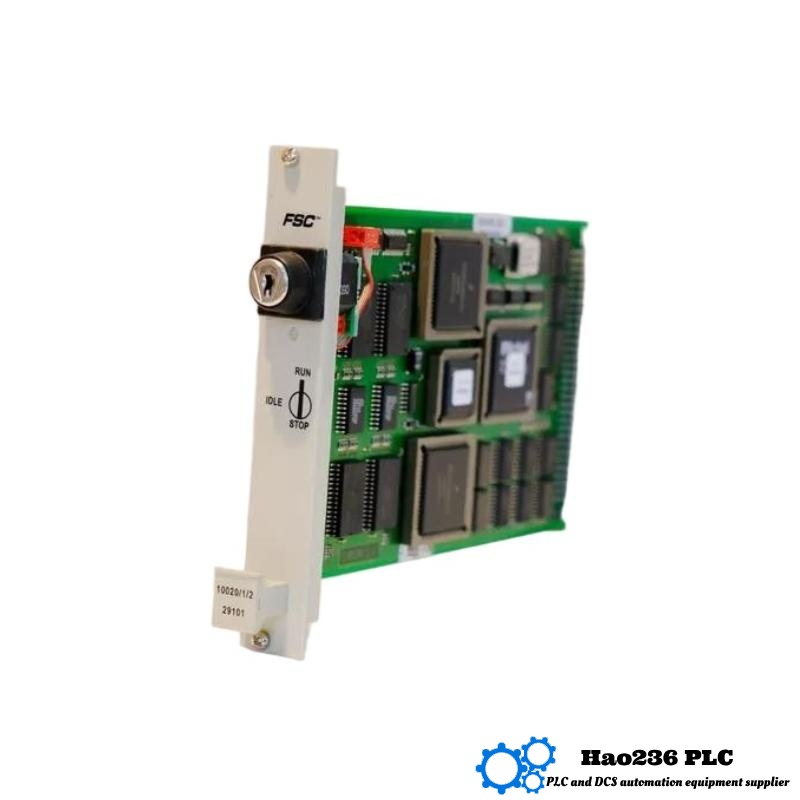

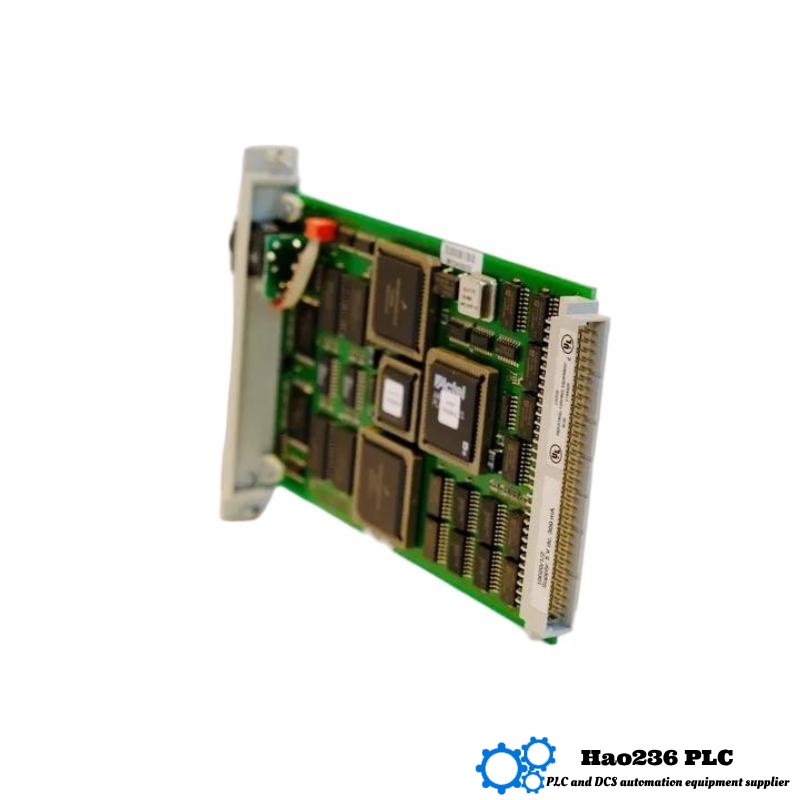

Product Name: FSC 10020/1/2
Series: FSC (Fail Safe Controller)
Brand: Honeywell
1. Product Overview
The FSC 10020/1/2 is a high-performance CPU module from the Honeywell FSC (Fail Safe Controller) series. It is designed for use in mission-critical process control systems, where operational continuity, fault tolerance, and real-time diagnostics are essential.
Built around a quad-processor architecture, this module enables redundant execution of control and safety logic, providing the core computational capability for Safety Instrumented Systems (SIS) in industries such as oil & gas, chemicals, refining, and power generation.
It integrates with various I/O and communication modules within the FSC platform, and features robust performance, high-speed data handling, and fault isolation functionality to maintain safe plant operations.
2. Technical Specifications
| Parameter | Value / Description |
|---|---|
| Model | FSC 10020/1/2 |
| Module Type | CPU (Central Processing Unit) |
| Processor Architecture | Quad-core embedded processors |
| Clock Speed | Approx. 600 MHz per core |
| Internal Memory (RAM) | 128 MB |
| Power Supply Voltage | 5 VDC (via system backplane) |
| Current Consumption | ~35 mA (typical) |
| Communication Interface | Internal system bus (proprietary) |
| Mounting | Rack-mounted / card slot installation |
| Status Indicators | Front-panel LEDs for diagnostics and activity |
| Operating Temperature | –20°C to +70°C |
| Storage Temperature | –40°C to +85°C |
| Humidity Tolerance | 0–95% RH, non-condensing |
| Dimensions (L × W × H) | 172 mm × 102 mm × 41 mm |
| Weight | 0.14 kg |
| Certifications | Designed to meet industrial and safety standards |
| Diagnostics | Built-in self-test, watchdog, error checking |
3. Product Applications
The FSC 10020/1/2 is used across a wide range of critical industrial environments where continuous, fail-safe control is required. Applications include:
-
Safety Instrumented Systems (SIS) for emergency shutdown
-
Distributed Control Systems (DCS) with redundant logic processing
-
High-integrity pressure protection systems (HIPPS)
-
Emergency depressurization and flame control systems
-
Critical loop logic handling in petrochemical and power industries
-
Industrial plants requiring real-time diagnostics and failover
4. Product Advantages
-
Quad-Processor Redundancy
Parallel task execution ensures logic, diagnostics, and communication are isolated and reliable. -
Fail-Safe Performance
Built to detect and respond to internal and external faults with minimum impact on operations. -
High-Speed Communication
Supports high-speed internal bus systems for fast data handling and control signal propagation. -
Compact and Lightweight
Easily fits into standard racks without excessive power or cooling needs. -
Maintenance-Friendly
Front-panel indicators help technicians detect faults quickly. -
Compatible with FSC Ecosystem
Seamlessly integrates into Honeywell’s FSC infrastructure, supporting I/O and network modules. -
Low Power Consumption
Efficient processing architecture keeps power draw minimal. -
Industrial-Grade Reliability
Operates under extreme conditions while maintaining performance.
5. Related / Same-Series Models
| Model | Description | Key Feature |
|---|---|---|
| FSC 10020/1/2 | Quad-core CPU module | Standard high-performance model |
| FSC 10020/1/1 | Dual-core CPU module | Simplified version |
| FSC 10030/1/2 | Enhanced FSC CPU module | Higher speed, updated hardware |
| FSC 10010/1/1 | Entry-level FSC CPU | Basic logic controller |
| FSC 10100/1/2 | Advanced fault-tolerant controller | Integrated diagnostics and memory |
6. Popular Honeywell Models (Same Brand)
| Model | Description | Key Function |
|---|---|---|
| FS-BSDOL-04UNI | Output range-setting module | Sets output current thresholds |
| SDOL-0424 | Output monitoring module | Digital output supervision |
| FS-TSDO-04UNI | Safety digital output module | 4-channel fail-safe outputs |
| FS24X | Multi-spectrum flame detector | UV/IR/Visible flame detection |
| FS10-R | Flame detector with rapid response | Compact, point IR detector |
7. Frequently Asked Questions (FAQ)
Q1: What does the FSC 10020/1/2 module do in a system?
A1: It acts as the main processor in a fail-safe control system, executing safety logic, monitoring system health, and coordinating communication.
Q2: Why are there four processors in this module?
A2: The quad-core architecture allows multiple tasks—logic, diagnostics, data handling—to run simultaneously, improving performance and reliability.
Q3: Can this module be replaced while the system is running?
A3: No, the module should only be replaced during a scheduled maintenance shutdown to ensure system safety and integrity.
Q4: What happens if one processor fails?
A4: The module’s diagnostics will detect the failure and either isolate the fault or shift tasks to the remaining processors, depending on configuration.
Q5: Is it compatible with older FSC modules?
A5: Compatibility depends on the backplane, firmware version, and communication protocols. Always consult system documentation.
Q6: Does the FSC 10020/1/2 need additional cooling?
A6: Under normal conditions, no. Its power consumption is low, and it operates within typical industrial temperatures.
Q7: How can I tell if the module is working properly?
A7: Front-panel LEDs indicate status such as power, communication, fault, or activity.
Q8: Can it log historical fault data?
A8: While the module itself may not store logs, it supports integration with systems that do. Fault data can be transmitted to supervisory systems.
Q9: What are the common failure signs of this module?
A9: Indicators include communication loss, processor watchdog timeout, abnormal LED signals, or system faults reported from supervisory layers.
Q10: How do I install the FSC 10020/1/2 module?
A10: Slide it into the correct slot in the FSC rack, ensure secure connection to the backplane, and verify via LED diagnostics and software recognition.
