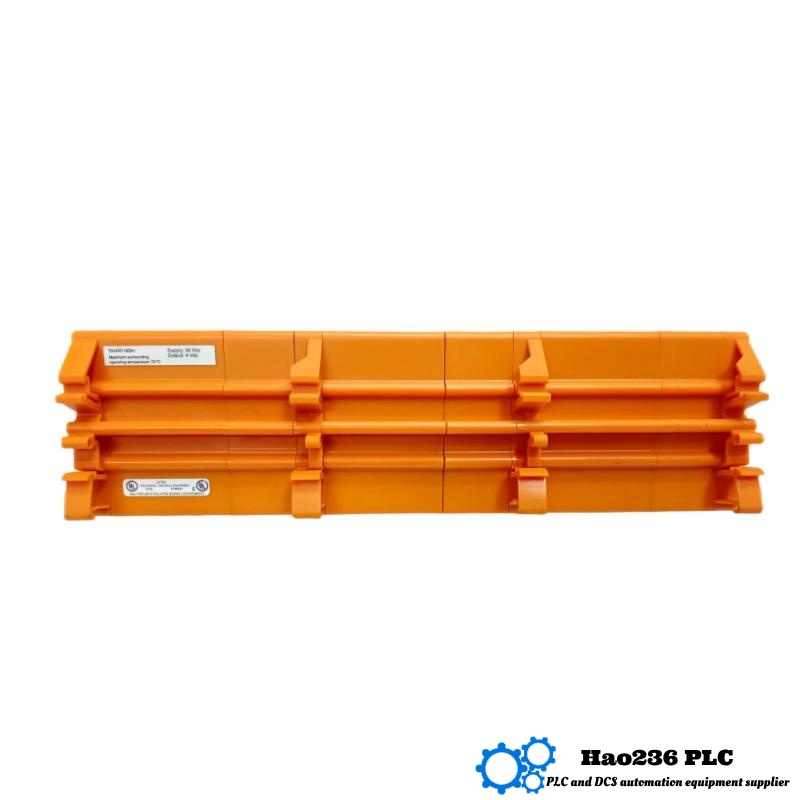

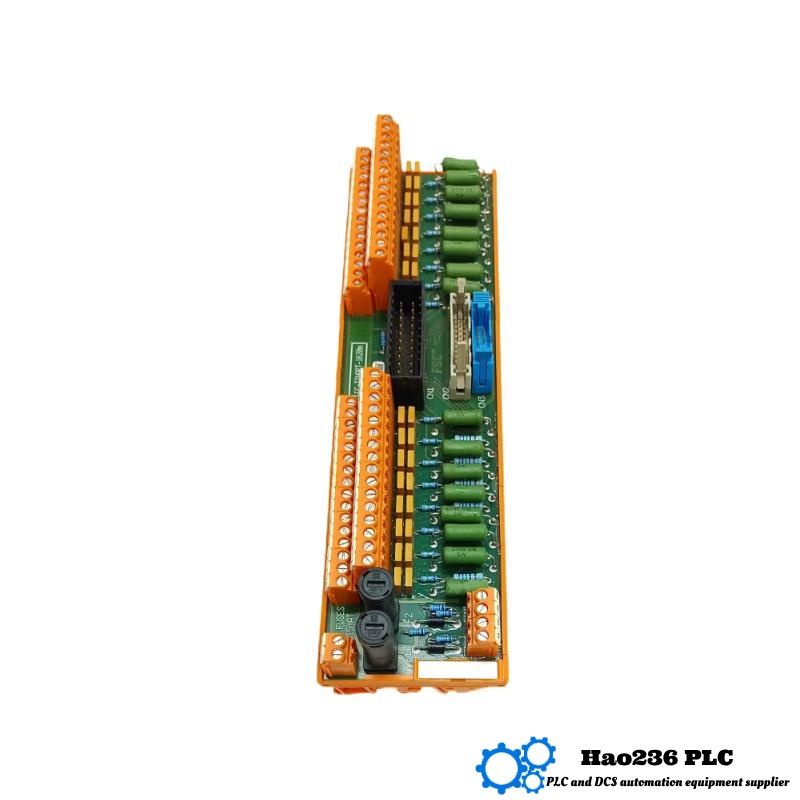

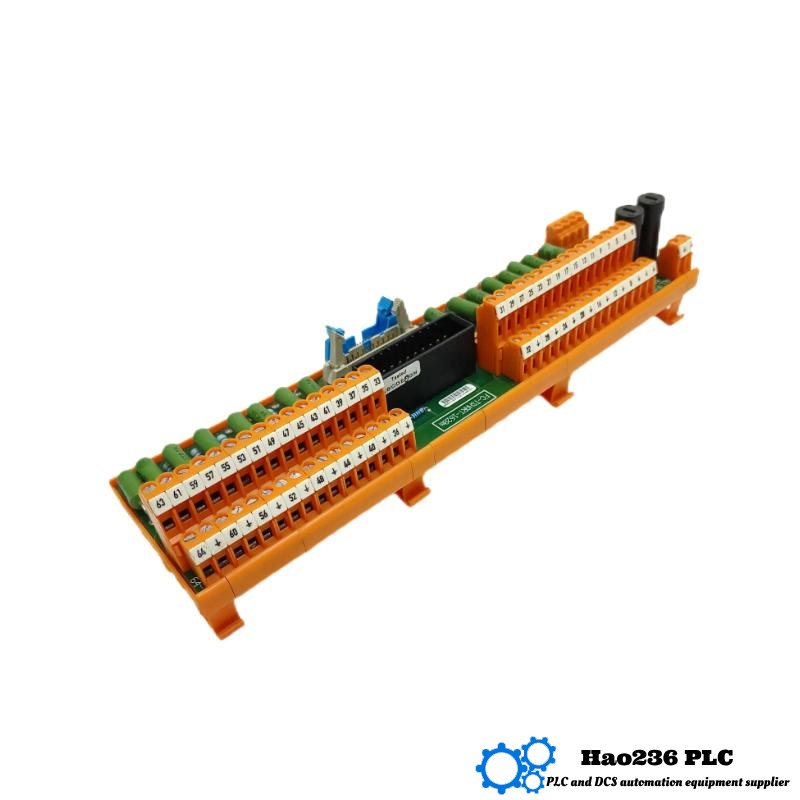

Honeywell FS-TSHART-1620m Product Overview
Product Introduction – Honeywell FS-TSHART-1620m
The Honeywell FS-TSHART-1620m is a Hart-enabled input/output (I/O) module designed for Safety Instrumented Systems (SIS), providing 16 input and output channels for monitoring and controlling field devices in hazardous environments. This module is part of the Honeywell Safety and Control Systems suite, built to seamlessly integrate with HART (Highway Addressable Remote Transducer) devices, offering users unparalleled flexibility in monitoring and controlling field devices used in critical safety applications.
The FS-TSHART-1620m module is ideal for use in industries such as oil & gas, chemical processing, power generation, and manufacturing where reliable, accurate, and real-time monitoring is required. It is specifically designed to interface with field devices (such as transmitters, valves, and actuators) that support the HART communication protocol, allowing for remote configuration, calibration, and diagnostics, ultimately improving system performance and safety.
Applications
-
Safety Instrumented Systems (SIS) in industrial applications for critical control and monitoring.
-
Oil & Gas Platforms for real-time monitoring of safety-critical devices.
-
Chemical and Petrochemical Plants to ensure equipment is operating within safety parameters.
-
Power Generation Facilities where equipment integrity and safety are paramount.
-
Manufacturing and Process Control environments requiring safe and reliable operation of field devices.
-
Emergency Shutdown Systems (ESD) in highly regulated industries.
Product Advantages
-
HART Compatibility: The FS-TSHART-1620m is fully compatible with HART-enabled field devices, providing communication for monitoring, calibration, and diagnostics.
-
Real-time Data Access: With the ability to receive real-time data from connected field devices, it offers immediate insight into system health and performance.
-
Enhanced Diagnostics: The module provides advanced diagnostics for connected field devices, allowing for early detection of issues and reducing unplanned downtime.
-
16 I/O Channels: Offers 16 input and output channels, enabling the monitoring and control of multiple field devices in a single module.
-
Safety Critical: Meets the rigorous demands of safety instrumented systems and SIL-rated applications.
-
Flexible Integration: Easily integrates into existing Honeywell and third-party systems, enhancing the functionality of safety and control systems.
-
Compact Design: Despite providing 16 I/O channels, the module has a compact design that saves space and simplifies installation.
-
Reliability: Built to operate in harsh industrial environments, the module is durable and reliable under extreme conditions, ensuring continuous performance.
Brand and Series
-
Brand: Honeywell
-
Series: Safety and Control Systems Series
-
Product Type: HART I/O Module for Safety Instrumented Systems (SIS)
Technical Specifications – FS-TSHART-1620m
| Parameter | Specification |
|---|---|
| Model | FS-TSHART-1620m |
| Number of Inputs/Outputs | 16 Inputs / 16 Outputs |
| Input Type | Analog / Digital Inputs (HART) |
| Output Type | Analog / Digital Outputs (HART) |
| Voltage Range | 24 V DC (Nominal) |
| Input Rating | 30 V DC / 2 A (Max per Channel) |
| Communication Protocol | HART (Highway Addressable Remote Transducer) |
| Mounting | DIN Rail or Panel Mount |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (W × H × D) | 100 mm × 120 mm × 45 mm |
| Weight | 0.38 kg |
| Certifications | CE, UL, SIL-Ready |
| Protection Features | Reverse polarity protection, Fuse protection |
| Field Wiring | Screw terminal or spring clamp type |
| Response Time | <10 ms |
Recommended Related Models (Same Series/Function)
| Model | Channels | Voltage | Application | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| FS-TSHART-0824 | 8 | 24 V DC | Compact HART I/O module for small-scale applications | 90 × 100 × 30 | 0.25 |
| FS-TSHART-1648 | 16 | 48 V DC | 16-channel HART I/O module for complex systems | 100 × 120 × 45 | 0.39 |
| FS-TSDI-1620m | 16 | 24 V DC | Digital input module with HART communication | 100 × 120 × 50 | 0.32 |
| FS-TDO-1620m | 16 | 24 V DC | Digital output module for field devices with HART | 100 × 120 × 45 | 0.35 |
| FS-TPSU-1624 | 24 | 24 V DC | Power supply module for field devices | 95 × 105 × 40 | 0.28 |
Recommended Popular Models (Same Brand)
| Model | Function | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| FS-TRO-1024 | Relay Output Module | 24-channel relay output for control of devices | 100 × 120 × 45 | 0.38 |
| FS-TPSU-2430 | Power Supply Unit | Provides stable 24V DC output at 3A for systems | 90 × 100 × 50 | 0.45 |
| FS-TDO-1624 | Digital Output Module | 16-channel output module for monitoring | 100 × 100 × 40 | 0.33 |
| FS-TDO-1024 | 24V Output Module | Digital output module for safety control | 100 × 120 × 45 | 0.38 |
| FS-TSDI-1648 | Digital Input Module | 16-channel input module for safety systems | 100 × 100 × 40 | 0.32 |
Frequently Asked Questions (FAQ)
Q1: What type of communication protocol does the FS-TSHART-1620m use?
A1: The FS-TSHART-1620m uses the HART communication protocol, which is widely used for industrial field devices.
Q2: How many channels are supported by the FS-TSHART-1620m?
A2: The FS-TSHART-1620m supports 16 input and 16 output channels for connected devices.
Q3: What is the voltage range of the FS-TSHART-1620m?
A3: The module operates at a nominal voltage of 24 V DC.
Q4: Can the FS-TSHART-1620m be used in hazardous environments?
A4: Yes, the FS-TSHART-1620m is designed for use in hazardous industrial environments where safety is a critical concern.
Q5: What kind of devices can be connected to the FS-TSHART-1620m?
A5: The module can interface with HART-enabled field devices, such as transmitters, actuators, and valves, to monitor and control safety-critical systems.
Q6: How does the FS-TSHART-1620m integrate with other systems?
A6: The FS-TSHART-1620m integrates seamlessly into Honeywell’s safety and control systems, as well as other third-party systems supporting the HART protocol.
Q7: What is the maximum current that each channel can handle?
A7: Each input and output channel can handle a maximum of 2 A of current.
Q8: What safety features are incorporated into the FS-TSHART-1620m?
A8: The module includes reverse polarity protection and fuse protection for each channel to ensure safe operation.
Q9: How can I monitor and calibrate connected field devices?
A9: The HART communication allows you to remotely monitor, configure, and calibrate connected field devices, enabling efficient maintenance.
Q10: What is the response time of the FS-TSHART-1620m?
A10: The module offers a fast response time of less than 10 milliseconds.
