Honeywell FS-TSFIRE-1624 Product Overview

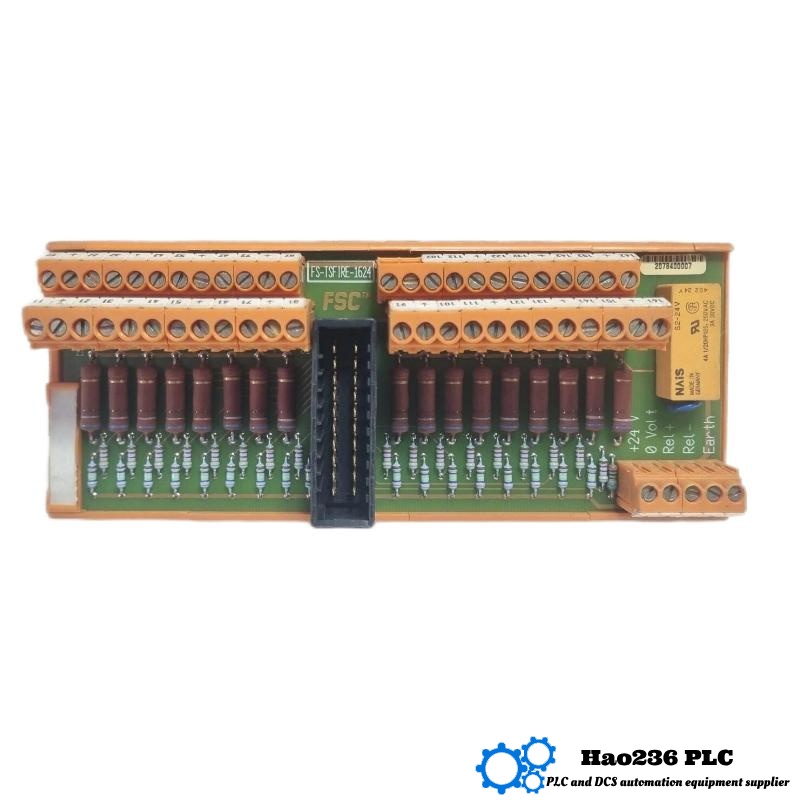

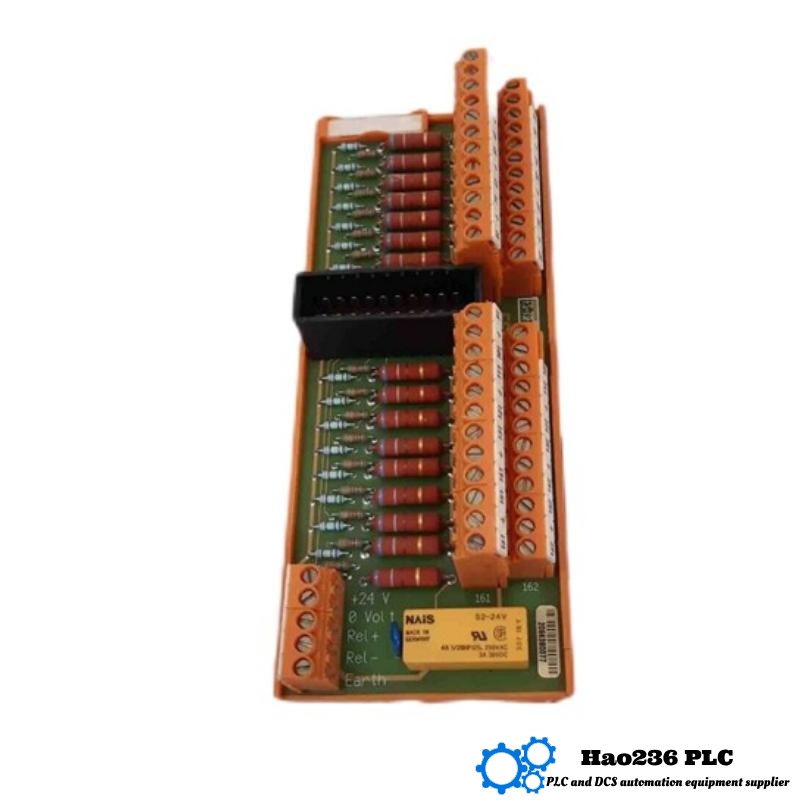

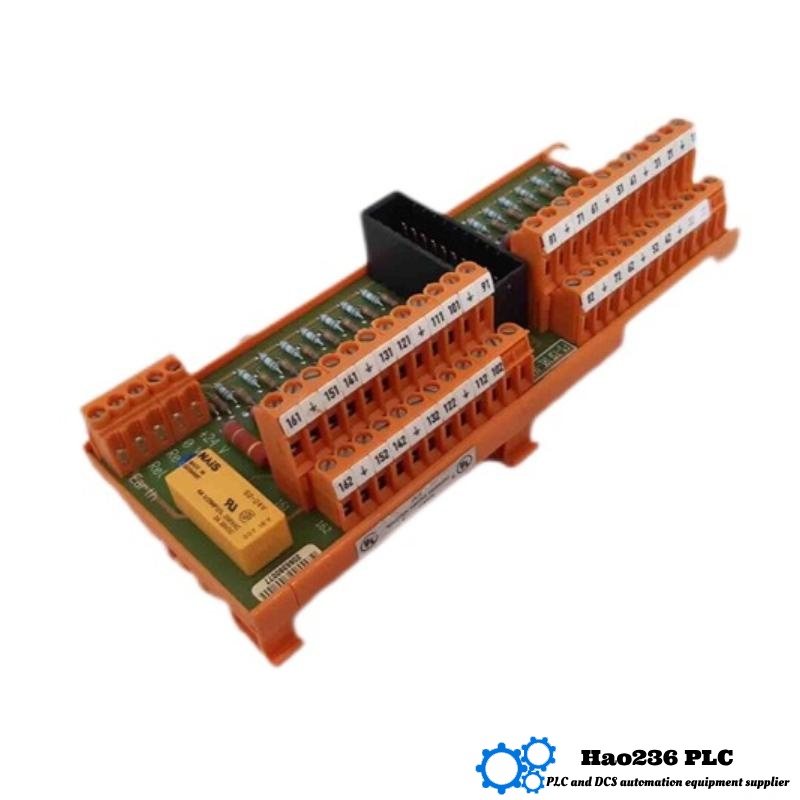

Product Introduction – Honeywell FS-TSFIRE-1624
The Honeywell FS-TSFIRE-1624 is a Fire Detection and Monitoring Module designed for use in Safety Instrumented Systems (SIS). This module provides 16 digital input channels, specifically tailored to monitor fire detection sensors, such as flame detectors, smoke detectors, and heat sensors. It is engineered to support critical applications in industries such as oil & gas, petrochemicals, power plants, and manufacturing facilities, where fire safety is paramount.
With the FS-TSFIRE-1624, users can integrate fire detection devices directly into their control and safety systems, enabling real-time monitoring of fire-related events and ensuring rapid response to potential hazards. The module features advanced diagnostic capabilities, enabling users to detect faults or malfunctions in the fire detection devices, ensuring the highest level of operational safety.
Applications
-
Fire Safety Systems in industrial facilities
-
Oil and Gas Platforms, ensuring fire detection and response
-
Chemical Processing Plants, for detecting potential fire hazards
-
Power Generation Facilities, ensuring safety from fire risks
-
Refineries and Manufacturing Plants where hazardous conditions exist
-
Emergency Shutdown Systems (ESD)
-
Automation and Control Systems in fire-sensitive environments
Product Advantages
-
Multiple Channels: The FS-TSFIRE-1624 supports up to 16 input channels, offering high-density fire detection in a single unit.
-
SIL-Ready: The module is Safety Integrity Level (SIL) rated, which ensures its suitability for safety-critical fire detection applications.
-
Advanced Diagnostics: Continuous monitoring of input signals ensures that any faults in fire detection devices are quickly identified, reducing response time and downtime.
-
Compatibility with Various Detectors: Designed to work with a wide range of fire detection sensors, including smoke detectors, flame detectors, and heat sensors.
-
Real-time Monitoring: Allows continuous real-time monitoring and reporting of fire detection status, enabling prompt action in case of emergencies.
-
Compact and Space-Saving: Despite providing 16 inputs, the module is designed to save space and can be easily integrated into existing control systems.
-
High Reliability: Built for continuous operation in demanding industrial environments, ensuring durability and long-term service.
-
User-Friendly Interface: The module is designed to integrate seamlessly with Honeywell and other third-party systems, allowing for simple operation and maintenance.
Brand and Series
-
Brand: Honeywell
-
Series: Fire Safety and Detection Module Series
-
Product Type: Fire Detection Input Module (SIL-rated)
Technical Specifications – FS-TSFIRE-1624
| Parameter | Specification |
|---|---|
| Model | FS-TSFIRE-1624 |
| Number of Inputs | 16 Digital Inputs |
| Input Type | Isolated Digital Inputs (Fire Detectors) |
| Voltage Range | 24 V DC (Nominal) |
| Input Rating | 30 V DC / 2 A (Max per Channel) |
| Diagnostic Features | Fault detection, status LEDs for each channel |
| Mounting | DIN Rail or Panel Mount |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (W × H × D) | 100 mm × 120 mm × 45 mm |
| Weight | 0.38 kg |
| Certifications | CE, UL, SIL-Ready |
| Protection Features | Reverse polarity protection, fuse protection |
| Response Time | <10 ms |
| Field Wiring | Screw terminal or spring clamp type |
Recommended Related Models (Same Series/Function)
| Model | Channels | Voltage | Application | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| FS-TSFIRE-0824 | 8 | 24 V DC | Compact fire detection module | 90 × 100 × 30 | 0.25 |
| FS-TSFIRE-1648 | 16 | 48 V DC | 16-channel fire detection module | 100 × 120 × 45 | 0.39 |
| FS-FIRE-0812 | 8 | 24 V DC | Single-channel fire detection system | 90 × 90 × 30 | 0.20 |
| FS-TSFIRE-0832 | 8 | 32 V DC | Fire detection, high voltage option | 95 × 110 × 40 | 0.28 |
| FS-FIRE-1624 | 16 | 24 V DC | Standard 16-channel fire detection | 100 × 120 × 50 | 0.40 |
Recommended Popular Models (Same Brand)
| Model | Function | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| FS-TRO-1024 | Relay Output Module | 24-channel relay output for fire detection | 100 × 120 × 45 | 0.38 |
| FS-TPSU-2430 | Power Supply Unit | 24V DC output, 3.0A | 90 × 100 × 50 | 0.45 |
| FS-TDO-1624 | Digital Output Module | 16-channel output module | 100 × 100 × 40 | 0.33 |
| FS-TDO-1024 | 24V Output Module | Digital output, 24 channels | 100 × 120 × 45 | 0.38 |
| FS-TSDI-1648 | Digital Input Module | 16-channel input module for control | 100 × 100 × 40 | 0.32 |
Frequently Asked Questions (FAQ)
Q1: What type of inputs does the FS-TSFIRE-1624 support?
A1: The FS-TSFIRE-1624 supports 16 isolated digital inputs for fire detection sensors such as smoke detectors, flame detectors, and heat sensors.
Q2: What is the voltage rating for the FS-TSFIRE-1624?
A2: The module operates at a nominal voltage of 24 V DC.
Q3: How many inputs can the FS-TSFIRE-1624 handle?
A3: The FS-TSFIRE-1624 can handle up to 16 fire detection inputs.
Q4: What is the maximum current per input channel?
A4: Each input channel can handle a maximum of 2 A of current.
Q5: What kind of diagnostic features are available?
A5: The module offers continuous diagnostic monitoring, with fault detection and channel status indicated by LEDs.
Q6: Can the FS-TSFIRE-1624 be used in hazardous environments?
A6: Yes, the module is suitable for use in hazardous environments, provided appropriate installation and safety precautions are followed.
Q7: How does the FS-TSFIRE-1624 integrate into safety systems?
A7: It easily integrates into Honeywell safety systems, as well as other compatible fire detection and control systems.
Q8: What protection features are built into the FS-TSFIRE-1624?
A8: The module includes reverse polarity protection and fuse protection for each input channel.
Q9: Can this module be used in applications other than fire detection?
A9: While primarily designed for fire detection, the module can also be used for monitoring other safety-critical inputs in industrial environments.
Q10: What is the response time of the FS-TSFIRE-1624?
A10: The response time of the FS-TSFIRE-1624 is less than 10 milliseconds.
