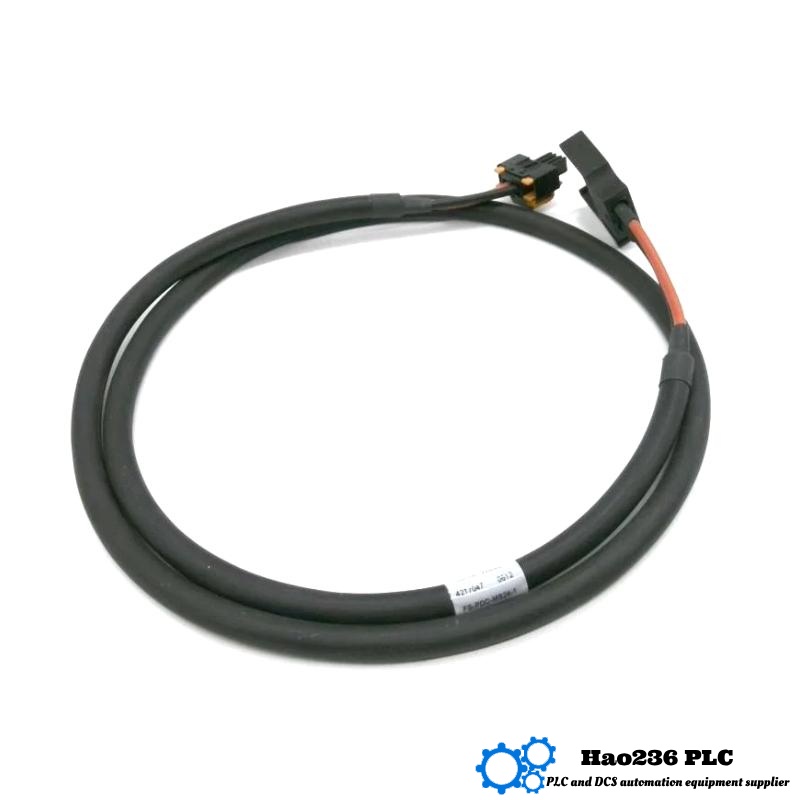

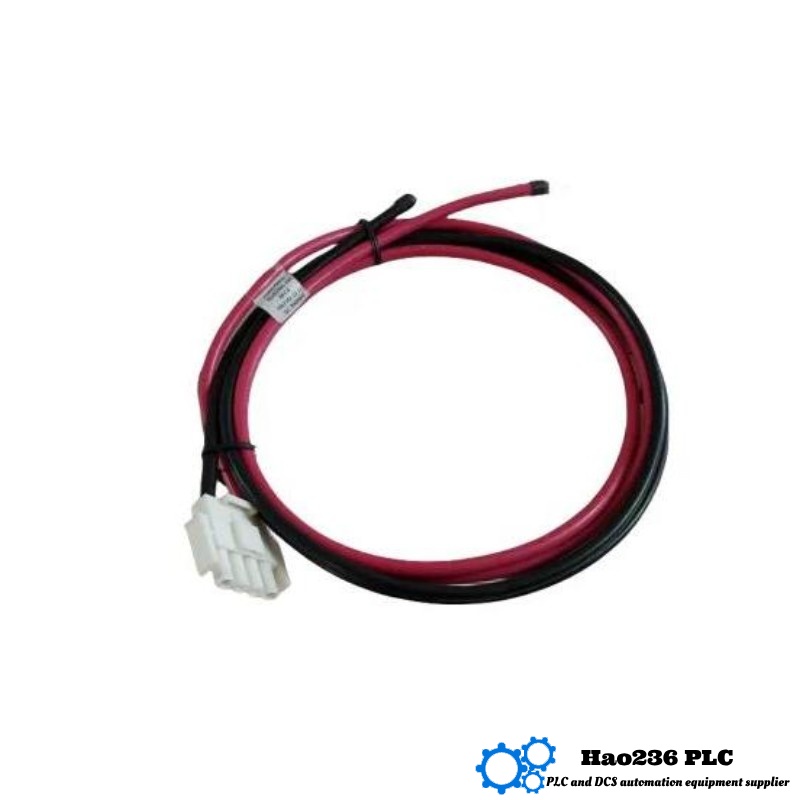

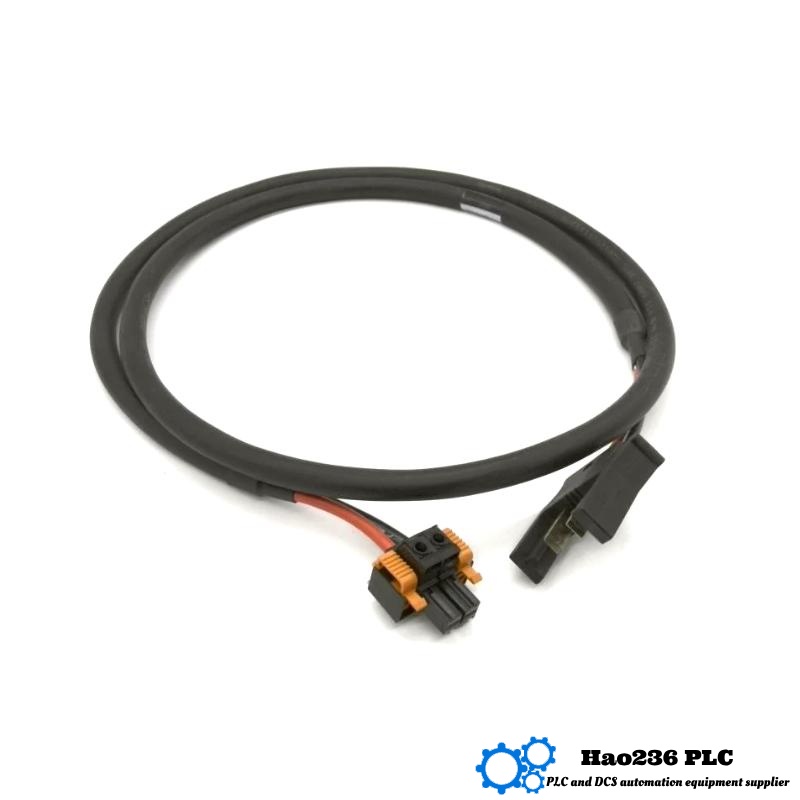

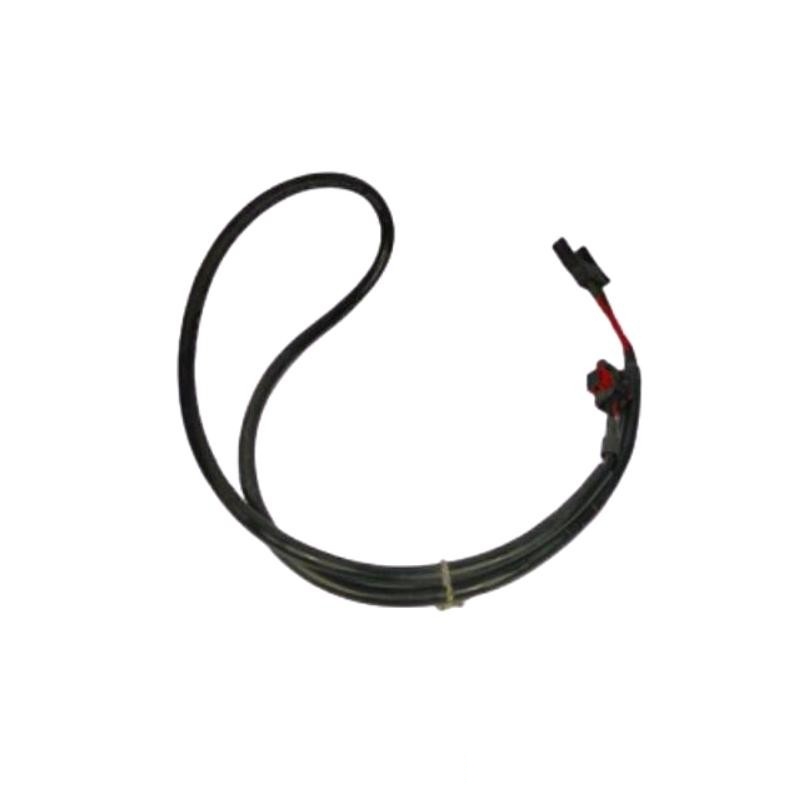

Honeywell FS-PDC-MB24-1P Power Distribution Cable
Product Introduction
The FS-PDC-MB24-1P is a single-end power distribution cable designed for Honeywell’s safety and control system modules. This rugged cable delivers reliable 24 V DC power from a power supply module to field I/O racks or standalone devices. Engineered for industrial environments, it features robust connectors and a durable jacket to withstand mechanical stress, temperature extremes, and electromagnetic interference.
Key Applications
Used to connect 24 V DC power supplies to I/O carrier assemblies, analog/digital I/O modules, and remote skid controllers in process automation systems.
Ideal for power cabling in Experion PKS and TDC3000 installations in oil & gas upstream and downstream operations.
Employed in water/wastewater treatment plants for distributing power to sensor junction boxes and actuator controllers.
Used on packaged skid-mounted control panels in chemical, petrochemical, and pharmaceutical manufacturing.
Suitable for modular safety instrumented system (SIS) cabinets requiring secure, lock-tight power connections.
Brand Overview
Honeywell is a global leader in automation and control solutions with over a century of innovation. Renowned for its Experion® and TDC distributed control platforms, Honeywell delivers robust hardware, software, and services that optimize safety, reliability, and efficiency in critical industries worldwide.
Product Advantages
Reliable Power Delivery: Heavy-duty connectors and 18 AWG conductors ensure minimal voltage drop over 145 cm runs.
Durable Construction: PUR jacket resists oil, chemicals, abrasion, and UV exposure for long service life.
EMI Shielding: Braided copper shield prevents electromagnetic interference in noisy panel environments.
Flexible Design: 145 cm length with 0.2 kg weight provides ample reach without excess slack or clutter.
Easy Installation: Keyed M12 power connector mates securely with Honeywell power modules, reducing wiring errors.
Detailed Technical Parameters
| Specification | Details |
|---|---|
| Model Number | FS-PDC-MB24-1P |
| Cable Length | 145 cm |
| Conductor Configuration | 1 × 18 AWG stranded copper |
| Connector Type | M12 A-coding, 4-pole male |
| Voltage Rating | 24 V DC ±10 % |
| Current Capacity | 5 A continuous |
| Jacket Material | Polyurethane (PUR) |
| Shielding | Braided tinned copper |
| Minimum Bend Radius | 10 × cable diameter |
| Operating Temperature | –25 °C to +80 °C |
| Storage Temperature | –40 °C to +90 °C |
| Weight | 0.2 kg |
Related Models (Same Series / Function)
| Model | Description | Length | Connector |
|---|---|---|---|
| FS-PDC-MB24-2P | Dual-end power cable for redundant power paths | 145 cm | M12 A-coding |
| FS-PDC-MB24-1P-EXT | Extended-length version for remote panel layouts | 300 cm | M12 A-coding |
| FS-PDC-MB48-1P | 48 V DC power cable for telecom-grade controllers | 145 cm | M12 A-coding |
| FS-PDC-MB24-1P-HP | High-power variant, 8 A rating for larger loads | 145 cm | M12 A-coding |
| FS-PDC-MB24-1P-CLR | Corrosion-resistant cable with nickel-plated shield | 145 cm | M12 A-coding |
Popular Honeywell Cable Assemblies (Same Brand)
| Model | Key Features |
|---|---|
| FS-PDB-MB24-1P | Low-profile power cable for Series D I/O racks |
| FS-PDC-MB24-4P | Four-core power/data hybrid cable for smart sensors |
| FS-PDC-USB-A-1P | USB-to-M12 interface cable for module firmware updates |
| FS-PDC-ETH-1P | Industrial Ethernet patch cable, M12 X-coding |
| FS-PDC-FLEX-1P | Ultra-flexible cable for robotic and motion applications |
Frequently Asked Questions (FAQ)
Q: What is the maximum current the FS-PDC-MB24-1P can carry?
A: It supports up to 5 A continuous load over its 18 AWG conductor.
Q: Is the cable jacket chemical-resistant?
A: Yes, the PUR jacket withstands oils, solvents, and UV exposure.
Q: Can I use this cable outdoors?
A: The cable is rated to –25 °C to +80 °C and UV-resistant, but outdoor use requires proper conduit or protection.
Q: What type of connector does it use?
A: A keyed M12 A-coding 4-pole male connector mates with Honeywell power modules.
Q: Does the cable include shielding?
A: Yes, a braided tinned-copper shield minimizes electromagnetic interference.
Q: How flexible is the cable?
A: The PUR jacket and stranded conductor provide a small bend radius of 10 × cable diameter for tight installations.
Q: What is the cable’s weight?
A: Approximately 0.2 kg for the 145 cm length.
Q: Can this cable be used for data signals?
A: It is designed for power distribution; for power/data combos, consider the FS-PDC-MB24-4P model.
Q: Are longer lengths available?
A: Yes, the EXT variant provides 300 cm reach for remote panels.
Q: How do I verify proper connection?
A: Honeywell power modules feature mating LEDs; ensure the M12 connector locks fully and the LED indicates power present.
