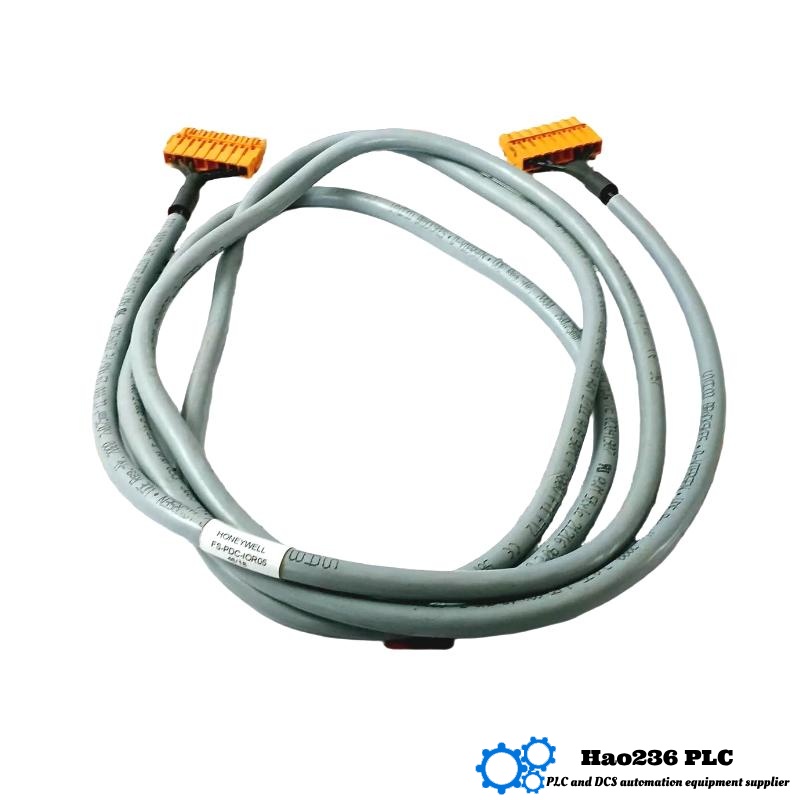

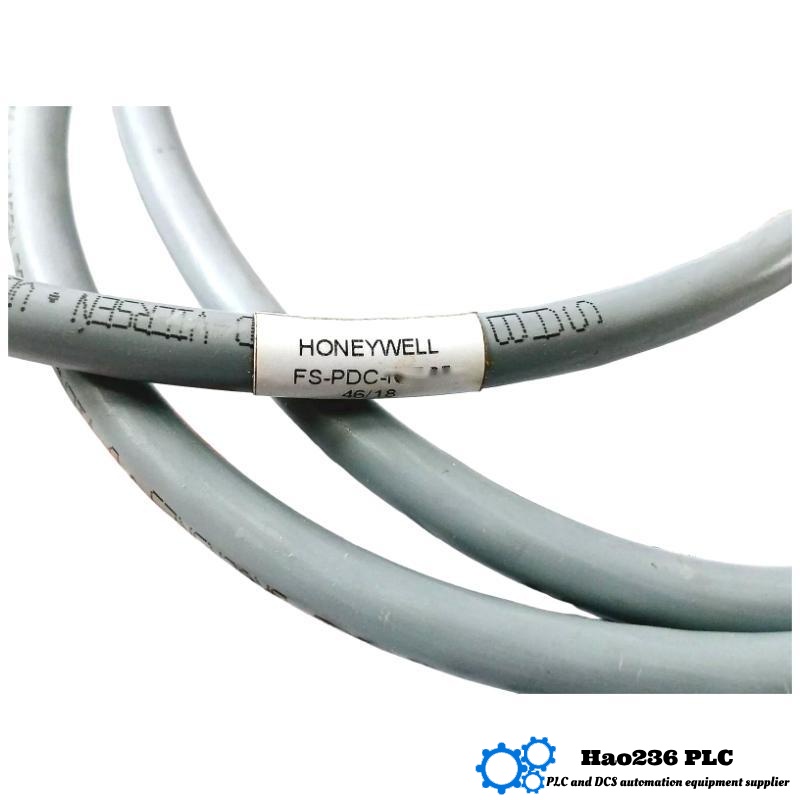

Honeywell FS-PDC-IOX05-1 Power Distribution Cable
Product Introduction
The FS-PDC-IOX05-1 is a robust power distribution cable designed to deliver 24V DC power from the control cabinet to the expansion I/O chassis in industrial automation systems. It ensures reliable power supply and signal integrity, supporting seamless integration with Honeywell’s Safety Manager systems. The cable features dual connectors—a 2-pole D-tab for power rails and a 5-pin M12 for I/O chassis—providing secure, vibration-resistant connections.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | FS-PDC-IOX05-1 |
| Cable Length | 1 meter (3.28 feet) |
| Voltage Rating | 24V DC |
| Current Rating | 10A per conductor |
| Connectors | 2-pole D-tab (squeeze-to-release type) and 5-pin M12 male |
| Cable Type | CC600 World 4×2.5 mm² shielded copper conductors |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting Type | DIN-rail compatible |
| Weight | 2.0 kg |
| Certifications | CE, UL, CSA, FM (pending) |
Product Applications
-
Industrial Automation Systems: Provides stable power distribution to I/O modules in control panels.
-
Safety Instrumented Systems: Ensures fail-safe operation in applications requiring SIL3 compliance.
-
Process Control: Supports reliable power supply for distributed control systems (DCS).
-
Machine Control: Delivers consistent power to machinery monitoring and control systems.
-
Building Automation: Facilitates power distribution for HVAC, lighting, and security systems.
Product Advantages
-
High Current Capacity: Supports up to 10A per conductor, suitable for high-density I/O configurations.
-
Shielded Design: Minimizes electromagnetic interference, ensuring signal integrity.
-
Modular Design: Allows easy expansion and retrofitting in existing setups.
-
Rugged Construction: Built to withstand harsh industrial environments, including high vibration and corrosive atmospheres.
-
Easy Installation: Color-coded wiring and DIN-rail compatibility simplify installation and maintenance.
Brand & Series Information
-
Brand: Honeywell
-
Series: FS-PDC (Fieldbus Safety Power Distribution Controller)
-
Sub-Series: IOX (Input/Output Expansion Modules)
Recommended Related Models
| Model | Description | Cable Length | Connectors | Weight |
|---|---|---|---|---|
| FS-PDC-IOX05 | Power distribution cable for I/O modules | 10 meters | 2-pole D-tab and 5-pin M12 | 1.5 kg |
| FS-PDC-IOX05-2 | Extended version with additional connectors | 15 meters | 2-pole D-tab and 5-pin M12 | 2.0 kg |
| FS-PDC-IOX05-3 | High-current version for demanding applications | 5 meters | 2-pole D-tab and 5-pin M12 | 1.2 kg |
| FS-PDC-IOX05-4 | Version with enhanced shielding for EMI protection | 20 meters | 2-pole D-tab and 5-pin M12 | 2.5 kg |
| FS-PDC-IOX05-5 | Compact version for space-constrained installations | 3 meters | 2-pole D-tab and 5-pin M12 | 0.8 kg |
Popular Honeywell Models
| Model | Description | Voltage Rating | Current Rating | Weight |
|---|---|---|---|---|
| FS-PDC-CP24x | Power distribution controller | 24V DC | 10A per conductor | 1.0 kg |
| FS-PDC-IOEP3A | I/O expansion module | 24V DC | 10A per conductor | 1.2 kg |
| FS-PDC-IOCHAS-0002R | Safety I/O channel module | 24V DC | 10A per conductor | 0.9 kg |
| FS-PDC-FTA24-3 | Fault-tolerant power module | 24V DC | 10A per conductor | 1.3 kg |
| FS-PDC-MB0001 | Modular bus controller | 24V DC | 10A per conductor | 1.5 kg |
FAQ (Frequently Asked Questions)
Q1: What is the FS-PDC-IOX05-1 used for?
A1: The FS-PDC-IOX05-1 is a power distribution cable designed to deliver 24V DC power from the control cabinet to the expansion I/O chassis in industrial automation systems.
Q2: What is the current rating of the FS-PDC-IOX05-1?
A2: The cable supports up to 10A per conductor, suitable for high-density I/O configurations.
Q3: What connectors are used in the FS-PDC-IOX05-1?
A3: The cable features a 2-pole D-tab (squeeze-to-release type) for the power rail and a 5-pin M12 male connector for the I/O chassis.
Q4: What is the operating temperature range of the FS-PDC-IOX05-1?
A4: The cable operates within a temperature range of -20°C to +70°C.
Q5: What certifications does the FS-PDC-IOX05-1 have?
A5: The cable is CE, UL, CSA, and FM (pending) certified.
Q6: How long is the FS-PDC-IOX05-1 cable?
A6: The cable length is 1 meter (3.28 feet).
Q7: What is the weight of the FS-PDC-IOX05-1?
A7: The cable weighs approximately 2.0 kg.
Q8: Does this cable meet industry safety standards?
A8: Yes, it holds certifications including CE, UL, and CSA.
Q9: Is the FS-PDC-IOX05-1 suitable for outdoor or harsh environments?
A9: It is built with rugged materials and shielding to withstand typical industrial conditions but should be protected from extreme weather.
Q10: How easy is it to install this cable?
A10: The cable is designed with easy-connect connectors and color-coded wiring to simplify installation and maintenance.
