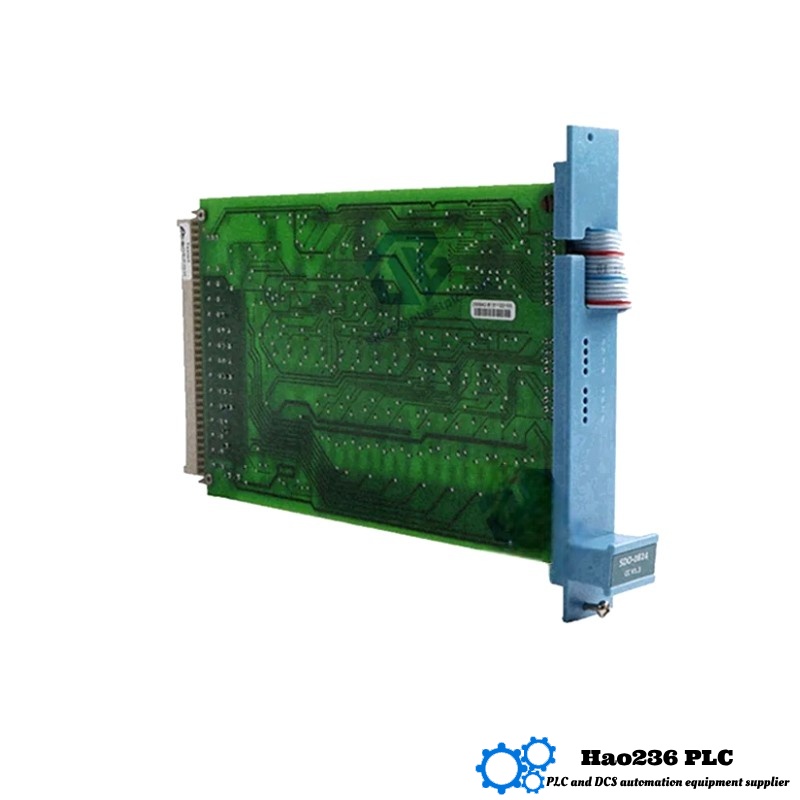

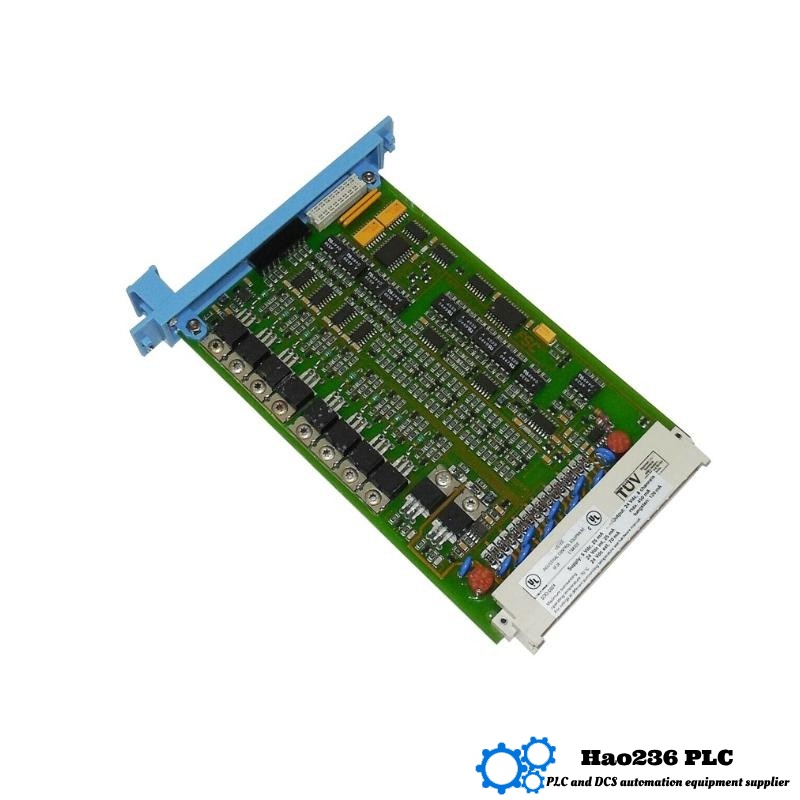

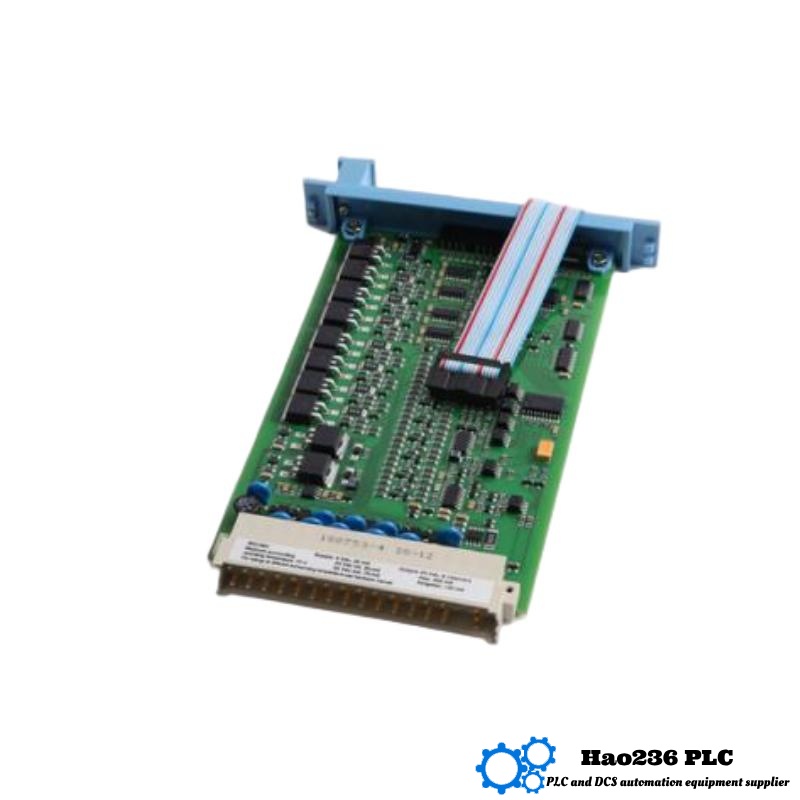

Honeywell FS-DO-1224 Digital Output Module
Product Overview
The Honeywell FS-DO-1224 is a high-performance digital output module designed for industrial automation systems. It offers 12 solid-state output channels, each capable of delivering up to 550 mA, ensuring reliable control of various actuators and devices in demanding environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FS-DO-1224 |
| Output Channels | 12 (2 groups of 6) |
| Output Type | 24 V DC solid-state source, short-circuit proof |
| Maximum Current per Channel | 550 mA |
| Maximum Lamp Load | 275 mA (6.6 W) |
| Maximum Load Capacitance | 1 µF |
| Voltage Drop | < 1.5 V DC at 500 mA |
| Off Current | < 0.1 mA |
| Watchdog Input Current | 0.06 mA |
| Power Supply | 5 V DC: 25 mA; 24 V DC: 2 × 30 mA (without output load) |
| Mounting | 4 TE, 3 HE (= 4 HP, 3U) |
| Approvals | CE, TUV, UL, CSA |
| Operating Temperature | -40°C to +85°C |
| Dimensions (L × W × H) | 150 mm × 45 mm × 35 mm |
| Weight | 0.22 kg |
Applications
-
Industrial automation systems requiring reliable digital outputs
-
Process control systems with actuators and relays
-
Building management systems for lighting and HVAC control
-
Manufacturing lines with high-density I/O requirements
-
Harsh environments demanding robust and fail-safe control modules
Advantages
-
High Current Capacity: Each channel supports up to 550 mA, suitable for driving heavy loads.
-
Solid-State Reliability: Short-circuit proof design ensures long-term durability.
-
Wide Operating Temperature Range: Operates reliably from -40°C to +85°C.
-
Compact Size: 4 TE, 3 HE form factor fits into standard DIN rail installations.
-
Safety Certified: Complies with CE, TUV, UL, and CSA standards.
-
Low Power Consumption: Efficient operation with minimal power requirements.
Brand and Series
-
Brand: Honeywell
-
Series: FS (Fieldbus System)
-
Product Category: Digital Output Modules
-
Intended Industry: Industrial Automation, Process Control, Building Management
Related Models
| Model | Output Channels | Current per Channel | Approvals | Dimensions (L × W × H) | Weight |
|---|---|---|---|---|---|
| FS-DO-1224 | 12 | 550 mA | CE, TUV, UL, CSA | 150 mm × 45 mm × 35 mm | 0.22 kg |
| FS-DO-1224-1 | 12 | 550 mA | CE, UL | 150 mm × 45 mm × 35 mm | 0.22 kg |
| FS-DO-1224-2 | 12 | 550 mA | CE, UL | 150 mm × 45 mm × 35 mm | 0.22 kg |
| FS-DO-1224-3 | 12 | 550 mA | CE, UL | 150 mm × 45 mm × 35 mm | 0.22 kg |
| FS-DO-1224-4 | 12 | 550 mA | CE, UL | 150 mm × 45 mm × 35 mm | 0.22 kg |
Popular Models from Honeywell
| Model | Output Channels | Current per Channel | Approvals | Dimensions (L × W × H) | Weight |
|---|---|---|---|---|---|
| FS-DO-1624 | 16 | 550 mA | CE, TUV, UL, CSA | 150 mm × 45 mm × 35 mm | 0.22 kg |
| FS-DO-0824 | 8 | 550 mA | CE, TUV, UL, CSA | 150 mm × 45 mm × 35 mm | 0.22 kg |
| FS-DO-0424 | 4 | 550 mA | CE, TUV, UL, CSA | 150 mm × 45 mm × 35 mm | 0.22 kg |
| FS-DO-1224-1 | 12 | 550 mA | CE, UL | 150 mm × 45 mm × 35 mm | 0.22 kg |
| FS-DO-1224-2 | 12 | 550 mA | CE, UL | 150 mm × 45 mm × 35 mm | 0.22 kg |
Frequently Asked Questions (FAQ)
Q1: What is the maximum current each output channel can handle?
A1: Each output channel can handle up to 550 mA.
Q2: What is the operating temperature range of the FS-DO-1224?
A2: The module operates within a temperature range of -40°C to +85°C.
Q3: How many output channels does the FS-DO-1224 have?
A3: The module provides 12 output channels, organized into two groups of 6.
Q4: What is the voltage drop at 500 mA?
A4: The voltage drop is less than 1.5 V DC at 500 mA.
Q5: What is the off current for each output channel?
A5: The off current is less than 0.1 mA.
Q6: Does the FS-DO-1224 have watchdog functionality?
A6: Yes, the module includes a watchdog input current of 0.06 mA.
Q7: What are the power requirements for the FS-DO-1224?
A7: The module requires 5 V DC at 25 mA and 24 V DC at 2 × 30 mA (without output load).
Q8: Is the FS-DO-1224 compatible with industrial automation systems?
A8: Yes, it is designed specifically for industrial automation and process control systems.
Q9: Does this product have any safety or quality certifications?
A9: It meets CE, TUV, UL, and CSA certification standards.
Q10: How much power does the module consume during operation?
A10: Without load, it consumes 25 mA at 5 V DC and 2 × 30 mA at 24 V DC.
