📌 Product Overview
Model: FS-CPB-0001
Brand: Honeywell
Series: FS (Fieldbus System)
Type: Backplane Module
Product Introduction:

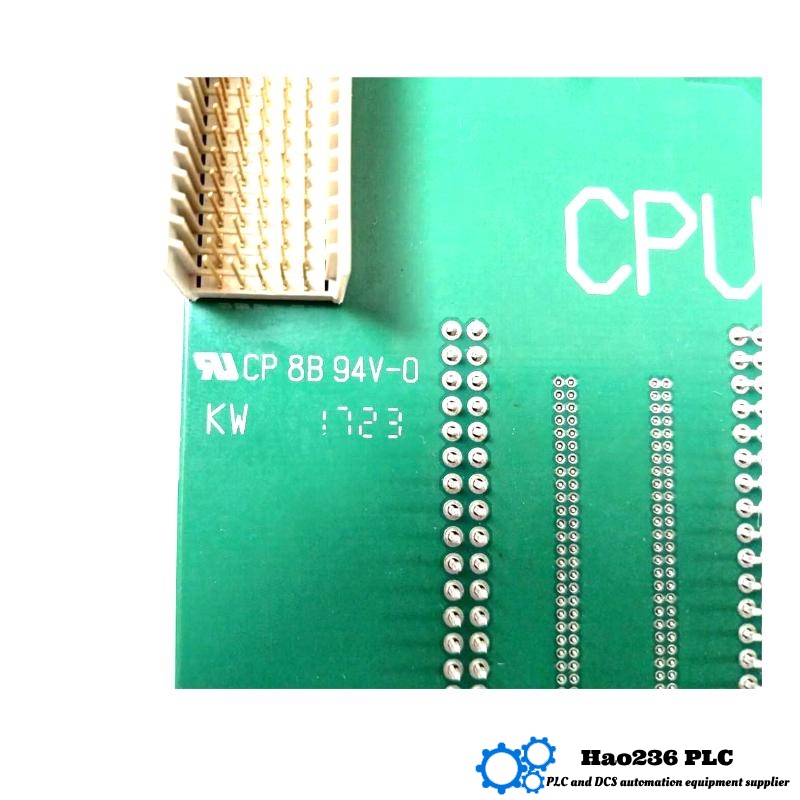

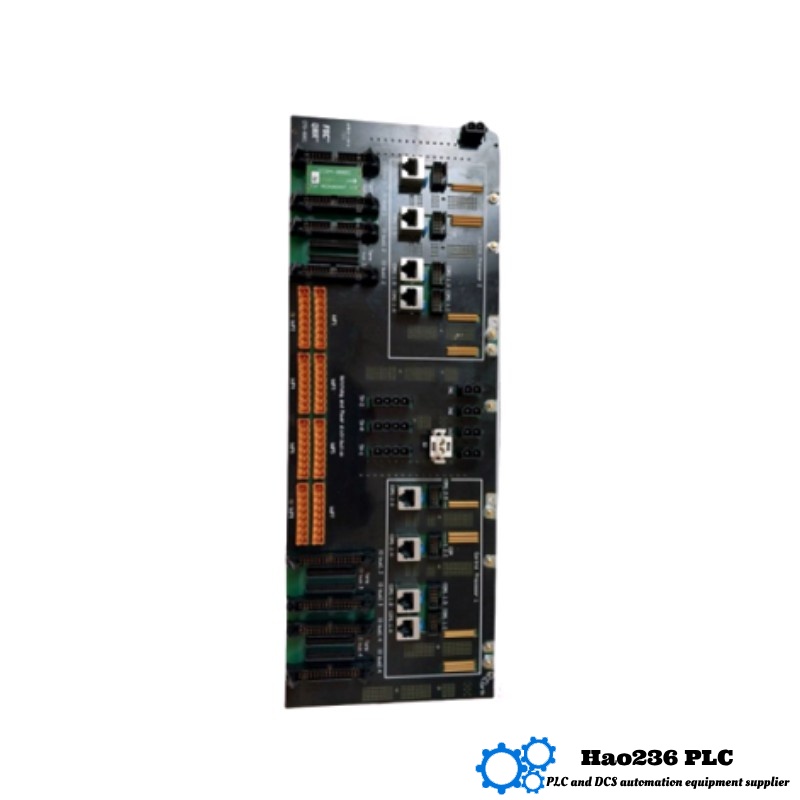

The Honeywell FS-CPB-0001 is a modular backplane designed to serve as the foundational framework for Honeywell’s fieldbus systems. It provides standardized slots for connecting various electronic boards, facilitating flexible system configurations and simplifying system assembly. This backplane is engineered to support high-speed data communication and robust power distribution, ensuring reliable operation in demanding industrial environments.
🛠️ Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FS-CPB-0001 |
| Type | Backplane Module |
| Dimensions (L×W×H) | 254 mm × 51 mm × 114 mm |
| Weight | 0.63 kg |
| Material | High-grade PCB with metal connectors |
| Connector Slots | 16 slots for I/O modules |
| Current Capacity | 5A per slot |
| Operating Temperature | –40°C to +85°C |
| Certifications | UL, CE, CSA |
| Mounting | Designed for DIN rail mounting |
| Country of Origin | USA |
🏭 Applications
-
Industrial Automation: Integrating various I/O modules to create a cohesive control system.
-
Process Control Systems: Facilitating communication between controllers and field devices.
-
Building Management Systems: Managing HVAC, lighting, and security systems through centralized control.
-
Energy Management: Monitoring and controlling energy distribution and consumption.
-
Safety Systems: Ensuring reliable operation of safety-critical applications.
💡 Product Advantages
-
Modular Design: Allows for easy expansion and customization of control systems.
-
High Current Capacity: Supports up to 5A per slot, accommodating power-hungry modules.
-
Wide Temperature Range: Operates effectively in extreme temperatures, from –40°C to +85°C.
-
International Certifications: Complies with UL, CE, and CSA standards, ensuring safety and reliability.
-
Flexible Mounting Options: Compatible with DIN rail mounting for versatile installation scenarios.
-
Robust Construction: Built to withstand harsh industrial environments, ensuring longevity and durability.
🏷️ Brand and Series
-
Brand: Honeywell
-
Series: FS (Fieldbus System)
-
Product Category: Industrial Control Modules
-
Industry Applications: Automation, process control, building management, energy management, safety systems
🔄 Related or Similar Models
| Model | Type | Current Capacity | Operating Temperature | Weight | Notes |
|---|---|---|---|---|---|
| FS-CPB-0002 | Backplane Module | 5A per slot | –40°C to +85°C | 0.65 kg | Supports additional I/O modules |
| FS-CPB-0003 | Backplane Module | 5A per slot | –40°C to +85°C | 0.68 kg | Enhanced power distribution |
| FS-CPB-0004 | Backplane Module | 5A per slot | –40°C to +85°C | 0.70 kg | Increased slot density |
| FS-CPB-0005 | Backplane Module | 5A per slot | –40°C to +85°C | 0.72 kg | Optimized for high-speed communication |
| FS-CPB-0006 | Backplane Module | 5A per slot | –40°C to +85°C | 0.75 kg | Designed for large-scale systems |
🔧 Popular Models from the Same Brand
| Model | Type | Current Capacity | Operating Temperature | Weight | Notes |
|---|---|---|---|---|---|
| FS-IO-0001 | I/O Module | 5A per channel | –40°C to +85°C | 0.50 kg | Expands I/O capabilities |
| FS-MB-0001 | Mains Power Rail | 200A (max) | –40°C to +85°C | 3.70 kg | Distributes power across modules |
| FS-CPU-0001 | CPU Module | 5A per channel | –40°C to +85°C | 0.80 kg | Central processing unit for control |
| FS-NET-0001 | Network Module | 5A per channel | –40°C to +85°C | 0.60 kg | Facilitates communication between modules |
| FS-PSU-0001 | Power Supply Unit | 5A per channel | –40°C to +85°C | 0.90 kg | Provides power to the system |
❓ Frequently Asked Questions (FAQ)
Q1: What is the maximum current capacity per slot on the FS-CPB-0001?
A1: The FS-CPB-0001 supports up to 5A per slot, accommodating power-hungry modules.
Q2: What is the operating temperature range of the FS-CPB-0001?
A2: It operates effectively in temperatures ranging from –40°C to +85°C.
Q3: How many connector slots does the FS-CPB-0001 have?
A3: The backplane provides 16 slots for connecting I/O modules.
Q4: What certifications does the FS-CPB-0001 hold?
A4: It complies with UL, CE, and CSA standards, ensuring safety and reliability.
Q5: Is the FS-CPB-0001 compatible with DIN rail mounting?
A5: Yes, it is designed for DIN rail mounting, offering flexible installation options.
Q6: What is the weight of the FS-CPB-0001?
A6: The backplane weighs approximately 0.63 kg.
Q7: What materials are used in the construction of the FS-CPB-0001?
A7: It is constructed with high-grade PCB and metal connectors for durability.
Q8: Can this backplane be expanded with additional modules?
A8: Yes, its modular design allows adding or replacing I/O modules easily to fit system needs.
Q9: What type of connectors does the FS-CPB-0001 use for module installation?
A9: It uses standardized metal connectors compatible with Honeywell’s FS series modules.
Q10: Is technical support available for configuring systems with the FS-CPB-0001?
A10: Honeywell provides technical documentation and support services for system integration and troubleshooting.
