1. Product Overview
Brand / Series / Product Positioning
-
Brand: Honeywell
-
Series: Safety Analog Output Modules
-

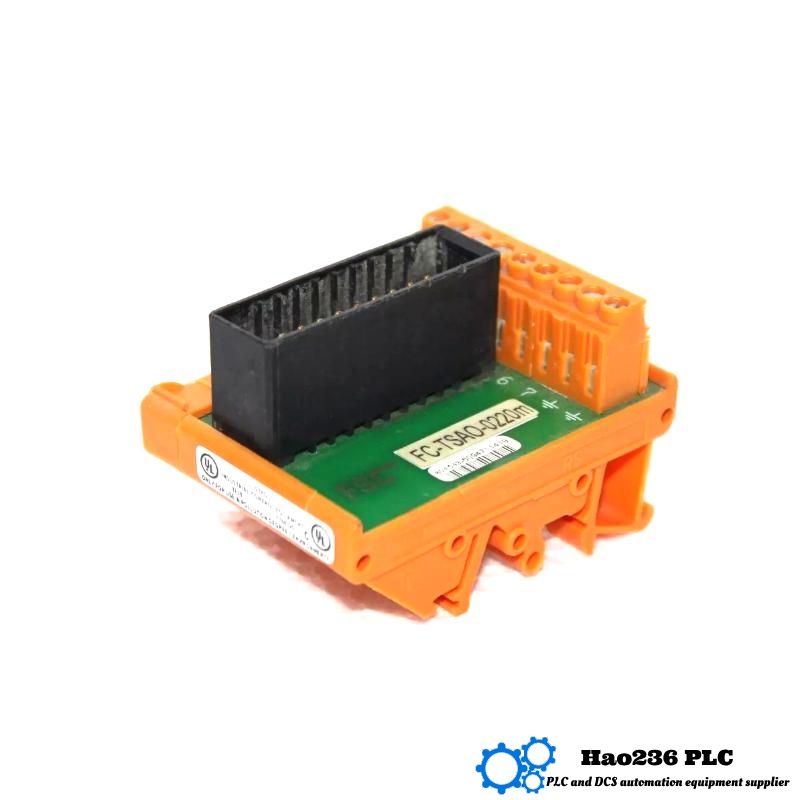

Positioning: The FC-TSAO-0220M is a dual-channel Safety Analog Output Module designed for critical industrial automation systems. It converts control system signals into 4–20 mA or 0–20 mA analog outputs for actuators, valves, and field devices in SIS (Safety Instrumented Systems).
It ensures safe performance in demanding environments by incorporating fault detection, diagnostics, and de-energize capability. Suitable for sectors such as oil & gas, chemical, power, pharmaceutical, and wastewater industries.
2. Technical Specifications
| Specification | Value | Notes |
|---|---|---|
| Model | FC-TSAO-0220M | Dual-channel Safety Analog Output Module |
| Output Channels | 2 (Independent) | Redundant or dual-use |
| Output Signal | 0–20 mA / 4–20 mA | Software configurable |
| Resolution | 12-bit | DAC resolution |
| Accuracy | ±0.1% at 25°C / ±0.2% full range | High precision |
| Load Impedance | Up to 600 Ω (4–20 mA) | Typical: 250 Ω |
| Power Supply | 24 V DC | Typical for safety systems |
| Power Consumption | Approx. 1.5 W | Full board consumption |
| Response Time | < 10 ms | Fast analog response |
| Communication | HART supported | Diagnostic and configuration |
| Isolation | Channel-to-channel & channel-to-ground | For safety and signal integrity |
| Operating Temp. | –20 °C to +70 °C | Some versions up to +85 °C |
| Storage Temp. | –40 °C to +85 °C | — |
| Humidity | 5% to 95% RH non-condensing | Suitable for harsh conditions |
| Protection Rating | IP20 | Installation dependent |
| Dimensions (L × W × H) | 96 mm × 72 mm × 50 mm | Compact design |
| Weight | 0.2 kg (200 g) | Lightweight |
| Certifications | SIL 2 (IEC 61508), EN 954‑1 | Safety certified |
3. Key Applications
-
Process Automation Systems
Converts digital safety controller output to analog current for actuators, valves, I/P converters. -
Safety Instrumented Systems (SIS)
Used in SIL-rated safety loops to ensure proper device action in case of emergency or process hazard. -
Redundant Control Systems
Dual-channel output allows redundancy or monitoring channel to improve safety integrity. -
Diagnostics and Condition Monitoring
Real-time fault detection, HART communication, and predictive maintenance features. -
Distributed Field Control Panels
Can be installed remotely to reduce cabling, increase response, and optimize control layout.
4. Product Advantages
-
Built for Safety
Designed with fail-safe de-energizing, SIL 2 compliance, and redundant logic capabilities. -
Dual Output Channels
Two independent channels improve flexibility in configuration (redundant/mirrored/split tasks). -
Compact & Lightweight
Small form factor fits into tight cabinet spaces. -
HART-Compatible
Supports HART for diagnostics, real-time monitoring, and parameter adjustment. -
Fast & Accurate
Quick response time (<10 ms) and high resolution (12-bit) ensure smooth analog control. -
Environment-Resistant
Withstands industrial temperatures and humidity levels. -
Modular & Swappable
Easy plug-and-play installation and maintenance.
5. Related Models (Same Series or Functionally Similar)
| Model | Function | Key Specs |
|---|---|---|
| FC-TSAO-0220M | Safety Analog Output (Base model) | 2 × 4–20 mA, SIL 2, HART, 0.2 kg |
| FC-SAO-0220M | Safe Analog Output | Similar specs, SIL certified |
| FC-TSDO-08115 | Safety Digital Output | 8 channels, logic-level output |
| FC-TSDI-16115 | Safety Digital Input | 16 inputs for discrete signal monitoring |
| FC-TSDO-0824 | Safety Digital Output | Alternate digital output version, redundant capable |
6. Top Honeywell Modules (Popular Across Use Cases)
| Model | Type | Key Specs / Notes |
|---|---|---|
| FC-SAI-1620M | Safe Analog Input | 16 inputs, 4–20 mA, HART, SIL 2 |
| FC-SDOL-0424 | Safety Digital Output | 4 outputs, 24 V DC, fast switching |
| FC-SDIL-0424 | Safety Digital Input | 4 digital inputs, fault detection |
| CC-PAOX01 | Pulse/Analog Output | Advanced control applications |
| CC-PIX01 | Pulse Input Module | High-speed counter input |
7. Top 10 FAQs (Q&A Style)
Q1: What kind of signal does the FC-TSAO-0220M output?
A1: It outputs standard current loop signals — either 0–20 mA or 4–20 mA — per channel.
Q2: How many output channels are supported?
A2: It supports two independent analog output channels.
Q3: Is the module compatible with HART communication?
A3: Yes, HART communication is supported for diagnostics and remote parameter configuration.
Q4: What SIL rating does the module comply with?
A4: It is compliant with SIL 2 based on IEC 61508 functional safety standards.
Q5: What happens during a fault condition?
A5: The module enters a safe state (de-energized), disabling output to prevent unsafe control actions.
Q6: What power supply does it require?
A6: It typically requires a 24 V DC power supply.
Q7: What is the operational temperature range?
A7: Generally –20 °C to +70 °C, though some versions operate up to +85 °C.
Q8: What are the module’s physical dimensions and weight?
A8: It measures 96 × 72 × 50 mm and weighs approximately 0.2 kg (200 grams).
Q9: How much load can each output drive?
A9: Each channel can drive up to 600 Ω in 4–20 mA mode. 250 Ω is standard for accurate control.
Q10: What factors should be considered for module selection?
A10: Evaluate SIL requirements, channel count, analog range, HART compatibility, environmental conditions, and system integration needs.
