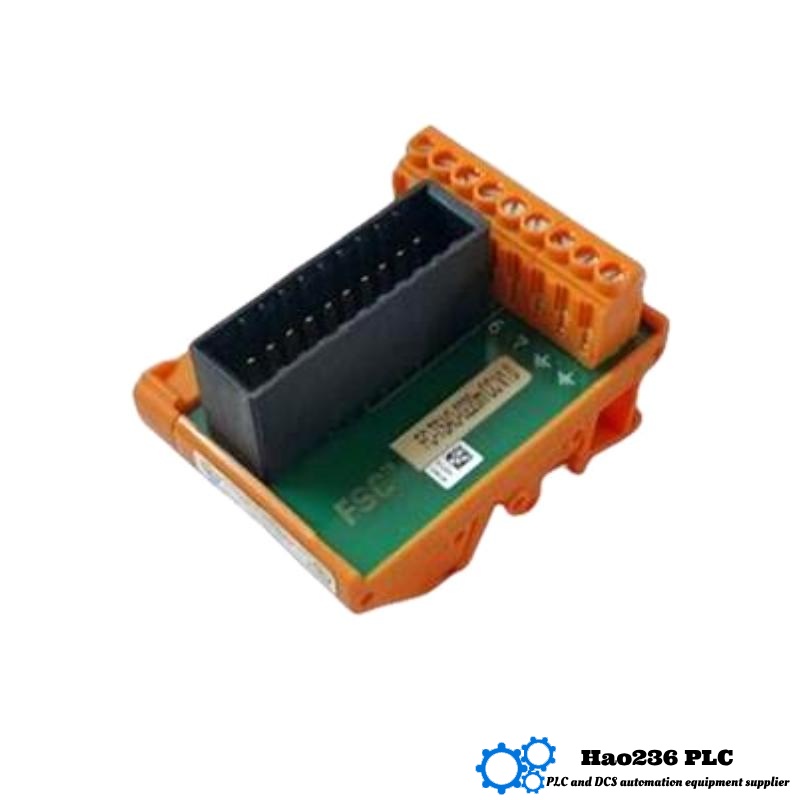

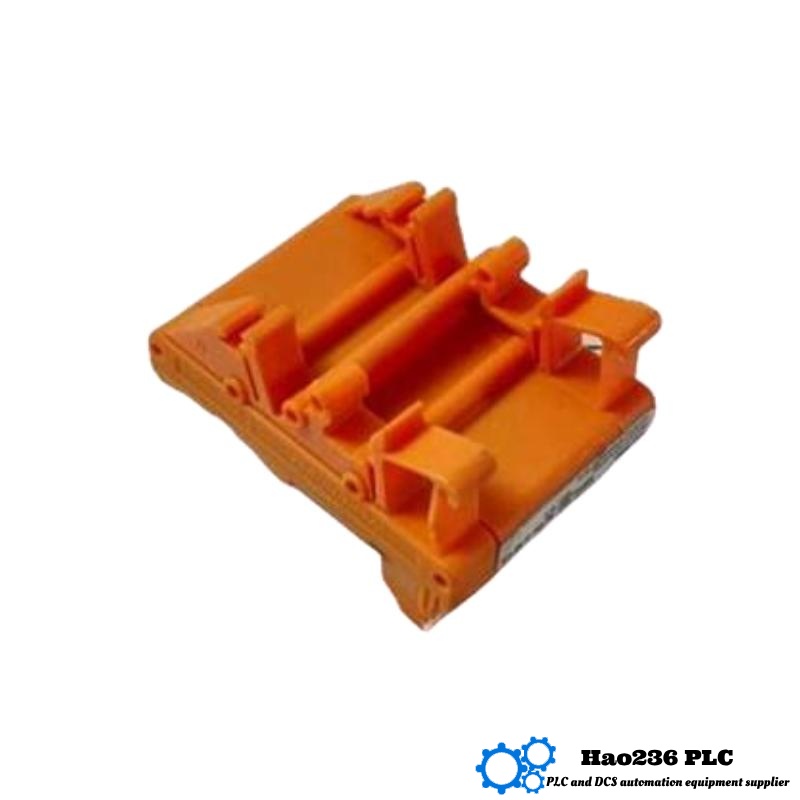

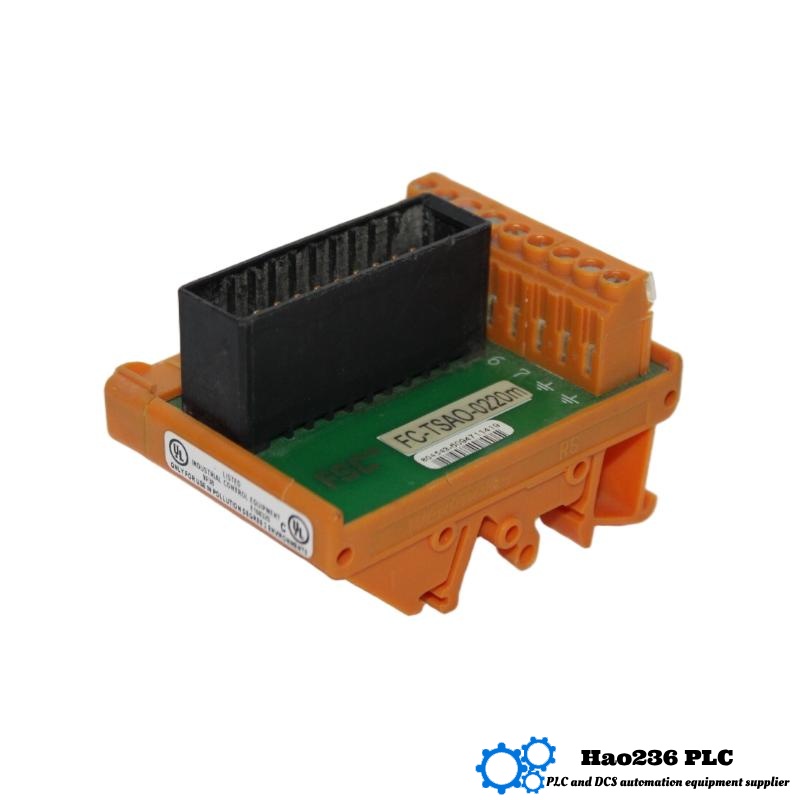

📦 Product Introduction: Honeywell FC‑TSA0‑0220M
The Honeywell FC‑TSA0‑0220M is a rugged, precision temperature sensing assembly / transmitter sensor adapter module designed for integration into distributed control systems or field instrumentation networks. It bridges the gap between thermocouples or RTDs and downstream signal modules, offering temperature signal conditioning, linearization, and stable output. Its modular and compact design suits both field and cabinet installations.
This unit is built to deliver accurate temperature measurement conversion with low drift, robust isolation, and resistance to industrial environmental stresses. It’s ideal for scenarios where sensor signals require intermediate conditioning, isolation, or conversion before being processed or transmitted further.
📊 Technical Parameters of FC‑TSA0‑0220M
| Parameter | Specification |
|---|---|
| Model | FC‑TSA0‑0220M |
| Product Type | Temperature Sensor Adapter / Transmitter Assembly |
| Supported Sensor Types | Thermocouples (J, K, T, E, R, S) / RTDs (Pt100, Pt1000) |
| Input Range | –200°C to +850°C (depending on sensor type) |
| Output Signal | 4–20 mA / 0–20 mA (selectable) |
| Number of Channels | 1 channel |
| Isolation Voltage | 1000 V DC (input to output to power) |
| Power Supply | 24 V DC (±10%) |
| Power Consumption | ≤ 2 W |
| Accuracy | ±0.1% of span |
| Temperature Drift | ±0.05% / °C |
| Response Time | < 200 ms |
| Operating Temperature | –40°C to +85°C |
| Storage Temperature | –40°C to +100°C |
| Humidity Range | 0% to 100% (condensing permissible) |
| Mounting | DIN Rail or Field Housing |
| Protection Class | IP65 (if in field housing) / IP20 (in cabinet) |
| Dimensions | 110 mm × 35 mm × 90 mm |
| Weight | 0.28 kg |
| Certifications | CE, UL, RoHS |
| Diagnostics | LED indicator for sensor fault / loop integrity |
| Configuration | DIP switches or external configuration tool |
🔧 Product Applications
-
Temperature Process Monitoring: Interfaces thermocouples or RTDs with control modules in chemical, petrochemical, and refining operations.
-
Boiler and Furnace Systems: Converts high-temperature sensor output to standard analog signals for process control.
-
Utility Plants: Monitors steam, exhaust gases, or heat exchanger temperatures reliably.
-
Food & Beverage / Pharmaceutical Plants: Provides precise temperature feedback in validated and regulated thermal systems.
-
HVAC and Building Controls: In larger systems, used for remote temperature sensing, conversion, and transmission.
-
Industrial Machinery: Embedded in machinery or thermal measurement modules to convert sensor data for control logic or safety interlocks.
⭐ Product Advantages
-
Sensor Flexibility: Supports multiple thermocouple and RTD types in one module.
-
High Accuracy and Stability: ±0.1% span accuracy and low drift ensure reliable temperature readings over time.
-
Strong Isolation: 1000 V DC isolation protects the measuring loop from interference and ground loops.
-
Compact & Lightweight: At 0.28 kg and dimensions 110 × 35 × 90 mm, it is space-efficient and easy to install.
-
Broad Temperature Range: Operational from –40°C to +85°C even in extreme ambient conditions.
-
Multiple Mounting Options: Can be mounted on DIN rails or within field housings to suit varied installations.
-
Diagnostic Features: LED status indicator alerts to sensor fault or loop issues.
-
Low Power Draw: ≤ 2 W consumption minimizes thermal load and energy use in control cabinets.
-
Easy Configuration: DIP switches or external tools make configuration and recalibration straightforward.
🏷️ Brand and Series Information
-
Brand: Honeywell
-
Product Series: FC‑TSA (Temperature Sensor Adapter / Interface Modules)
-
Intended Use: To convert, condition, and transmit temperature sensor signals into standard analog outputs for process instrumentation systems
🔁 Related or Adjacent Models (Same Series or Functionally Aligned)
| Model | Supported Sensor Types | Output Signal | Dimensions (mm) | Weight (kg) | Special Feature |
|---|---|---|---|---|---|
| FC‑TSA0‑0220 | Thermocouples / RTDs | 4–20 mA | 110 × 35 × 85 | 0.26 | Basic version without housing |
| FC‑TSA0‑0420M | Dual-channel thermocouple / RTD | 0–20 / 4–20 mA | 120 × 40 × 90 | 0.32 | Two-channel version |
| FC‑TSA0‑0220H | High-temperature thermocouple | 4–20 mA | 120 × 35 × 90 | 0.30 | Supports extreme temperature ranges |
| FC‑TSA0‑0220R | Redundant sensor input | 4–20 mA | 125 × 35 × 95 | 0.33 | Redundancy for safety / high reliability |
| FC‑TSA1‑0220M | Thermocouple with enhanced EMC immunity | 4–20 mA | 110 × 35 × 90 | 0.29 | Enhanced noise rejection design |
🔝 Top 5 Popular Models from the Same Brand
| Model | Product Type | Key Feature / Interface | Dimensions (mm) | Weight (kg) | Application Focus |
|---|---|---|---|---|---|
| HC900‑C100 | Hybrid Control Module | Ethernet + Analog / Discrete I/O | 180 × 110 × 70 | 0.95 | Core industrial process control |
| C300PM | Process Controller | High-speed backbone interface | 200 × 120 × 65 | 1.15 | DCS central controller |
| PMIO‑32 | Modular I/O Expansion | Mixed analog & digital I/O | 140 × 90 × 45 | 0.60 | Field I/O expansion |
| ML200 | Logic / Sequence Controller | Discrete logic and communications | 150 × 100 × 55 | 0.75 | Machine-level logic control |
| HC900‑R40 | Remote I/O Rack | Distributed I/O infrastructure | 240 × 110 × 70 | 1.60 | Large-scale remote integration |
❓ FAQ (Frequently Asked Questions, QA Format)
Q1: What is the main function of the FC‑TSA0‑0220M?
A1: It converts temperature sensor signals (thermocouples or RTDs) into standard analog output signals while providing conditioning and isolation.
Q2: What sensor types does it support?
A2: It supports common thermocouples (J, K, T, E, R, S) and RTDs (Pt100, Pt1000).
Q3: What is its output signal type?
A3: It outputs 4–20 mA or 0–20 mA, selectable by configuration.
Q4: What level of isolation does it provide?
A4: It provides 1000 V DC isolation between sensor input, output loop, and power.
Q5: What are the module’s dimensions and weight?
A5: It measures 110 mm × 35 mm × 90 mm and weighs about 0.28 kg.
Q6: What is its operational temperature range?
A6: It can operate from –40°C to +85°C.
Q7: Does it have diagnostic capabilities?
A7: Yes, it includes an LED indicator to signal sensor faults or loop integrity issues.
Q8: What is its response time and accuracy?
A8: Response time is under 200 ms, and accuracy is ±0.1% of the chosen span.
Q9: How is it mounted or installed?
A9: It can be mounted on DIN rails or fitted in field housings (if rated for IP65 deployment).
Q10: How is it configured?
A10: Configuration is done via DIP switches or an external configuration tool.
