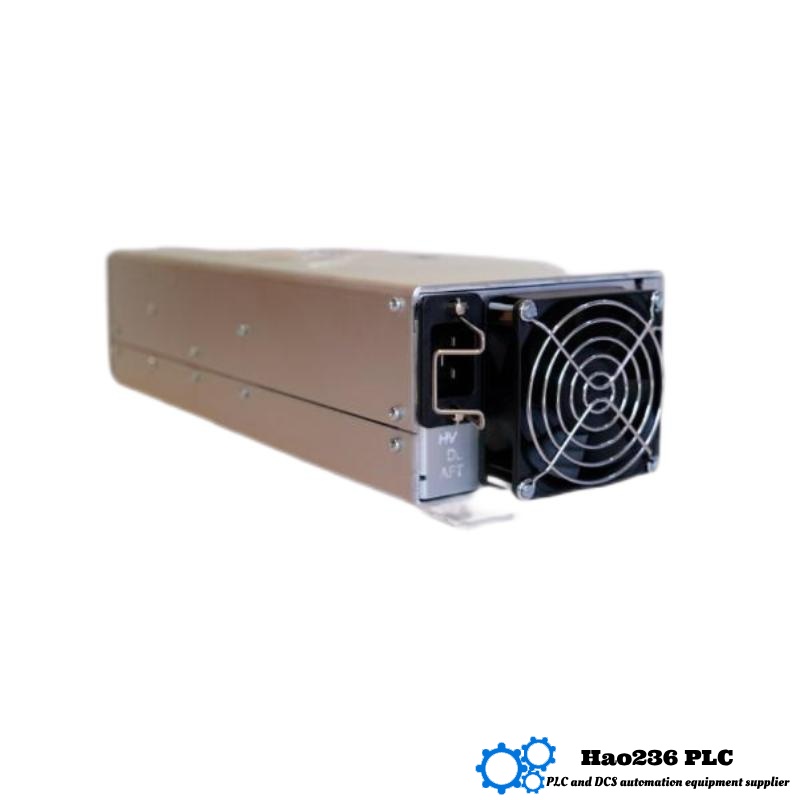

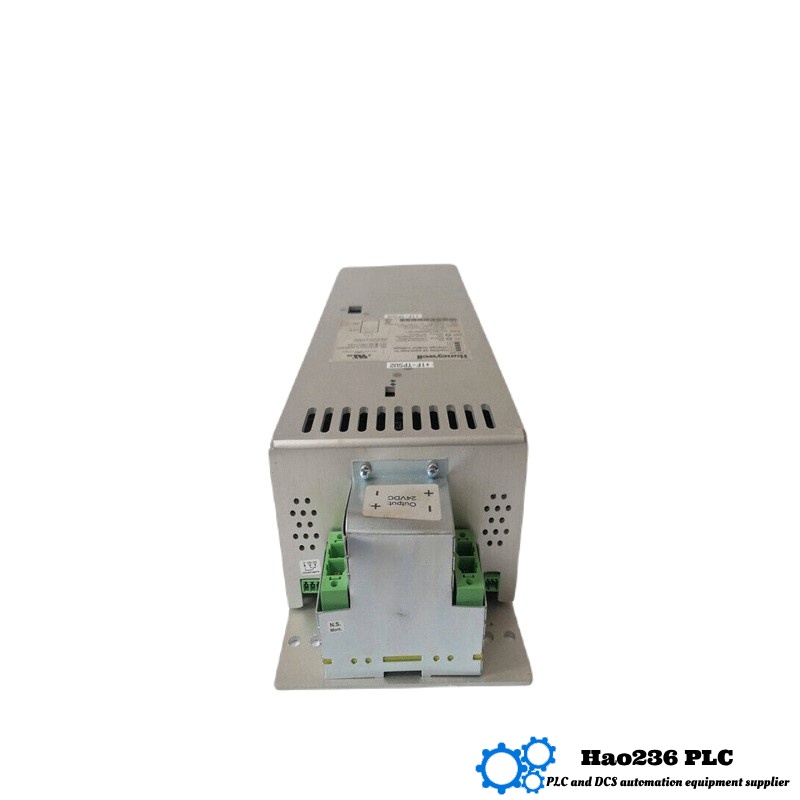

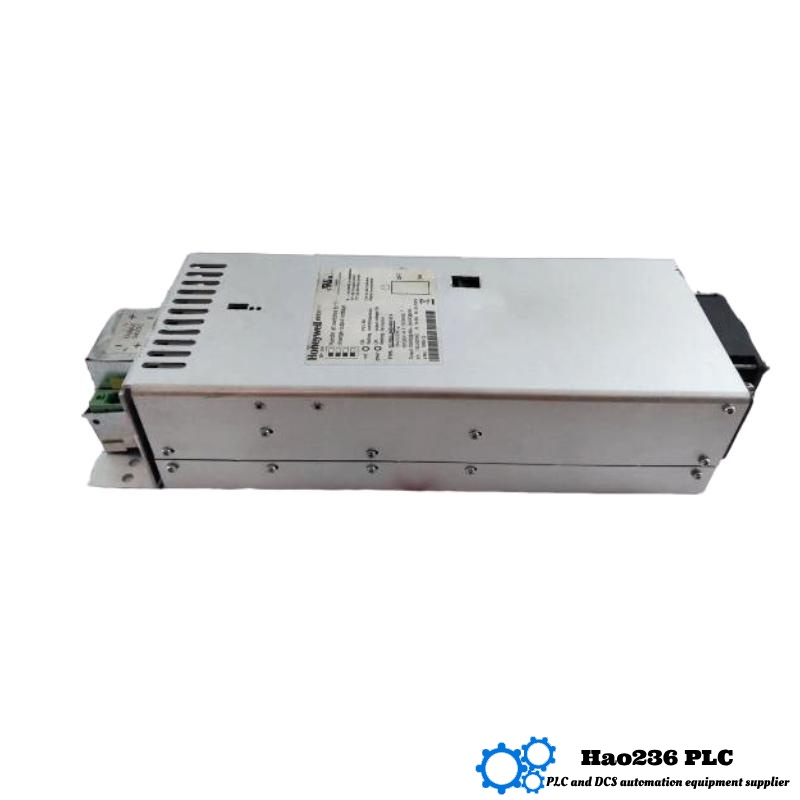

Honeywell FC-PSU-UNI2450U
Product Specifications
| Parameter | Specification |
|---|---|
| Model | FC-PSU-UNI2450U |
| Brand | Honeywell |
| Series | FC-PSU Universal Power Supply Series |
| Input Voltage Range | 100 – 240 V AC |
| Input Frequency | 47 – 63 Hz |
| Output Voltage | Selectable 25 V DC or 28 V DC |
| Max Output Current | ~48 A at 25 V, ~43 A at 28 V |
| Rated Output Power | ~1200 W |
| Efficiency | >85% at 220-240 V AC input |
| Ripple & Noise | <40 mV peak-to-peak |
| Hold-Up Time | ~100 ms at full load |
| Protections | Overvoltage, overload, short circuit, over-temperature |
| Operating Temperature | -5°C to +50°C (full load) |
| Storage Temperature | -25°C to +85°C |
| Humidity | Up to 95%, non-condensing |
| Isolation Voltage | Input to output ~3750 Vrms |
| Dimensions (W×H×D) | 420.5 mm × 140 mm × 90 mm |
| Weight | ~5.7 kg |
| Certifications | CE, UL508, TUV, CSA |
Product Introduction
The Honeywell FC-PSU-UNI2450U is a robust universal input power supply unit designed for industrial automation and safety-critical applications. It converts wide-range AC voltages into stable, clean DC power with selectable output voltages of 25 V or 28 V, delivering high currents up to approximately 48 A. This power supply is engineered to meet rigorous standards for efficiency, reliability, and safety, making it ideal for powering PLCs, I/O racks, safety controllers, and other critical automation equipment.
The unit features multiple protections to safeguard connected devices, ensuring continuous operation even under electrical stress. Its compact form factor and solid construction facilitate integration into control cabinets worldwide, supporting global voltage standards and harsh industrial environments.
Product Applications
-
Industrial control cabinets and automation panels
-
Powering Programmable Logic Controllers (PLCs)
-
Supplying safety and I/O modules in manufacturing plants
-
Electrical power backup and redundancy configurations
-
Oil & gas, chemical processing, and power generation plants
-
Distributed control systems and network devices requiring stable DC power
Product Advantages
-
Wide input voltage range supports various global power standards
-
High current output reduces need for multiple power supplies
-
Low ripple and noise protect sensitive electronic components
-
Fast hold-up time maintains system stability during brief power interruptions
-
Comprehensive protection features ensure long-term reliability
-
Supports parallel and redundant operation for higher system uptime
-
Compact and robust design fits into industrial environments with ease
-
Certified to multiple safety and quality standards
Related / Same Series or Similar Models (5 Recommended)
| Model | Output Voltage | Max Current | Rated Power | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| FC-PSU-UNI2450U | 25/28 V DC | 48 A | 1200 W | 420.5 × 140 × 90 | 5.7 |
| FC-PSU-UNI4825U | 48 V DC | 25 A | 1200 W | Similar | ~5.7 |
| FC-PSU-UNI2412 | 24 V DC | 12 A | Lower power | Smaller | 3.0-3.5 |
| FC-PSU-UNI2450U V1.0 | 25 V DC | Slightly less current | Lower power | Similar | ~5.7-6.0 |
| FC-PSU-24100 | 24 V DC | ~100 A | 2400 W | Larger | >10 |
Popular Honeywell Models (Brand-Wide)
| Model | Output Voltage | Current/Key Spec | Use Case | Dimensions & Weight |
|---|---|---|---|---|
| FC-PSU-UNI2450U | 25/28 V DC | ~48 A | High-power automation systems | 420.5 × 140 × 90 mm; 5.7 kg |
| FC-PSU-UNI4825U | 48 V DC | ~25 A | Communications, backup power | Similar; ~5.7 kg |
| FC-PSU-UNI2412 | 24 V DC | ~12 A | Small control panels | Smaller & lighter |
| FC-PDB-IOX05 | 5 V DC | Low current | Signal & I/O distribution | Compact module |
| FC-IOTA-R24 | 24 V DC | Redundant I/O | Systems needing redundancy | Moderate size |
FAQs (QA)
Q1: What output voltages are available?
A1: The power supply offers selectable output voltages of 25 V DC or 28 V DC.
Q2: What is the maximum output current at 25 V?
A2: Approximately 48 A.
Q3: What input voltage range does this power supply support?
A3: It supports a wide input range from 100 V to 240 V AC.
Q4: How efficient is the FC-PSU-UNI2450U?
A4: It achieves greater than 85% efficiency at high input voltage.
Q5: What protection features are included?
A5: Protections include overvoltage, overload, short-circuit, and over-temperature safeguards.
Q6: What is the hold-up time during brief power loss?
A6: Approximately 100 milliseconds at full load.
Q7: Can it be used in redundant power supply configurations?
A7: Yes, it supports parallel and redundant operation for system reliability.
Q8: What are the dimensions and weight of the unit?
A8: Dimensions are 420.5 mm x 140 mm x 90 mm; weight is about 5.7 kg.
Q9: What temperature range is supported?
A9: The operating temperature range is from -5°C to +50°C at full load.
Q10: Which certifications does this product hold?
A10: It is certified under CE, UL508, TUV, and CSA safety standards.
