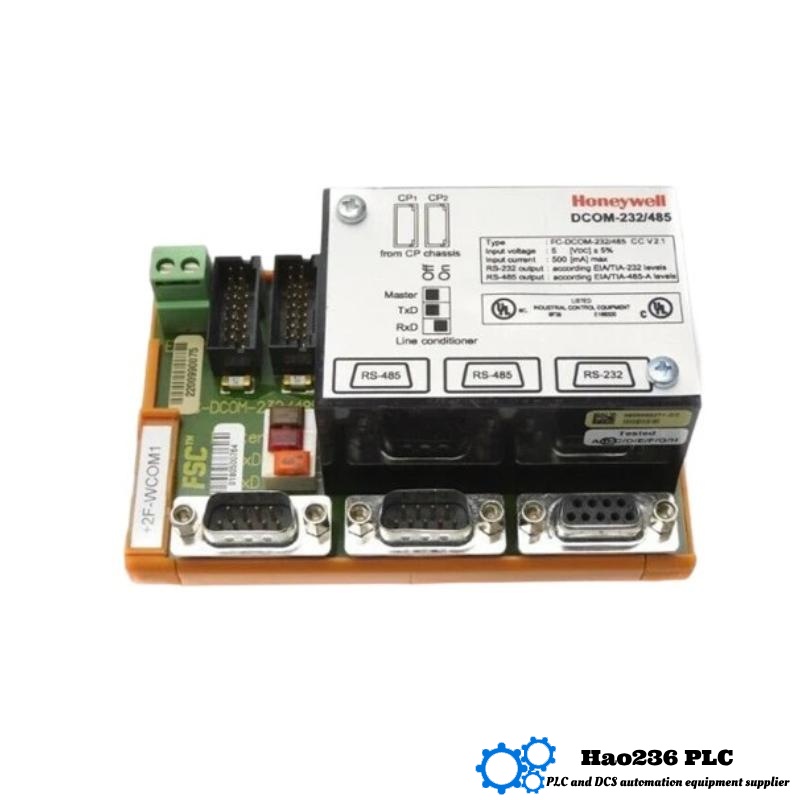

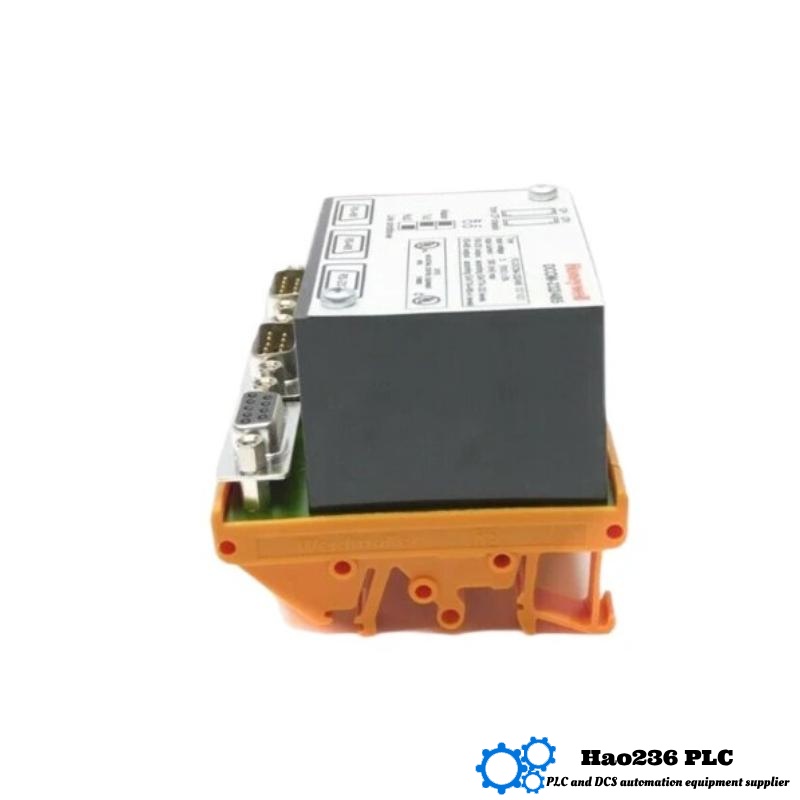

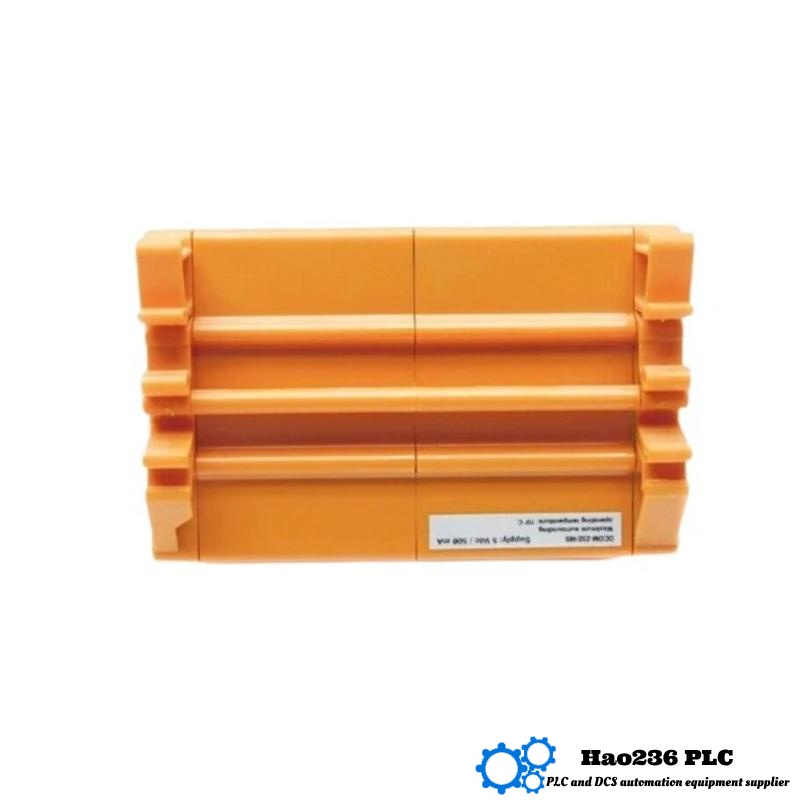

Honeywell FC‑DCOM‑234
Product Introduction
The FC‑DCOM‑234/485 is an industrial-grade communication interface module that provides both RS‑232C and RS‑485/422 connectivity. Tailored for use within Honeywell’s automation platforms (such as Experion, ControlEdge PLCs, and Safety Manager systems), this module facilitates seamless communication with legacy and third-party equipment—including flow computers, RTUs, PLCs, analyzers, and field sensors. It supports Modbus RTU in both master and slave configurations, ensuring interoperability across diverse industrial environments.
Applications
Ideal for:
-
Integrating serial devices into modern Honeywell control systems
-
Connecting SCADA, PLCs, and sensors via Modbus RTU
-
Bridging legacy RS‑232 or RS‑485 Tier devices to automation platforms
-
Process automation in energy, oil & gas, water treatment, and manufacturing
-
Enabling remote asset and pipeline telemetry via serial links
Key Advantages
-
Dual Port Flexibility: Switch between RS‑232C and RS‑485 protocols via configuration
-
Compact Installation: DIN‑rail or baseplate mountable in standard control cabinets
-
Modbus RTU Compatibility: Supports both master and slave modes for flexible deployment
-
High Reliability: Features optical isolation for RS‑485 path, LED diagnostic indicators, and industrial-grade build
-
Hot‑Swap Ready: Designed to be replaced or added without shutting down the host controller
-
Robust Environmental Tolerance: Wide operating temperature, humidity resistance, and conformal coating
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FC‑DCOM‑234 |
| Brand | Honeywell |
| Function | RS‑232C / RS‑485 serial interface module |
| Ports | 1 × RS‑232C, 1 × RS‑485/422 |
| Protocols | Modbus RTU (Master/Slave), limited ASCII, custom |
| Baud Rate | RS‑232: up to 250 kBaud RS‑485: up to 2 MBaud |
| Port Config | Software-configurable (parity, data bits, etc.) |
| Isolation | Optical on RS‑485 line |
| Device Support | Up to 32 devices on RS‑485 bus |
| Power Supply | 5 V DC via controller backplane (≤ 500 mA) |
| Mounting | DIN‑rail TS32/TS35 (approx. 117 mm rail length) |
| Dimensions (L×W×H) | 120 × 100 × 80 mm |
| Weight | ~1.0 kg |
| Operating Temp. | –20 °C to +60 °C |
| Storage Temp. | –40 °C to +85 °C |
| Humidity | 5%–95% RH (non-condensing) |
| Certifications | CE, UL, CSA, RoHS compliant |
| LED Indicators | TX, RX, Status, Comm Error |
| Environmental Coating | Conformal coating available for harsh conditions |
Related Models (Same Family)
| Model | Description | Key Highlights |
|---|---|---|
| FC‑DCOM‑234/485 | Dual RS‑232/RS‑485 interface (this) | Flexible serial options |
| FC‑DCOM‑232 | RS‑232 only interface | Legacy RS‑232 support |
| FC‑DCOM‑485 | RS‑485 only interface | Industrial-grade RS‑485 bus |
| FC‑DCOM‑ETH | Ethernet / Modbus TCP module | Network-based communications |
| FC‑DCOM‑CAN | CAN‑bus interface module | Motion control and machine networks |
Popular Honeywell Products
| Model | Description |
|---|---|
| FC‑DCOM‑234/485 | Dual serial interface (this model) |
| FC‑DCOM‑ETH | Ethernet communication module |
| FC‑DCOM‑CAN | CAN‑bus interface for machinery |
| FC‑IODI16 | Digital input module (16 points) |
| FC‑IODO16 | Digital output module (16 points) |
Frequently Asked Questions (QA)
Q1: Can the module act as both Modbus master and slave?
A1: Yes, it supports both configurations as needed.
Q2: Can RS‑232 and RS‑485 ports be used at the same time?
A2: No, only one port is active at a time, selectable via software.
Q3: Is the RS‑485 interface isolated?
A3: Yes, it includes optical isolation to maintain signal integrity.
Q4: Does it support hot‑swapping?
A4: Yes, if the host controller architecture allows it.
Q5: What configuration parameters are programmable?
A5: You can set baud rate, parity, data bits, and stop bits via software.
Q6: How many devices can be connected via RS‑485?
A6: Up to 32 devices on one RS‑485 bus according to the spec.
Q7: What is the operating temperature range?
A7: –20 °C to +60 °C; storage up to +85 °C.
Q8: What are the physical dimensions and weight?
A8: 120 × 100 × 80 mm; approximately 1 kg.
Q9: Does it have diagnostic LEDs?
A9: Yes—there are LEDs for TX, RX, status, and communication errors.
Q10: Can it be mounted on DIN rail?
A10: Yes, it supports standard TS32/TS35 DIN rail mounting.
