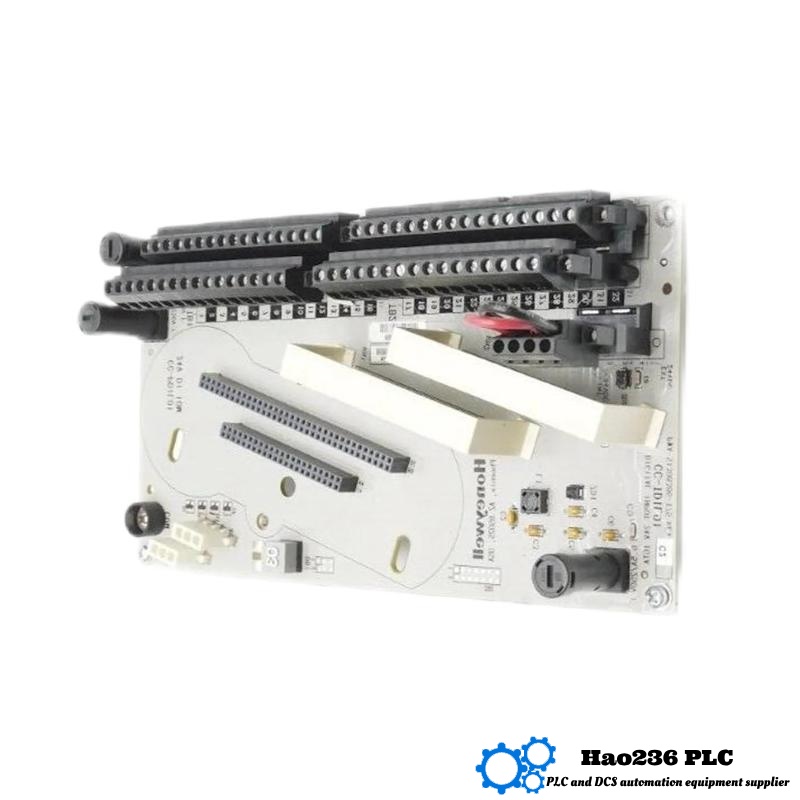

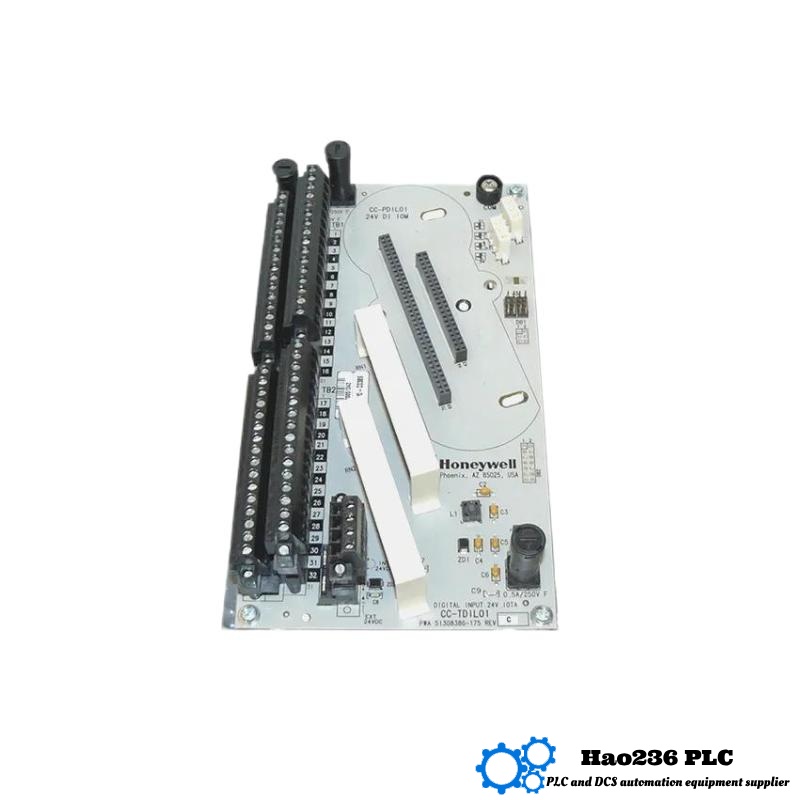

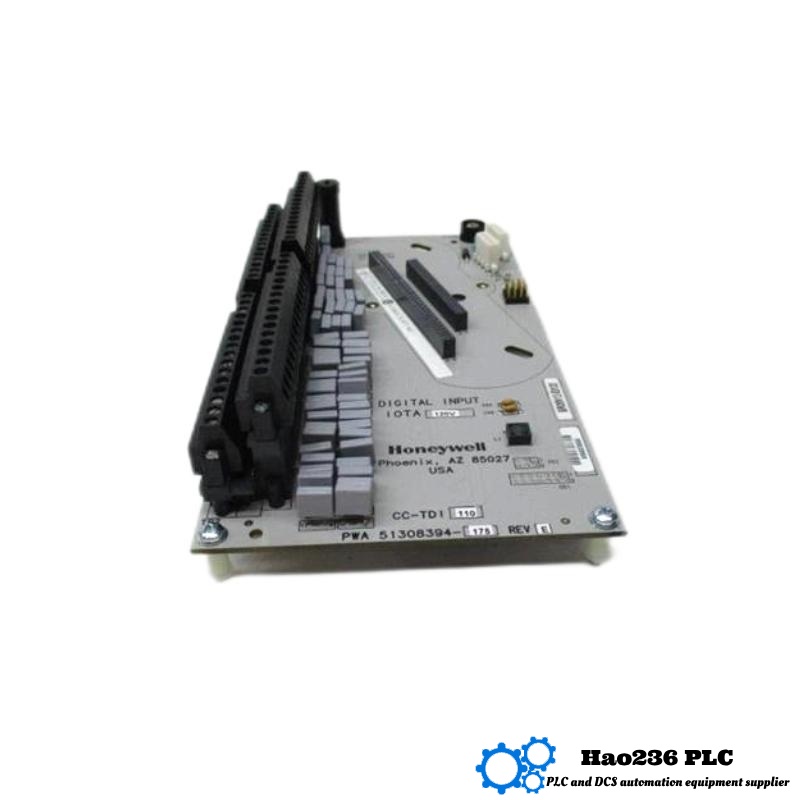

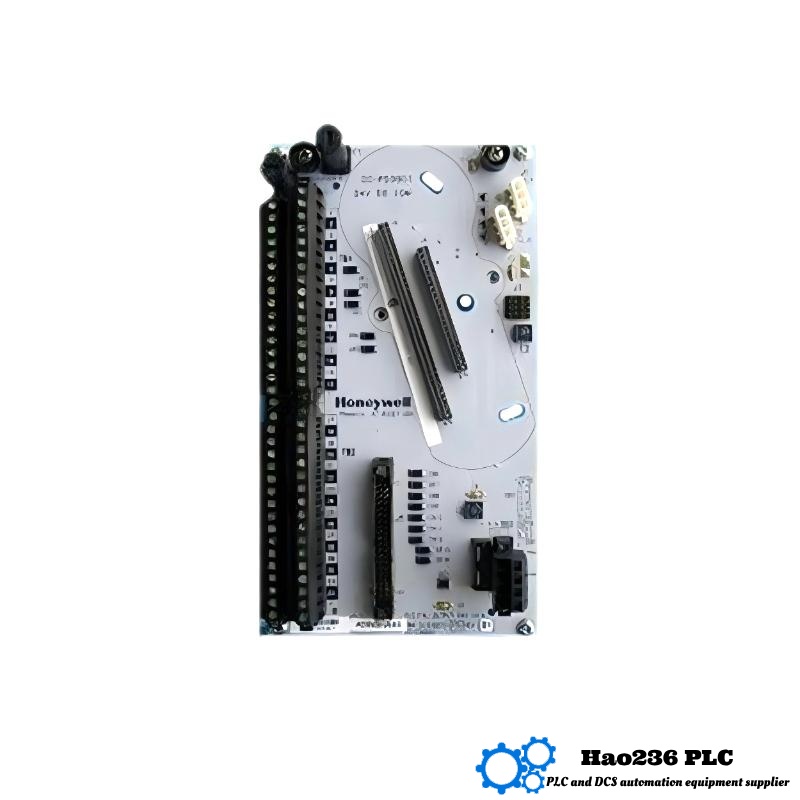

Honeywell CC-TDI230 Digital Input Module
Product Description:
The Honeywell CC-TDI230 is a digital input module designed for use in industrial automation and control systems. This module is part of Honeywell’s Experion Process Knowledge System (PKS), which is tailored to handle the input of discrete digital signals from various field devices. The CC-TDI230 allows the system to receive on/off signals (0 or 1) from devices such as switches, push buttons, and sensors, providing critical information to the central control system.
The module is engineered for reliable and accurate signal processing, ensuring that the system receives real-time data from the field. It is designed to be used in harsh industrial environments, offering high durability, long operational life, and easy integration with Honeywell’s automation systems. With 150 × 120 × 40 mm dimensions and 0.4 kg weight, the CC-TDI230 provides compact functionality in control cabinets, making it ideal for space-constrained applications.
Product Applications:
-
Industrial Automation: Used to capture digital signals from field devices, including push buttons, limit switches, and proximity sensors, and send the data to the control system.
-
Process Control: Critical for applications in chemical processing, energy, and manufacturing, where digital signals from field devices are needed for system monitoring and control.
-
Building Automation: Can be used in building control systems, including HVAC, lighting, and access control, to monitor and manage input signals.
-
Safety Systems: Utilized in safety-related applications where discrete inputs are required to trigger alarm systems or shutdown operations.
-
Robotics and Manufacturing: Used to gather input from various sensors in robotics and automated manufacturing systems for feedback into the central control unit.
Product Advantages:
-
Compact and Lightweight: At just 150 × 120 × 40 mm and 0.4 kg, the module provides high functionality in a space-efficient design, making it suitable for installations in confined areas.
-
High Durability: Built to withstand harsh industrial environments, the CC-TDI230 offers long-term reliability in demanding conditions.
-
Easy Integration: Seamlessly integrates into Honeywell’s Experion PKS systems and can easily connect to a wide range of field devices.
-
Reliable Signal Processing: Processes discrete digital signals accurately and in real-time, ensuring that data from field devices is captured promptly for control system processing.
-
Flexible Application: Suitable for a variety of industries, from process control to building automation, providing a versatile solution for digital input needs.
Brand: Honeywell
-
Brand Overview: Honeywell is a multinational conglomerate that specializes in a wide range of automation and control products. Honeywell’s solutions are used globally in industries such as manufacturing, energy, and process control, known for their reliability, innovation, and scalability.
Product Series: Experion PKS
-
Experion PKS Overview: The Experion PKS is a complete process control system developed by Honeywell for industries that require high levels of automation. It integrates process control with operations management to optimize business performance, ensuring high availability, efficiency, and flexibility.
Product Specifications:
| Parameter | Details |
|---|---|
| Model | CC-TDI230 |
| Dimensions (L x W x H) | 150 × 120 × 40 mm |
| Weight | 0.4 kg |
| Input Channels | 16 digital input channels |
| Input Type | Digital (Discrete) |
| Input Voltage | 24 V DC |
| Signal Type | ON/OFF (Discrete signals) |
| Operating Temperature | –10°C to +60°C |
| Mounting Type | Rack-mounted |
| Compatibility | Compatible with Honeywell’s Experion PKS system |
| Enclosure Rating | NEMA Type 1 |
| Protection Features | Overvoltage, overcurrent protection |
Recommended Similar or Related Models:
| Model | Dimensions (L x W x H) | Weight | Key Features |
|---|---|---|---|
| CC-TDI231 | 150 × 120 × 40 mm | 0.4 kg | Similar digital input module with extended signal processing capabilities |
| CC-TDI232 | 150 × 120 × 40 mm | 0.42 kg | Designed for high-speed digital signal processing with more input channels |
| CC-TDI233 | 150 × 120 × 40 mm | 0.45 kg | Offers enhanced protection and durability for extreme conditions |
| CC-TDI234 | 150 × 120 × 40 mm | 0.43 kg | Modular design with additional features for high-demand applications |
| CC-TDI235 | 150 × 120 × 40 mm | 0.44 kg | Multi-protocol support for greater flexibility in signal processing |
Popular Honeywell Models:
| Model | Type | Dimensions (mm) | Weight (kg) | Key Features |
|---|---|---|---|---|
| CC-TDOB11 | Digital Output Module | 150 × 120 × 40 | 0.45 | Digital output for field devices, robust design |
| CC-TDIL11 | Digital Input Module | 150 × 120 × 40 | 0.40 | Digital input with high noise immunity |
| CC-TP0X01 | Power Module | 130 × 110 × 50 | 0.50 | Power supply with overvoltage protection |
| CC-TDI230 | Digital Input Module | 150 × 120 × 40 | 0.40 | 16-channel digital input for Experion PKS |
| CC-TOO121 | Output Module | 150 × 120 × 45 | 0.42 | Relay output module suitable for industrial use |
Frequently Asked Questions (FAQ):
Q1: What is the Honeywell CC-TDI230 used for?
A1: The Honeywell CC-TDI230 is a digital input module used for capturing on/off signals from field devices and sending them to the control system for processing in automation and control applications.
Q2: How many input channels does the CC-TDI230 have?
A2: The CC-TDI230 has 16 digital input channels.
Q3: What is the operating voltage for the CC-TDI230?
A3: The operating voltage for the CC-TDI230 is 24 V DC.
Q4: What is the weight of the CC-TDI230?
A4: The CC-TDI230 weighs 0.4 kg.
Q5: What temperature range can the CC-TDI230 operate in?
A5: The CC-TDI230 operates in a temperature range of –10°C to +60°C.
Q6: Can the CC-TDI230 be used in hazardous environments?
A6: The CC-TDI230 is designed for industrial environments, but it is not rated for hazardous area use without additional protection.
Q7: How is the CC-TDI230 integrated into a control system?
A7: The CC-TDI230 integrates easily with Honeywell’s Experion PKS system via a rack-mounted setup, ensuring fast and reliable communication between the module and the control system.
Q8: What types of field devices can be connected to the CC-TDI230?
A8: The CC-TDI230 is compatible with a wide range of digital field devices, including push buttons, limit switches, and proximity sensors.
Q9: How is the module mounted?
A9: The CC-TDI230 is rack-mounted in the control system, providing secure and stable integration.
Q10: Does the CC-TDI230 have protection features?
A10: Yes, the CC-TDI230 includes overvoltage and overcurrent protection to ensure safe operation in the field.
