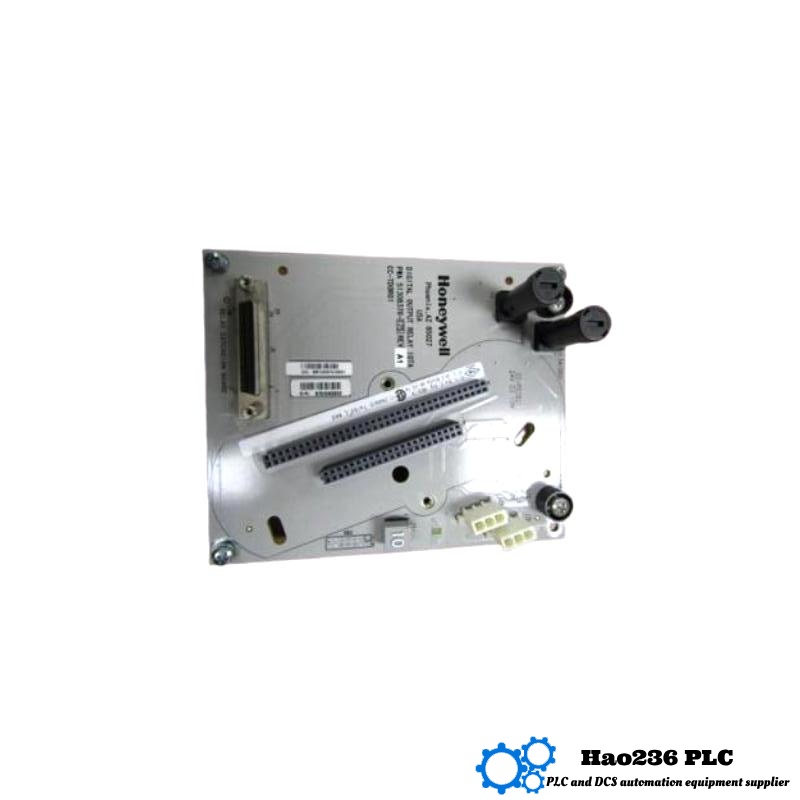

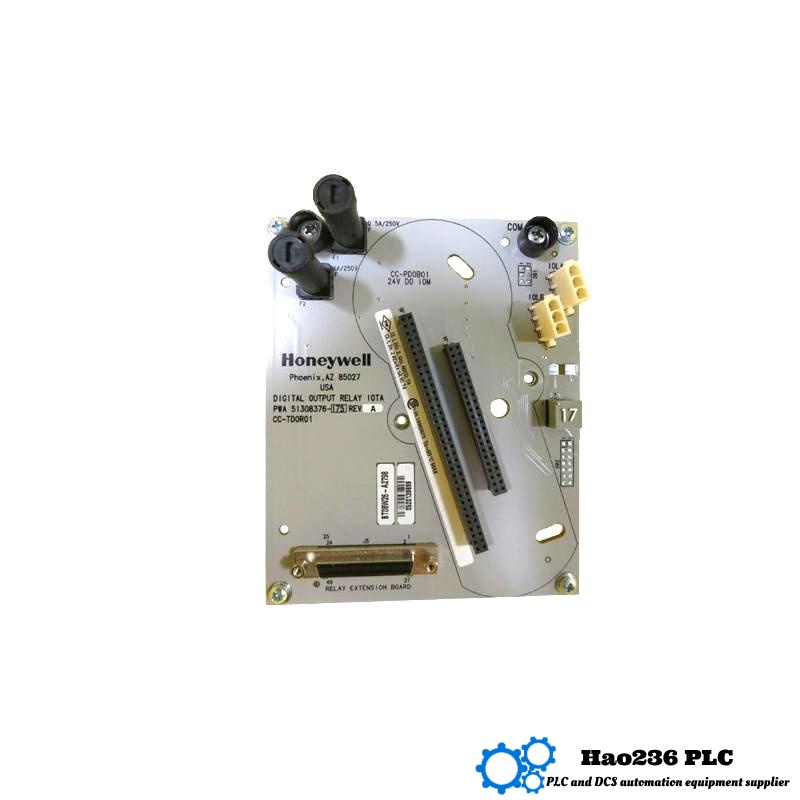

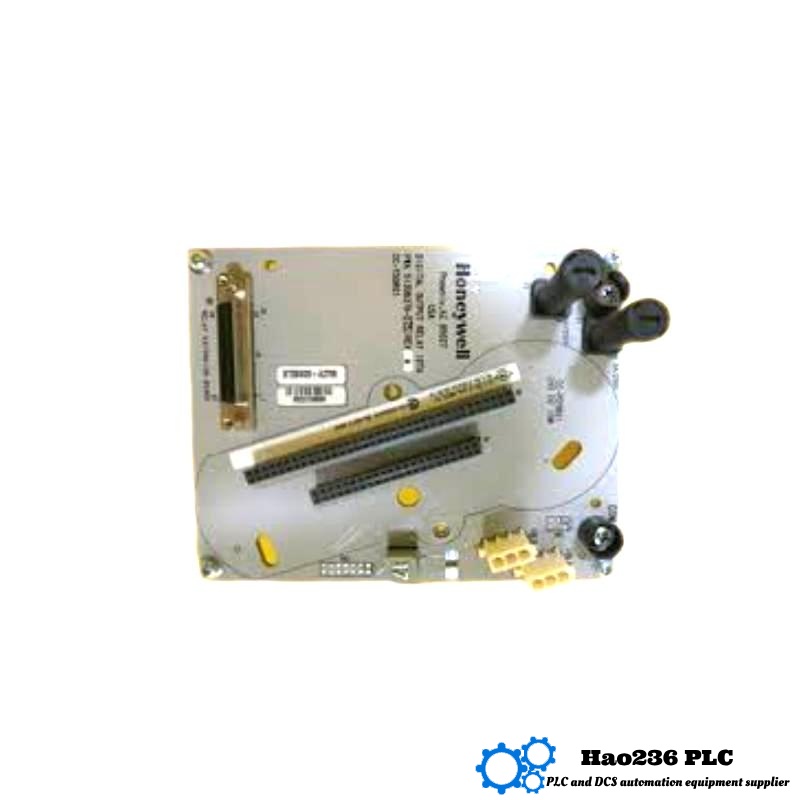

🟦 Product Overview – Honeywell CC‑TD0R01
The CC‑TD0R01 is a discrete output relay module intended for industrial digital control systems. Unlike solid-state digital outputs, this module uses relay switching, making it suitable for driving higher‑power loads, AC devices, or loads requiring true isolation. It is often employed in systems where reliability, isolation, and switching robustness are critical.
It integrates into modular I/O racks or control cabinets, delivering dependable relay outputs under automation control. Its design emphasizes durability, fault isolation, and compatibility with wide industrial environments.
📐 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | CC‑TD0R01 |
| Output Type | Relay (Form A / Normally Open contacts) |
| Number of Channels | 8 channels |
| Contact Rating | 5 A @ 250 VAC / 30 VDC |
| Coil Voltage | 24 VDC nominal |
| Isolation (per channel) | 1500 V between contacts and module electronics |
| Operate / Release Time | < 10 ms / < 5 ms |
| Contact Material | Silver alloy or equivalent |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5% to 95%, non-condensing |
| Power Consumption | ≈ 0.8 W (idle, for coil energization) |
| Mounting | DIN rail or modular rack insertion |
| Dimensions (mm) | 120 × 85 × 45 mm |
| Weight (kg) | 0.40 kg |
📝 Product Description & Functionality
The CC‑TD0R01 module receives digital command signals (e.g. from a controller or I/O bus) and actuates internal relay contacts to switch external devices. Each of its 8 channels provides a physical relay closure, isolating the module electronics from the load side — ideal for AC / DC loads, larger motors, solenoids, or signals requiring full galvanic separation.
The module includes built-in coil suppression, overcurrent protection, and diagnostic detection (such as stuck contacts or coil failure). Its relay design ensures low leakage, strong isolation, and compatibility with diverse load types, making it suitable for industrial control applications where robustness is paramount.
🏗 Applications
-
Controlling solenoid valves, pumps, compressors
-
Switching AC motors or heater elements
-
Turning on/off indicator lights, alarms, sirens
-
Driving field relays or contactors
-
Emergency shutdown or interlock outputs
-
Process control in oil, gas, chemical plants
-
Manufacturing lines requiring robust switching
-
Building automation (lighting, HVAC loads)
-
Safety / interlock control systems
-
Auxiliary power switching in distributed control panels
💡 Key Advantages
-
True Relay Isolation: Each channel isolates the output side for safety and noise immunity
-
High Load Capacity: Can handle moderate AC/DC loads (e.g. 5 A)
-
Durability: Designed for frequent switching and heavy duty usage
-
Built-in Protection: Coil suppression, contact arcing protection, fault detection
-
Diagnostic Support: Detect stuck contacts or coil failure, enabling preventive maintenance
-
Wide Temperature Range: Operates reliably in industrial conditions
-
Modular Integration: Fits existing relay I/O racks easily
-
Flexible Deployment: Suitable for both control and power switching tasks
🏷 Brand & Series
-
Brand: Honeywell
-
Series: Discrete Output Relay Modules (TD0R / Relay Output Family)
-
Category: Relay output I/O modules
-
System Context: Typically part of distributed control / modular I/O architectures in industrial automation
🔁 Related / Similar Models (Same Series or Relay Output Family)
| Model | Output Type | Channel Count / Feature | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| CC‑TD0R01 | 8-channel relay outputs | Standard relay output module | 120×85×45 | 0.40 |
| CC‑TD0R02 | 16-channel relay outputs | Doubled output capacity | 160×85×45 | 0.60 |
| CC‑TD0R03 | Relay + digital mix | 8 relays + 8 TTL outputs | 140×85×45 | 0.50 |
| CC‑TDIL01 | Digital input module | Inputs instead of relay outputs | 120×85×40 | 0.28 |
| CC‑TD0S01 | Solid-state output module | SSR outputs instead of mechanical relays | 120×85×40 | 0.35 |
🔝 Popular Honeywell / Related Modules
| Model | Module Type | Application / Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| CC‑TAOX51 | Analog Output Module | 16-channel analog output module | 120×85×40 | 0.30 |
| CC‑PWRR20 | Redundant Power Module | Dual 24 V DC supply with redundancy | 140×100×40 | 0.45 |
| CC‑PUI03 | Universal I/O Module | Configurable input / output module | 120×90×40 | 0.35 |
| CC‑TAID01 | Analog Input Module | 16 analog sensor inputs | 120×85×40 | 0.30 |
| CC‑PAOH51 | HART Analog Output Module | Precision AO with HART comms | 120×85×40 | 0.28 |
❓ Frequently Asked Questions (FAQ)
Q1: How many relay outputs does the CC‑TD0R01 provide?
A1: It provides 8 relay channels.
Q2: What is the maximum current capacity per relay?
A2: Each relay contact can switch up to 5 A at 250 VAC or 30 VDC.
Q3: What coil voltage does this module require?
A3: The relay coils are driven by 24 VDC nominal.
Q4: What protections are built into each channel?
A4: Coil suppression, contact arcing protection, and diagnostic detection of coil or contact faults.
Q5: Can it be used for AC loads?
A5: Yes, the relays can switch AC loads (e.g. motors, heaters) within their rating.
Q6: What is the isolation rating?
A6: 1500 V isolation between relay contacts and internal electronics.
Q7: What are its physical dimensions and weight?
A7: Approx. 120 × 85 × 45 mm, weighing around 0.40 kg.
Q8: What is the operating temperature range?
A8: From –20 °C to +70 °C under normal conditions.
Q9: Is this module suitable for high switching frequency?
A9: The relay design is better for moderate switching; extremely high-frequency switching may reduce relay life.
Q10: Can it integrate with digital I/O modules?
A10: Yes, it often pairs with digital input modules and other I/O devices in modular control systems.
