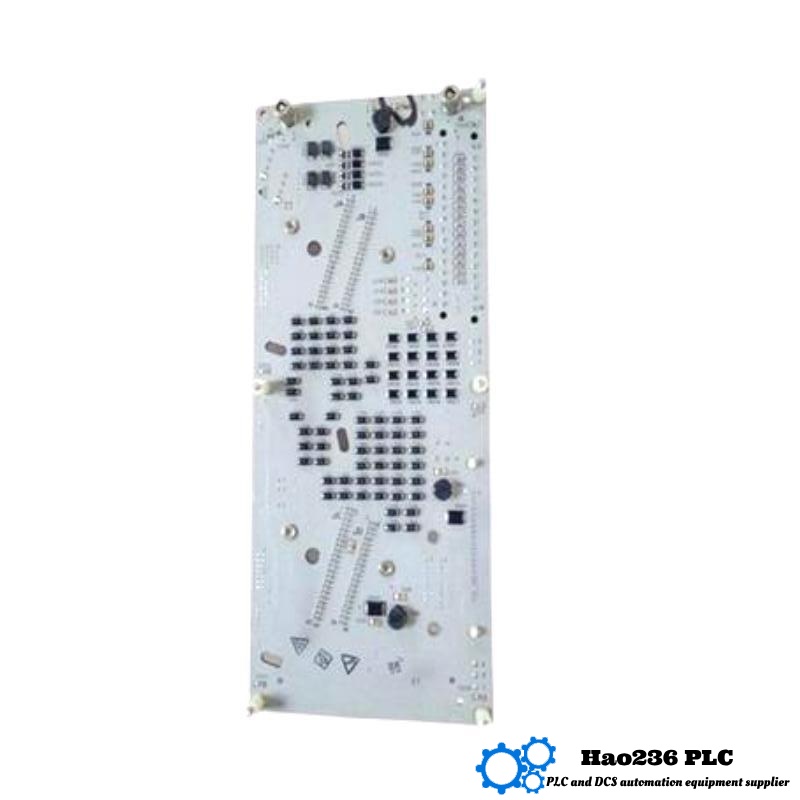

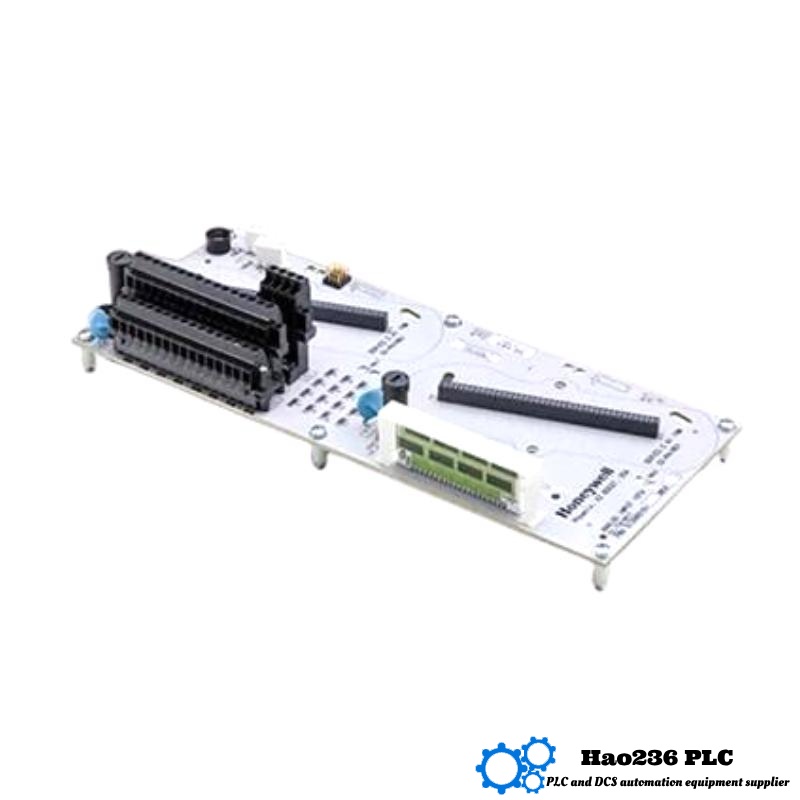

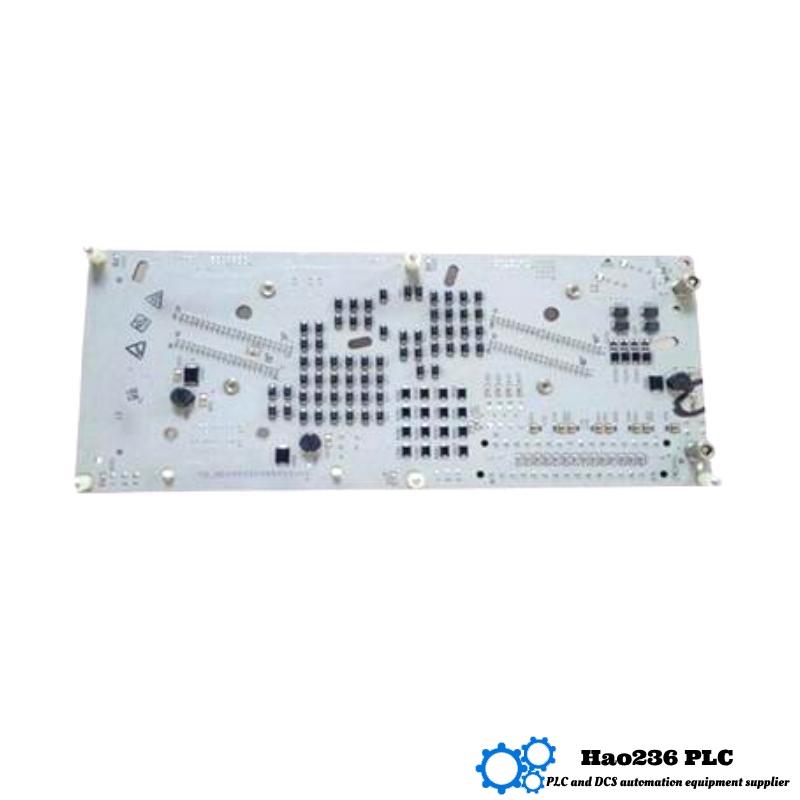

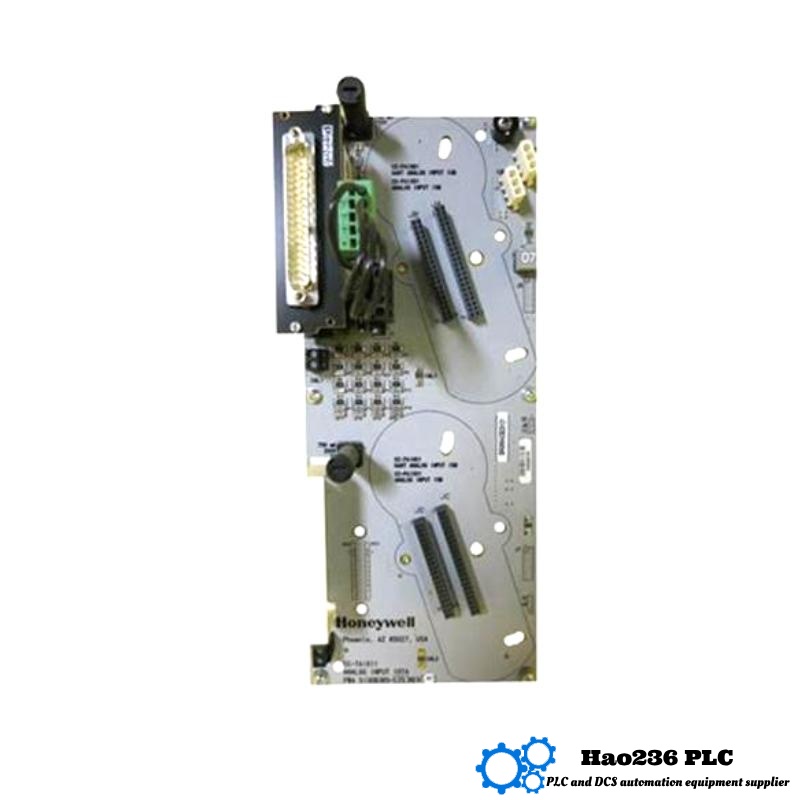

Honeywell CC-TAIN11 51306515-175 Analog Input Module
Product Introduction
The Honeywell CC-TAIN11 (part number 51306515-175) is an advanced analog input module designed for robust and precise data acquisition in industrial automation environments. This module is engineered to measure analog signals from a wide range of field devices, such as sensors for temperature, pressure, flow, and level. It converts these analog inputs into high-resolution digital data that can be processed by Honeywell’s control systems, such as Experion PKS or other DCS platforms.
With superior signal conditioning and built-in electrical isolation, the CC-TAIN11 ensures data integrity and system safety even in electrically noisy or harsh environments. Its modular design enables flexible configuration and easy integration into existing control systems, providing reliability and accuracy essential for critical process monitoring.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | CC-TAIN11 51306515-175 |
| Module Type | Analog Input Module |
| Number of Channels | 8 (Universal Analog Inputs) |
| Input Signal Type | 4-20 mA, 0-20 mA, Voltage (0-10V) |
| Accuracy | ±0.1% of full scale |
| Resolution | 16-bit Analog to Digital Conversion |
| Response Time | ≤ 100 ms |
| Isolation Voltage | 1500 Vrms |
| Operating Temperature | –20 to 60 °C |
| Storage Temperature | –40 to 85 °C |
| Humidity Range | 5 to 95% (non-condensing) |
| Communication Interface | Backplane Bus |
| Mounting Type | Rack Mount |
| Dimensions (W×H×D) | 63.5 × 124.46 × 307.34 mm |
| Weight | 0.5 kg |
Product Applications
-
Measurement and monitoring of analog process signals in chemical, oil & gas, power generation, and manufacturing industries
-
Integration into Honeywell Experion PKS and other distributed control systems for enhanced process control
-
Real-time data acquisition for critical process variables such as temperature, pressure, level, and flow
-
Use in safety instrumented systems (SIS) to ensure process safety and compliance with regulatory standards
-
Supporting both continuous and batch processing environments requiring high accuracy and reliability
-
Remote and hazardous location monitoring where rugged and reliable instrumentation is mandatory
Product Advantages
-
High Channel Density: 8 input channels per module maximize space efficiency in control racks.
-
Universal Input Compatibility: Accepts current and voltage signals, increasing flexibility for various field devices.
-
Excellent Accuracy & Resolution: ±0.1% accuracy combined with 16-bit resolution ensures precise measurement.
-
Robust Isolation: 1500 Vrms isolation protects system components from electrical noise and faults.
-
Wide Environmental Range: Designed to operate reliably between –20 and 60 °C under industrial conditions.
-
Modular Rack-Mount Design: Facilitates easy installation and maintenance in industrial control systems.
-
Reliable Performance: Durable design assures long-term stable operation in harsh environments.
Brand Information
Honeywell International Inc. is a renowned leader in industrial automation and control technology, with decades of experience delivering innovative and reliable solutions worldwide. Honeywell’s products, including the CC series analog modules, are trusted for their quality, performance, and ability to enhance operational safety and efficiency in diverse industries.
Related Models in the Same Series or Similar Types
| Model Number | Type | Channels | Input Signal Type | Dimensions (mm) | Weight | Notes |
|---|---|---|---|---|---|---|
| CC-TAIN11 51306515-175 | Analog Input Module | 8 | 4-20 mA, 0-10 V | 63.5 × 124.46 × 307.34 | 0.5 kg | High-density analog input module |
| CC-TAIN01 | Analog Input Module | 4 | 4-20 mA, 0-10 V | 152 × 84 × 45 | 0.5 kg | Standard 4 universal input channels |
| CC-TAIN02 | Analog Input Module | 8 | 4-20 mA, 0-10 V | 152 × 150 × 45 | 0.7 kg | Similar channel count, larger size |
| CC-TAIP01 | Analog Input Passive | 4 | RTD, Thermocouples | 152 × 84 × 45 | 0.5 kg | Temperature sensor dedicated module |
| CC-TAVO01 | Analog Voltage Output | 4 | 0-10 V output | 152 × 84 × 45 | 0.5 kg | Converts digital signals to analog voltage |
Popular Honeywell Modules (Different Series)
| Model Number | Type | Channels | Signal Type | Dimensions (mm) | Weight | Description |
|---|---|---|---|---|---|---|
| CC-TAIN11 | Analog Input Module | 8 | 4-20 mA, 0-10 V | 63.5 × 124.46 × 307.34 | 0.5 kg | High channel density analog input |
| CC-TAIP01 | Analog Input Passive | 4 | Thermocouples, RTDs | 152 × 84 × 45 | 0.5 kg | Temperature measurement module |
| CC-TAVO01 | Analog Voltage Output | 4 | 0-10 V output | 152 × 84 × 45 | 0.5 kg | Analog voltage output |
| CC-TACO01 | Analog Current Output | 4 | 4-20 mA output | 152 × 84 × 45 | 0.5 kg | Analog current output |
| CC-DI01 | Digital Input Module | 16 | 24 V DC digital inputs | 152 × 84 × 45 | 0.6 kg | Digital input module |
Frequently Asked Questions (FAQ)
Q1: What types of input signals does the CC-TAIN11 support?
A1: It supports 4-20 mA current loops, 0-20 mA, and 0-10 V voltage input signals.
Q2: How many input channels does the module have?
A2: The module features 8 universal analog input channels.
Q3: What is the accuracy level of this module?
A3: It provides an accuracy of ±0.1% of full scale.
Q4: What are the dimensions and weight of the module?
A4: The dimensions are 63.5 × 124.46 × 307.34 mm, and it weighs approximately 0.5 kg.
Q5: Does the module provide electrical isolation?
A5: Yes, it has 1500 Vrms electrical isolation for protection against noise and faults.
Q6: What is the operating temperature range?
A6: The operating temperature is from –20 to 60 degrees Celsius.
Q7: Can this module be integrated into Honeywell Experion PKS systems?
A7: Yes, it is designed for seamless integration with Experion PKS and compatible DCS platforms.
Q8: What mounting options are available?
A8: The module supports rack mounting for industrial control racks.
Q9: How quickly does the module respond to signal changes?
A9: The response time is less than or equal to 100 milliseconds.
Q10: What maintenance is required for this module?
A10: Minimal maintenance is needed; periodic inspection of wiring and cleaning of the module is recommended.
