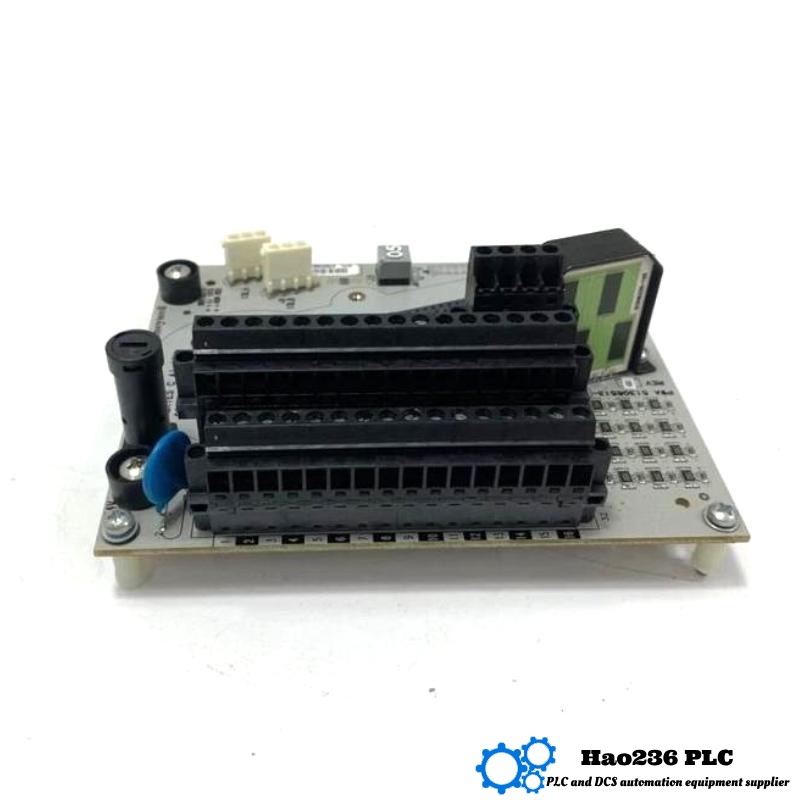

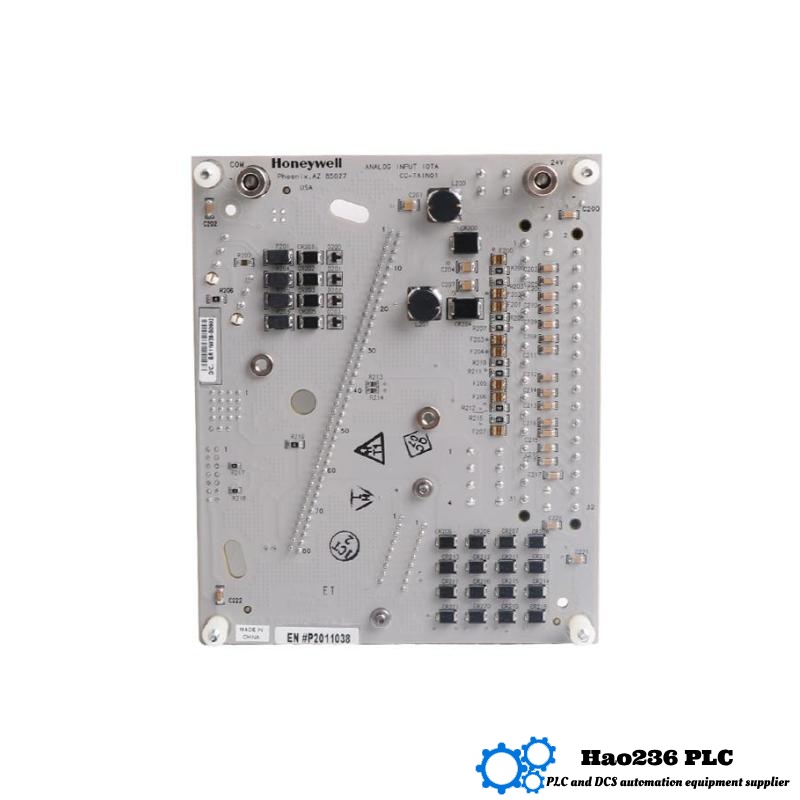

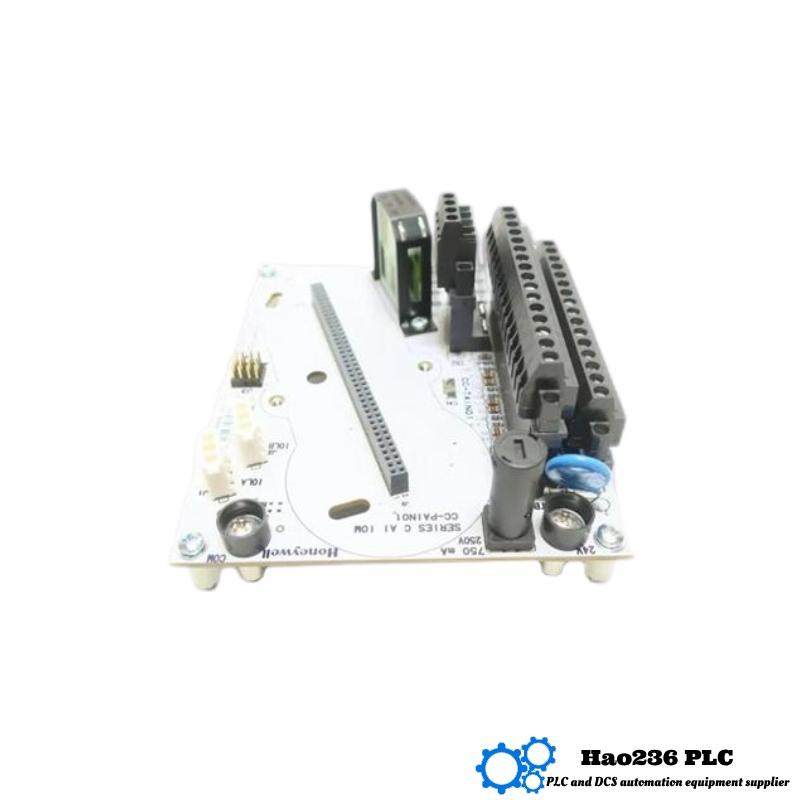

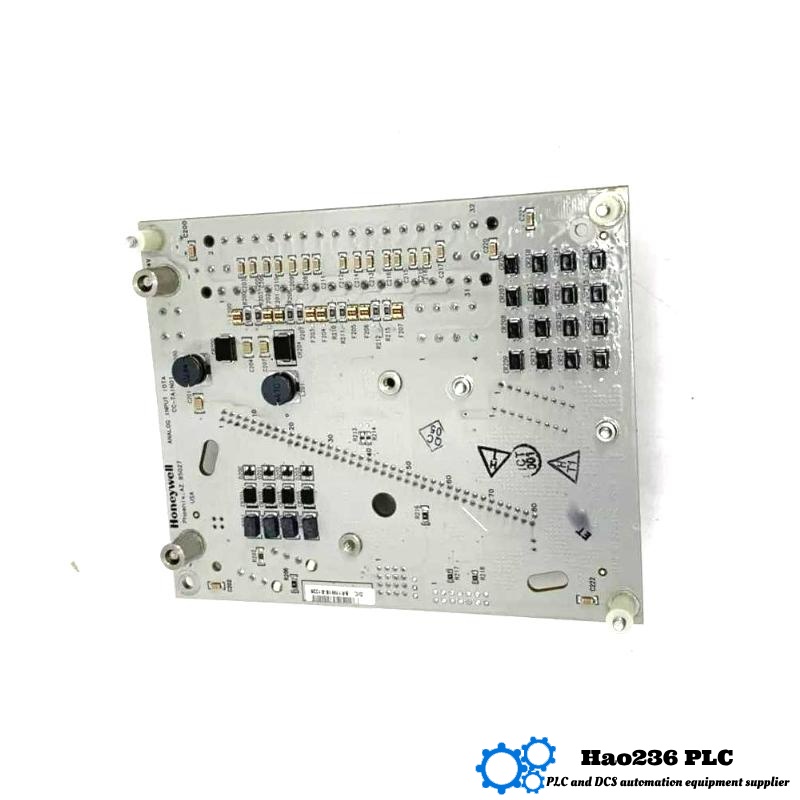

Honeywell CC-TAIN01 51306513-175 Analog Input Module
Product Introduction
The Honeywell CC-TAIN01 (part number 51306513-175) is a high-precision analog input module designed for use in Honeywell’s Experion Process Knowledge System (PKS) and other industrial automation control platforms. It specializes in accurately capturing and converting analog signals from field instruments such as temperature sensors, pressure transmitters, and flow meters into digital signals for process monitoring and control.
This module supports multiple analog input channels with high resolution and stability. It is engineered to withstand industrial environmental stresses and ensure reliable data acquisition critical for process safety and optimization.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | CC-TAIN01 51306513-175 |
| Module Type | Analog Input Module |
| Number of Channels | 4 (Universal Analog Inputs) |
| Input Signal Type | 4-20 mA, 0-20 mA, Voltage (0-10V) |
| Accuracy | ±0.1% of full scale |
| Resolution | 16-bit Analog to Digital Conversion |
| Response Time | ≤ 100 ms |
| Isolation Voltage | 1500 Vrms |
| Operating Temperature | –20 to 60 °C |
| Storage Temperature | –40 to 85 °C |
| Humidity Range | 5 to 95% (non-condensing) |
| Communication Interface | Backplane Bus |
| Mounting Type | DIN Rail or Rack Mount |
| Dimensions (W×H×D) | 152 × 84 × 45 mm |
| Weight | 0.5 kg |
Product Applications
-
Accurate measurement of process variables such as temperature, pressure, level, and flow in petrochemical, refining, power generation, and manufacturing plants
-
Data acquisition for distributed control systems (DCS) including Honeywell Experion PKS
-
Process monitoring and control to maintain safety, efficiency, and product quality
-
Integration with Honeywell safety instrumented systems (SIS) for critical alarms and interlocks
-
Use in batch and continuous process control environments requiring high signal accuracy
-
Remote monitoring in hazardous or hard-to-access industrial locations
Product Advantages
-
High Accuracy & Resolution: 16-bit ADC and ±0.1% accuracy for precise analog signal conversion
-
Universal Inputs: Compatible with current and voltage signals, providing flexibility in field instrumentation
-
Robust Electrical Isolation: 1500 Vrms isolation protects the system from noise and electrical faults
-
Wide Operating Range: Suitable for extreme industrial temperatures and humidity conditions
-
Reliable & Durable: Designed for long-term operation in harsh process environments
-
Seamless Integration: Native compatibility with Honeywell Experion PKS and other Honeywell automation platforms
-
Compact Design: Space-saving size facilitates installation in existing control racks
Brand Information
Honeywell International Inc. is a global leader in industrial automation, process control, and safety systems. With a rich history dating back over a century, Honeywell is known for pioneering reliable and innovative solutions that improve operational safety, efficiency, and profitability across various industries worldwide. The CC series modules form a critical component of Honeywell’s control system architecture.
Related Models in the Same Series or Similar Types
| Model Number | Type | Channels | Input Signal Type | Dimensions (mm) | Weight | Notes |
|---|---|---|---|---|---|---|
| CC-TAIN01 51306513-175 | Analog Input Module | 4 | 4-20 mA, 0-10 V | 152 × 84 × 45 | 0.5 kg | Standard 4 universal input channels |
| CC-TAIN02 | Analog Input Module | 8 | 4-20 mA, 0-10 V | 152 × 150 × 45 | 0.7 kg | Higher channel count version |
| CC-TAIP01 | Analog Input Passive | 4 | RTD, Thermocouples | 152 × 84 × 45 | 0.5 kg | For temperature sensors |
| CC-TAVO01 | Analog Voltage Output | 4 | 0-10 V output | 152 × 84 × 45 | 0.5 kg | Converts digital signals to analog voltage |
| CC-TACO01 | Analog Current Output | 4 | 4-20 mA output | 152 × 84 × 45 | 0.5 kg | Converts digital signals to analog current |
Popular Honeywell Modules (Different Series)
| Model Number | Type | Channels | Signal Type | Dimensions (mm) | Weight | Description |
|---|---|---|---|---|---|---|
| CC-TAIN01 | Analog Input Module | 4 | 4-20 mA, 0-10 V | 152 × 84 × 45 | 0.5 kg | Standard universal analog input |
| CC-TAIP01 | Analog Input Passive | 4 | Thermocouples, RTDs | 152 × 84 × 45 | 0.5 kg | Temperature sensor input module |
| CC-TAVO01 | Analog Voltage Output | 4 | 0-10 V output | 152 × 84 × 45 | 0.5 kg | Analog voltage output module |
| CC-TACO01 | Analog Current Output | 4 | 4-20 mA output | 152 × 84 × 45 | 0.5 kg | Analog current output module |
| CC-DI01 | Digital Input Module | 16 | 24 V DC digital inputs | 152 × 84 × 45 | 0.6 kg | Digital input module |
Frequently Asked Questions (FAQ)
Q1: What types of signals can the CC-TAIN01 module handle?
A1: It can handle 4-20 mA current loops, 0-20 mA, and 0-10 V voltage signals.
Q2: How many input channels does the module have?
A2: The module supports 4 universal analog input channels.
Q3: What is the accuracy of the module?
A3: The module offers ±0.1% full-scale accuracy.
Q4: What are the module’s dimensions and weight?
A4: Dimensions are 152 × 84 × 45 mm, and the weight is approximately 0.5 kg.
Q5: Is the module electrically isolated?
A5: Yes, it provides 1500 Vrms electrical isolation for noise immunity and safety.
Q6: What is the operating temperature range?
A6: The module operates from –20 to 60 °C.
Q7: Can this module be used with Honeywell Experion PKS?
A7: Yes, it is designed for seamless integration with Experion PKS.
Q8: What type of mounting does the module support?
A8: It supports DIN rail or rack mounting.
Q9: How fast does the module respond to input changes?
A9: The typical response time is 100 milliseconds or less.
Q10: What maintenance is required for this module?
A10: Routine cleaning and inspection of wiring terminals are recommended; the module is designed for long-term reliability.
