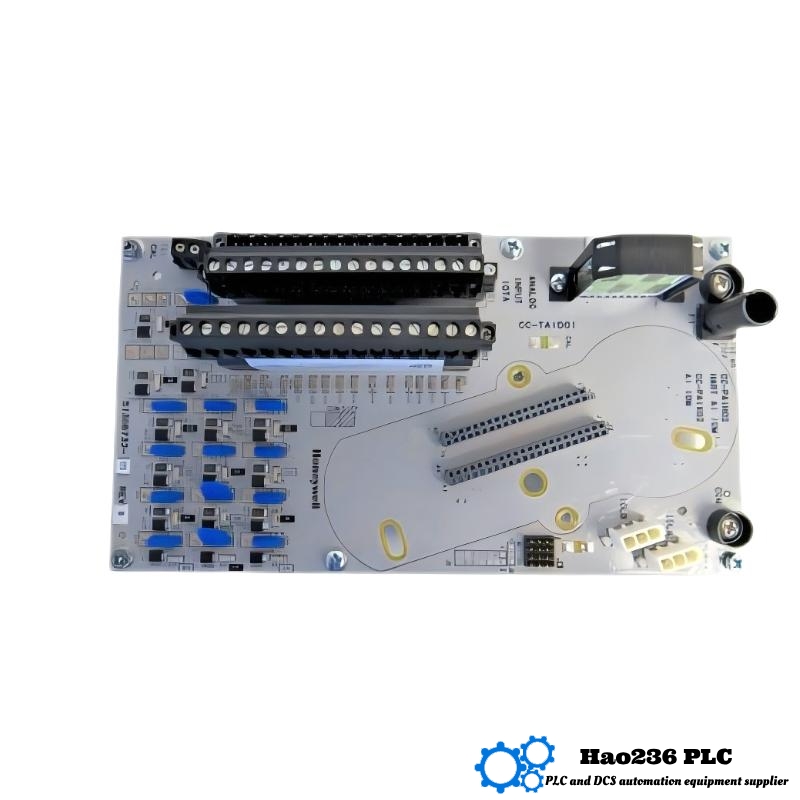

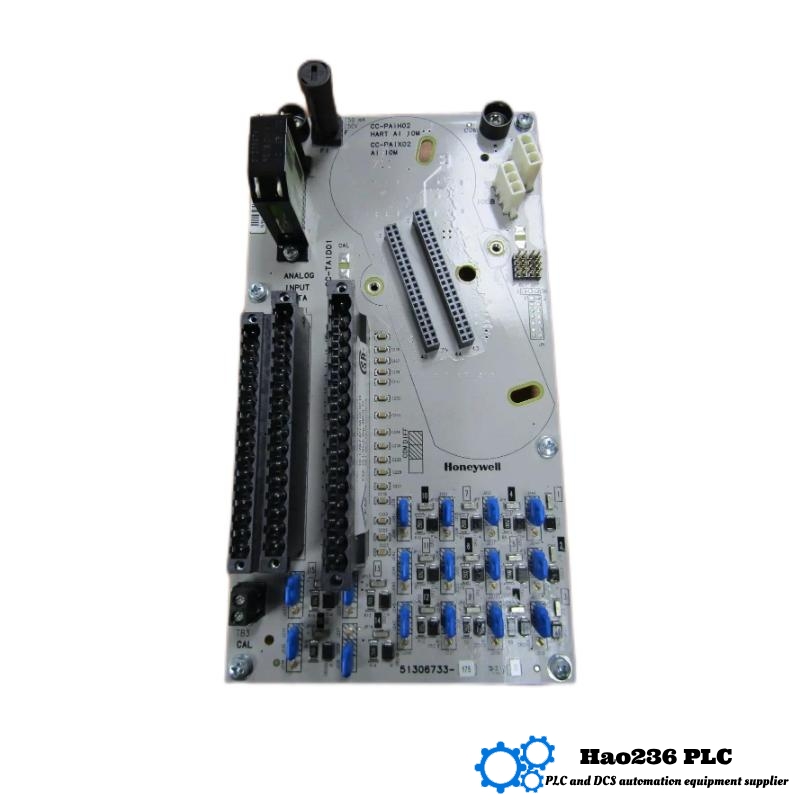

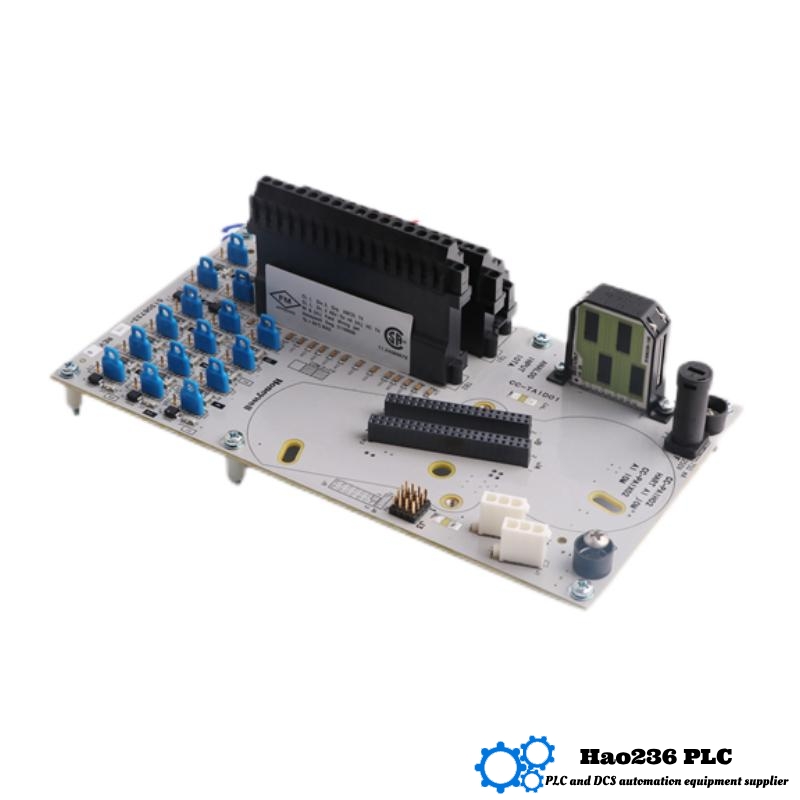

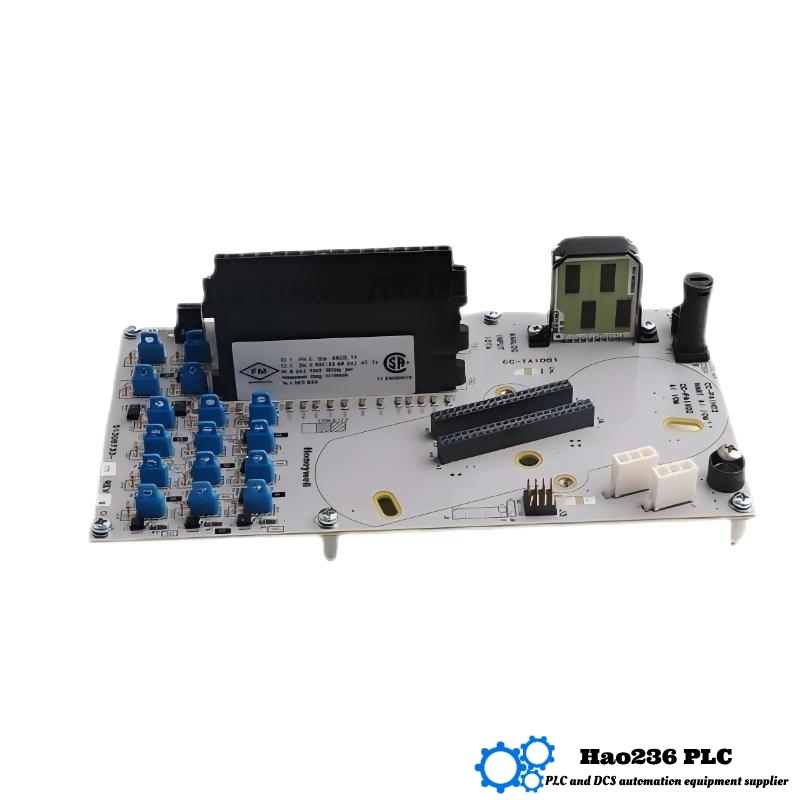

Honeywell CC-TAID01 Analog Input Module
Product Introduction
The Honeywell CC-TAID01 is a high-performance analog input module designed for industrial automation systems. It is specifically tailored for use in Honeywell’s Experion and ControlEdge platforms, offering reliable and accurate processing of analog signals in demanding applications. This module supports a wide range of input signals, including 4-20mA, 0-10V, and thermocouples, ensuring flexibility and compatibility with various industrial sensors.
Compact and easy to integrate, the CC-TAID01 provides high precision and is engineered for use in critical control systems where accurate data acquisition is essential. It’s ideal for industries such as oil and gas, chemical processing, and power generation, where precise monitoring of physical parameters like temperature, pressure, and flow is crucial for operational efficiency and safety.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | CC-TAID01 |
| Type | Analog Input Module |
| Input Type | 4-20 mA, 0-10 V, Thermocouple (J, K, T) |
| Channels | 8 channels (up to 8 analog inputs) |
| Accuracy | ±0.1% of full scale |
| Input Impedance | >1 MΩ |
| Power Supply | 24 VDC |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (HxWxD) | 221 x 121 x 80mm |
| Weight | 0.2 kg |
| Mounting | DIN rail mountable |
| Protection | Overvoltage, overcurrent, thermal protection |
| Certification | CE, UL, RoHS |
Applications
The Honeywell CC-TAID01 analog input module is suited for a broad array of applications that require reliable and precise data collection from field sensors:
-
Industrial Automation Systems: Ideal for use in control systems where multiple analog inputs from sensors are needed.
-
Process Control: Collects and converts analog signals from temperature sensors, pressure sensors, and other field instruments in manufacturing processes.
-
Energy Monitoring: Used in energy management systems to acquire analog data for monitoring power consumption, electrical flow, and other critical parameters.
-
Building Automation: Helps in collecting temperature, humidity, and other analog data from HVAC systems, lighting controls, and environmental sensors.
-
Oil & Gas: Measures and monitors temperature, pressure, and flow in production processes, ensuring safety and efficiency in hazardous environments.
-
Water Treatment: Converts analog signals from water quality sensors into usable data for monitoring and controlling water treatment processes.
Advantages
-
High Precision and Accuracy: Provides excellent accuracy with minimal error, making it ideal for critical industrial applications.
-
Flexible Input Options: Supports a wide range of input signals, including standard 4-20mA, 0-10V, and thermocouples, offering flexibility across various sensor types.
-
Modular Design: Allows easy expansion by connecting multiple modules, making it scalable for complex automation systems.
-
Built-in Protection Features: Includes overvoltage, overcurrent, and thermal protection to safeguard both the module and connected equipment.
-
Compact and Robust: DIN-rail mountable and designed for easy integration into control cabinets and automation systems.
-
Compatible with Honeywell Systems: Fully integrated into Honeywell’s Experion and ControlEdge systems for seamless operation in automation environments.
Brand Information: Honeywell
Honeywell is a leading global technology company known for providing innovative products in industrial automation, aerospace, and other high-tech sectors. With over 100 years of experience, Honeywell is a trusted brand in providing solutions that enhance efficiency, safety, and sustainability. The CC-TAID01 is a part of Honeywell’s extensive offering of advanced industrial control products, reflecting the brand’s commitment to precision, reliability, and performance.
Related Models in the Same or Similar Series
| Model | Type | Input Channels | Input Type | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| CC-TAID02 | Analog Input Module | 8 channels | 4-20 mA, 0-10 V, Thermocouple | 63.5 x 124.46 x 307.34 | 0.35 kg |
| CC-TAID03 | High-Density Analog Input | 16 channels | 4-20 mA, 0-10 V, Thermocouple | 63.5 x 124.46 x 307.34 | 0.35 kg |
| CC-TAID04 | Analog Input Module with HART | 8 channels | 4-20 mA, HART-compatible | 63.5 x 124.46 x 307.34 | 0.35 kg |
| CC-PAIH01 | Analog Input Module | 4-20 mA | 4-20 mA | 63.5 x 124.46 x 307.34 | 0.35 kg |
| CC-PAIH02 | High-Accuracy Analog Input | 4-20 mA | 4-20 mA | 63.5 x 124.46 x 307.34 | 0.35 kg |
Other Popular Honeywell Models
| Model | Type | Output/Input | Application | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| CC-PUIO31 | General I/O Module | Digital/Analog | Signal I/O for automation | 63.5 x 124.46 x 307.34 | 0.3 kg |
| CC-PAOH01 | Analog Output Module | 4-20 mA / 1-5V | Process Control | 63.5 x 124.46 x 307.34 | 0.3 kg |
| CC-PWR401 | Non-Redundant Power Supply | 24 VDC | Power for automation | 63.5 x 124.46 x 307.34 | 0.3 kg |
| CC-PCNT01 | ControlNet Interface | 24 VDC | Field communication | 63.5 x 124.46 x 307.34 | 0.3 kg |
| CC-PDIL01 | Digital Input Module | 24 VDC | Digital signal input | 63.5 x 124.46 x 307.34 | 0.3 kg |
Frequently Asked Questions (FAQ)
Q1: What types of inputs does the Honeywell CC-TAID01 support?
A1: The CC-TAID01 supports 4-20 mA, 0-10V, and thermocouple inputs, providing flexibility for different sensor types.
Q2: How many input channels does this module have?
A2: The CC-TAID01 offers 8 input channels, allowing you to connect multiple sensors to a single module.
Q3: Can this module be used for high-density input applications?
A3: Yes, for applications requiring more input channels, models like the CC-TAID03 offer 16 channels for higher density input needs.
Q4: What is the power supply required for this module?
A4: The CC-TAID01 requires a 24 VDC power supply for operation.
Q5: What kind of protection does this module offer?
A5: The module includes overvoltage, overcurrent, and thermal protection to safeguard both the module and connected devices.
Q6: Is the CC-TAID01 compatible with Honeywell’s control systems?
A6: Yes, it is fully compatible with Honeywell’s Experion and ControlEdge systems, providing seamless integration.
Q7: What is the accuracy of the analog inputs?
A7: The CC-TAID01 offers an accuracy of ±0.1% of full scale, ensuring precise signal processing.
Q8: What is the operating temperature range of this module?
A8: The module operates within a temperature range of -20°C to +60°C, suitable for most industrial environments.
Q9: How is the CC-TAID01 mounted?
A9: The module is designed for easy DIN rail mounting, making it simple to integrate into control cabinets.
Q10: What certifications does this module have?
A10: The CC-TAID01 has CE, UL, and RoHS certifications, ensuring compliance with global safety and environmental standards.
